Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Cruze (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
Installation requires heat shield trimming and temporary lowering of the exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

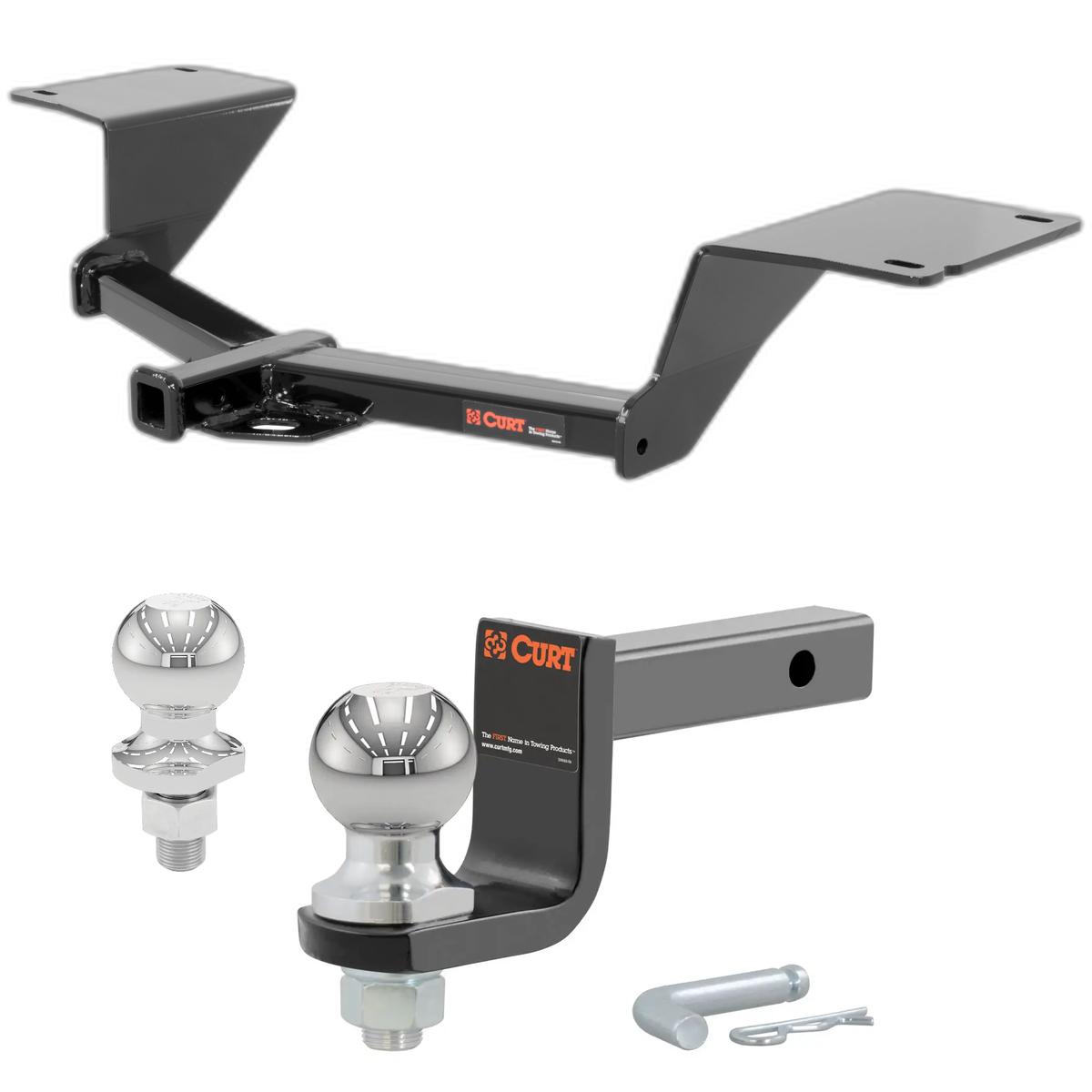

2016, 2017, 2018, 2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Receiver, Select Chevrolet Cruze
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2019 | Chevrolet Cruze | Sedan, Excluding Diesel |
The 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11439-001) fits 2016-2019 Chevrolet Cruze models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11439-001) fits the following vehicles: 2016-2019 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
Yes, the 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11439-001) is designed to fit the 2016-2019 Chevrolet Cruze.
The 2016-2019 Chevrolet Cruze Sedan, Excluding Diesel Class 1 Trailer Hitch, 1-1/4" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-11439-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 11439 is designed for 2016-Present Chevrolet Cruze Sedan models. Confirm your vehicle matches this specification before purchasing.
The CURT 11439 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11439 is designed for use with ballmount #D-55001 / 45521. Euro mount options are available: #45571 (1-7/8" ball) or #45572 (2" ball).
Required tools are: ratchet, torque wrench, 7mm/10mm/13mm sockets, 7/16" and 3/4" sockets, aviation shears, tape measure, safety glasses, marker, and pliers. A torque wrench is essential for final tightening to 70 ft-lbs.
The kit includes: 4× CM-SP2 spacers (.250 x .88 x 2.25" square hole), 4× 7/16-14 UNC carriage bolts grade 8 (part 10-10281), 4× 7/16-14 UNC flange nuts grade 8 (part 20-00103), and 7/16" fishwire.
No, drilling is not required. The hitch uses existing holes on both the driver and passenger side frame rails.
Yes, the exhaust must be lowered. Remove 2 rubber isolators from the muffler towards the center of the vehicle and remove the 13mm nut securing the rearmost hanger to the frame. Also unclip any additional plastic exhaust bracket. Exhaust configuration varies by model.
Yes, you must temporarily remove the underbody panel to access the passenger side frame rail. Remove 4 screws using a 7mm socket and 3 plastic nuts using a 10mm socket. Trim the panel using the provided trim diagram and set it aside for reinstallation after the hitch is mounted.
Only if a heat shield is present on your vehicle. If present, unscrew 3 speed nuts using needle nose pliers, trim the heat shield using aviation shears according to the trim diagram, and reinstall it. All dimensions are approximate; confirm fit before trimming.
Fishwire is a method to route hardware through frame access holes. Thread 4 CM-SP2 spacers (2 per side) and 4 7/16" carriage bolts (2 per side) through the access holes and out through the mounting holes on each side of the frame. Then raise the hitch into position and secure with 4 7/16" flange nuts (2 per side). Refer to the Fishwire Technique Diagram in the manual for visual guidance.
All 7/16" hardware (bolts and flange nuts) must be torqued to 70 ft-lbs.
Safety glasses must be worn at all times during installation. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Technical support is available at 877-287-8634.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe operation.
Two people may be required to ease installation. One person can attempt it, but having a helper is recommended.
The installation is rated as Easy to Moderate difficulty. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Yes, the CURT 11439 is designed for 2016-Present Chevrolet Cruze Sedan models with a 2,000 lbs trailer weight and 200 lbs tongue weight capacity.
No, no drilling is required. The hitch uses existing frame holes.
All 7/16" bolts and flange nuts must be torqued to 70 ft-lbs.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, 7mm/10mm/13mm sockets, 7/16" and 3/4" sockets, aviation shears, tape measure, safety glasses, marker, and pliers.
Safety glasses must be worn at all times during installation.
