2016-2023 Mazda CX-9 All Class 2 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $407.85. Current price is $304.92.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2021 Mazda CX-3
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2016-2021 Mazda CX-3 All

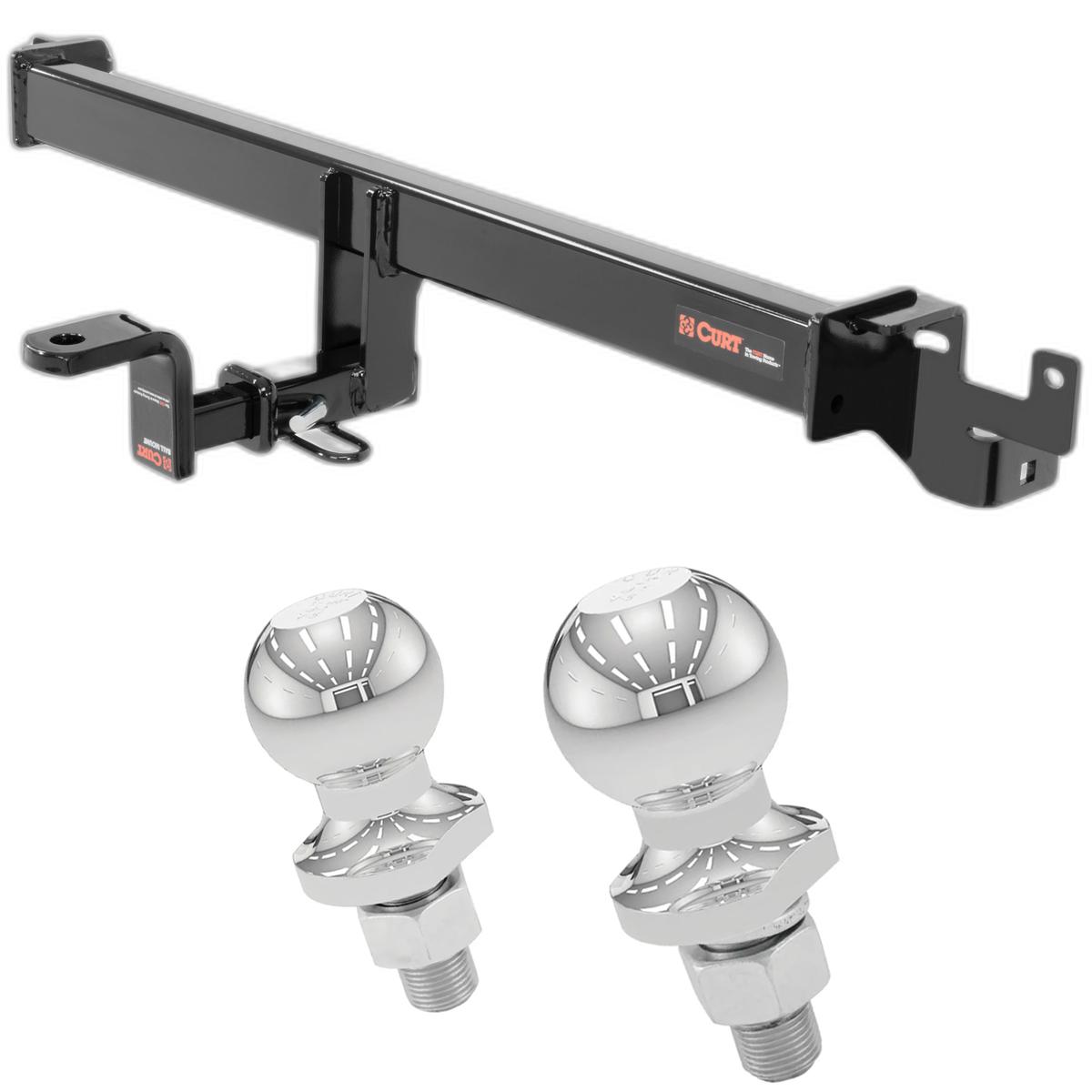

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Mazda CX-3 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2016, 2017, 2018, 2019, 2020, 2021 Mazda CX-3 All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Mazda CX-3
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2021 | Mazda CX-3 | — |
Yes, the 2016-2021 Mazda CX-3 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114183-001) is designed to fit the 2016-2021 Mazda CX-3.
The 2016-2021 Mazda CX-3 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114183-001) fits 2016-2021 Mazda CX-3 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2016-2021 Mazda CX-3 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114183-001) fits the following vehicles: 2016-2021 Mazda CX-3. Always verify your specific year, make, and model before ordering.
The 2016-2021 Mazda CX-3 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114183-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, hitch 11418 is designed for 2016-present Mazda CX-3 SUV models. Verify your vehicle year matches this range before purchase.
Hitch 11418 is designed for use with ballmount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
Maximum trailer weight is 2,000 lbs and maximum tongue weight is 200 lbs when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: 17mm socket, 3/4" socket, ratchet, torque wrench, and screwdriver. Safety glasses must be worn at all times during installation.
The kit includes: one 1/2-13 x 1 3/4" grade 8 carriage bolt, one CM-SP32 spacer (.188 x 1.50 x 2.00" round hole), and one HFN 1213 grade 8 hex flange nut. The hitch uses existing vehicle studs and hardware on both sides.
No. The installation notes explicitly state "NO DRILL" is required. The hitch uses existing vehicle studs and hardware.
Yes. Step 1 requires lowering the exhaust by removing four isolators and two push fasteners from the bumper cover. These fasteners must be saved for reinstallation in Step 5. The exhaust is raised and isolators reinstalled after the hitch is secured.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
1. Lower exhaust by removing four isolators and two push fasteners from bumper cover (save fasteners). 2. Remove two bottom M10 nuts from bumper beam (save nuts). 3. Raise hitch into position and loosely secure with the M10 nuts removed in step 2. 4. Install spacer between hitch and vehicle recovery loop, secure with 1/2" carriage bolt and 1/2" flange nut. 5. Tighten M10 bolts to 45 ft-lbs and 1/2" bolt to 90 ft-lbs, then reinstall push fasteners and raise exhaust with rubber isolators.
The CM-SP32 spacer (.188 x 1.50 x 2.00" round hole) is installed between the hitch and the vehicle recovery loop in Step 4. It is secured with the 1/2" carriage bolt and 1/2" flange nut.
Tighten M10 bolts to 45 ft-lbs and tighten the 1/2" carriage bolt to 90 ft-lbs. These torque values must be applied in Step 5 after the hitch is positioned and the spacer is installed.
A 17mm socket is required for the M10 bolts. These bolts are tightened to 45 ft-lbs.
A 3/4" socket is required for the 1/2" carriage bolt. This bolt is tightened to 90 ft-lbs.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
All non-trailer loads applied to this product must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
Never exceed your vehicle manufacturer's recommended towing capacity. This hitch is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight, but your vehicle's manufacturer may have a lower limit that must be observed.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection is critical to safe operation.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT Technical Support at 1-800-798-0813. For more information, visit www.curtmfg.com. For helpful towing tips, visit www.hitchinfo.com.
