Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2016-2023 Mazda CX-9 All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mazda CX-9 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Installation requires temporary removal of panel cover and lowering of exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Mazda CX-9 All Class 3 Trailer Hitch, 2" Receiver, Select Mazda CX-9
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Mazda CX-9 | — |

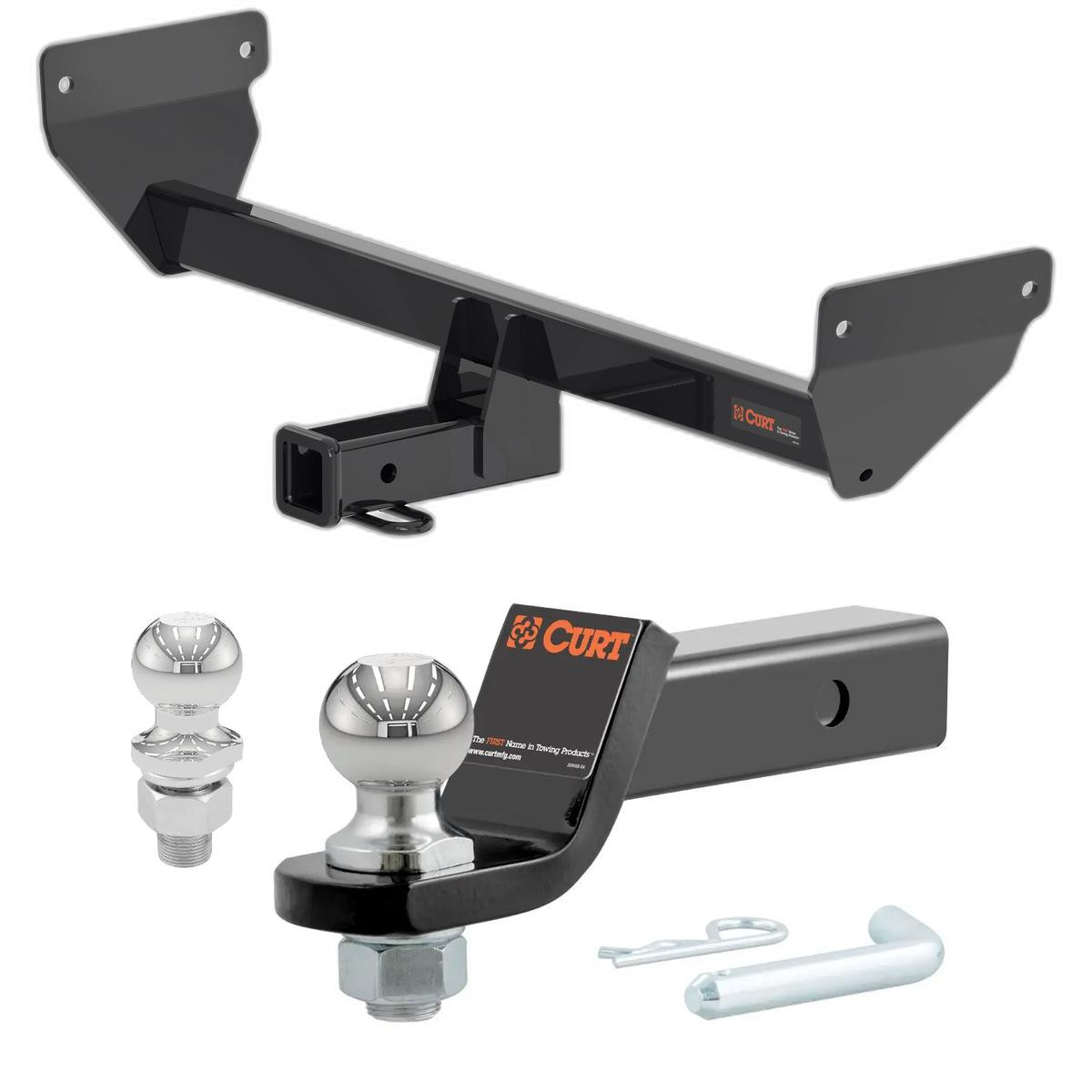

The 2016-2023 Mazda CX-9 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13284-001) fits 2016-2023 Mazda CX-9 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2016-2023 Mazda CX-9 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13284-001) is designed to fit the 2016-2023 Mazda CX-9.
The 2016-2023 Mazda CX-9 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13284-001) fits the following vehicles: 2016-2023 Mazda CX-9. Always verify your specific year, make, and model before ordering.
The 2016-2023 Mazda CX-9 All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13284-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13284 is designed for 2016-Current Mazda CX-9 SUVs. The hitch is a weight-carrying model with a gross load capacity of 4000 lbs trailer weight and 600 lbs tongue weight when used as a weight-carrying hitch, or 5000 lbs trailer weight and 600 lbs tongue weight when used as a weight distribution hitch. Always verify that your vehicle's towing capacity does not exceed these limits.
The hitch weight is 34 lbs.
When used as a weight-carrying hitch, the gross load capacity is 4000 lbs trailer weight and 600 lbs tongue weight. When used as a weight distribution hitch, the capacity is 5000 lbs trailer weight and 600 lbs tongue weight. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch capacity.
You will need: a ratchet, 10mm and 3/4" sockets, a torque wrench, a flathead screwdriver, a 6" socket extension, and safety glasses. The manual notes that using proper tools will greatly improve the quality of the install and reduce installation time.
No. The CURT 13284 is a no-drill application. It uses existing holes in the frame rails and access holes to route fishwire hardware for bolt installation.
The hitch includes: four (4) 1/2"-13 UNC carriage bolts, grade 8, 1-1/2" long (part 10-10287); four (4) 1/2"-13 UNC serrated flange nuts, grade 8 (part 20-00062); four (4) 0.250 x 1.00 x 3.00" square hole spacers (part CM-SP6); and four (4) 1/2" fishwires (part 1_2 FISHWIRE).
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, CURT recommends contacting an authorized CURT installer for additional assistance.
Remove the lower trim panel from the vehicle by removing two (2) plastic fasteners using a flathead screwdriver and two (2) hex nuts using a 10mm socket. Return the trim panel to the vehicle owner.
Remove four (4) rubber exhaust hangers using exhaust removal pliers or the method shown in the manual. Make sure the exhaust is supported during removal so it does not fall or become damaged.
Fishwire is used to guide the carriage bolts and spacers through the frame rail access holes and into the existing holes in the frame rails. In step 3, you fishwire one 1/2" carriage bolt and one CM-SP6 spacer through the access hole and into the forward-most hole in each frame rail, leaving the fishwires attached. In step 4, you reverse fishwire one 1/2" carriage bolt and one CM-SP6 spacer through the access hole in each frame rail, again leaving the fishwires attached. The fishwires are then removed in step 5 when the hitch is raised into position.
After raising the hitch into position and guiding the fishwire ends through the attachment holes, remove the fishwires and secure the hitch with four (4) 1/2" hex flange nuts (part 20-00062). Then torque all 1/2" fasteners to 110 ft-lbs.
All 1/2" fasteners must be torqued to 110 ft-lbs. This includes the four carriage bolts (part 10-10287) and four flange nuts (part 20-00062).
After torquing all fasteners, raise the exhaust back into position and reinstall the four rubber exhaust hangers that were removed in step 2.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval, so contact CURT technical support at 877-287-8634 for guidance on maintenance schedules.
Safety glasses must be worn at all times while installing this product. When removing the exhaust hangers, make sure the exhaust is supported so it does not fall. Before beginning installation, read all instructions thoroughly.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch has a maximum capacity of 4000 lbs trailer weight and 600 lbs tongue weight as a weight-carrying hitch, or 5000 lbs trailer weight and 600 lbs tongue weight as a weight distribution hitch, but your vehicle's manufacturer may specify a lower limit that must be observed.
Yes, CURT 13284 fits 2016-Current Mazda CX-9 SUVs. Maximum capacity is 4000 lbs trailer / 600 lbs tongue weight (weight-carrying) or 5000 lbs trailer / 600 lbs tongue weight (weight distribution). Never exceed your vehicle manufacturer's towing capacity.
No. CURT 13284 is a no-drill application that uses existing frame rail holes and access holes.
Ratchet, 10mm and 3/4" sockets, torque wrench, flathead screwdriver, 6" socket extension, and safety glasses.
Yes. You must remove four rubber exhaust hangers and support the exhaust during installation. The hangers are reinstalled after the hitch is secured and torqued.
All 1/2" fasteners must be torqued to 110 ft-lbs.
Weight-carrying: 4000 lbs trailer, 600 lbs tongue. Weight distribution: 5000 lbs trailer, 600 lbs tongue. Never exceed your vehicle manufacturer's recommended towing capacity.
