2016 Scion iA All Class 1 Trailer Hitch, 1-1/4" Ball MountCURTOriginal price was $472.85. Current price is $450.64.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2016 Scion iM
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2016 Scion iM All

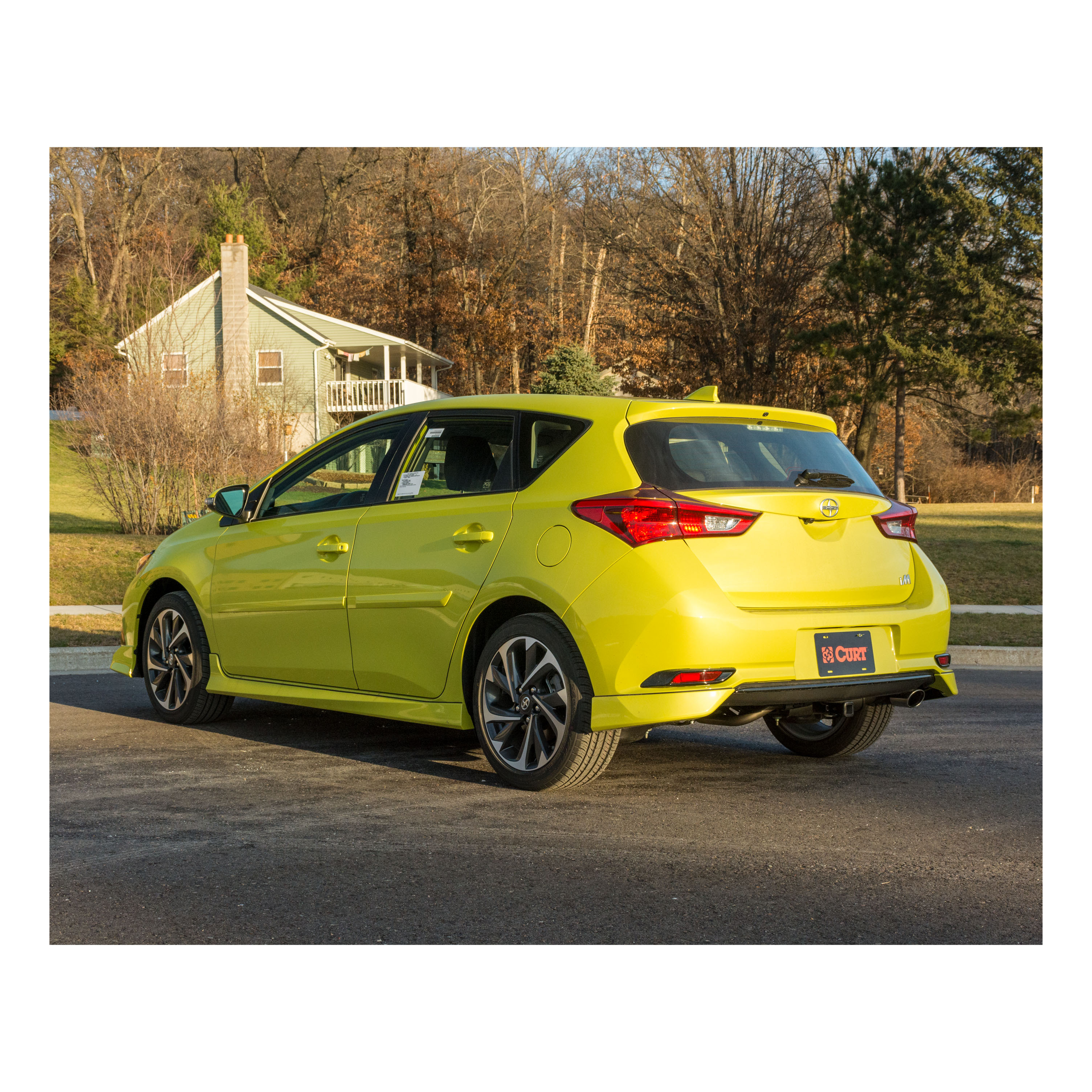

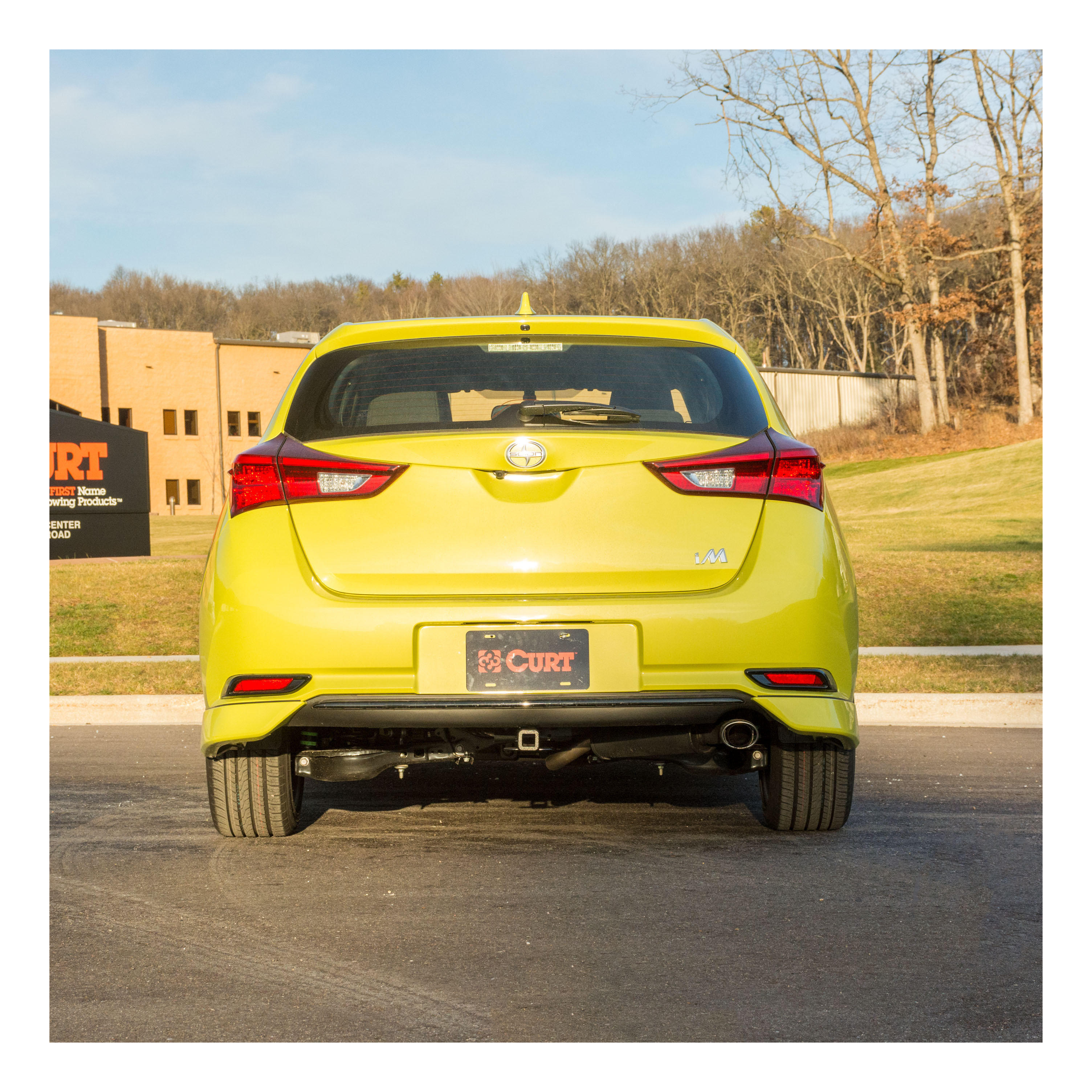

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Scion iM and Toyota Corolla iM (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

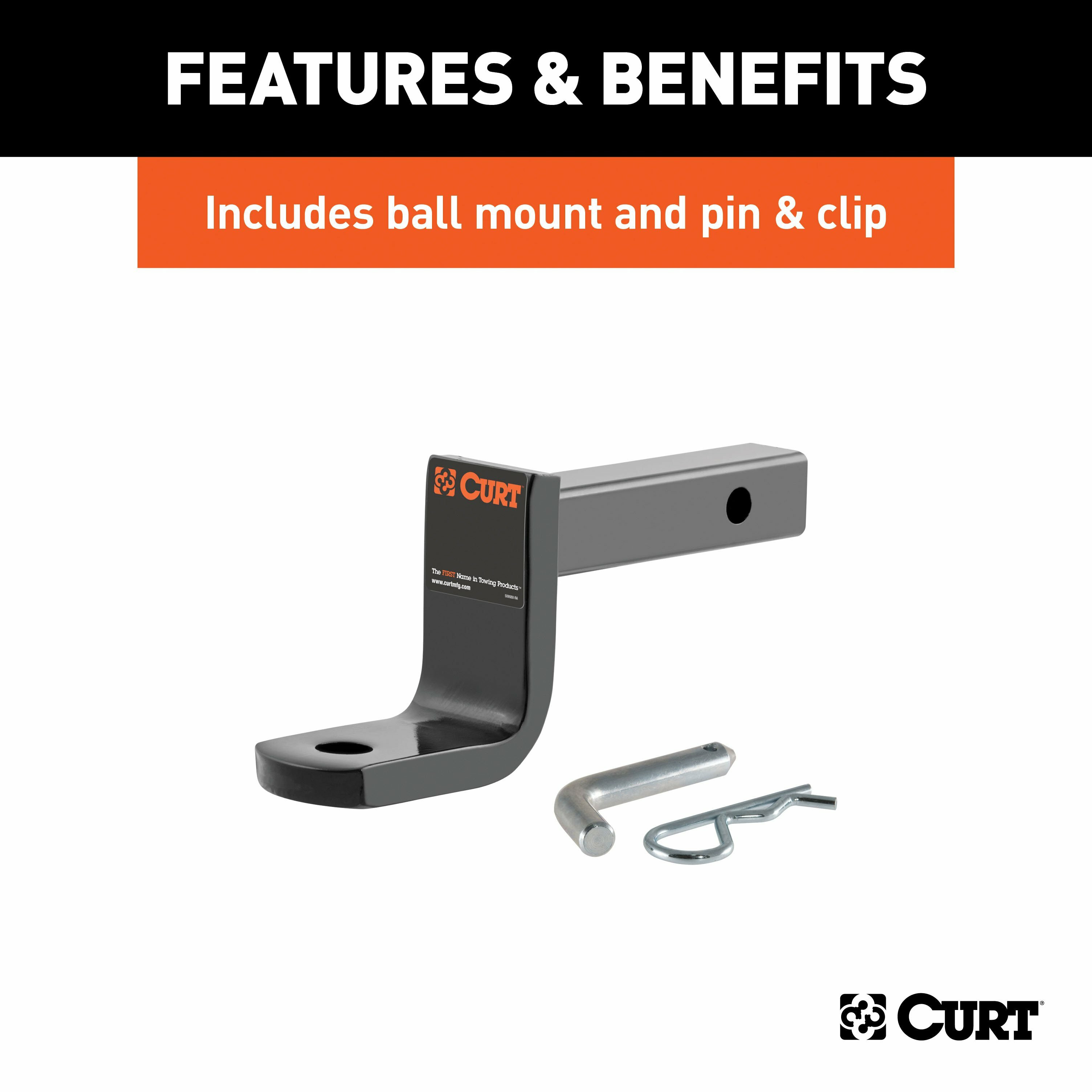

Includes ball mount #45521, installation hardware, pin & clip
2016 Scion iM All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Corolla iM, Scion iM
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 | Scion iM | — |
The 2016 Scion iM All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114203-002) fits the following vehicles: 2016 Scion iM. Always verify your specific year, make, and model before ordering.
The 2016 Scion iM All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114203-002) fits 2016 Scion iM models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2016 Scion iM All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114203-002) is designed to fit the 2016 Scion iM.
The 2016 Scion iM All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114203-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, hitch 11420 is designed for 2016-present Scion IM Hatchback models. It is a weight-carrying hitch with a 2,000 lb trailer weight capacity and 200 lb tongue weight capacity.
You will need: 12mm socket, 17mm socket, 19mm socket, 6" extension, ratchet, torque wrench, and straight screwdriver. Safety glasses are required at all times during installation.
No, drilling is not required. The hitch uses existing weld nuts in the frame on both sides.
Yes, the underbody panel must be trimmed. The manual provides a trim diagram with specific measurements: 3.00 in, 4.00 in, 5.00 in, and 8.50 in (typical). Trim the panel according to the diagram and reinstall after hitch installation.
Torque all M12-1.25 x 30mm hex bolts to 86 ft-lbs.
The hitch has a 2,000 lb trailer weight capacity and 200 lb tongue weight capacity when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer (wheel-less) loads must be supported by Curt 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance.
Hitch 11420 is designed for use with ballmount #45521. Euro mount options are also available: #45571 (1 7/8" ball) and #45572 (2" ball).
1. Lower the exhaust. 2. Remove the underbody panel using a 12mm socket to remove 3 plastic nuts and a straight screwdriver to remove 5 push fasteners from the panel and 1 from the bumper cover near the exhaust. 3. Remove the factory tow hook and hardware from the vehicle and return to owner. 4. Raise the hitch into position and loosely install hex bolts and conical tooth washers. 5. Torque all M12-1.25 x 30mm fasteners to 86 ft-lbs. 6. Trim the underbody panel using the trim diagram and reinstall the panel and exhaust in reverse order.
Yes, the factory tow hook and hardware must be removed from the vehicle. The hardware should be returned to the vehicle owner.
Yes, the exhaust must be lowered before removing the underbody panel. After trimming the underbody panel, reinstall the exhaust following the removal steps in reverse order.
The hitch includes 5 M12-1.25 x 30mm hex bolts and 5 conical toothed washers (1/2"). The hitch uses existing weld nuts in the frame on both the driver side and passenger side frame rails.
No, the hex bolts and conical tooth washers should be loosely installed when raising the hitch into position. Tighten them to the final torque specification of 86 ft-lbs only after the hitch is positioned.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done regularly to maintain safe operation.
Never exceed your vehicle manufacturer's recommended towing capacity. While hitch 11420 is rated for 2,000 lb trailer weight and 200 lb tongue weight, your vehicle's manufacturer may have a lower limit that must be observed.
Professional installation time is approximately 90 minutes. Novice (DIY) installation time is approximately 45 minutes. Actual time may vary depending on experience and vehicle condition.
The installation is rated as moderate difficulty. The manual recommends reading all instructions thoroughly before beginning, and notes that 2 people may be required to ease installation.
Safety glasses should be worn at all times while installing this product.
The hitch requires underbody panel trimming according to the provided trim diagram. No drilling is required. The factory tow hook must be removed. The exhaust must be lowered during installation but is reinstalled afterward.
