Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2017-2019 GMC Acadia All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the GMC Acadia (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Installation requires heat shield trimming and temporary lowering of exhaust

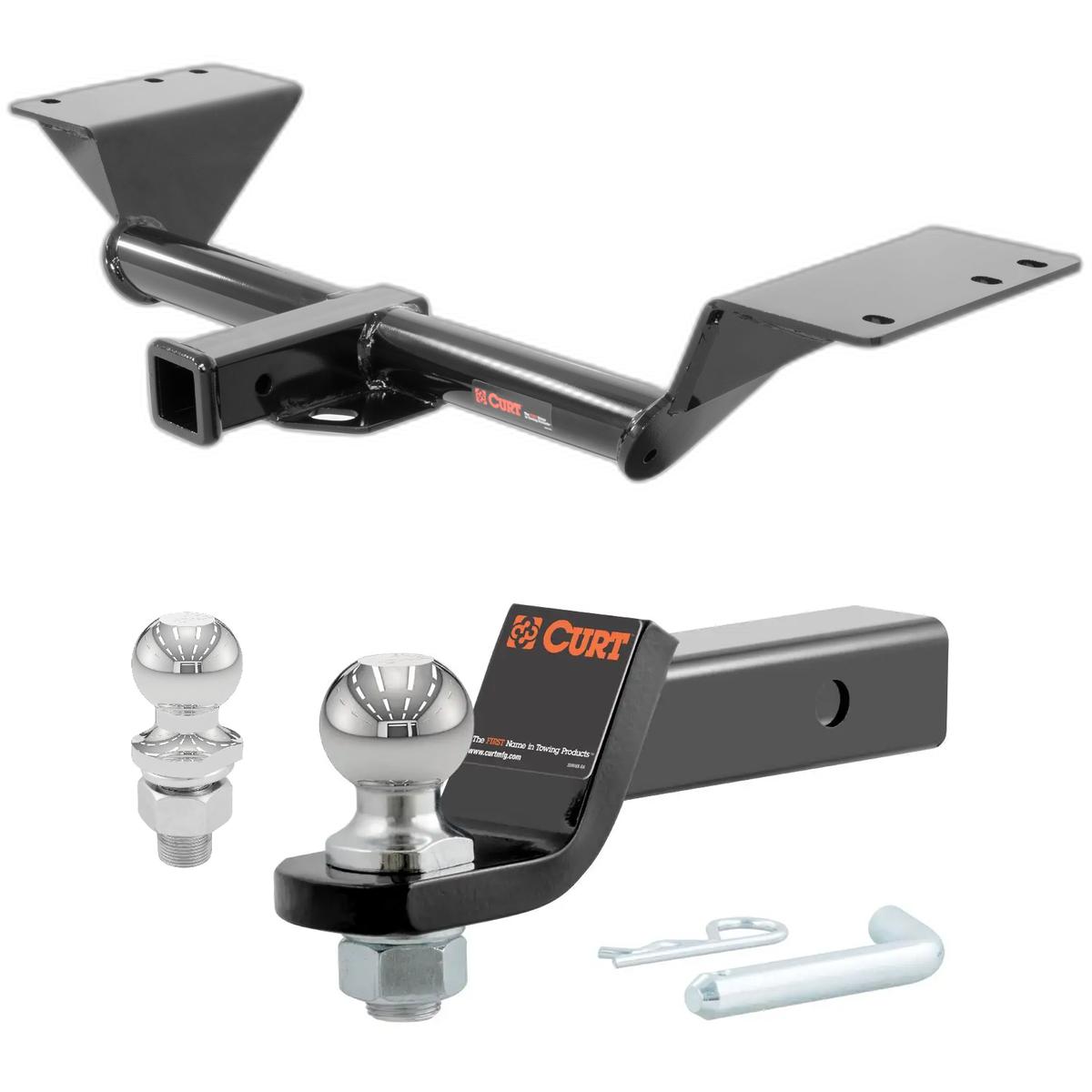

2017, 2018, 2019 GMC Acadia All Class 3 Trailer Hitch, 2" Receiver, Select GMC Acadia
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | GMC Acadia | — |
Yes, the 2017-2019 GMC Acadia All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13293-001) is designed to fit the 2017-2019 GMC Acadia.
The 2017-2019 GMC Acadia All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13293-001) fits 2017-2019 GMC Acadia models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2017-2019 GMC Acadia All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13293-001) fits the following vehicles: 2017-2019 GMC Acadia. Always verify your specific year, make, and model before ordering.
The 2017-2019 GMC Acadia All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13293-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13293 is designed for 2017-Present GMC Acadia SUVs. Confirm your vehicle year matches this range before purchasing. The hitch is a weight-carrying receiver hitch with a maximum gross load capacity of 5,000 lbs trailer weight and 750 lbs tongue weight, or 6,000 lbs trailer weight and 750 lbs tongue weight when used as a weight distribution hitch. Always verify your vehicle's manufacturer towing capacity and do not exceed it.
When used as a weight-carrying hitch, the maximum gross load capacity is 5,000 lbs trailer weight and 750 lbs tongue weight. When used as a weight distribution hitch, the capacity is 6,000 lbs trailer weight and 750 lbs tongue weight. The hitch itself weighs 40 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
CURT 13293 fits 2017-Present GMC Acadia SUVs only. Do not exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The hitch uses existing frame holes and access holes. Trimming of the exhaust heat shield is required.
Required tools are: torque wrench, ratchet, 15mm socket, 11/16" socket, 8" socket extension, pliers (needle nose for speed nuts), utility knife, aviation shears, and safety glasses. A 15mm socket may also help with removing rearmost exhaust brackets to ease lowering the exhaust.
The kit includes 6 carriage bolts (7/16-14 UNC, 1-1/4", Grade 8), 6 serrated flange nuts (7/16-14 UNC, Grade 8), 6 square hole spacers (0.250 x 0.88 x 2.25"), and 6 pieces of 7/16" fishwire.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Professional installation time is approximately 37 minutes. Novice (DIY) installation time is approximately 40 minutes. Actual time may vary depending on your experience level and familiarity with the vehicle.
The first step is to lower the exhaust by removing 3 rubber isolators as shown in the Rubber Isolator Removal Diagram. The manual notes that removing the rearmost exhaust brackets from the vehicle frame using a 15mm socket may ease lowering the exhaust.
Yes, heat shield trimming is required. Remove 4 speed nuts on each side using needle nose pliers, then trim the heat shield using aviation shears as shown in the trim diagram. The manual notes that all dimensions are approximate and you should confirm fit prior to trimming. After trimming, reinstall the heat shields.
The heat shield should be trimmed approximately 4.00" (typical) and 12.00" (typical) as shown in the Heat Shield Diagram. All dimensions are approximate; confirm fit prior to trimming.
Fishwire 3 CM-SP2 spacers and 3 7/16" carriage bolts through the access holes and out the mounting holes on each frame rail. This technique allows you to guide the fasteners through the frame without drilling. The fishwire is used to pull the bolts and spacers through the access holes to the mounting holes on both the driver and passenger side frame rails.
After fishwiring the spacers and bolts, use pliers to remove 2 heat shield vehicle studs on each side. Raise the hitch into position and secure it with 6 7/16" flange nuts (3 on each side). The manual notes to scrape away excess caulk using a utility knife for proper installation.
Torque all 7/16" hardware to 59 ft-lbs using an 11/16" socket.
Use an 11/16" socket to torque all 7/16" hardware to 59 ft-lbs.
You have two options: either remove the Lower Panel Hitch Door and return it to the vehicle owner, or trim it as shown in the diagram (approximately 3" wide by 1.5" up). The choice depends on your preference and the vehicle owner's needs.
Yes. After torquing all 7/16" hardware to 59 ft-lbs, raise the exhaust back into position and reinstall the rubber isolators that were removed in Step 1.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Read all instructions thoroughly before beginning installation.
Never exceed your vehicle manufacturer's recommended towing capacity. While CURT 13293 has a maximum gross load capacity of 5,000 lbs trailer weight and 750 lbs tongue weight (weight-carrying) or 6,000 lbs trailer weight and 750 lbs tongue weight (weight distribution), your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's recommendation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing maintenance is important for safe operation.
The manual recommends periodically checking the receiver hitch to ensure all fasteners are tight and all structural components are sound. No specific interval is provided; establish a regular maintenance schedule based on your towing frequency and usage.
The hitch weighs 40 lbs.
Yes, CURT 13293 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of products found to be defective and specifically excludes liability for incidental or consequential loss or damage.
Excess caulk around the mounting area can interfere with proper hitch positioning. Scrape away excess caulk using a utility knife before raising the hitch into position to ensure proper fit and alignment.
