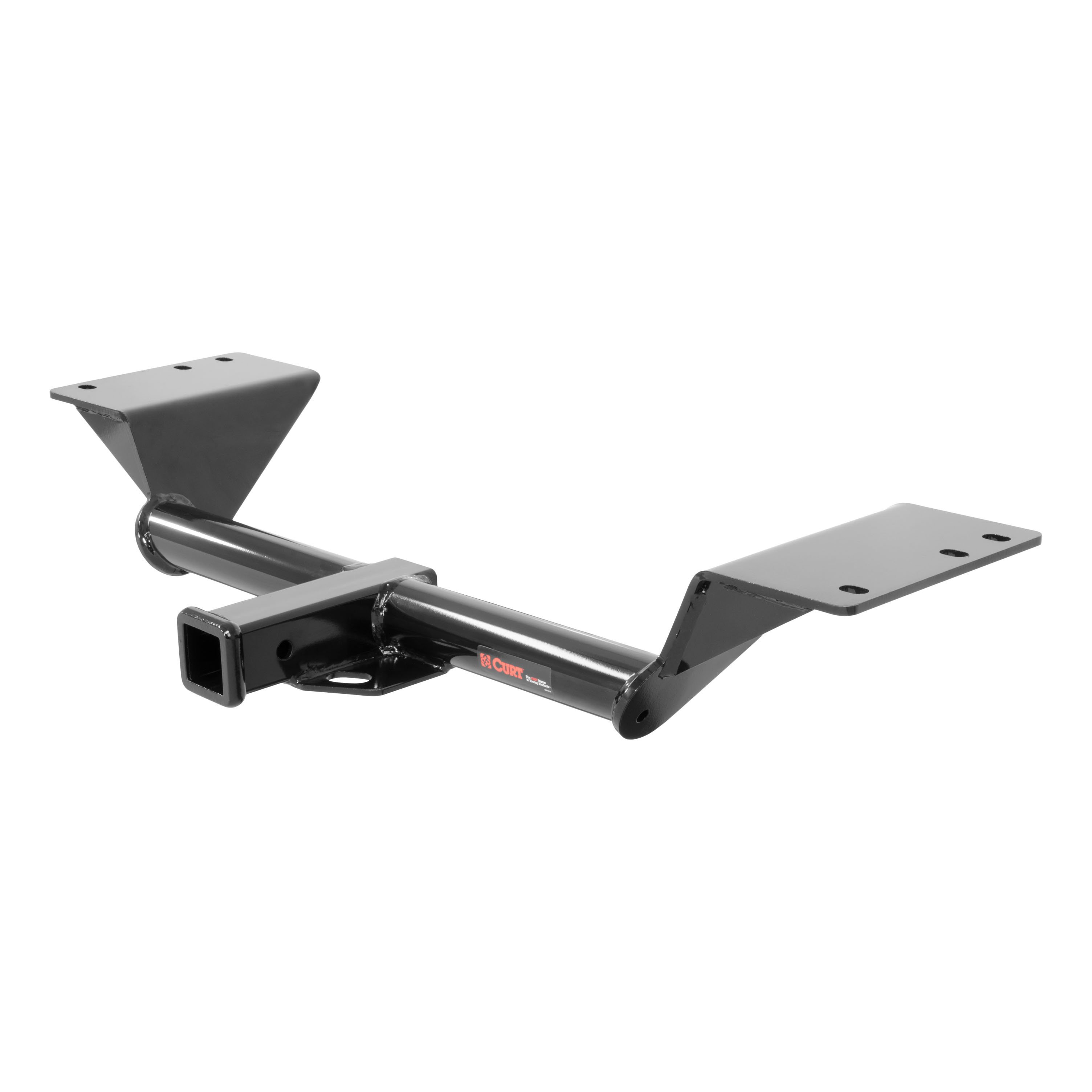

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 2017 - 2023 Acadia Excluding AT4. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the GMC Acadia (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Buick Enclave, Chevrolet Traverse (except Limited) and GMC Acadia (new body style; see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494One-Year Limited
Yes, CURT part number 13293 is designed for 2017-Present GMC Acadia SUVs. Confirm your vehicle year matches this range before purchasing. The hitch is a weight-carrying receiver hitch with a maximum gross load capacity of 5,000 lbs trailer weight and 750 lbs tongue weight, or 6,000 lbs trailer weight and 750 lbs tongue weight when used as a weight distribution hitch. Always verify your vehicle's manufacturer towing capacity and do not exceed it.
When used as a weight-carrying hitch, the maximum gross load capacity is 5,000 lbs trailer weight and 750 lbs tongue weight. When used as a weight distribution hitch, the capacity is 6,000 lbs trailer weight and 750 lbs tongue weight. The hitch itself weighs 40 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
CURT 13293 fits 2017-Present GMC Acadia SUVs only. Do not exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The hitch uses existing frame holes and access holes. Trimming of the exhaust heat shield is required.
Required tools are: torque wrench, ratchet, 15mm socket, 11/16" socket, 8" socket extension, pliers (needle nose for speed nuts), utility knife, aviation shears, and safety glasses. A 15mm socket may also help with removing rearmost exhaust brackets to ease lowering the exhaust.
The kit includes 6 carriage bolts (7/16-14 UNC, 1-1/4", Grade 8), 6 serrated flange nuts (7/16-14 UNC, Grade 8), 6 square hole spacers (0.250 x 0.88 x 2.25"), and 6 pieces of 7/16" fishwire.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Professional installation time is approximately 37 minutes. Novice (DIY) installation time is approximately 40 minutes. Actual time may vary depending on your experience level and familiarity with the vehicle.
The first step is to lower the exhaust by removing 3 rubber isolators as shown in the Rubber Isolator Removal Diagram. The manual notes that removing the rearmost exhaust brackets from the vehicle frame using a 15mm socket may ease lowering the exhaust.
Yes, heat shield trimming is required. Remove 4 speed nuts on each side using needle nose pliers, then trim the heat shield using aviation shears as shown in the trim diagram. The manual notes that all dimensions are approximate and you should confirm fit prior to trimming. After trimming, reinstall the heat shields.
The heat shield should be trimmed approximately 4.00" (typical) and 12.00" (typical) as shown in the Heat Shield Diagram. All dimensions are approximate; confirm fit prior to trimming.
Fishwire 3 CM-SP2 spacers and 3 7/16" carriage bolts through the access holes and out the mounting holes on each frame rail. This technique allows you to guide the fasteners through the frame without drilling. The fishwire is used to pull the bolts and spacers through the access holes to the mounting holes on both the driver and passenger side frame rails.
After fishwiring the spacers and bolts, use pliers to remove 2 heat shield vehicle studs on each side. Raise the hitch into position and secure it with 6 7/16" flange nuts (3 on each side). The manual notes to scrape away excess caulk using a utility knife for proper installation.
Torque all 7/16" hardware to 59 ft-lbs using an 11/16" socket.
Use an 11/16" socket to torque all 7/16" hardware to 59 ft-lbs.
You have two options: either remove the Lower Panel Hitch Door and return it to the vehicle owner, or trim it as shown in the diagram (approximately 3" wide by 1.5" up). The choice depends on your preference and the vehicle owner's needs.
Yes. After torquing all 7/16" hardware to 59 ft-lbs, raise the exhaust back into position and reinstall the rubber isolators that were removed in Step 1.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Read all instructions thoroughly before beginning installation.
Never exceed your vehicle manufacturer's recommended towing capacity. While CURT 13293 has a maximum gross load capacity of 5,000 lbs trailer weight and 750 lbs tongue weight (weight-carrying) or 6,000 lbs trailer weight and 750 lbs tongue weight (weight distribution), your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's recommendation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing maintenance is important for safe operation.
The manual recommends periodically checking the receiver hitch to ensure all fasteners are tight and all structural components are sound. No specific interval is provided; establish a regular maintenance schedule based on your towing frequency and usage.
The hitch weighs 40 lbs.
Yes, CURT 13293 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of products found to be defective and specifically excludes liability for incidental or consequential loss or damage.
Excess caulk around the mounting area can interfere with proper hitch positioning. Scrape away excess caulk using a utility knife before raising the hitch into position to ensure proper fit and alignment.
The Curt 56537 is a custom wiring harness kit designed for SUVs and Vans to provide electrical connections for rear hitch installations. It connects the vehicle's electrical system to a 7-way trailer plug, allowing you to power trailer lights and accessories.
The Curt 56537 is designed for SUVs and Vans. The manual does not specify particular makes or models. Verify fitment with the product listing or contact Curt Manufacturing directly with your vehicle's year, make and model.
Yes. Step 1 requires you to locate the vehicle battery in the engine compartment on the driver side and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation.
The following tools are required: ratchet, 15mm socket, utility knife, and panel trim removal tool. A 15mm socket is specifically needed to remove the two exhaust hanger mounting bolts if the exhaust hanger blocks access to the harness connector.
Two red 10-amp fuses are required. Step 2 instructs you to verify that these two fuses are installed in the vehicle fuse panel on the driver side under the hood. If they are missing, install the fuses provided in the custom wiring harness kit.
The harness connector is located at the rear of the vehicle on the driver side, above the exhaust hanger. It is concealed behind the panel that covers the hitch and electrical harness. If the exhaust hanger blocks access, you will need to remove its two mounting bolts using a 15mm socket.
Press the red locking tab to the rear of the housing until it clicks. Then press down on the housing lock and pull it away from the mating connector. Remove the dust cover before attempting disconnection.
Not necessarily. The manual provides two procedures: Step 3A (with bumper in place) and Step 3B (with bumper removed). You only need to remove the bumper if the exhaust hanger prevents access to the harness connector from below. If access is possible with the bumper in place, you can proceed without removal.
Route the custom harness from the driver side along the hitch to the center of the vehicle. Mount it near the receiver hitch and connect the 7-way plug onto the custom harness plug. Use cable ties as needed to keep the custom harness mounted in place.
After connecting the harness, reconnect the negative battery terminal (Step 5). Then verify that the harness is functioning by attaching the battery and testing with a test light, 7-way tester, or a functioning trailer. Reinstall all items removed during installation and install the provided dust cover to help prevent corrosion.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The manual does not specify the product's weight or towing capacity. Contact Curt Manufacturing or check the product documentation for the specific rating.
Do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol). This can cause a ground short, resulting in sparks and/or electrical shocks. When you disconnect the negative battery terminal in Step 1, fasten this wire down and away from the battery.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This helps maintain proper function and prevent electrical issues.
The vehicle fuse panel is located on the driver side under the hood. Press the four release tabs to release the cover and lift it straight up. Verify that the two red 10-amp fuses are installed.
If it is not possible to access the harness connector from below the bumper with the exhaust hanger in place, use a 15mm socket to remove the two mounting bolts on the exhaust hanger to access the connector. This allows you to proceed without removing the entire rear bumper.
The Curt 56537 is designed for SUVs and Vans. Verify fitment with the product listing or contact Curt Manufacturing with your vehicle's year, make and model.
You need a ratchet, 15mm socket, utility knife, and panel trim removal tool. The 15mm socket is required to remove exhaust hanger bolts if needed.
Yes, you must disconnect the negative battery terminal before beginning installation. Reconnect it after the harness is connected and before testing.
After reconnecting the battery, test the harness with a test light, 7-way tester, or a functioning trailer to verify proper function.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The manual does not specify the product's capacity; contact Curt Manufacturing for this information.
Ensure you are pressing the red locking tab to the rear of the housing until it clicks. Then press down on the housing lock and pull it away from the mating connector. If the exhaust hanger is in the way, use a 15mm socket to remove the two exhaust hanger mounting bolts to gain better access.
First, verify that the two red 10-amp fuses are installed in the vehicle fuse panel on the driver side under the hood. Ensure the negative battery terminal is properly reconnected. Test the harness with a test light, 7-way tester, or functioning trailer. Check that all wires and connections are secure and show no visible damage.
