Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2019 Lexus GS300 All
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Lexus GS300 and GS350 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, pin & clip (Uses pre-existing vehicle hardware for installation)

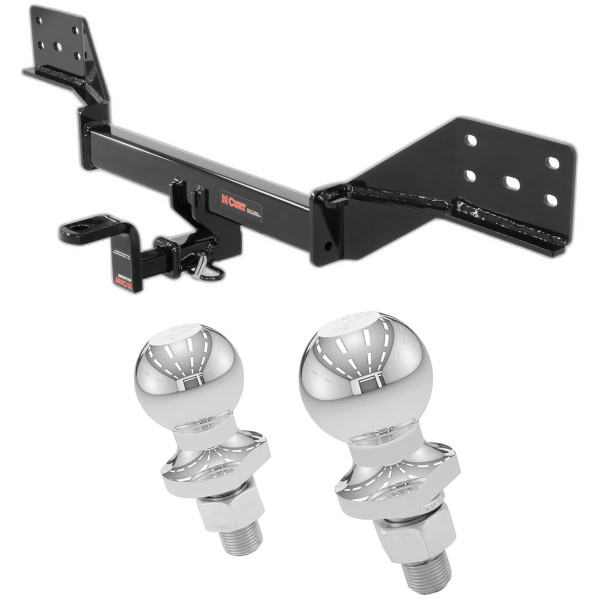

2018, 2019 Lexus GS300 All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Lexus GS300, GS350
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2019 | Lexus GS300 | — |
The 2018-2019 Lexus GS300 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113663-002) fits 2018-2019 Lexus GS300 models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2018-2019 Lexus GS300 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113663-002) is designed to fit the 2018-2019 Lexus GS300.
The 2018-2019 Lexus GS300 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113663-002) fits the following vehicles: 2018-2019 Lexus GS300. Always verify your specific year, make, and model before ordering.
The 2018-2019 Lexus GS300 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-113663-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Curt part number 11366 is designed for 2013-Present Lexus GS350 Sedan models.
Curt hitch 11366 is designed for use with ballmount #D-55001 / 45501, and Euro mounts #45571 (1 7/8" ball) and #45572 (2" ball).
The manual specifies a maximum trailer weight of 2000 lbs and tongue weight of 200 lbs for weight-carrying use. However, you must never exceed your vehicle manufacturer's recommended towing capacity. Consult your Lexus GS350 owner's manual for the vehicle's specific towing limits.
Required tools are: flat and Phillips head screwdrivers, 10mm and 12mm sockets, ratchet with 6" extension, torque wrench, rotary tool, and marker. Safety glasses must be worn at all times during installation.
No. The manual explicitly states "NO DRILLING REQUIRED" for this installation.
Yes. Bumper removal is required. The installation process begins with removing the bumper cover and bumper beam to access the mounting points. The bumper is reinstalled after the hitch is secured.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Two modifications are required: (1) Remove the lower alignment stud from the bumper beam location using a rotary tool, and (2) Trim the center of the underbody panel using a rotary tool. The trim dimensions are 4.25 inches by 2.38 inches, as shown in the trim diagram. These modifications are permanent.
All M8 hardware must be torqued to 23 ft-lbs. These are the bolts that secure the hitch and bumper beam to the vehicle.
The removal sequence is: (1) Remove one screw, one push fastener from behind the rear tire, and one push fastener from the wheel well. (2) Remove one screw hidden behind the wheel well at the top of the fascia and pry out the plastic clip with a flat head screwdriver. (3) Remove the small plastic panel between the tail light and trunk opening and remove the exposed screw. Repeat steps 1-3 on the other side. (4) Remove eight push fasteners from around the rear of the fascia. (5) Carefully remove the bumper cover by popping the sides off first, then pulling straight back. Disconnect the electrical connector under the driver side tail light. (6) Remove and set aside the foam for reinstall.
Reinstall the bumper cover by reassembling all components removed in steps 1-6 in reverse order. This includes reinstalling the foam, plastic panels, push fasteners, screws, plastic clips, and reconnecting the electrical connector under the driver side tail light.
All non-trailer loads applied to this hitch must be supported by Curt 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Curt recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, Curt 11366 is designed for 2013-Present Lexus GS350 Sedan models.
No drilling is required. You will need a rotary tool to remove an alignment stud and trim the underbody panel.
Yes, bumper removal is required. The installation process involves removing the bumper cover and bumper beam, then reinstalling them after the hitch is secured.
Torque all M8 hardware to 23 ft-lbs.
The hitch is rated for 2000 lbs trailer weight and 200 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer loads must be supported by Curt 18050 stabilizing straps. Failure to use them voids the warranty.
