This fits: 2018-2019 Toyota Prius C All

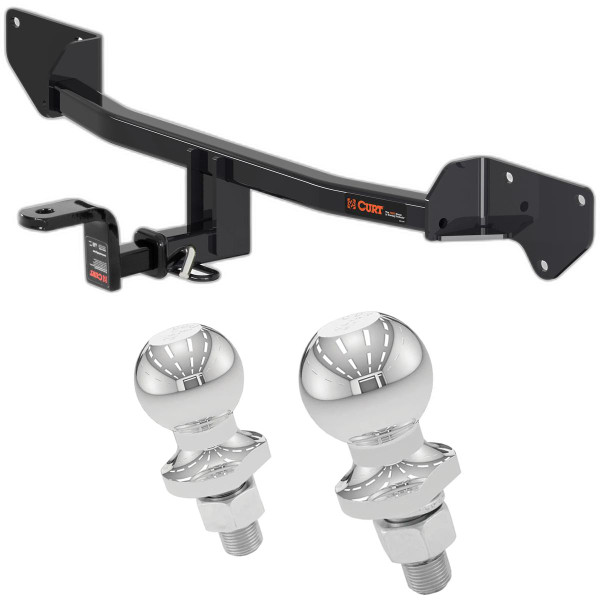

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Toyota Prius C (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Installation requires removal of underbody panels and temporarily lowering the exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2018, 2019 Toyota Prius C All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Prius C
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2019 | Toyota Prius C | — |
The 2018-2019 Toyota Prius C All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115233-001) fits the following vehicles: 2018-2019 Toyota Prius C. Always verify your specific year, make, and model before ordering.
The 2018-2019 Toyota Prius C All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115233-001) fits 2018-2019 Toyota Prius C models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2018-2019 Toyota Prius C All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115233-001) is designed to fit the 2018-2019 Toyota Prius C.
The 2018-2019 Toyota Prius C All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115233-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 11523 is designed for 2018-present Toyota Prius C Hatchback models. Before purchasing, verify your vehicle matches this year range and body style.
The CURT 11523 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11523 is designed for use with ballmount #45521. Two euro mount ball options are available: #45571 (1 7/8" ball) and #45572 (2" ball). These are sold separately.
No. The CURT 11523 requires no drilling. Installation uses existing weldnuts on the frame rails and supplied M8 hex bolts.
You will need: ratchet, torque wrench, 12mm socket, 13mm socket, screwdriver, and safety glasses. Proper tools will greatly improve installation quality and reduce installation time.
The kit includes 6 M8 hex head bolts (Class 10.9, M8-1.25 x 30) and 6 conical toothed washers (3/8"). These fasteners secure the hitch to the frame rails.
Yes. Step 1 requires lowering the exhaust by removing 2 rubber isolators. These isolators must be reinstalled after the hitch is secured.
Yes. Step 3 requires removing 6 bolts that secure the bumper beam to the end of the frame. The bumper beam must be supported when removing these fasteners. The bumper is then repositioned after the hitch is installed.
Yes. The installation requires removal of 3 underbody panels: the center panel (5 plunger fasteners) and 2 remaining panels (8 plunger fasteners total). Additionally, 2 plunger fasteners secure fascia tabs to the trunk pan. All panels and fasteners must be saved and reinstalled after hitch installation.
All M8 hex bolts must be torqued to 23 ft-lbs. Use a torque wrench to ensure proper tightness and avoid over-tightening.
1. Lower exhaust by removing 2 rubber isolators. 2. Remove center underbody panel (5 fasteners) and return to owner. 3. Remove 2 remaining underbody panels (8 fasteners) and fascia tab fasteners (2 fasteners); save all. 4. Remove 6 bumper beam bolts (support bumper). 5. Flex fascia tabs back, raise hitch into position by lifting and rotating bumper beam, and secure hitch with supplied M8 bolts and washers. 6. Torque all M8 hardware to 23 ft-lbs. 7. Reinstall fascia tabs, underbody panels, and exhaust isolators.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
Wear safety glasses at all times while installing this product. Support the bumper when removing fasteners to prevent injury. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance helps ensure safe operation.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person will help, particularly when supporting the bumper beam and positioning the hitch.
The installation is rated as moderate difficulty. The manual recommends reading all instructions thoroughly before beginning and using proper tools to improve installation quality.
Yes, CURT 11523 is designed specifically for 2018-present Toyota Prius C Hatchback. Rated for 2,000 lbs trailer weight and 200 lbs tongue weight.
No drilling required. Installation uses existing frame rail weldnuts and supplied M8 hex bolts. Underbody panel removal is required.
Ratchet, torque wrench, 12mm socket, 13mm socket, screwdriver, and safety glasses. No power tools required.
All M8 hex bolts must be torqued to 23 ft-lbs using a torque wrench.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Designed for ballmount #45521. Euro mount options available: #45571 (1 7/8" ball) or #45572 (2" ball), sold separately.
Yes. All non-trailer (wheel-less) loads must be supported by CURT 18050 stabilizing straps. Failure to use them voids the warranty.
