Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2019-2022 Toyota Prius AWD-e All
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Toyota Prius and Prius Prime (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Installation requires underbody panel trimming
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

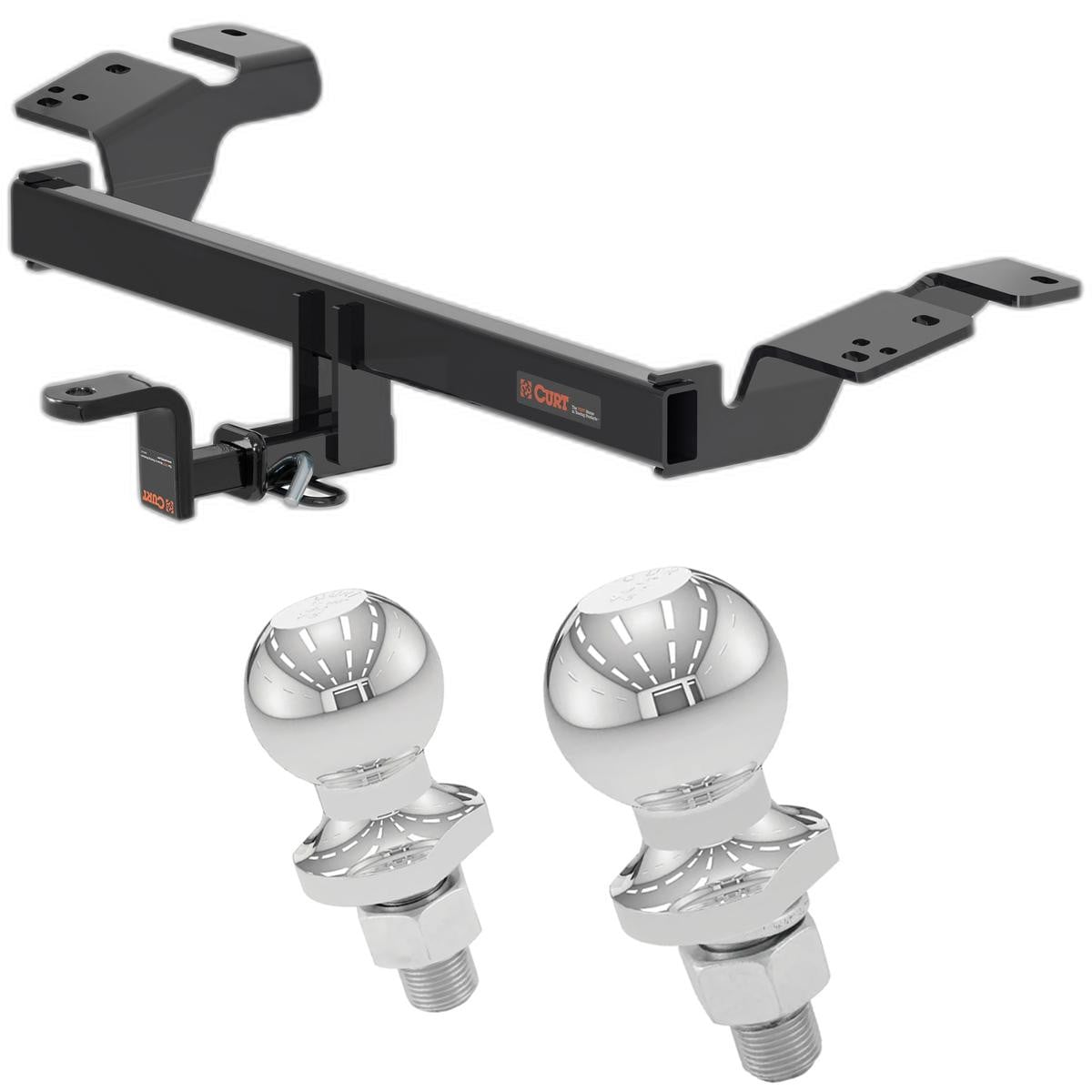

2019, 2020, 2021, 2022 Toyota Prius AWD-e All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Toyota Prius, Prime
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2022 | Toyota Prius AWD-e | — |
The 2019-2022 Toyota Prius AWD-e All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114733-003) fits 2019-2022 Toyota Prius AWD-e models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2022 Toyota Prius AWD-e All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114733-003) is designed to fit the 2019-2022 Toyota Prius AWD-e.
The 2019-2022 Toyota Prius AWD-e All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114733-003) fits the following vehicles: 2019-2022 Toyota Prius AWD-e. Always verify your specific year, make, and model before ordering.
The 2019-2022 Toyota Prius AWD-e All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-114733-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 11473 is designed for 2016-Present Toyota Prius Hatchback models. Verify your vehicle matches this specification before purchase.
The hitch has a maximum trailer weight capacity of 2,000 lbs and a tongue weight capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: ratchet, 12mm and 13mm sockets, torque wrench, Phillips screwdriver, small flat blade screwdriver, hammer, masking tape, tape measure, aviation shears, and safety glasses.
No, drilling is not required. The hitch uses existing holes and weldnuts on the vehicle frame.
Two people may be required to ease installation. The installation is rated as Challenging difficulty level.
All M8 fasteners (part number 10-10268) must be torqued to 23 lb-ft.
Safety glasses must be worn at all times while installing this product.
Non-trailer (wheel-less) loads can be applied to this hitch only if they are supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads voids the product warranty.
The hitch includes 8 fasteners (part number 10-10268, M8x1.25, 25mm length, Class 10.9, zinc-plated). The hitch is designed for use with ball mount 45521, with euro mount options available in 1 7/8" (45571) or 2" (45572) ball sizes. Ball mounts are sold separately.
The hitch is designed for use with CURT ball mount 45521. Euro mount options are available: 45571 (1 7/8" ball) or 45572 (2" ball). These are sold separately.
You must remove: (3) underbody panels (using 14 push pin fasteners and 3 twist type fasteners), the lower rear fascia (2 screws, and 2 white plastic clips on some models), and the bumper beam (8 bolts using a 12mm socket). The bumper beam and flange bolts should be returned to the vehicle owner.
Some 2016-Present Prius models have 2 white plastic clips located by the lower rear fascia screws. These must be removed if present. Check during disassembly.
Yes, the underbody panels must be trimmed as needed for reinstallation. The manual includes diagrams showing the trim locations. Use aviation shears for trimming.
1. Remove underbody panels, lower fascia, and bumper beam. 2. Flatten bumper beam tabs with a hammer. 3. Unclip wiring and fascia. 4. Raise hitch and bumper beam assembly into position and loosely install fasteners with 13mm socket. 5. Torque all M8 fasteners to 23 lb-ft. 6. Reinstall lower bumper fascia. 7. Trim underbody panels as needed. 8. Reinstall underbody panels.
The tabs on the end of the bumper beam assembly must be flattened with a hammer so they are flush. This is required before raising the hitch and bumper beam assembly into position.
No. When you raise the hitch and bumper beam assembly into position, loosely install the fasteners with a 13mm socket first. Only after all fasteners are in place should you torque all M8 fasteners to 23 lb-ft.
Use a 13mm socket to install the fasteners. After all fasteners are loosely installed, use a torque wrench to torque all M8 fasteners to 23 lb-ft.
Reinstall the lower bumper fascia in reverse order of removal. This means reclipping the fascia to the bumper cover, reclipping the wiring to the fascia clips, and reinstalling the 2 screws and any white plastic clips that were removed.
Periodically check that all fasteners are tight and all structural components are sound. This should be done regularly throughout the life of the hitch.
The maximum tongue weight is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
CURT 18050 stabilizing straps are required for all non-trailer (wheel-less) loads. These straps must be used to properly support the load. Failure to use them voids the product warranty.
Yes, this product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Call CURT Technical Support at 1-800-798-0813. You can also visit www.curtmfg.com for more information or www.hitchinfo.com for helpful towing tips. If you are hesitant to undertake the installation yourself, contact an authorized CURT installer for additional assistance.
