Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

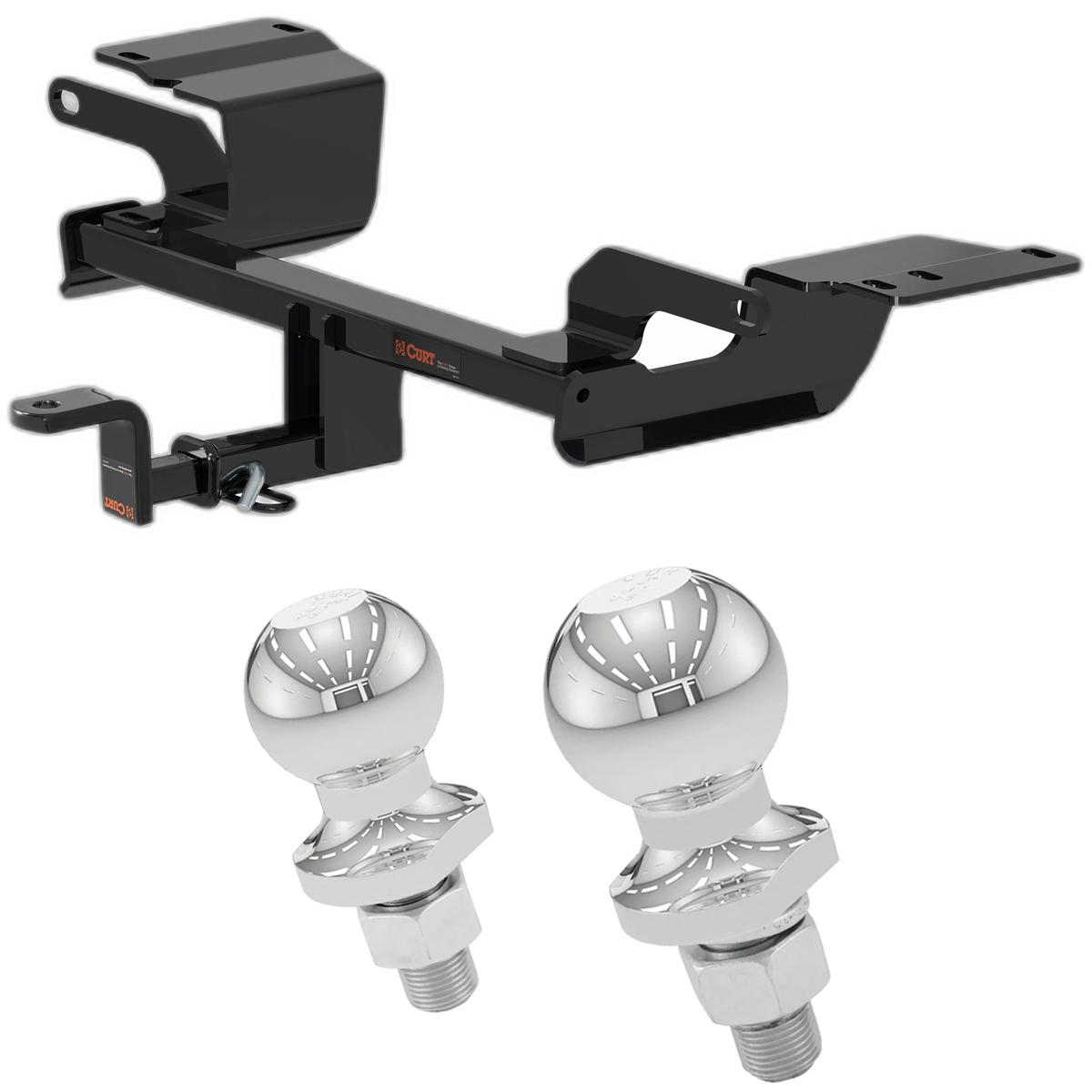

This fits: 2018-2020 Buick Regal TourX All
A CURT trailer hitch is the key to pursuing your passions, whether you're taking the family boat out for an afternoon on the water or packing up the mountain bikes for a day on the trails. This CURT class 2 hitch is perfect for towing a small trailer, such as a boat trailer, lightweight camper or utility trailer. It can also be used to mount a hitch cargo carrier or bike rack (never exceed the lowest-rated towing component). Like all CURT custom hitches, this class 2 trailer hitch is made for a vehicle-specific fit. It is engineered to seamlessly integrate with select years of the Buick Regal TourX (see application info to verify fitment). It is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight. It is also equipped with 1-1/4" x 1-1/4" hitch receiver to accept the included ball mount. The ball mount that comes with this hitch kit has a 3/4" trailer ball hole and can be positioned in the drop or rise orientation for level towing with your specific trailer (trailer ball not included). Like all CURT custom receiver hitches, this class 2 hitch is designed, manufactured, finished and tested with the utmost care. It is engineered for a precise fit, easy installation, maximum towing strength and an integrated look on the vehicle. It is also tested to SAE J684 protocols for safety. This class 2 trailer hitch is finished with our industry-leading dual-coat process for unparalleled rust, chip and UV resistance. It is descaled for a smooth surface, submersed in liquid A-coat for rust prevention inside and out, covered with a highly durable powder coat, and finally co-cured for a dependable shield against the elements. This class 2 hitch comes with a ball mount, hitch pin and mounting hardware for a complete installation.
Installation requires heat shield trimming and temporary lowering of exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
2018, 2019, 2020 Buick Regal TourX All Class 2 Trailer Hitch, 1-1/4" Ball Mount, Select Buick Regal TourX
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2020 | Buick Regal TourX | — |
The 2018-2020 Buick Regal TourX All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121733-001) fits 2018-2020 Buick Regal TourX models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2020 Buick Regal TourX All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121733-001) fits the following vehicles: 2018-2020 Buick Regal TourX. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2020 Buick Regal TourX All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121733-001) is designed to fit the 2018-2020 Buick Regal TourX.
The 2018-2020 Buick Regal TourX All Class 2 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-121733-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT hitch 12173 is designed for 2018-Present Buick Regal Tour X Wagon models. Confirm your vehicle matches this year and model before purchasing.
The hitch is rated for a maximum of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
The hitch weighs 40 lbs.
The hitch is designed for use with CURT ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) and #45572 (2" ball).
Required tools are: ratchet, torque wrench, 8" socket extension, 7mm socket, 13mm socket, 15mm socket, 11/16" socket, masking tape, aviation shears, needle-nose pliers, and safety glasses.
No, drilling is not required. The installation uses existing factory mounting holes on the frame rails.
Yes, the heat shield must be trimmed. Using aviation shears, trim the heat shield as shown in the Heat Shield Trim Diagram (12.00" length, 2.50" width). All dimensions are approximate; confirm fit prior to trimming. The heat shield is then reinstalled after trimming.
Trimming the center fascia tab is optional and may ease installation. If you choose to trim, cut 0.250 inches as shown in the Fascia Tab Trim Diagram. This is not required for installation to proceed.
Yes, you must lower the exhaust. Using a 15mm socket, remove 2 bolts attaching the exhaust bracket to the rear of the vehicle on each side. Support the exhaust to avoid damage. After the hitch is installed, the exhaust bracket is reinstalled on the hitch mounting plate.
Two people may be required to ease installation. One person alone may find it challenging, but the manual does not state that two people are absolutely required.
Professional installation time is approximately 40 minutes. Novice (DIY) installation time is approximately 60 minutes.
All 7/16 hardware must be torqued to 59 ft-lbs.
All M10 hardware must be torqued to 45 ft-lbs.
The hitch includes: (4) M10 - 1.5 x 65 hex bolts, (4) 7/16 fishwire carriage bolts, (4) 7/16-14 x 1 1/2 carriage bolts, (4) 7/16-14 hex flange nuts, (4) CM-SP2 square hole spacers (0.250 x 0.88 x 2.25"), and (2) CM-SP1 square hole spacers (0.250 x 1.50 x 2.00").
The fishwire technique is used to route 2 carriage bolts (7/16) and 2 CM-SP2 spacers through the access hole and out the mounting holes on each side of the frame rails. This allows the bolts to be positioned before raising the hitch into place.
Safety glasses must be worn at all times during installation. Support the exhaust to avoid damage when lowering it. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Call CURT Technical Support at 800-798-0813 if you have questions.
After installation, periodically check that all fasteners are tight and all structural components are sound. This ongoing maintenance is essential for safe towing.
Yes, CURT recommends the use of stabilizing straps (CURT #18050) for all non-trailer (wheel-less) loads. See the CURT catalog or visit www.curtmfg.com for further information.
Yes, CURT 12173 is designed for 2018-Present Buick Regal Tour X Wagon.
3,500 lbs trailer weight and 350 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling required. The hitch uses existing factory mounting holes.
Yes, the heat shield must be trimmed using aviation shears to 12.00" length and 2.50" width. Confirm fit before trimming.
Ratchet, torque wrench, 8" socket extension, 7mm/13mm/15mm/11/16" sockets, masking tape, aviation shears, needle-nose pliers, and safety glasses.
Torque all 7/16 hardware to 59 ft-lbs and all M10 hardware to 45 ft-lbs.
Yes, lower the exhaust by removing 2 bolts on each side using a 15mm socket. Support the exhaust to avoid damage. Reinstall after hitch installation.
Wear safety glasses at all times. Support the exhaust to avoid damage. Never exceed vehicle manufacturer's towing capacity. Use stabilizing straps (CURT #18050) for non-trailer loads.
