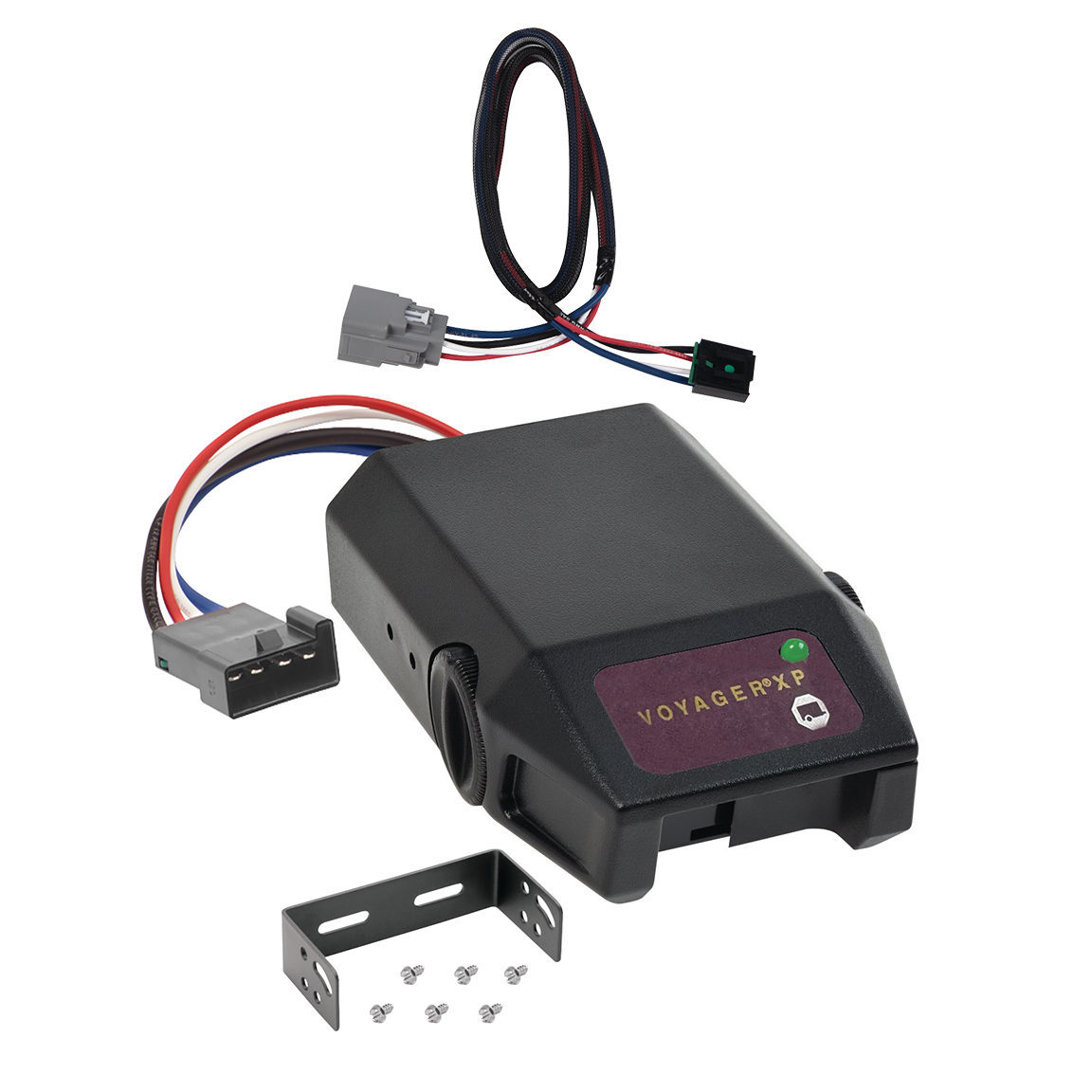

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | Jeep Wrangler | JL (New Body Style) |

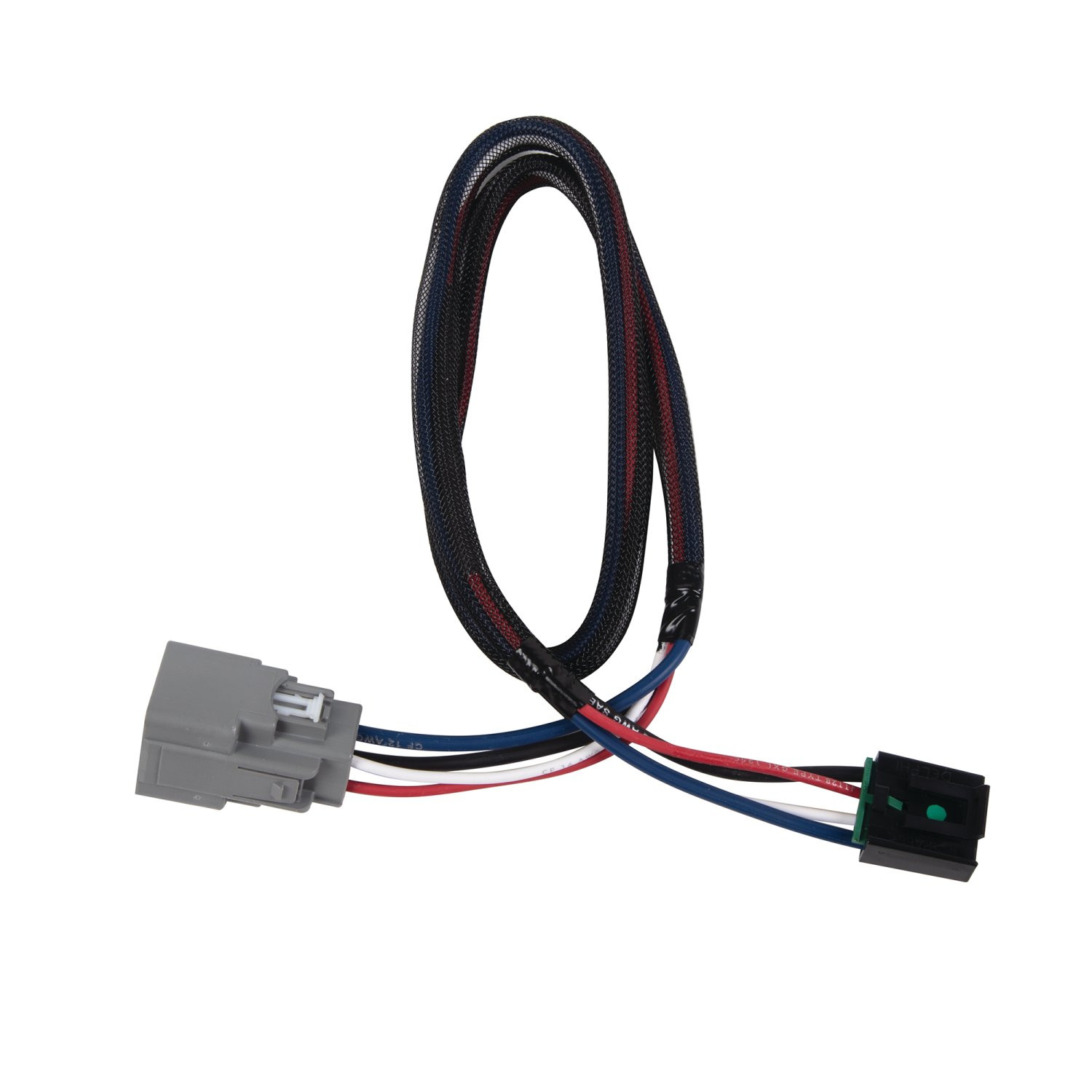

Yes, the 3073-037 is designed for Jeep Wrangler JL and Jeep Gladiator models. The adapter connects to the vehicle's electric brake control harness connector, which is located underneath the dash and to the left of the steering column, taped to another harness near the emergency brake pedal.
Yes. If you are installing part number 3073 or 3073-P, you must use additional kit 30235-P to ensure compliance with California regulations. Failure to use this kit may result in independent liability for the user.
Vehicles not equipped with an OEM trailer tow package may require additional fuses and relays to complete the output and battery feed circuits. These are sold separately. Consult your vehicle's owner's manual for the locations where fuses and relays should be installed.
No tools are required for installation of the brake control adapter itself.
The electric brake control harness connector is located underneath the dash and to the left of the steering column. It is taped to another harness near the emergency brake pedal. You will be looking for a 4-pin connector that mates with the one on the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit itself. Then, plug the adapter into the vehicle's electric brake control harness connector (the 4-pin connector located under the dash). Use butt connectors to attach the adapter wires to the corresponding wires on the electric brake control, following the brake control manufacturer's installation instructions.
Yes. After plugging in the adapter and connecting the wires, you must complete the installation per the electric brake control manufacturer's instructions and mount the unit as directed. You must also perform test procedures as instructed by the brake control manufacturer.
The maximum amperage rating is 24 amps, which corresponds to a maximum of 8 brakes on 4 axles. Do not exceed the lower of your towing manufacturer's rating (as stated in your vehicle owner's manual) or this 24 amp specification. Overloading the circuit can cause fires.
Always wear safety glasses during installation. Read and follow all warnings and instructions included with the product before beginning. Read, understand, and follow all warnings and instructions printed on the tow vehicle's battery. Do not exceed the lower of the towing manufacturer's rating or the amperage ratings stated on the product (24 amps maximum).
Overloading the circuit can cause fires. Do not exceed the lower of your towing manufacturer's rating or the maximum of 24 amps (8 brakes, 4 axles). Always consult your vehicle's owner's manual and the instruction sheet for additional information on safe amperage limits.
Yes, the 3073-037 is designed for Jeep Wrangler JL and Jeep Gladiator. It connects to the 4-pin electric brake control harness connector located under the dash, left of the steering column.
Yes, if installing part number 3073 or 3073-P in California, you must use additional kit 30235-P to comply with California regulations.
No tools are required. The installation uses the adapter's connectors and butt connectors to join wires.
Plug the adapter into the mating receptacle on the backside of the brake control first, then plug it into the vehicle's 4-pin electric brake control harness connector under the dash. Use butt connectors to attach the adapter wires to the corresponding brake control wires.
Maximum 24 amps (8 brakes, 4 axles). Do not exceed the lower of your towing manufacturer's rating or this specification, as overloading can cause fires.
Yes, always wear safety glasses and follow all safety precautions during installation.
Possibly. Vehicles without an OEM trailer tow package may require additional fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle owner's manual for locations.
