Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2024 Nissan Kicks All

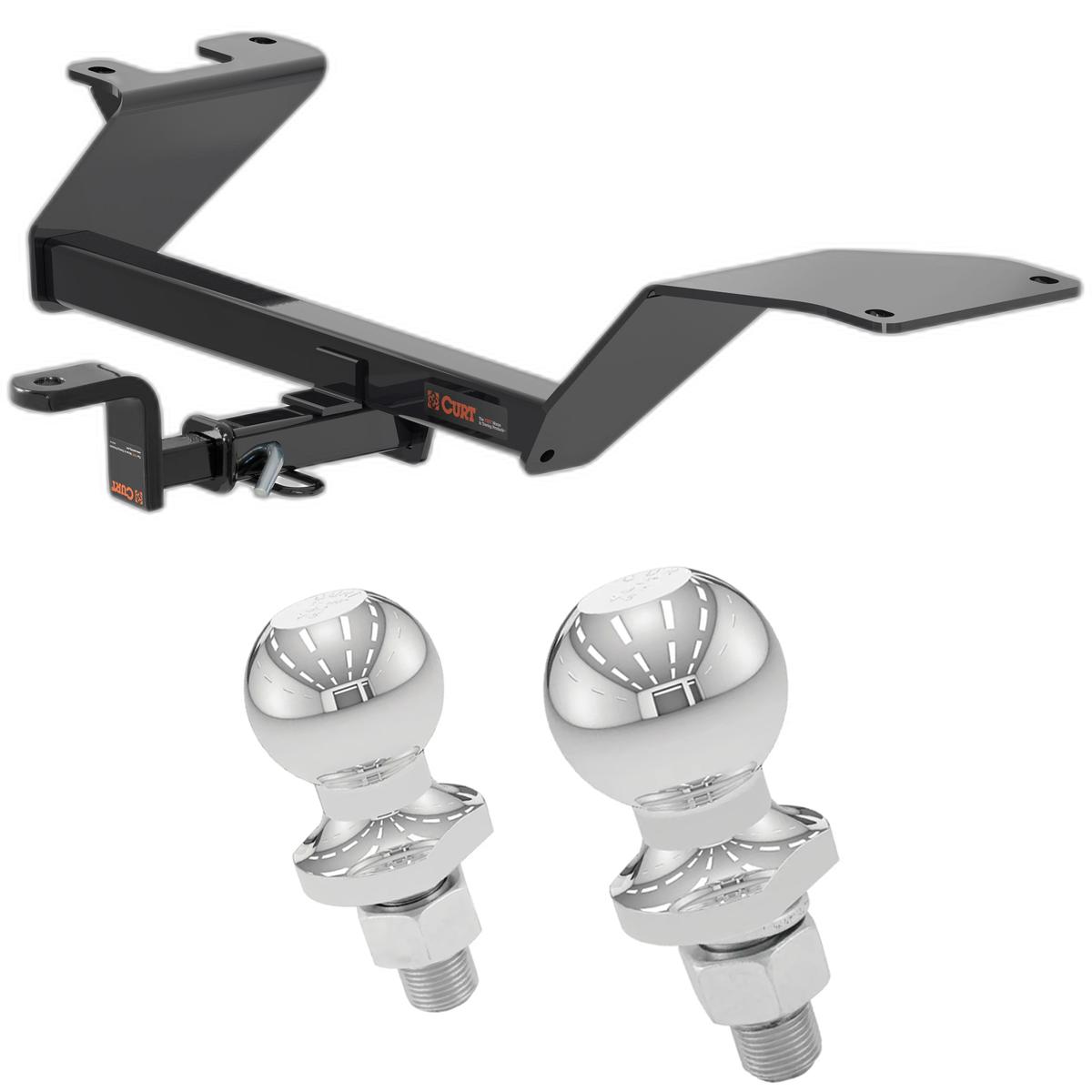

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Nissan Kicks (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521 (trailer ball sold separately), pin & clip and installation hardware
2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Kicks All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Nissan Kicks
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Nissan Kicks | — |
The 2018-2024 Nissan Kicks All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115633-001) fits the following vehicles: 2018-2024 Nissan Kicks. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2024 Nissan Kicks All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115633-001) is designed to fit the 2018-2024 Nissan Kicks.
The 2018-2024 Nissan Kicks All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115633-001) fits 2018-2024 Nissan Kicks models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2024 Nissan Kicks All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115633-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 11563 is designed for 2019-Present Nissan Kicks CUV models. Before purchasing, confirm your vehicle matches this year range and body style.
The CURT 11563 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
The CURT 11563 is designed for use with ball mount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
Required tools are: ratchet, torque wrench, 8" socket extension, sockets (10mm, 13mm, 11/16", 15/16"), pry tool, aviation shears, die grinder, and safety glasses. Using proper tools will greatly improve the quality of the install and reduce installation time.
The kit includes: 4× 7/16" fishwire, 4× .250 x .88 x 2.25" square hole spacers (CM-SP2), 4× 7/16-14 x 1 1/4" carriage bolts, and 4× 7/16-14 hex flange nuts.
The manual does not specify battery disconnection. However, the installation involves temporary removal of the emissions canister and exhaust components. If you are uncertain about any step, contact CURT Technical Support at 800.798.0813.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
No drilling is required. However, the installation does require enlarging the forward-most attachment hole on both sides using a die grinder, and trimming the heat shield. These are permanent modifications to the vehicle.
Two modifications are required: (1) trim the heat shield on the passenger side as shown in the heat shield trim diagram (all dimensions are approximate, so confirm fit prior to trimming), and (2) enlarge the forward-most attachment hole on both sides using a die grinder, referencing the hole enlargement diagram. The emissions canister and exhaust components must be temporarily removed to access these areas.
Installation sequence: (1) Temporarily remove the emissions canister from the driver side frame rail (1 fastener, 10mm socket); (2) Lower the exhaust on the passenger side by removing 2 exhaust isolators and 4 speed nuts from the heat shield; (3) Trim the heat shield as shown in the diagram; (4) Enlarge the forward-most attachment hole on both sides using a die grinder; (5) Fishwire 1 carriage bolt and 1 CM-SP2 spacer through the enlarged hole and out the rear-most hole on each side; (6) Reverse fishwire 1 carriage bolt and 1 CM-SP2 spacer through the enlarged hole on each side; (7) Reinstall the trimmed heat shield and raise the hitch into position; (8) Torque all 7/16 hardware to 59 ft-lbs, then reinstall the emissions canister and raise the exhaust.
The fishwire technique is used to route the carriage bolts and spacers through the frame rail holes. You fishwire 1 carriage bolt and 1 CM-SP2 spacer through the enlarged forward-most attachment hole and out the rear-most hole on each side. Then you reverse fishwire 1 carriage bolt and 1 CM-SP2 spacer back through the enlarged hole on each side. Refer to the fishwire technique diagram and reverse fishwire diagram in the manual for visual guidance.
All 7/16 hardware must be torqued to 59 ft-lbs. This includes the 7/16-14 x 1 1/4" carriage bolts and 7/16-14 hex flange nuts. Use a torque wrench to ensure proper tightening.
Safety glasses must be worn at all times while installing this product. The manual emphasizes this as a safety requirement for the installation process.
All non-trailer (wheel-less) loads applied to this product must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on stabilizing straps.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 11563 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must verify that your specific vehicle's manufacturer does not recommend a lower limit.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe operation and to maintain the warranty.
The manual recommends periodically checking the receiver hitch to ensure all fasteners are tight and all structural components are sound. No specific interval is provided; consult CURT Technical Support at 800.798.0813 for recommended maintenance intervals.
Yes, CURT 11563 is designed for 2019-Present Nissan Kicks CUV. It is rated for 2,000 lbs trailer weight and 200 lbs tongue weight.
You need: ratchet, torque wrench, 8" socket extension, sockets (10mm, 13mm, 11/16", 15/16"), pry tool, aviation shears, die grinder, and safety glasses.
No drilling is required, but you must enlarge the forward-most attachment hole using a die grinder and trim the heat shield on the passenger side.
Torque all 7/16 hardware to 59 ft-lbs using a torque wrench.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Designed for ball mount #45521. Euro mount options: #45571 (1 7/8" ball) and #45572 (2" ball).
