Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2018-2025 GMC Terrain Excluding Diesel
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Equinox (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,500 lbs. GTW and 675 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,500 lbs. WD and 675 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

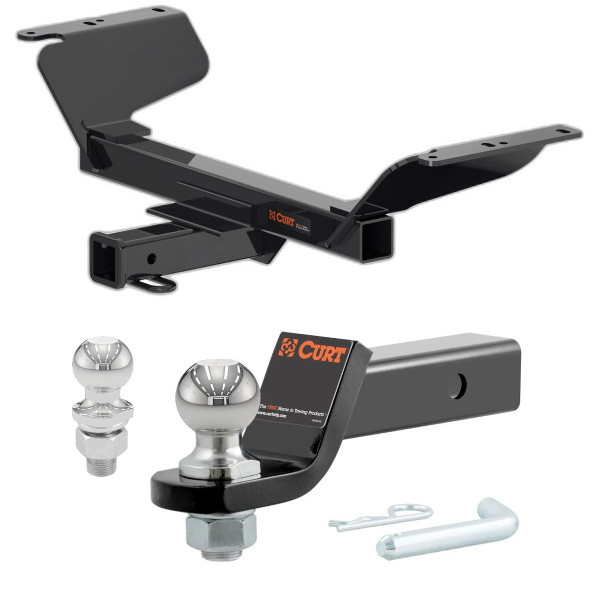

2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 GMC Terrain Excluding Diesel Class 3 Trailer Hitch, 2" Receiver, Select Chevrolet Equinox
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | GMC Terrain | Excluding Diesel |
The 2018-2025 GMC Terrain Excluding Diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13439-002) fits 2018-2025 GMC Terrain models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2018-2025 GMC Terrain Excluding Diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13439-002) is designed to fit the 2018-2025 GMC Terrain.
The 2018-2025 GMC Terrain Excluding Diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13439-002) fits the following vehicles: 2018-2025 GMC Terrain. Always verify your specific year, make, and model before ordering.
The 2018-2025 GMC Terrain Excluding Diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13439-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13439 is designed for 2018-Present Chevrolet Equinox and GMC Terrain SUVs. Before purchasing, verify your vehicle matches this model and year range, and confirm that your vehicle's towing capacity meets or exceeds the hitch specifications.
Yes, CURT part number 13439 is designed for 2018-Present GMC Terrain SUVs. Before purchasing, verify your vehicle matches this model and year range, and confirm that your vehicle's towing capacity meets or exceeds the hitch specifications.
When used as a weight-carrying hitch, the maximum trailer weight is 4,500 lbs. and tongue weight is 675 lbs. When used as a weight-distribution hitch, the same capacities apply. Never exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
Required tools are: ratchet, 15 mm and 3/4" sockets, 6" socket extension, T15 Torx bit socket, pry bar, torque wrench, rotary tool, and safety glasses. Proper tools greatly improve installation quality and reduce installation time.
The hitch includes: 6 carriage bolts (1/2-13 UNC, 1-1/2", Grade 8, part number 10-10287), 6 serrated flange nuts (1/2-13 UNC, Grade 8, part number 20-00062), 6 square hole spacers (0.250 x 1.00 x 3.00", part number CM-SP6), and 6 pieces of 1/2" fishwire (part number 1_2 FISHWIRE).
No drilling is required. The hitch uses existing frame rail access holes. However, you must slightly enlarge the access holes on both the driver and passenger side frame rails to allow the hardware to fit.
Yes. You must slightly enlarge the access holes on both the driver and passenger side frame rails to allow the hardware to fit. The manual indicates the access hole diameter is approximately 1.08". Use a rotary tool to enlarge the holes. This is a permanent modification to the vehicle frame.
Yes. The exhaust must be temporarily lowered during installation. Remove the 4 bolts from the rear exhaust hanger brackets (2 per side) using a 15 mm socket, then remove the exhaust rubber isolator in front of the muffler. Be sure to support the exhaust during this process. After hitch installation is complete, reinstall the exhaust.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Professional installation time is approximately 60 minutes. Novice (DIY) installation time is approximately 45 minutes. Actual time may vary depending on experience and familiarity with the vehicle.
The first step is to locate and remove the 2 Torx screws from the rear fascia. Save these screws for reinstallation at the end of the installation process.
After enlarging the access holes on both frame rails, utilize the access hole to fishwire one 1/2" carriage bolt and one spacer into each of the three mounting holes in both frame rails. This allows you to position the bolts through the frame without fully inserting them, making it easier to align the hitch before final tightening.
Raise the hitch into position and secure it to the vehicle using 6 of the 1/2" hex flange nuts (part number 20-00062) included with the hitch. Each nut fastens one of the carriage bolts that was previously fishwired into the frame rails.
Torque all 1/2" hardware to 110 ft-lb. Use a torque wrench to ensure proper tightening. After installation, periodically check that all fasteners remain tight.
After torquing the 1/2" hardware to 110 ft-lb, reinstall the exhaust and the 2 Torx fascia screws that were removed in step 1. This completes the installation.
After installation, verify that all fasteners are tight and all structural components are sound. The manual recommends periodically checking the receiver hitch to ensure all fasteners remain tight and all structural components remain in good condition throughout the life of the hitch.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
Safety glasses should be worn at all times while installing this product. When lowering the exhaust, be sure to support it properly to prevent injury or damage. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Never exceed your vehicle manufacturer's recommended towing capacity. CURT part number 13439 is rated for a maximum trailer weight of 4,500 lbs. and tongue weight of 675 lbs. when used as either a weight-carrying or weight-distribution hitch. However, your vehicle's manufacturer may specify a lower capacity, which must be observed.
CURT part number 13439 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC. may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For technical support, call CURT Manufacturing at 877-287-8634. For more information and helpful towing tips, visit www.curtmfg.com and www.hitchinfo.com. If you are hesitant to undertake installation on your own, you can contact an authorized CURT installer for additional assistance.
