CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2019 - 2020 Hyundai Santa Fe
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2019-2020 Hyundai Santa Fe All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sorento (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2019, 2020 Hyundai Santa Fe All Class 3 Trailer Hitch, 2" Receiver, Select Kia Sorento
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2020 | Hyundai Santa Fe | — |

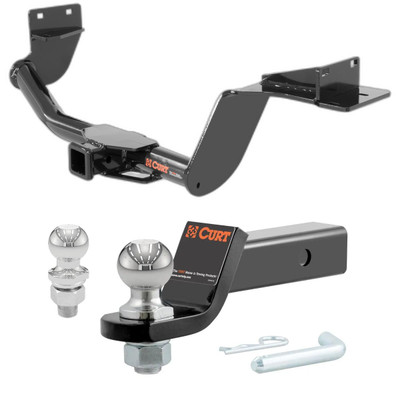

The 2019-2020 Hyundai Santa Fe All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13195-002) fits 2019-2020 Hyundai Santa Fe models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2020 Hyundai Santa Fe All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13195-002) fits the following vehicles: 2019-2020 Hyundai Santa Fe. Always verify your specific year, make, and model before ordering.
Yes, the 2019-2020 Hyundai Santa Fe All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13195-002) is designed to fit the 2019-2020 Hyundai Santa Fe.
The 2019-2020 Hyundai Santa Fe All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13195-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13195 fits Kia Sorento models from 2016 to present. The hitch is designed as a weight-carrying receiver hitch with a maximum trailer weight capacity of 5,000 lbs. and tongue weight capacity of 750 lbs.
Yes, CURT part number 13195 fits Hyundai Santa Fe models from 2019 to present. The hitch is designed as a weight-carrying receiver hitch with a maximum trailer weight capacity of 5,000 lbs. and tongue weight capacity of 750 lbs.
The CURT 13195 hitch has a maximum trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 750 lbs. when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: socket wrench, torque wrench, 10-inch socket extension, 3/4-inch socket, 14mm socket, 17mm socket, 11/16-inch socket, Phillips screwdriver, and safety glasses. Using proper tools will greatly improve the quality of the install and reduce the time required.
The hitch includes: (2) 1/2-13 UNC carriage bolts 4-1/2 inches long, Grade 8, zinc-plated (part 10-10297); (2) 1/2-13 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00062); (3) M10x1.25 hex cap screws 30mm long, Class 10.9, zinc-plated (part 10-10271); (3) 3/8-inch conical toothed washers, zinc-plated (part 30-00148); (2) 7/16-14 UNC carriage bolts 4-1/2 inches long, Grade 8, zinc-plated (part 10-10270); and (2) 7/16-14 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00103).
Yes. You must temporarily lower the spare tire before beginning installation. The spare tire is raised back into position in the final step after the hitch is fully installed and all fasteners are torqued.
Yes. You must temporarily remove the underbody panel on the driver side of the vehicle by removing (5) screws and (2) nuts. Retain the screws for reinstallation. The panel is reinstalled in reverse order after the hitch is fully installed.
Yes. You must temporarily lower the exhaust by removing (3) rubber isolators: (1) isolator toward the rear of the muffler, (1) isolator toward the front of the muffler, and (1) isolator on the exhaust tube forward of the muffler. The exhaust is raised back and the isolators are reattached after the hitch is fully installed.
Yes. You must remove (1) rubber plug from the bottom of the passenger side frame rail and (1) rubber plug from the bottom of the driver side frame rail. These plugs should be returned to the vehicle owner after removal.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, you can contact an authorized CURT installer for additional assistance.
The installation difficulty level is rated as Moderate. Professional installation time is approximately 90 minutes, while novice (DIY) installation time is approximately 45 minutes.
No. When raising the hitch into position, the (2) M10 hex bolts and washers on the passenger side and (1) M10 hex bolt and washer on the driver side should be loosely installed into the existing weldnuts. They are fully torqued to 48 lb-ft in a later step after all carriage bolts are installed.
The 1/2-inch carriage bolts and hex flange nuts must be torqued to 110 lb-ft.
The 7/16-inch carriage bolts and hex flange nuts must be torqued to 60 lb-ft.
The M10 hex cap screws and conical toothed washers must be torqued to 48 lb-ft.
Two M10 hex bolts with 3/8-inch conical toothed washers are installed into existing weldnuts on the passenger side of the vehicle.
One M10 hex bolt with a 3/8-inch conical toothed washer is installed into an existing weldnut on the driver side of the vehicle.
Two 1/2-inch carriage bolts are installed through the hitch and existing holes in the driver side frame rail. They are secured with 1/2-inch hex flange nuts and torqued to 110 lb-ft.
Two 7/16-inch carriage bolts are installed through the hitch and existing holes in the passenger side frame rail. They are secured with 7/16-inch hex flange nuts and torqued to 60 lb-ft.
Safety glasses should be worn at all times while installing this product.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection is important for safe operation.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
You can call CURT Technical Support at 877-287-8634 for help or questions about installation. If you are hesitant to undertake the installation on your own, you can also contact an authorized CURT installer for additional assistance.
CURT 13195 fits 2016-present Kia Sorento and 2019-present Hyundai Santa Fe. Maximum towing capacity is 5,000 lbs. trailer weight and 750 lbs. tongue weight.
You need: socket wrench, torque wrench, 10-inch socket extension, 3/4-inch, 14mm, 17mm, and 11/16-inch sockets, Phillips screwdriver, and safety glasses.
You must temporarily lower the spare tire, remove the driver-side underbody panel (5 screws and 2 nuts), lower the exhaust (3 rubber isolators), and remove 2 rubber frame plugs.
Torque 1/2-inch hardware to 110 lb-ft, 7/16-inch hardware to 60 lb-ft, and M10 hardware to 48 lb-ft.
Professional installation takes approximately 90 minutes; novice (DIY) installation takes approximately 45 minutes. Installation difficulty is rated as Moderate.
Never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by CURT 18050 stabilizing straps, or warranty is voided.
Periodically check that all fasteners are tight and all structural components are sound.
