These durable custom hitches are manufactured for 1996-2014 Chevrolet Express 1500, 1996-2023 Chevrolet Express 2500, 1996-2023 Chevrolet Express 3500, 1996-2014 GMC Savana 1500, 1996-2023 GMC Savana 2500, 1996-2023 GMC Savana 3500 and attach to your vehicle?s frame with strong, secure heavy-duty side brackets. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. DRAW-TITE Class 5 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a limited lifetime guarantee. So, whether you are headed out to the campground, the snowmobile trails, or off-roading, or you are hauling cargo to and from the job site, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Chevrolet Express 2500 | — |

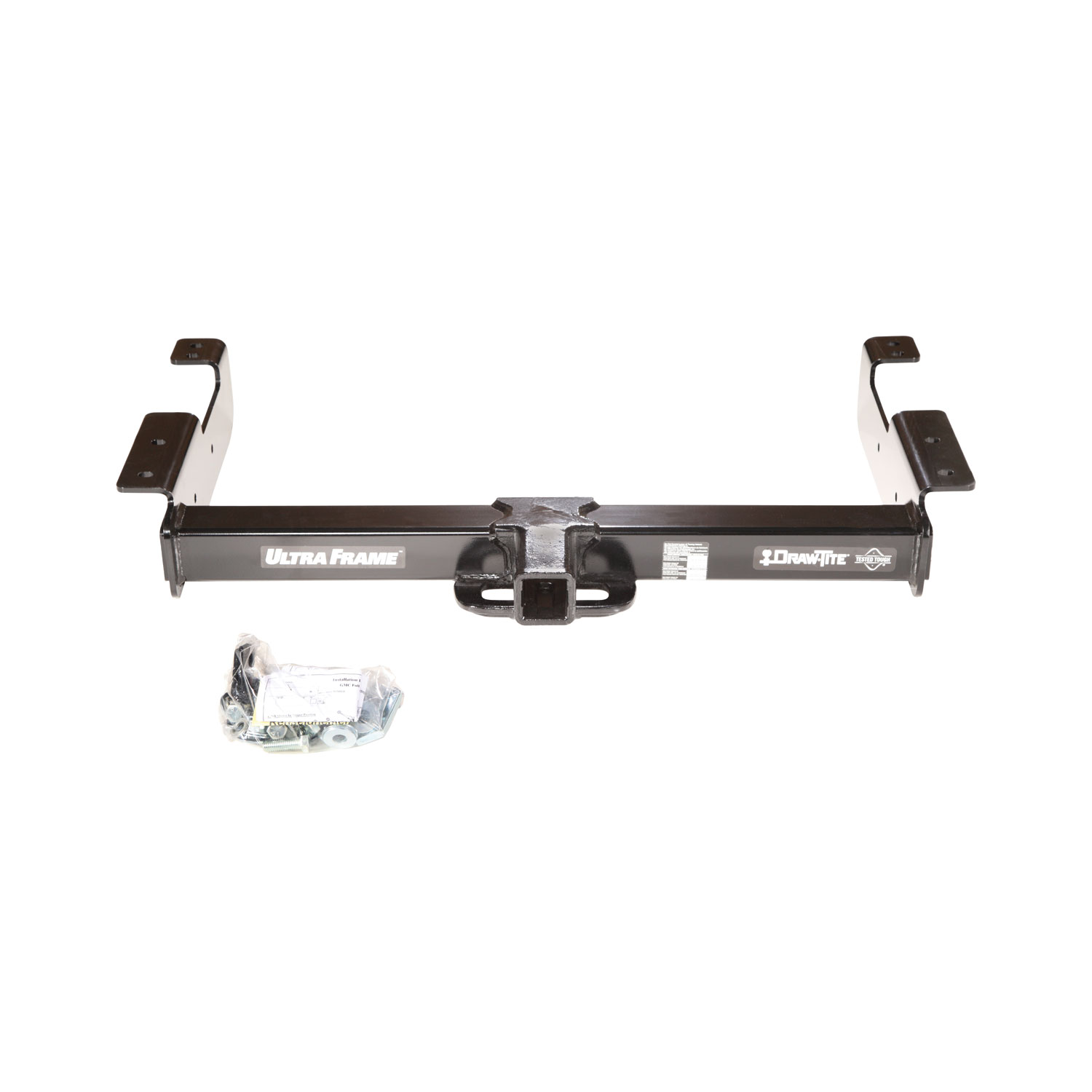

The 2019-2024 Chevrolet Express 2500 Draw-Tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-17-118392) fits 2019-2024 Chevrolet Express 2500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2024 Chevrolet Express 2500 Draw-Tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-17-118392) is designed to fit the 2019-2024 Chevrolet Express 2500.
The 2019-2024 Chevrolet Express 2500 Draw-Tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-17-118392) fits the following vehicles: 2019-2024 Chevrolet Express 2500. Always verify your specific year, make, and model before ordering.
The 2019-2024 Chevrolet Express 2500 Draw-Tite Class 5 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41946-17-118392) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 41946 is designed for GMC full size vans. The manual confirms this is the correct hitch for this vehicle type. However, the manual does not specify which model years are covered, so you should verify the exact year and model of your van with the manufacturer or retailer before purchasing.
The 41946 hitch has two configurations: Weight Distributing type supports a maximum gross trailer weight of 13,000 lb (5,902 kg) with a maximum tongue weight of 1,300 lb (590 kg). Weight Carrying Ball Mount type supports a maximum gross trailer weight of 10,000 lb (4,540 kg) with a maximum tongue weight of 1,500 lb (681 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: wrenches in 13/16" and 15/16" sizes, and a 9/16" drill bit. A torque wrench is also required to tighten all fasteners to the specified 110 Lb.-Ft. (149 N·M).
Yes. You must enlarge 8 existing holes to 9/16" diameter. The manual specifies that you should not cut access or attachment holes with a torch; use a drill bit instead.

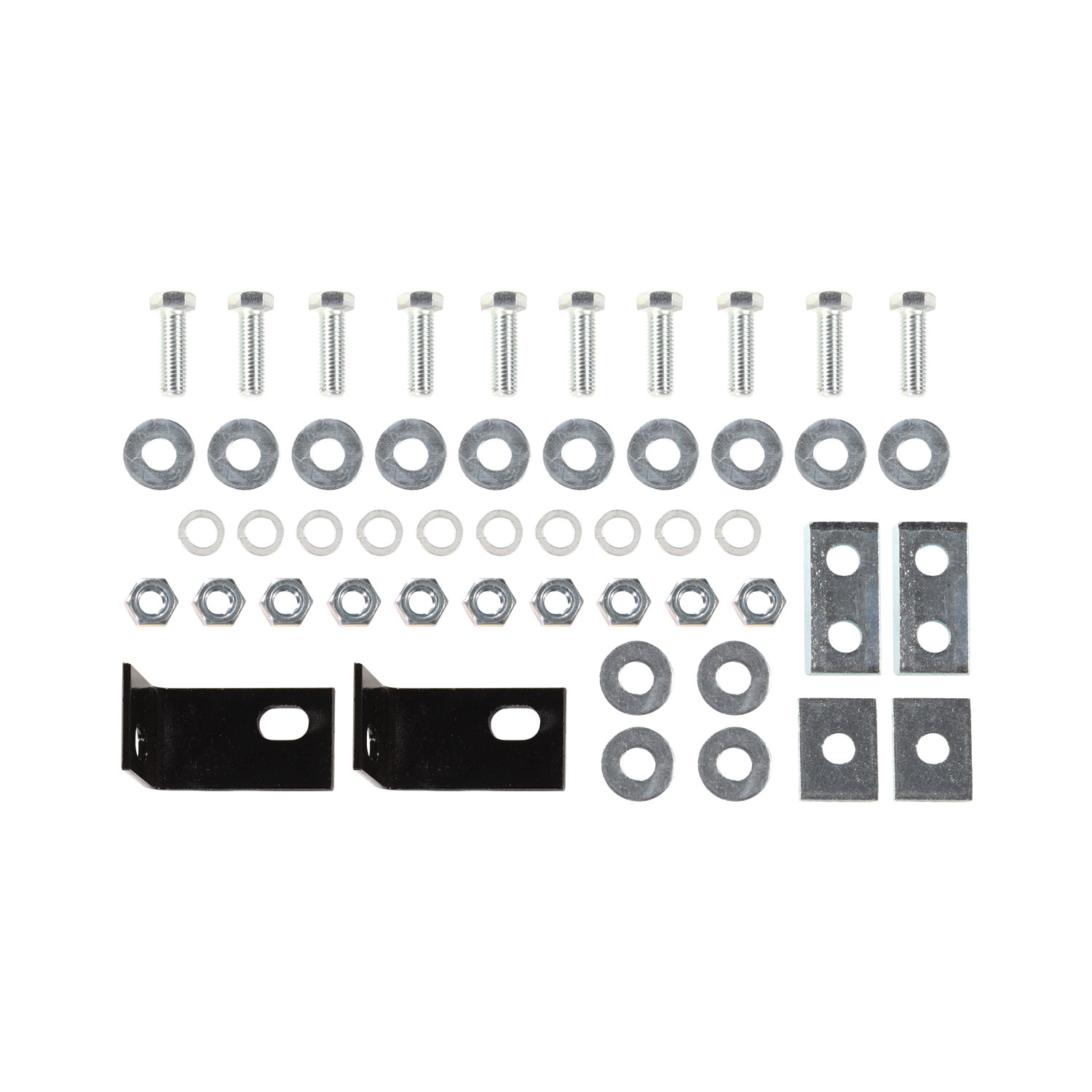

The hitch kit includes: 10 hex bolts 9/16"-12 X 1.75 GR5, 10 nuts 9/16"-12, 14 flat washers 9/16", 10 lock washers 9/16", 2 blocks 3/8" X 1-1/2" X 3", 2 blocks 1/4" X 1-1/2" X 2", 1 left-hand bracket, and 1 right-hand bracket. A separate fastener kit 41946F is also available.
All 9/16" fasteners must be tightened with a torque wrench to 110 Lb.-Ft. (149 N·M).
1. Enlarge the 8 existing holes to 9/16" diameter. 2. Insert bolts, brackets, and blocks through the existing access slots and into the attachment holes on each side. 3. Raise the hitch into position and fasten with flat washers, lock washers, and nuts as shown in the diagram. 4. Tighten all fasteners to 110 Lb.-Ft. (149 N·M) using a torque wrench.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection but does not specify an exact interval.
Yes. The installation uses 8 existing holes that you will enlarge to 9/16" diameter, and existing access slots through which you will insert the bolts, brackets, and blocks. The manual indicates these are factory-provided attachment points.
The wiring access location is listed as SUV3 or SUV4. The manual does not provide further detail on wiring installation or harness part numbers.
Yes, part 41946 is designed for GMC full size vans.
You need 13/16" and 15/16" wrenches, a 9/16" drill bit, and a torque wrench.
Yes, you must enlarge 8 existing holes to 9/16" diameter using a drill bit. Do not use a torch.
All 9/16" fasteners must be torqued to 110 Lb.-Ft. (149 N·M).
Weight Distributing: 13,000 lb gross trailer weight, 1,300 lb tongue weight. Weight Carrying Ball Mount: 10,000 lb gross trailer weight, 1,500 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wear eye protection. Work safely beneath the vehicle. Do not use a torch to cut holes. Plug holes if the hitch is removed. Replace any damaged hitch or ball immediately.
The T-Connector 18392-037 is a taillight wiring adapter that integrates a trailer's electrical system with your vehicle's existing taillight wiring. It allows the trailer's stop, turn, and tail lights to draw power from the vehicle's taillight circuits without requiring permanent modifications to the vehicle's factory wiring harness.
The manual does not specify which vehicle makes, models, or years are compatible with this T-Connector. Contact the manufacturer or your retailer to confirm fitment for your specific vehicle before purchasing.
The T-Connector includes: two T-Connector ends (one with yellow wire for driver's side, one with green wire for passenger's side), a white grounding wire with an eyelet and screw, and locking tabs for secure connection. The product is designed to work with your vehicle's existing taillight connectors.
You will need a drill with a 3/32" drill bit to create the grounding hole. A test light or trailer is also required to verify the installation after completion. The manual does not specify other tools, but you may need a screwdriver to remove and reinstall trim panels.
The manual does not specify whether the battery must be disconnected. Contact the manufacturer or consult your vehicle's owner's manual before beginning installation.
Remove the rear interior trim panels located near the doors on both sides of the vehicle. These panels provide access to the taillight wiring harness. The green wire will later be tucked under the floor trim (threshold) panel before reinstalling all rear trim panels.
1. Disconnect the vehicle's taillight wiring harness connectors on the driver's side, being careful not to damage the locking tabs. 2. Plug the T-Connector end with the yellow wire between the mating plugs on the driver's side taillight socket and vehicle wiring harness. 3. Ensure the connectors are fully inserted together using the existing and supplied locking tabs.
Repeat the driver's side procedure on the passenger's side using the T-Connector end containing the green wire. Disconnect the passenger's side taillight wiring harness connectors carefully, then plug the green-wire T-Connector end between the mating plugs on the passenger's side taillight socket and vehicle wiring harness, ensuring full insertion with locking tabs engaged.
Yes. You must drill a 3/32" hole to secure the white grounding wire. The hole should be drilled in a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed, and do not drill into any exposed surfaces. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole. Always verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury.
Drill a 3/32" hole for the white grounding wire eyelet and screw.
After drilling the 3/32" hole in a suitable grounding point on the vehicle's frame or crossmember, secure the white wire using the eyelet and screw provided with the T-Connector. First clean dirt and rustproofing from the area.
The T-Connector has three wires: yellow wire (driver's side taillight connection), green wire (passenger's side taillight connection), and white wire (grounding wire). The yellow and green wires connect to the respective taillight harnesses, while the white wire must be grounded to the vehicle's frame or crossmember.
After connecting the passenger's side T-Connector, tuck the green wire under the floor trim (threshold) panel before reinstalling the vehicle's rear trim panels.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum 1 stop/turn light per side at 7.5 amps, and maximum tail lights at 7.5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Maximum 1 stop/turn light per side at 7.5 amps. Do not exceed this limit to prevent circuit overload and fire risk.
Maximum 7.5 amps for tail lights. Do not exceed this limit to prevent circuit overload and fire risk.
All connections must be complete for the T-Connector to function properly. Test and verify the installation using a test light or by connecting an actual trailer once installed. This ensures all taillight functions (stop, turn, and tail lights) are working correctly on both sides.
Verify that all connections are complete and fully inserted with locking tabs engaged. Test the installation with a test light or trailer to confirm that all taillight functions (stop, turn, and tail lights) are working correctly on both the driver's and passenger's sides.
The manual does not specify compatible vehicles. Contact the manufacturer or retailer with your vehicle's make, model, and year to confirm fitment.
You need a drill with a 3/32" bit and a test light or trailer to verify the installation. A screwdriver may be needed to remove and reinstall trim panels.
Maximum 1 stop/turn light per side (7.5 amps) and maximum tail lights (7.5 amps). Do not exceed the lower of your towing manufacturer's rating or these limits to prevent fire.
Test the installation with a test light or by connecting a trailer once installed to verify all taillight functions are working correctly on both sides.
