Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2020-2025 Jeep Wrangler JL, diesel
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Wrangler JL EcoDiesel (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2020, 2021, 2022, 2023, 2024, 2025 Jeep Wrangler JL, diesel Class 3 Trailer Hitch, 2" Receiver, Select Jeep Wrangler JL EcoDiesel
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Jeep Wrangler | JL, diesel |

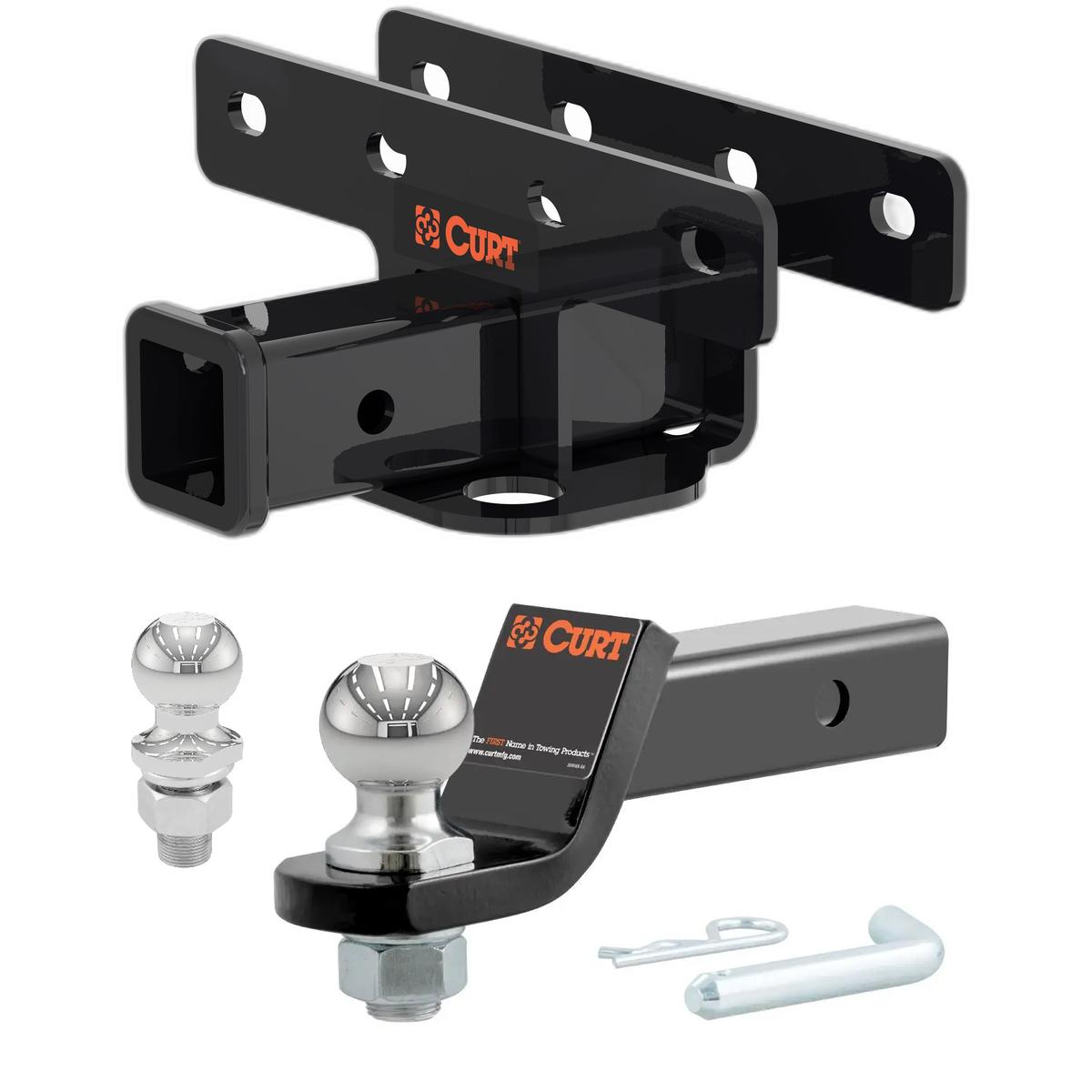

The 2020-2025 Jeep Wrangler JL, diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13564-001) fits the following vehicles: 2020-2025 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
Yes, the 2020-2025 Jeep Wrangler JL, diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13564-001) is designed to fit the 2020-2025 Jeep Wrangler.
The 2020-2025 Jeep Wrangler JL, diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13564-001) fits 2020-2025 Jeep Wrangler models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2025 Jeep Wrangler JL, diesel CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13564-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual does not specify vehicle year, make, model, cab style, bed length or drivetrain compatibility. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your vehicle.
The CURT 13564 has a gross trailer weight (GTW) capacity of 5,000 lbs and a tongue weight (TW) capacity of 500 lbs. For weight distribution towing, the weight distribution (WD) capacity is 4,000 lbs with a WD tongue weight (WDTW) of 400 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The tongue weight capacity is 500 lbs for standard towing and 400 lbs for weight distribution towing.
You will need: ratchet, torque wrench, 16mm socket, 14mm socket, 3/4" socket, and die grinder. Safety glasses must be worn at all times during installation. For a tools reference guide, visit curtmfg.com/trailer-hitch-installation.
Yes, a torque wrench is required. The hitch fasteners must be torqued to specific values (110 lb-ft for the main fasteners, 51.0 lb-ft and 25.5 lb-ft for DEF tank bolts) to ensure proper installation.
The kit includes: 4 hex bolts (1/2"-13 x 4-1/2", grade 8), 4 flat washers (1/2"), and 4 serrated-flange nuts (1/2"-13, grade 8). These fasteners are used to attach the hitch to the vehicle frame cross member.
Yes. The installation requires lowering the DEF tank. You must remove two M10 x 1.5 bolts from the rear of the DEF tank mount using a 16mm socket, and loosen (but not fully remove) two M8 x 1.25 nuts on the front of the DEF tank using a 14mm socket to lower it for ease of installation.
The manual states that lowering the exhaust is required, but does not provide specific instructions for this step. Refer to your vehicle's service manual or contact CURT product support at 877.287.8634 for guidance.
The manual rates the installation difficulty as 'Easy' based on time and effort involved, though difficulty may vary depending on installer expertise, vehicle condition and proper tools. The manual does not explicitly recommend or require professional installation. For assistance, contact CURT product support at 877.287.8634.
The manual does not specify whether the battery must be disconnected. Contact CURT product support at 877.287.8634 for guidance on battery disconnection.
1. Remove two M10 x 1.5 bolts from the rear of the DEF tank mount using a 16mm socket. 2. Loosen (but do not fully remove) two M8 x 1.25 nuts on the front of the DEF tank using a 14mm socket and lower the tank. 3. Position the hitch over the cross member, align the holes, and insert the fasteners with flange nuts on the exterior side of the hitch. 4. Torque the four 1/2" fasteners to 110 lb-ft, then raise the DEF tank and torque the two M10 x 1.5 bolts to 51.0 lb-ft and the two M8 x 1.25 nuts to 25.5 lb-ft.
The serrated-flange nuts must be installed on the exterior side of the hitch when fastening the hitch to the cross member.
Some models may require hole enlargement. The manual does not specify which vehicles require this or how to perform it. If the hitch holes do not align with the cross member holes, contact CURT product support at 877.287.8634 for guidance.
The four 1/2" hex bolts (1/2"-13 x 4-1/2", grade 8) must be torqued to 110 lb-ft.
Torque the four 1/2" fasteners to 110 lb-ft. After raising the DEF tank, torque the two M10 x 1.5 bolts to 51.0 lb-ft and the two M8 x 1.25 nuts to 25.5 lb-ft.
After raising the DEF tank back into position, torque the two M10 x 1.5 bolts to 51.0 lb-ft and the two M8 x 1.25 nuts to 25.5 lb-ft.
Safety glasses must be worn at all times during installation. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the inspection interval. For detailed guidance, visit curtmfg.com/understanding-towing or contact CURT product support at 877.287.8634.
The manual states that periodic inspection should be performed to ensure all mounting hardware remains tight and structural components are secure, but does not specify the inspection interval. Contact CURT product support at 877.287.8634 or visit curtmfg.com for recommended inspection schedules.
The manual does not specify a retorque interval. However, it recommends periodic inspection to ensure all mounting hardware remains tight. Contact CURT product support at 877.287.8634 for guidance on retorque intervals.
