Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2020-2025 Subaru Outback All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Subaru Outback (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2020, 2021, 2022, 2023, 2024, 2025 Subaru Outback All Class 3 Trailer Hitch, 2" Receiver, Select Subaru Outback
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Subaru Outback | — |
The 2020-2025 Subaru Outback All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13570-002) fits 2020-2025 Subaru Outback models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2020-2025 Subaru Outback All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13570-002) is designed to fit the 2020-2025 Subaru Outback.
The 2020-2025 Subaru Outback All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13570-002) fits the following vehicles: 2020-2025 Subaru Outback. Always verify your specific year, make, and model before ordering.
The 2020-2025 Subaru Outback All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13570-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual does not specify vehicle make, model, or year compatibility. Contact CURT Product Support at 877-287-8634 or visit curtmfg.com for fitment information.
The CURT 13570 has a gross trailer weight (GTW) capacity of 3,500 lbs. and a tongue weight (TW) capacity of 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools: ratchet, torque wrench, sockets (10mm and 17mm), 8" socket extension, exhaust hanger removal pliers, aviation shears or hole saw, flathead screwdriver or panel trim removal tool, and safety glasses. A 5/8" open-end wrench can substitute for exhaust hanger removal pliers.
Installation is rated as moderate difficulty. The manual does not require professional installation, but proper tools and mechanical knowledge are necessary. Installation involves exhaust lowering, drilling, and precise torque specifications.
The manual does not mention battery disconnection. This hitch appears to be mechanical only with no electrical components.
Yes. You must cut a 1-1/2" diameter hole in the muffler heat shield(s), positioned 2-3/4" behind the front-most mounting hole. Use aviation shears or a hole saw. This modification is required to clear the mounting plate(s).
Cut a 1-1/2" diameter hole in the heat shield(s), positioned 2-3/4" behind the front-most mounting hole. Use aviation shears or a hole saw.
Yes. The installation requires lowering the exhaust. You must remove the two rearmost rubber exhaust isolators from the frame-mounted hangers and the exhaust hanger near the rear differential. Support the exhaust during installation to prevent damage. If the vehicle has dual exhaust, repeat on both sides. The exhaust is reinstalled after the hitch is mounted.
Use an exhaust hanger removal tool to remove the two rearmost rubber exhaust isolators from the frame-mounted hangers. If you do not have exhaust hanger removal pliers, use a 5/8" open-end wrench: slide it up to the rubber isolator cradling the hanger rod, place the flat edge of a pry bar between the wrench and the hanger stop or rod, then rotate the pry bar toward the wrench. Spraying lubricant or soapy water on the hanger rod and isolator eases removal.
Yes. Remove the four M6 x 1.0 muffler heat shield bolts using a 10mm socket and remove the heat shield. If the vehicle has dual exhaust, repeat on both sides. After removing the heat shield, cut a 1-1/2" diameter hole in it (or them), positioned 2-3/4" behind the front-most mounting hole. Reinstall the heat shield(s) after the hitch is mounted and the exhaust is raised back into position.
The fishwire tool guides the carriage bolts and spacers through the vehicle frame rail mounting holes and access holes. Insert the coiled end of the fishwire through the hitch mounting hole in the frame rail and out the access hole. Pass the coiled end through the spacer and thread the bolt into the coil. Kink the wire to keep the spacer separate from the bolt. Pull the fishwire, spacer, and bolt through the frame and out the mounting hole. This prevents loss of bolts or spacers inside the frame rail and guides the hitch during mounting.
The hitch uses four mounting locations. You will fishwire four 7/16" carriage bolts and four square-hole spacers into the frame rail through the forward access holes, one at each location.
Remove the three rubber plugs in each frame rail before fishwiring the carriage bolts and spacers into the forward access holes.
Loosely secure the hitch to the vehicle with the provided 7/16" serrated-flange nuts while using the fishwire as a guide and after centering the hitch on the vehicle. Do not fully tighten until after you have centered the hitch. Final torque is applied in Step 5.
Torque all 7/16" hardware to 70 ft-lbs using a 17mm socket and torque wrench.
Use a 17mm socket with a torque wrench to torque all 7/16" hardware to 70 ft-lbs.

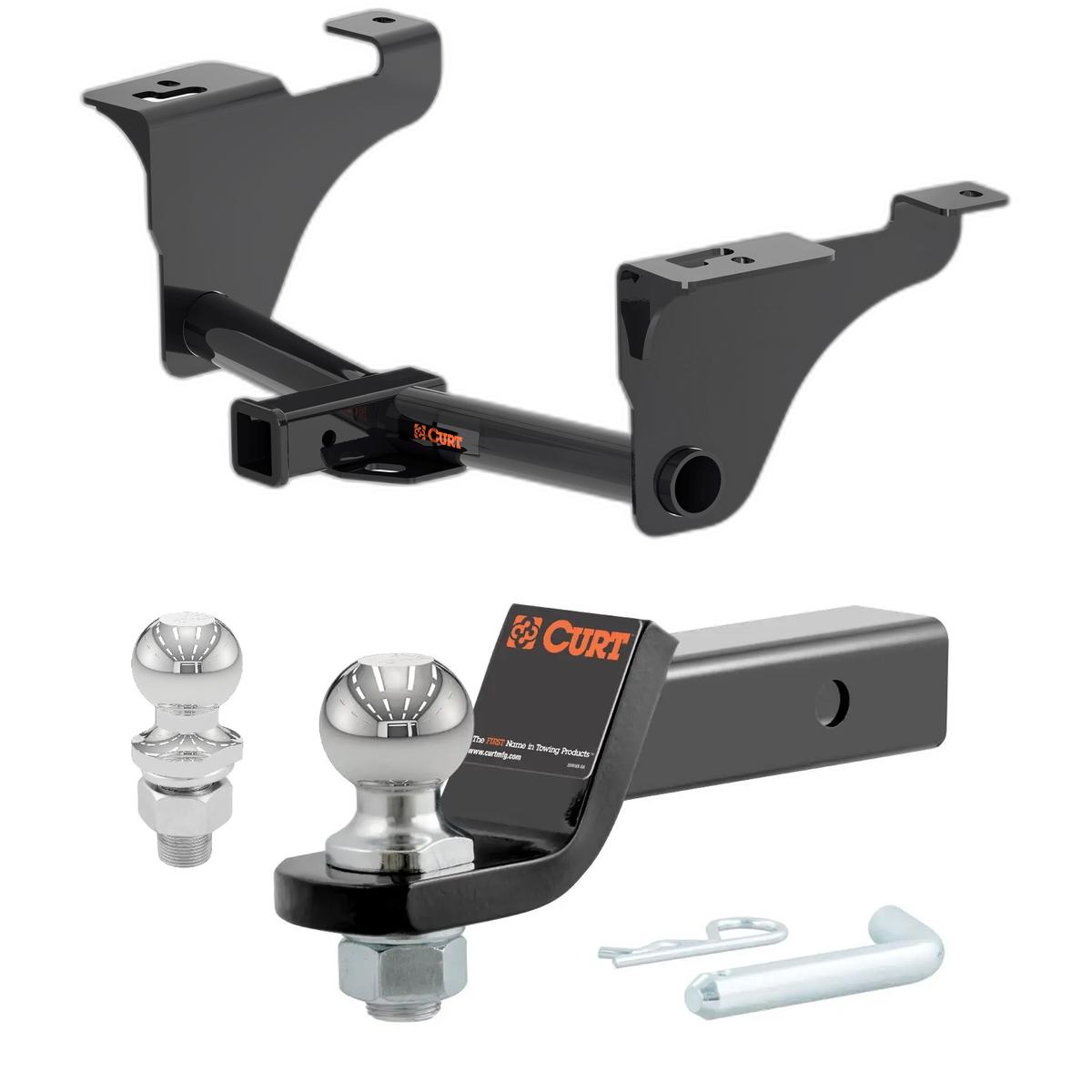

The kit includes: four 7/16" carriage bolts, four square-hole spacers (7/16" x 0.88" x 2.25"), four 7/16" serrated-flange nuts, two 7/16" flat washers, and two 7/16" fishwire tools.
The two 7/16" flat washers are placed between the hitch and the frame on the rearmost mounting holes.
After raising the trailer hitch into position with the flat washers between the hitch and frame on the rearmost mounting holes, center the hitch on the vehicle before loosely securing it with the 7/16" serrated-flange nuts. The manual does not specify a measurement or alignment method for centering.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify an inspection interval or detailed inspection procedure.
Safety glasses must be worn at all times during installation. Support the exhaust during installation to prevent damage. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
The manual does not specify whether additional people are required. The installation involves raising and lowering the exhaust and positioning the hitch, which may benefit from a second person, but this is not explicitly stated.
The manual does not specify whether a lift, jack, or other lifting equipment is required. Contact CURT Product Support at 877-287-8634 for guidance on vehicle access and support requirements.
