Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2022-2023 Hyundai Kona N All
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Kona (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
2022, 2023 Hyundai Kona N All Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Kona
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Hyundai Kona N | — |

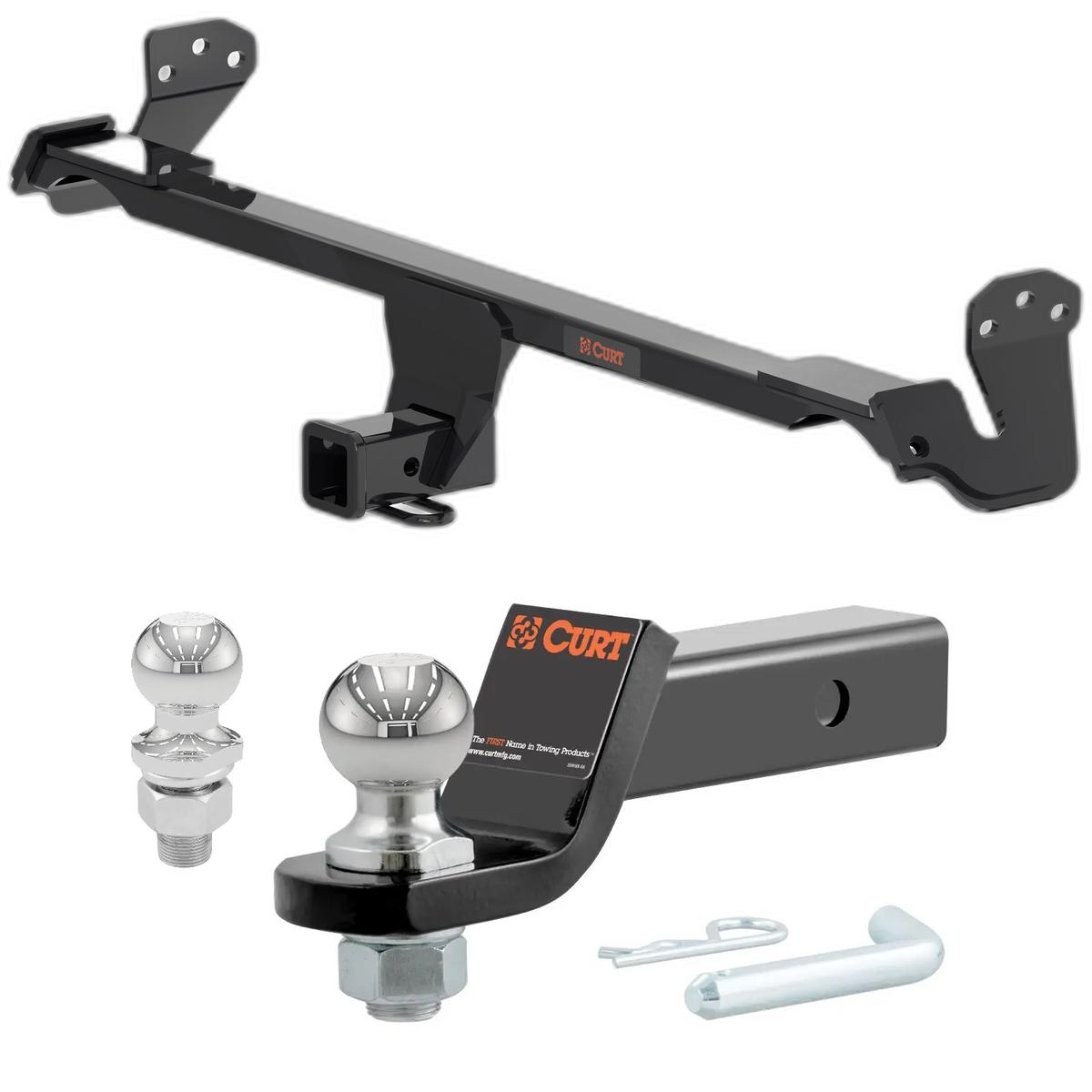

The 2022-2023 Hyundai Kona N All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13610-003) fits the following vehicles: 2022-2023 Hyundai Kona N. Always verify your specific year, make, and model before ordering.
Yes, the 2022-2023 Hyundai Kona N All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13610-003) is designed to fit the 2022-2023 Hyundai Kona N.
The 2022-2023 Hyundai Kona N All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13610-003) fits 2022-2023 Hyundai Kona N models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022-2023 Hyundai Kona N All CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13610-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13610 is designed for Hyundai Kona models including EV, N, N Line, Limited, SE, and SEL variants in both front-wheel drive and all-wheel drive configurations. Verify your specific model year and trim level match these applications before purchasing. Contact CURT product support at 877.287.8634 if you need to confirm fitment for your vehicle.
The CURT 13610 has a gross trailer weight (GTW) capacity of 2,000 lbs and a tongue weight (TW) capacity of 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
Required tools are: ratchet, 11/16" socket, torque wrench, 6" socket extension, 7/16" fishwire (6 qty included with the hitch), and flathead screwdriver. For a complete tools reference guide, visit curtmfg.com/trailer-hitch-installation.
Exhaust lowering is required for N-Line, all-wheel drive Limited, SE, and SEL models. For all-wheel drive models, remove the two rearmost exhaust hanger rods on both sides from the rubber isolators. For N Line and Kona N models, remove the three rearmost exhaust hanger rods on both sides. Use a stand to support the exhaust and prevent damage. Front-wheel drive Limited, SE, and SEL models and Kona EV models do not require exhaust lowering.
Yes. For Kona EV models, you must trim the fascia panel and the plastic cover support tab. Mark and trim the fascia panel approximately 6" wide by 3" tall at the center of the vehicle on the panel. Trim the plastic clip from the middle plastic cover support tab approximately 2" as shown in the trim diagram on page 3.
The hitch includes 6 carriage bolts (7/16"-14 x 1-1/4"), 6 serrated-flange nuts (7/16"-14), 6 square-hole spacers (1.75" x 0.875" x 0.25"), and 6 qty of 7/16" fishwire tools.
Torque all 7/16" hardware (carriage bolts and serrated-flange nuts) to 59 lb-ft. Use a torque wrench to ensure proper tightness and prevent damage to the product or vehicle.
The fishwire technique guides the carriage bolts and square-hole spacers through the frame rail mounting holes without losing them inside the frame. Insert the coiled end of the fishwire through the hitch mounting hole in the vehicle frame rail and out the access hole, pass it through the spacer, and thread the bolt into the coil. Kink the wire to keep the spacer separate from the bolt, then pull the fishwire, spacer, and bolt through the frame and out the mounting hole. This prevents hardware from being pushed into the frame during installation.
Yes. In Step 6, remove the electrical harness from the frame rail and move it from under the bumper beam to above the bumper beam, if applicable. This ensures the harness does not interfere with the hitch installation.
Yes. In Step 7, remove one rubber plug from the bottom of the frame rail on both sides, if applicable. Set the rubber plugs aside for reinstallation in Step 11 after the hitch is mounted and torqued.
No. In Step 8, fishwire the carriage bolts and spacers through the frame rail holes but do not pull them through. In Step 9, raise the hitch into position, feed the fishwires through the hitch holes, and pull the bolts through. Loosely secure the bolts with serrated-flange nuts. Only in Step 10, after the hitch is fully positioned, torque all 7/16" hardware to 59 lb-ft.
Only if your vehicle has an underbody panel on the passenger side frame rail. In Step 4, if present, remove it by removing two plastic clips and one nut. This step applies only to Limited, SE, and SEL models (not N Line). Set the panel aside for reinstallation in Step 11.
Use a 5/8" open end wrench and a pry bar. Slide the wrench up to the rubber isolator, cradling the hanger rod. Place the flat edge of the pry bar between the wrench and the hanger stop or hanger rod, then rotate the pry bar toward the wrench to remove the rubber isolator. Using a lubricant or soapy water on the hanger rod and rubber isolator helps removal.
Wear safety glasses at all times during installation. When lowering the exhaust, use a stand to support it and prevent damage. Be careful not to push hardware into the frame when removing the fishwire. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Perform a periodic inspection of the trailer hitch to ensure all mounting hardware remains tight and structural components are secure. Verify that all 7/16" bolts and nuts are torqued to 59 lb-ft and that all removed components (exhaust, rubber plugs, plastic covers, underbody panels) have been properly reinstalled.
Visit www.curtmfg.com for a full-color copy of the instruction manual, helpful videos, guides, and more. You can also contact CURT product support at 877.287.8634 for assistance.
Visit warranty.curtgroup.com/surveys to register your purchase, get copies of product warranties, or provide feedback. CURT stands behind its products with industry-leading warranties.
Yes, the CURT 13610 fits Hyundai Kona EV, N, N Line, Limited, SE, and SEL models in both front-wheel drive and all-wheel drive. Verify your specific model year before purchasing.
Gross trailer weight capacity is 2,000 lbs; tongue weight capacity is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. However, Kona EV models require trimming of the plastic cover and plastic cover support tab. All other models may require exhaust lowering or removal of underbody panels depending on trim level and drivetrain.
