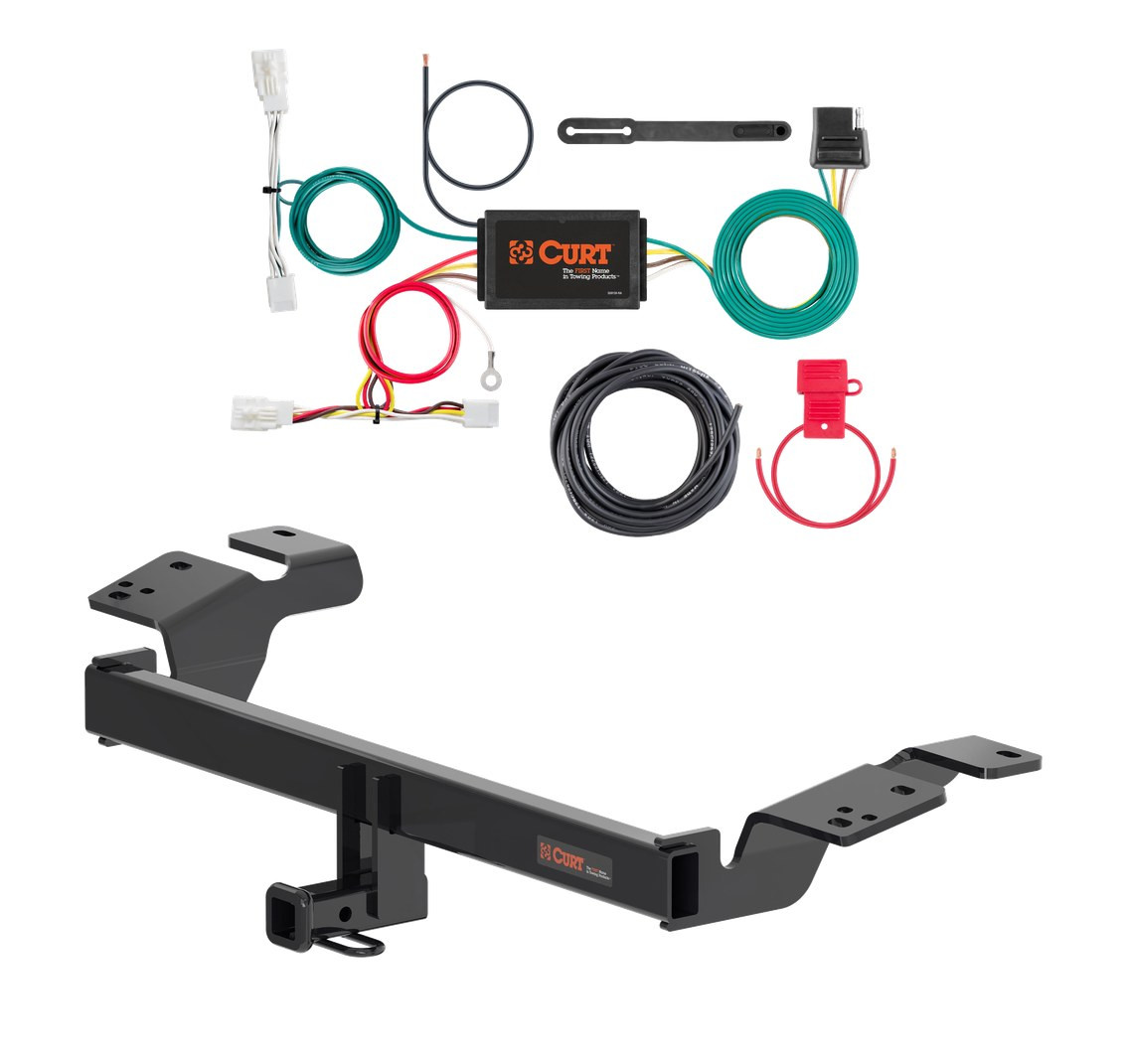

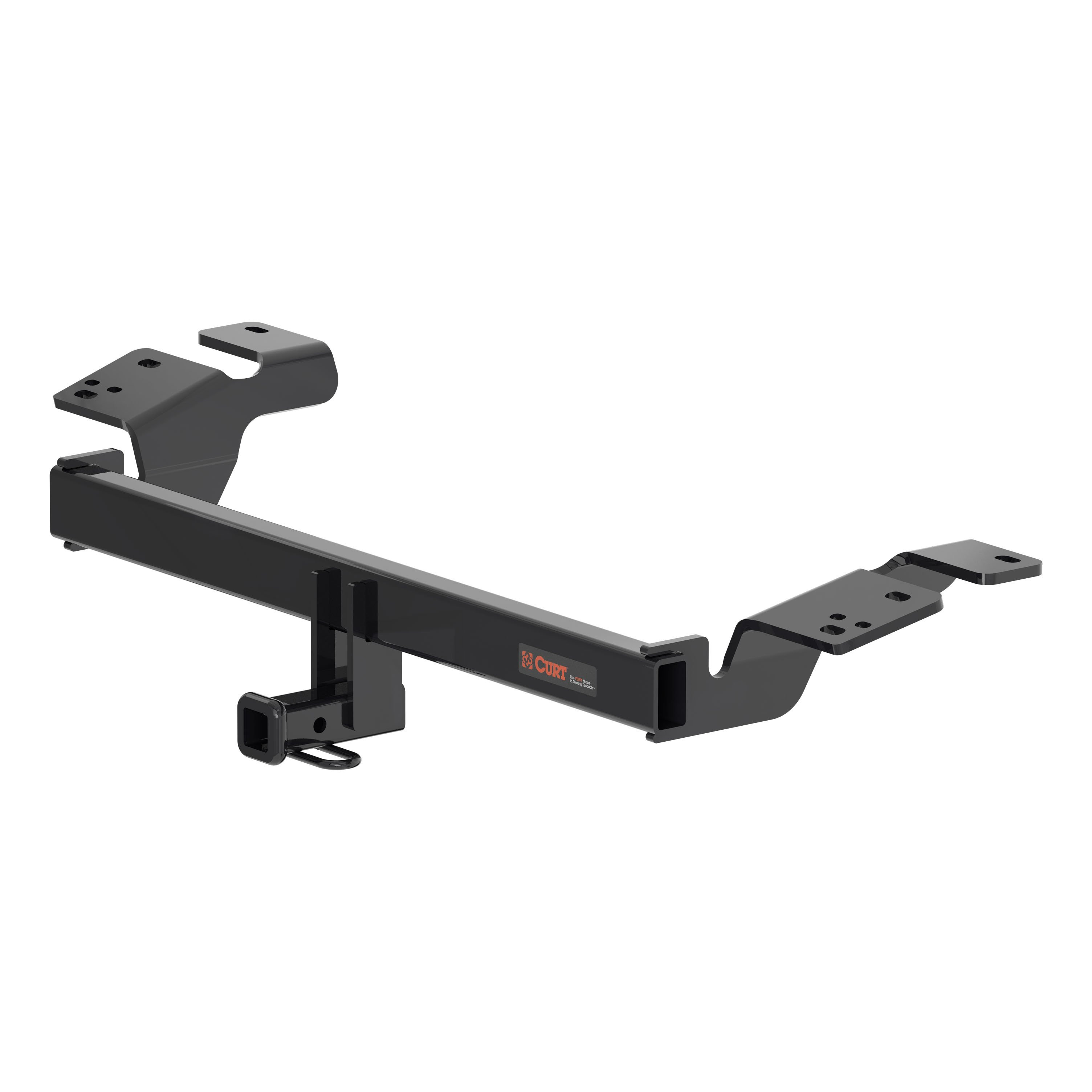

Complete CURT Class 1 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2022 - 2023 Lexus ES300h. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Toyota Avalon and Toyota Camry (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Avalon, Toyota RAV4 and Lexus ES300h (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Yes, CURT 11576 fits 2018-present Toyota Camry Sedans. The hitch is designed specifically for this model and is rated for a maximum trailer weight of 2,000 lbs and tongue weight of 200 lbs. Always verify your vehicle's year and body style (sedan) matches before purchasing.
Yes, CURT 11576 fits 2019-present Toyota Avalon Sedans. The hitch is rated for a maximum trailer weight of 2,000 lbs and tongue weight of 200 lbs. Confirm your vehicle year is 2019 or newer and the body style is sedan.
Yes, CURT 11576 fits both Japan-built and USA-built vehicles, but the installation steps differ. Japan-built vehicles have existing M12 weldnuts on the frame and require removal of a tie-down bracket from the passenger side frame rail. USA-built vehicles have existing M8 weldnuts and require removal of the rear exhaust hanger from the driver side frame rail. Dual exhaust USA-built vehicles require removal of rear exhaust hangers from both frame rails.
CURT 11576 is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) and #45572 (2" ball). Verify the correct ball mount is selected for your towing application.
CURT 11576 is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
Non-trailer (wheel-less) loads can be applied to CURT 11576 only if they are supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Contact CURT at www.curtmfg.com or 877-287-8634 for information on the 18050 stabilizing straps.
Required tools are: 10mm, 12mm, and 13mm sockets; 17mm and 19mm sockets; ratchet; torque wrench; die grinder with cutoff wheel; rotary tool; masking tape; safety glasses; and tape measure. Using proper tools will greatly improve installation quality and reduce installation time.
CURT 11576 includes: 2× 1/2-13 UNC carriage bolts, 1-1/2" grade 8 (part 10-10287); 2× M12×1.25 hex head cap screws, 45mm class 10.9 (part 10-10331); 4× M8×1.25 flange bolts, 35mm class 10.9 (part 10-10333); 2× 1/2-13 UNC serrated flange nuts (part 20-00062); 2× 1/2" split-cone washers (part 30-00149); 2× 0.250 × 1.00 × 2.50" square hole spacers (part CM-SP10); and 2× 1/2" fishwires (part 1_2 FISHWIRE).
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Installation difficulty is rated as moderate. The installation requires exhaust hanger removal, heat shield and underbody panel trimming, access hole enlargement, and torque specifications. If you are hesitant to undertake this task, contact an authorized CURT installer.
No drilling is required. However, access hole enlargement is required on both frame rails, and trimming of heat shields and the plastic underbody panel is required. A die grinder with cutoff wheel is needed for these modifications.
Two types of trimming are required: (1) Heat shield trimming using the heat shield trim diagram as reference, with dimensions of 4.25 inches and 2.00 inches marked; (2) Plastic underbody panel trimming using the panel trim diagram as reference, with dimensions of 3.25 inches and 1.00 inches marked. Both heat shields and the underbody panel must be reinstalled after trimming. A die grinder with cutoff wheel is recommended for these cuts.
Step 3 requires enlargement of the existing access hole in both frame rails. The exact dimensions for the enlarged hole are not specified in the manual. After enlargement, a 1/2" fishwire (carriage bolt) and CM-SP10 spacer are inserted into each enlarged access hole. Contact CURT technical support at 877-287-8634 for specific hole size requirements.
You do not need to remove the entire exhaust system, but you must lower it. Remove (2) rubber isolators per muffler and (1) rubber isolator forward of the muffler. On Japan-built vehicles, also remove the tie-down bracket from the passenger side frame rail. On USA-built vehicles, remove the rear exhaust hanger from the driver side frame rail. On dual exhaust vehicles, remove rear exhaust hangers from both frame rails. Support the exhaust to prevent damage during this process. Save all removed parts for reinstallation.
Three different torque specifications apply: M12 hardware (hex head cap screws) must be torqued to 79 ft-lbs; M8 hardware (flange bolts) must be torqued to 23 ft-lbs; 1/2" hardware (carriage bolts) must be torqued to 110 ft-lbs. A torque wrench is required to achieve these specifications.
Follow these steps in order: (1) Lower the exhaust by removing rubber isolators and exhaust hangers as applicable to your vehicle's origin (Japan or USA built) and exhaust configuration (single or dual). Support the exhaust to prevent damage. (2) Remove and trim heat shields and plastic underbody panel using the provided diagrams, then reinstall. (3) Enlarge the access holes in both frame rails and insert the 1/2" fishwire carriage bolts with CM-SP10 spacers. (4) Raise the hitch into position, secure with provided hardware while reinstalling exhaust hangers, apply torque specifications, and reinstall the underbody panel.
Yes. The plastic underbody panel must be removed in step 2 to allow access for trimming using the panel trim diagram as reference. After trimming, the panel is reinstalled. The panel is removed again in step 4 after the hitch is secured and then reinstalled.
Safety glasses must be worn at all times while installing this product. Support the exhaust to prevent damage when lowering it. Before beginning installation, read all instructions thoroughly. If you are hesitant to undertake this task, contact an authorized CURT installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. CURT 11576 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but your vehicle's manufacturer may specify a lower limit. Check your vehicle's owner manual or manufacturer specifications to determine the safe towing capacity for your specific vehicle.
After installation, periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is essential for safe operation and to maintain the product warranty.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact inspection interval. Regular inspection before towing is recommended as a best practice.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, CURT 11576 fits 2018-present Toyota Camry Sedans and 2019-present Toyota Avalon Sedans. Maximum towing capacity is 2,000 lbs trailer weight and 200 lbs tongue weight.
Required tools: 10mm, 12mm, 13mm, 17mm, 19mm sockets; ratchet; torque wrench; die grinder with cutoff wheel; rotary tool; masking tape; safety glasses; tape measure.
M12 hardware: 79 ft-lbs; M8 hardware: 23 ft-lbs; 1/2" hardware: 110 ft-lbs. A torque wrench is required.
CURT 11576 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound. This maintains the warranty and ensures safe operation.
Yes, the Curt 56350 custom wiring harness is designed for Toyota Avalon. The installation accesses the taillight wiring connectors through the trunk by removing the trunk floor covering, rear cargo area cover, and rear scuff panel.
Yes, the Curt 56350 custom wiring harness is designed for Toyota RAV4. The installation accesses the taillight wiring connectors through the rear cargo area by removing the tailgate, trunk floor covering, rear cargo area cover, rear scuff panel, and rear trim panels.
The Curt 56350 is designed for Toyota Avalon and Toyota RAV4 models.
You will need: 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver. These tools are required to remove trim panels, fasteners, and screws during installation.
The kit includes a screw and ring terminal for grounding, double-sided tape for mounting the converter box, cable ties for securing wires, and a 4-flat dust cover.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Yes, you must disconnect the negative battery terminal before starting installation.
Open the tailgate and remove the trunk floor covering and rear cargo area cover. Remove the rear scuff panel by pulling out on the bottom and then up. Remove fasteners from the plastic cargo tray on the driver side. Remove the rear cargo loop, Phillips screws, and 10mm bolt holding the rear trim panel. Pull back on the top and bottom rear trim to locate the taillight wiring harness connectors.
Open the trunk and remove the trunk floor covering and rear cargo area cover. Remove the two fasteners securing the rear scuff panel. Remove the scuff panel by pulling out on the bottom and then up. Pull back the felt liner to locate the taillight wiring harness connectors.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) or green wire (passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Mount the converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
You may need to drill a 3/32" pilot hole if a suitable existing grounding point is not available. Look for an existing screw with nut in the vehicle frame near the connector. If drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free of rust, dirt, and paint before securing the white ground wire using the ring terminal and provided screw.
Drilling may be required for the ground wire. A 3/32" pilot hole is needed only if an existing screw with nut in the vehicle frame is not available as a grounding point.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The yellow wire end connects to the driver side taillight connectors. The green wire end connects to the passenger side taillight connectors. The white wire is the ground wire, which must be secured to a grounding point using the provided ring terminal and screw. The black converter box contains the power conversion circuitry.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific lamp load rating.
All installation steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer.
Test for proper function using a test light or by connecting a properly wired trailer.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56350 is a custom wiring harness designed for Toyota Avalon and Toyota RAV4 vehicles. It provides signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total) for trailer lighting. The harness includes a black converter box, wiring with color-coded ends for driver and passenger sides, a ground wire with ring terminal, mounting tape, cable ties, and a 4-flat dust cover.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Lexus ES300h | — |
