Tekonsha T-One connector (also referred to as T-Connector) wiring harnesses are the fastest and easiest way to add an electrical connector to the back of your vehicle. These connectors are used to link the wiring from your vehicle to the trailer when towing. Tekonsha T-One connectors feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of T-One connectors. To install a Tekonsha T-One wiring harness, simply locate your vehicle's wiring harness connector typically behind the vehicle taillight - unplug the connection and insert the T-Connector into the vehicle's harness. It's that easy! So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118886 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.5 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, WHITE, YELLOW |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Toyota Corolla Cross | Tow Harness T: Connector Assembly Drilling Required Install Time is 60 minutes With LED Taillights |
Yes, the 2022-2023 Toyota Corolla Cross Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118886 (Part #TK118886) is designed to fit the 2022-2025 Toyota Corolla Cross.
The 2022-2023 Toyota Corolla Cross Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118886 (Part #TK118886) fits the following vehicles: 2022-2025 Toyota Corolla Cross. Always verify your specific year, make, and model before ordering.
The 2022-2023 Toyota Corolla Cross Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118886 (Part #TK118886) fits 2022-2025 Toyota Corolla Cross models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022-2023 Toyota Corolla Cross Tekonsha Plug & Play T-Connector Adapter Trailer Wiring 118886 (Part #TK118886) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 118886 is designed for Toyota Corolla Cross with LED Taillights. Visit the Horizon Global website for the most up-to-date information regarding application years and trim levels.
The manual specifies that part number 118886 is designed for Toyota Corolla Cross with LED Taillights. The manual does not confirm compatibility with non-LED taillight versions. Contact Horizon Global at 800-632-3290 or TechnicalSupport@horizonglobal.com to verify fitment for your specific vehicle configuration.
Required tools: safety glasses, Phillips screwdriver, wire stripper, wire crimper, 10 mm socket, ratchet, drill with 3/32" drill bit, and a test light. A fish wire is also recommended to help route the harness through tight spaces.

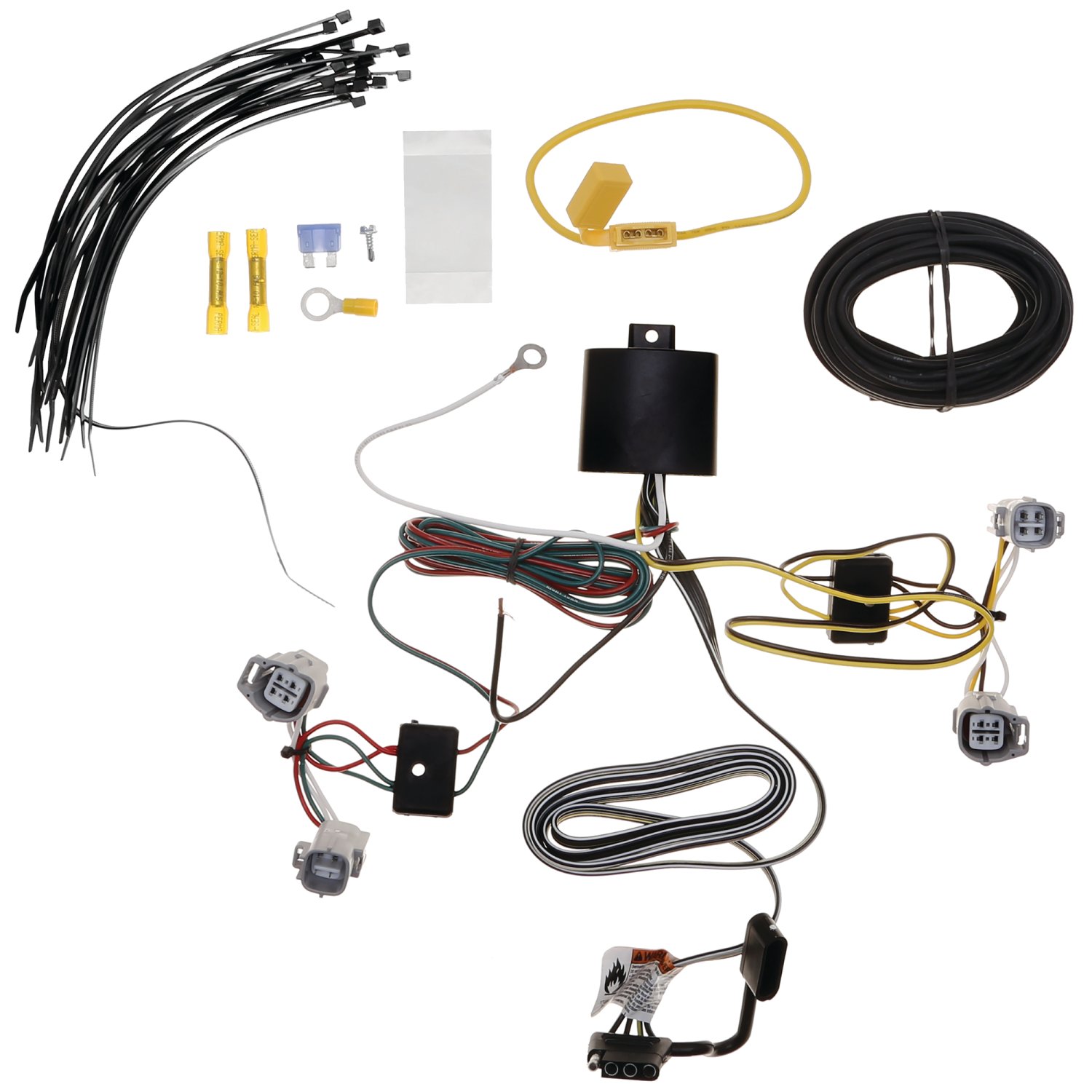

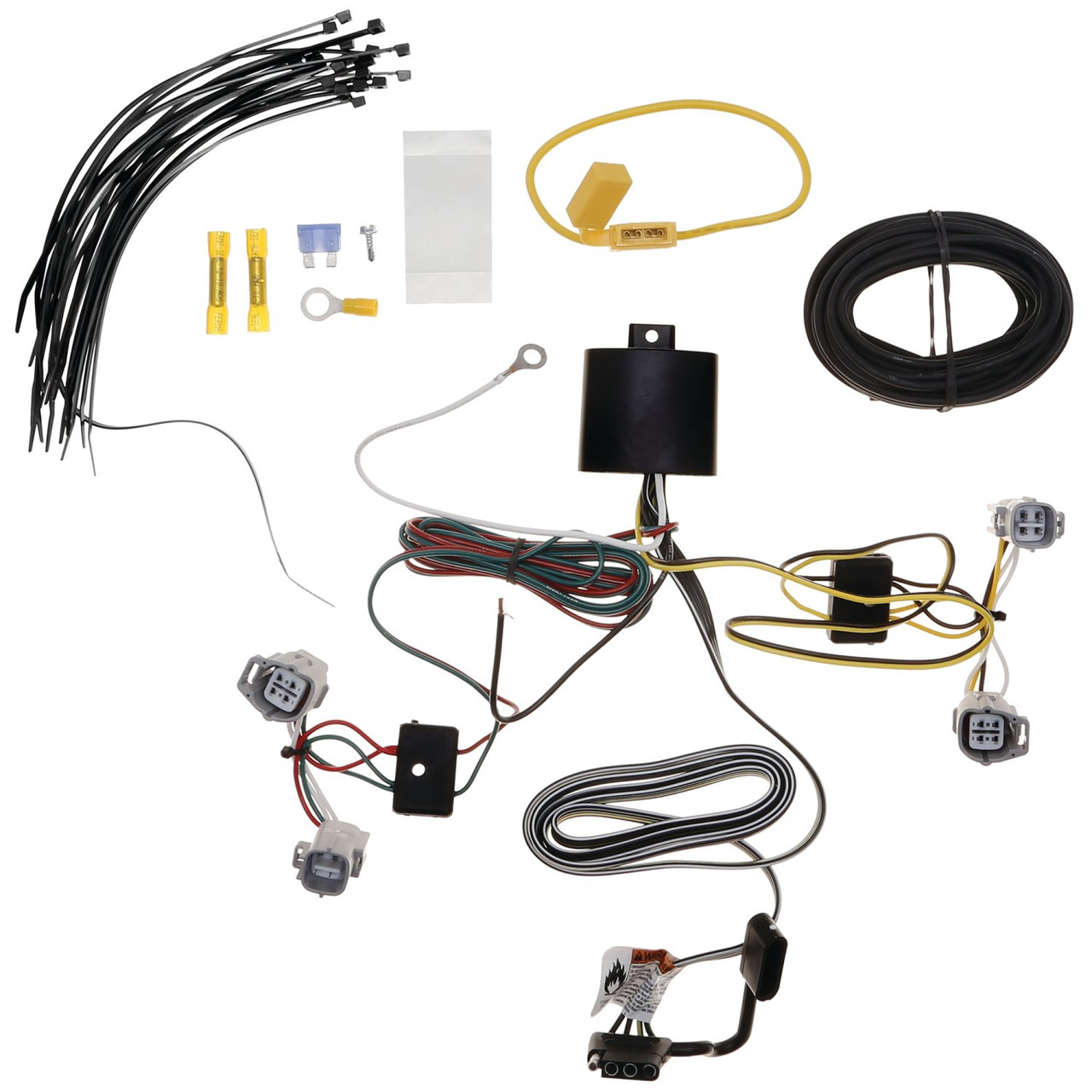

The hardware kit includes: Perma Seal Butt Connectors (yellow heat shrinkable), ring terminals, #8 screws, 15 amp fuse, fuse holder, double-sided tape, and 6" wire ties. Yellow heat shrinkable butt connectors are used to connect the black 12 gauge power wire to the fuse holder and to the module's black power wire.
Yes. You must locate the vehicle's battery, disconnect and isolate the negative battery cable before beginning installation. The negative cable is reconnected after the fuse holder is connected to the positive battery terminal.
The installation difficulty is rated as Intermediate. This rating is based on time and effort involved and may vary depending on installer expertise and vehicle condition. Installation times are listed on the Horizon Global website or in downloadable application guides.
Yes. A 3/32" hole must be drilled to secure the white ground wire using the eyelet and screw provided. You must verify what is behind any surface prior to drilling to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces.
Locate a suitable grounding point near the black box, such as an existing ground stud. If drilling is necessary, drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Clean dirt and rustproofing from the area before drilling. Do not drill into the vehicle floor or bed. Always verify what is behind the surface before drilling.
The fuse rating is 15 amps. The 15-amp fuse is installed into the fuse holder after the negative battery cable is reconnected. The fuse holder is connected to the positive battery terminal via a ring terminal.
The power wire is 12 gauge (12 ga.). This black 12 gauge wire is routed from the fuse holder at the positive battery terminal rearward along the frame rail to the black power wire on the T-One® Connector's black box.
The T-One® Connector has three colored wires: yellow (driver's side taillight connector), green (passenger's side taillight connector), and white (ground wire). The black power wire connects to the vehicle's positive battery terminal via the fuse holder. The black box module has a black power wire that connects to the 12 gauge power wire from the fuse holder.
Beginning from the front of the vehicle, route the black 12 gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, continue to avoid hot pipes, heat shields, fuel tank, and pinch points.
Yellow heat shrinkable butt connectors are used to connect the fuse holder to the black 12 gauge power wire and to connect the black 12 gauge power wire to the black power wire on the T-One® Connector's black box. Ring terminals are used to secure the fuse holder to the vehicle's positive battery terminal.
For vehicles with cargo trays (interior installation): Mount the black box using the double-sided tape provided on a suitable flat mounting point inside the vehicle. For vehicles without cargo trays (underneath installation): Mount the black box underneath the vehicle behind the rear bumper fascia using the double-sided tape provided. In both cases, clean the flat mount surface with a 50-50 mixture of rubbing alcohol and water before mounting. For underneath installation, ensure the epoxy side of the module points toward the ground to prevent water buildup.
1. On the driver's side, insert the T-One® Connector end containing the yellow wire between the vehicle and taillight connector. 2. On the passenger's side, insert the T-One® Connector end containing the green wire between the vehicle and taillight connectors. All connector surfaces must be clean and free of dirt. Be careful not to break any locking tabs when inserting or separating connectors.
1. Disconnect the vehicle's negative battery cable. 2. Cut the fuse holder wire and attach the ring terminal to the vehicle's positive battery terminal. 3. Connect the other end of the fuse holder to the black 12 gauge wire using a yellow heat shrinkable butt connector. 4. Reconnect the vehicle's negative battery cable. 5. Install the 15-amp fuse into the fuse holder.
After installation: 1. Reconnect the vehicle's negative battery cable and install the 15-amp fuse into the fuse holder. 2. Test and verify the installation with a test light or trailer. 3. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. 4. Reinstall any items removed during installation, being careful not to pinch or cut wires. 5. Route the 4-Flat harness through the driver's side panel and threshold into the storage compartment when not in use.
Always wear safety glasses during installation. Do not touch the negative battery terminal to the positive battery terminal, as serious injury and damage to the vehicle's electrical system can occur. Read and follow all warnings and instructions printed on the vehicle's battery. Verify what is behind any surface prior to drilling to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. Do not exceed the towing manufacturing rating or product amperage ratings.
If your vehicle is equipped with the Start/Stop option, do not connect the module power wire to the support battery. Only connect the module to the main vehicle battery. Failure to connect to the vehicle main battery may result in damage.
Do not exceed the lower of the towing manufacturing rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Do not exceed stated product ratings.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
Clean the 4-Way flat connector after each use. Perform a pre-trip inspection of the 4-Way flat harness to ensure no damage to terminals and connection points for proper lighting connection and operation. Ensure the 4-Way flat harness does not get pinched in door latches, trailer connection points, or contact the road surface. Clean the connection and add dielectric grease (sold separately) to the terminal pins.
Check the following: 1. Ensure the T-One® Connector ends are fully inserted and locked in place. 2. Remove the module's power fuse for 10 seconds and repeat the test. 3. Check chassis grounds and ensure ring terminals are in full contact with the vehicle chassis. 4. Remove the module's power fuse.
Check the following: 1. Ensure the fuse is fully inserted into the fuse holder with no breaks. 2. Verify the fuse holder is connected properly to the positive post of the battery. 3. Remove the fuse for 10 seconds and repeat the test. 4. Ensure the module is connected to B+ (positive). 5. Using a tester or voltmeter, check for voltage on either side of the yellow butt connector near the module. 6. Remove the module power fuse for 10 seconds and repeat the test. 7. If installation may have activated circuit protection, start the vehicle and turn all functions off (tail/headlights, brake, and turns), then remove the module power fuse for 10 seconds and repeat the test.
Horizon Global warrants the product to the original consumer purchaser only that it will be free from material defects in both material and workmanship for a specific period, ordinary wear and tear excepted, provided installation and use are in accordance with product instructions. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance, or product alterations by anyone other than Horizon Global. To make a warranty claim, contact Horizon Global at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, and provide the product model number and purchase receipt.
Contact Horizon Global at: Phone: 800-632-3290, Email: TechnicalSupport@horizonglobal.com, Website: www.horizonglobal.com. For warranty claims, mail to: Horizon Global, 47912 Halyard Dr. Suite 100, Plymouth, MI 48170.
The manual provides two installation methods: Method 1 (interior installation with cargo trays): The black box is mounted inside the vehicle using double-sided tape, and the harness is routed through the driver's side panel and threshold. Method 2 (underneath installation without cargo trays): The taillights are removed, the harness is routed underneath the vehicle through the bumper opening, and the black box is mounted underneath behind the rear bumper fascia. Both methods connect the same yellow and green wires to the driver's and passenger's side taillight connectors respectively.
The manual provides two installation methods. Method 1 does not require taillight removal—the connector is inserted between the vehicle and taillight connectors without removing the lights. Method 2 requires removing the taillights by disconnecting the wiring connectors and removing the mounting screws using a 10 mm socket or Phillips screwdriver. The method you use depends on your vehicle's configuration and accessibility.
