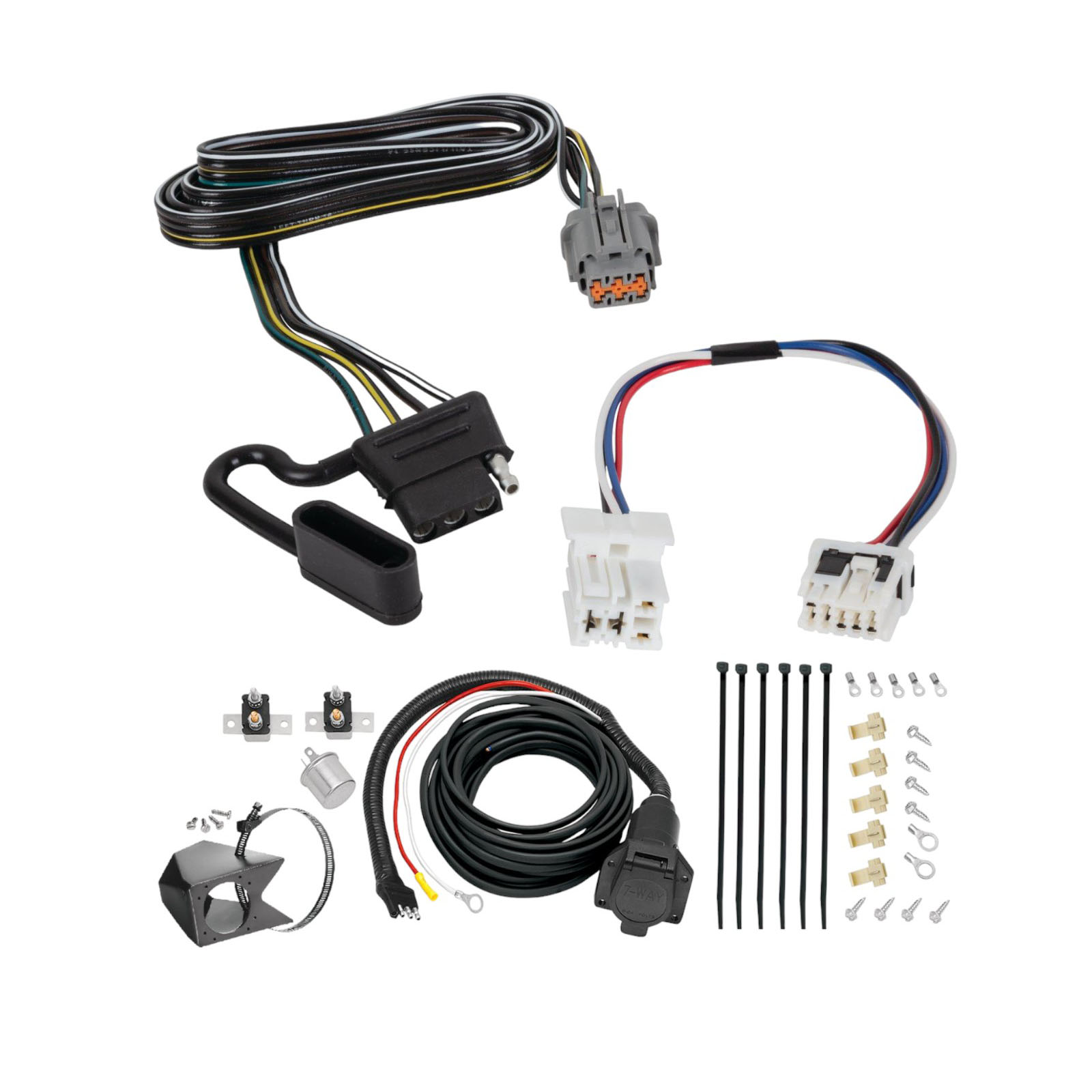

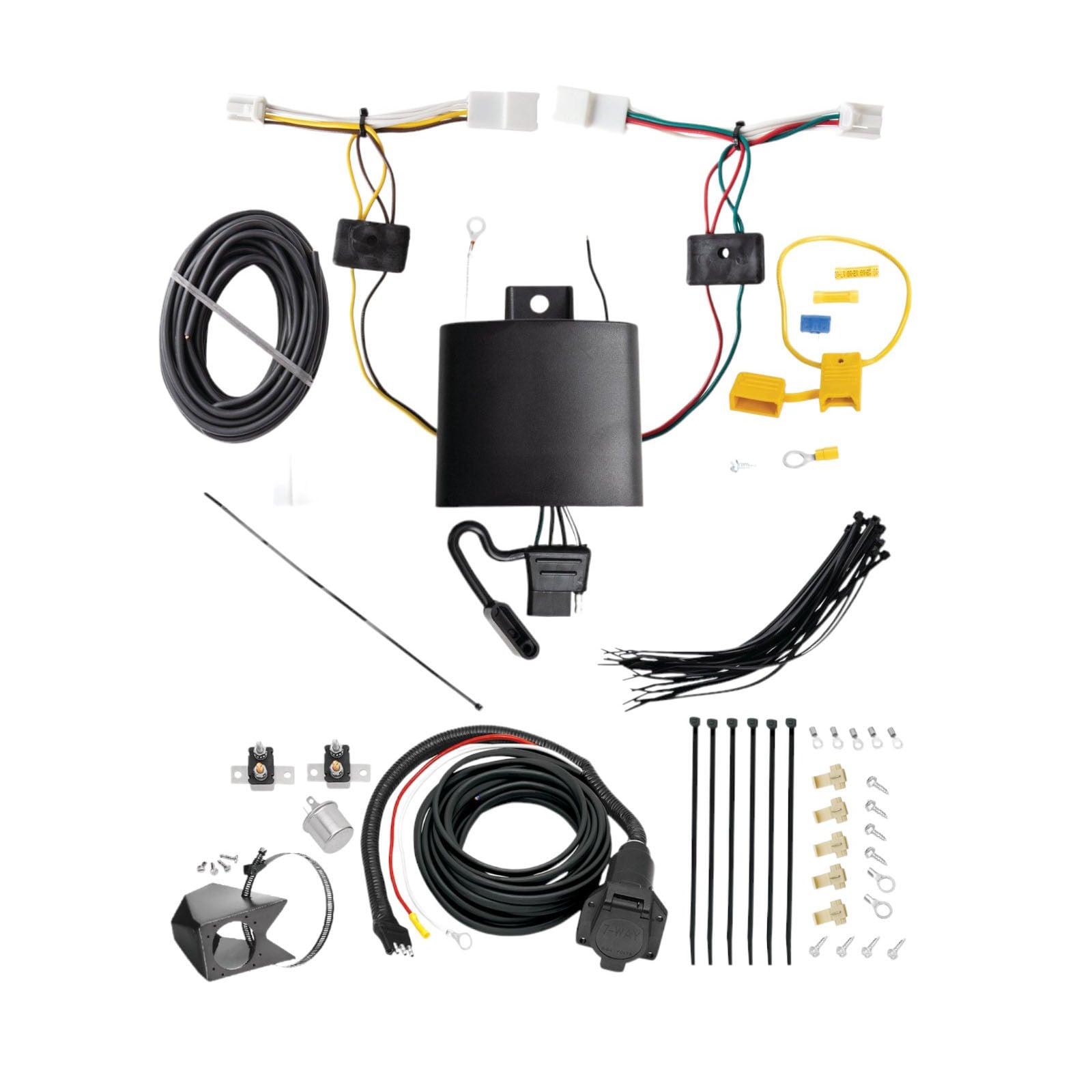

The 2022-2024 Nissan Pathfinder Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69589) fits 2022-2024 Nissan Pathfinder models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022-2024 Nissan Pathfinder Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69589) fits the following vehicles: 2022-2024 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
Yes, the 2022-2024 Nissan Pathfinder Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69589) is designed to fit the 2022-2024 Nissan Pathfinder.
The 2022-2024 Nissan Pathfinder Tekonsha Custom 7-Way + Brake Controller Install Kit (Part #TBCW69589) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BRAKE mate is a trailer brake control system that allows you to control trailer brakes from your vehicle. It connects to your vehicle's electrical system and includes a brake control unit that mounts under the dash, circuit breakers for power management, and a prewired connector that attaches to your trailer.
The manual does not specify which vehicle makes, models, or years are compatible with the BRAKE mate. Contact Cequent Towing Products technical service at (888) 521-0510 or consult a fitment database to confirm compatibility with your specific vehicle.
Yes. Step 4 of the installation instructions requires connecting the 4-pole flat connector to the vehicle's connector, which means your vehicle must already have a 4-pole flat connector. If your vehicle does not have one, the BRAKE mate cannot be installed using these instructions.
The kit includes: 1 prewired connector, 1 heavy duty flasher, 1 20 amp circuit breaker, 1 40 amp circuit breaker, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, and 6 wire tie straps.
The manual does not specify required tools. However, based on the installation steps, you will likely need a drill (to create a firewall hole if one does not exist), wire strippers, a screwdriver (for self-tapping screws), and possibly a crimper or pliers for ring connectors. Contact technical service at (888) 521-0510 for a complete tool list.
The manual does not specify whether the battery must be disconnected before installation. Contact Cequent Towing Products technical service at (888) 521-0510 for safety guidance before beginning work.
Mount the bracket for the round connector on the bumper if that is where you intend to install it. Some hitches have built-in brackets, so check your hitch first before mounting a separate bracket.
Mount the brake control unit under the dash onto something firm. The unit must be securely fastened to a solid surface.
Mount the 2 circuit breakers (20 amp and 40 amp) end to end on the firewall within reach of the BLUE/BLACK cable. Secure them with the self-tapping screws supplied in the kit.
You may need to drill a hole through the firewall to run the BLUE/BLACK 2-strand wire from the engine bay into the cab. Look for an existing spot first; if none is available, drill a hole and seal it with a rubber grommet or silicone to prevent water and debris from entering the cab.
Some hitch brackets may need to be cut to allow the various connectors to pass through. Check your specific hitch bracket during installation; if it blocks connector passage, you will need to cut it.
Yes. In step 9, you must cut the black wire to create two open ends. These ends are then fitted with ring connectors and attached to the 40 amp and 20 amp circuit breakers respectively.
WHITE = ground wire; BLUE/BLACK = 2-strand power and trailer brake wire (runs from rear connector to front of vehicle and through firewall); RED = power wire from brake control unit; BLUE = trailer brake wire from brake control unit; GREEN = wire from brake control unit to brake switch.
Connect the WHITE ground wire to the frame of the vehicle. This provides the ground connection for the system.
Run the BLUE/BLACK 2-strand wire along the frame rail to the front of the vehicle, avoiding the exhaust, axles, and brake cables. Secure it with the plastic tie straps supplied. Then run it up the firewall, avoiding the steering mechanism, and secure it with ties.
Split the BLUE/BLACK 2-strand wire down the middle. Connect the RED (power) wire of the brake control unit to the BLACK wire using a Scotch lock. Connect the BLUE (trailer brake) wire of the brake control unit to the BLUE wire using a Scotch lock. Connect the WHITE wire of the brake control unit to the ground on the vehicle body. Connect the GREEN wire of the brake control unit to the inactive side of the brake switch.
Run a heavy gauge wire from the battery or equivalent power source to the battery side of either circuit breaker. Attach a #10 G-ring connector to one end of the wire. Then split a wire off this main wire to the 20 amp breaker using a Scotch lock and attach a #10 G-ring connector to the end of this wire. Alternatively, you can run a jumper between the two breakers.
The circuit breakers protect the electrical system. The 40 amp breaker is connected to the auxiliary side of the wire going to the rear connector. The 20 amp breaker is connected to the auxiliary side of the wire going through the firewall to the brake control unit.
The heavy duty flasher is a replacement turn signal flasher. If your turn signals blink too fast after installation, replace your vehicle's original turn signal flasher with the one supplied in the kit.
After attaching the round connector with self-tapping screws, test the connector for: running lights, brake lights, turn signals, and hot wire (power). Note that the brake control output cannot be tested unless a trailer is connected to the connector.
If the turn signals are blinking too fast after installation, replace the turn signal flasher with the heavy duty flasher supplied in the BRAKE mate kit.
After drilling a hole through the firewall to run the BLUE/BLACK wire into the cab, seal the hole with a rubber grommet or silicone to prevent water and debris from entering the vehicle.
When running the BLUE/BLACK 2-strand wire along the frame rail and up the firewall, avoid the exhaust, axles, brake cables, and steering mechanism. These components can damage the wire or be damaged by it. Secure the wire with the supplied plastic tie straps.
Your vehicle must have a 4-pole flat connector. Contact Cequent Towing Products at (888) 521-0510 or check a fitment database to confirm compatibility with your specific make, model, and year.
The kit includes a prewired connector, brake control unit, 20 amp and 40 amp circuit breakers, 5 #10 G-ring connectors, 2 3/8" G-ring connectors, 5 Scotch locks, 8 self-tapping screws, 6 wire tie straps, and a heavy duty flasher.
You may need to drill a hole through the firewall to run the brake wire into the cab if an existing hole is not available. The hole must be sealed with a rubber grommet or silicone.
Connect WHITE (ground) to frame, RED (power) to BLACK wire, BLUE (trailer brake) to BLUE wire, GREEN to brake switch, and run BLUE/BLACK from rear connector through firewall to brake control unit.
Test for running lights, brake lights, turn signals, and hot wire (power). Brake control output cannot be tested without a trailer connected. If turn signals blink too fast, replace the flasher with the one supplied.
Avoid routing the BLUE/BLACK wire near the exhaust, axles, brake cables, or steering mechanism. Secure all wires with the supplied plastic tie straps.
Yes, the T-One® Connector model 118850-037 is designed for the Nissan Pathfinder and Infiniti QX60. The installation accesses the driver-side white male connector housing and the passenger-side gray 6-way trailer harness connector located near the rear fascia.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, wire crimpers, wire cutters, and a test-probe. A relay is provided in the hardware kit and must be used; do not substitute with a different relay.
No. The bracket or electrical box for mounting the 4-flat end is not included and must be sourced separately. The 4-flat end must be mounted in an accessible location.
The manual does not specify whether the battery must be disconnected before installation. However, after installation is complete, you must reset the vehicle electrical system by temporarily removing the key from the ignition to test the connector.
1. Open the rear hatch and partially remove the cargo tray and plastic threshold cover. 2. Remove the 3 retaining 10 mm bolts and push clips holding the cargo tray, then lift and lay it back. 3. Remove the rear cargo hooks using a 10 mm socket and partially pull the driver-side trim panel to access the harness wiring. 4. Locate the vehicle's white male connector housing on the driver's side and insert the white female connector, locking it into place. 5. Insert the provided relay into the 4-pin relay connector harness and secure with cable ties. 6. Locate the gray 6-way trailer harness connector on the passenger's side near the rear fascia. 7. Route the T-Connector harness rearward to the back of the bumper fascia and secure with cable ties. 8. Mount the 4-flat end in an accessible location with a bracket or electrical box. 9. Secure the remainder of the harness with cable ties, avoiding areas that could pinch, cut or melt the wire. 10. Reinstall all trim panels, threshold, storage covers and floor covering, being careful not to pinch or cut wires.
The white male connector housing is located on the driver's side of the vehicle. You will need to partially pull the driver-side trim panel to access it. The white female connector from the T-One® harness must be inserted into this housing and locked into place.
The gray 6-way trailer harness connector is located underneath the rear of the vehicle on the passenger's side, near the rear fascia. The T-Connector harness is routed rearward from this location to the back of the bumper fascia.
You must use the relay provided in the hardware kit. Using relays that differ from the relay included in the hardware kit can result in the unit not functioning or may damage the vehicle and/or trailer wiring. The relay is inserted into the 4-pin mating relay connector harness.
Route the T-Connector harness rearward to the back of the bumper fascia. Secure the harness with the cable ties provided. Be careful to avoid any areas that would pinch, cut or melt the wire. The harness must be secured to prevent damage or rattling.
Yes. You must open the rear hatch, partially remove the cargo tray and plastic threshold cover, then remove the 3 retaining 10 mm bolts and push clips holding the cargo tray in place. Lift up the cargo tray and lay it back toward the rear seats to access the harness wiring on the driver's side.
A 10 mm socket and ratchet or 10 mm wrench is required. The cargo tray is held by 3 retaining 10 mm bolts and push clips. The rear cargo hooks are also removed using a 10 mm socket.
After installation is complete, reset the vehicle electrical system by temporarily removing the key from the ignition. Then test and verify the installation with a test light or by connecting a trailer. All connections must be complete for the T-One® Connector to function properly.
The manual does not state the specific amperage rating for the T-One® Connector. However, you must not exceed the lower of: the towing manufacturer rating (including that in your vehicle owner's manual) or the specific amperage ratings stated on the product itself. Check the product label and your vehicle's owner's manual for these ratings.
Always wear safety glasses during installation. Follow all warnings and instructions included with the product and printed on the tow vehicle's battery. Do not pinch, cut or melt wires during routing and reinstallation. Ensure all connections are complete before testing. Do not exceed the stated product ratings or the lower of the towing manufacturer rating or vehicle owner's manual rating, as overloading circuits can cause fires.
After reinstalling the plastic trim panels, threshold, storage covers, floor covering and other removed items, ensure you have not pinched or cut any wires. Verify that all connections are complete and test the T-One® Connector with a test light or trailer to confirm proper function.
No, the bracket or electrical box is not included and must be sourced separately.
Yes, you must partially remove the cargo tray and remove the 3 retaining 10 mm bolts and push clips to access the driver-side harness wiring.
Do not exceed the lower of the towing manufacturer rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Check the product label for the specific rating.
