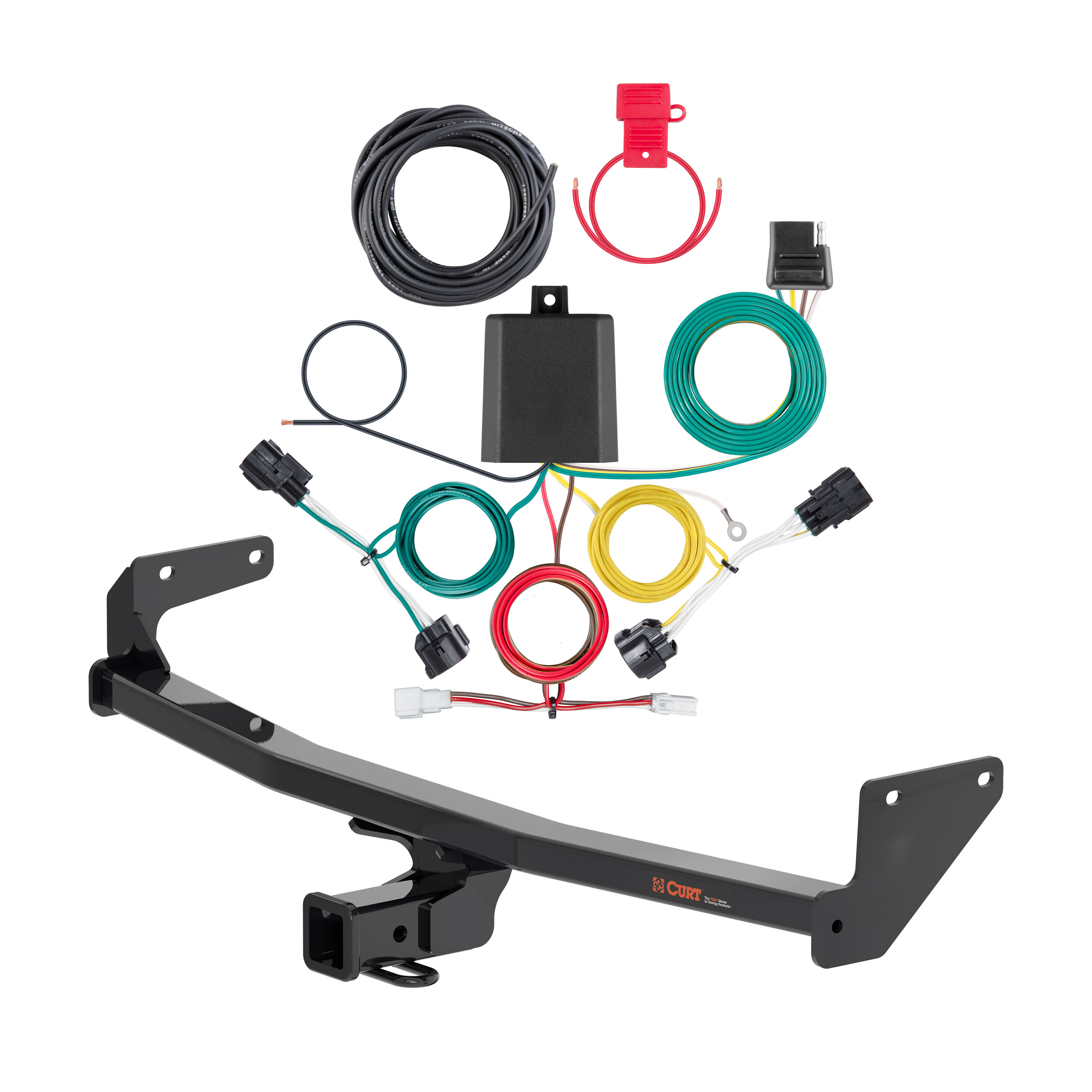

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2023 - 2026 Kia Niro EV. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Niro and Niro EV (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

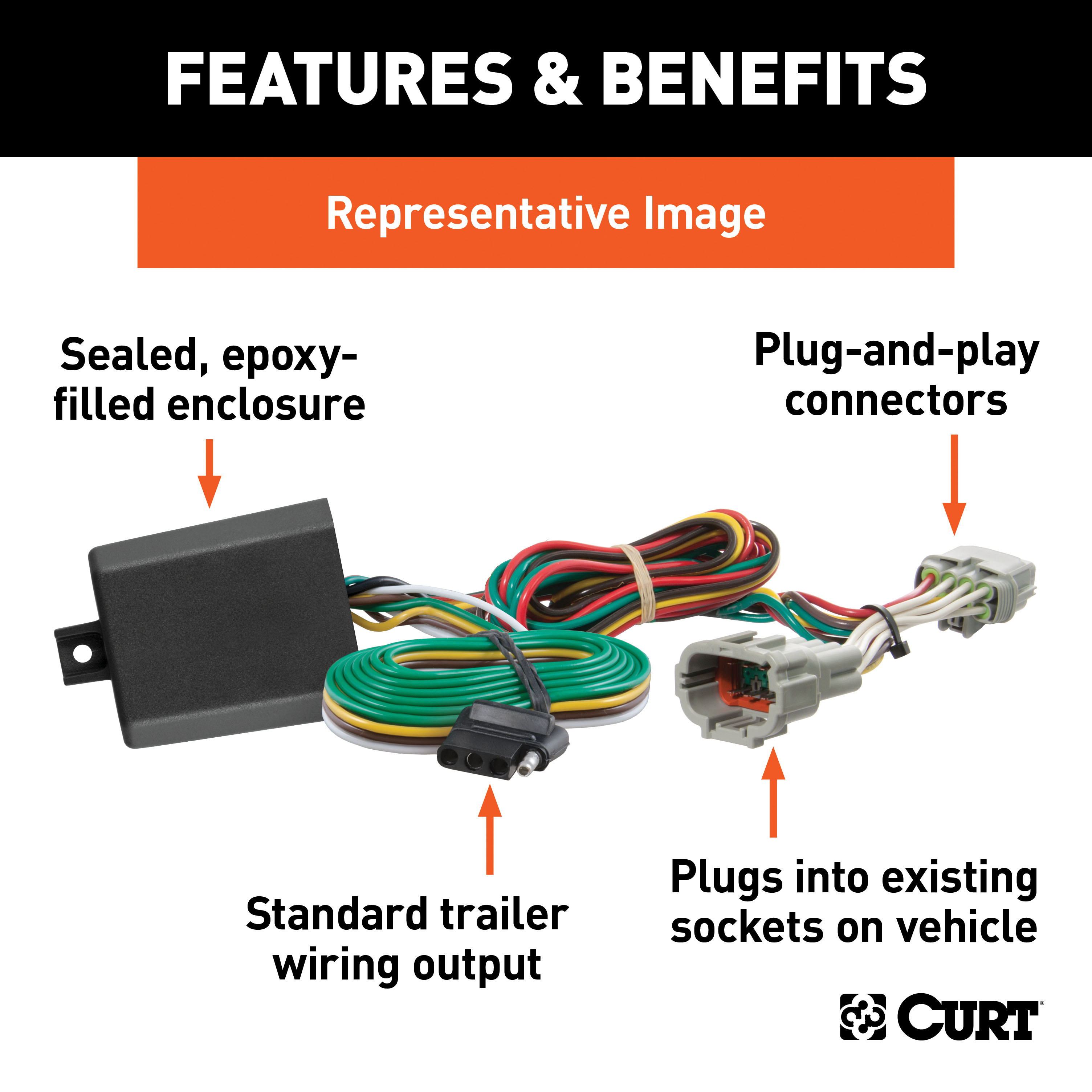

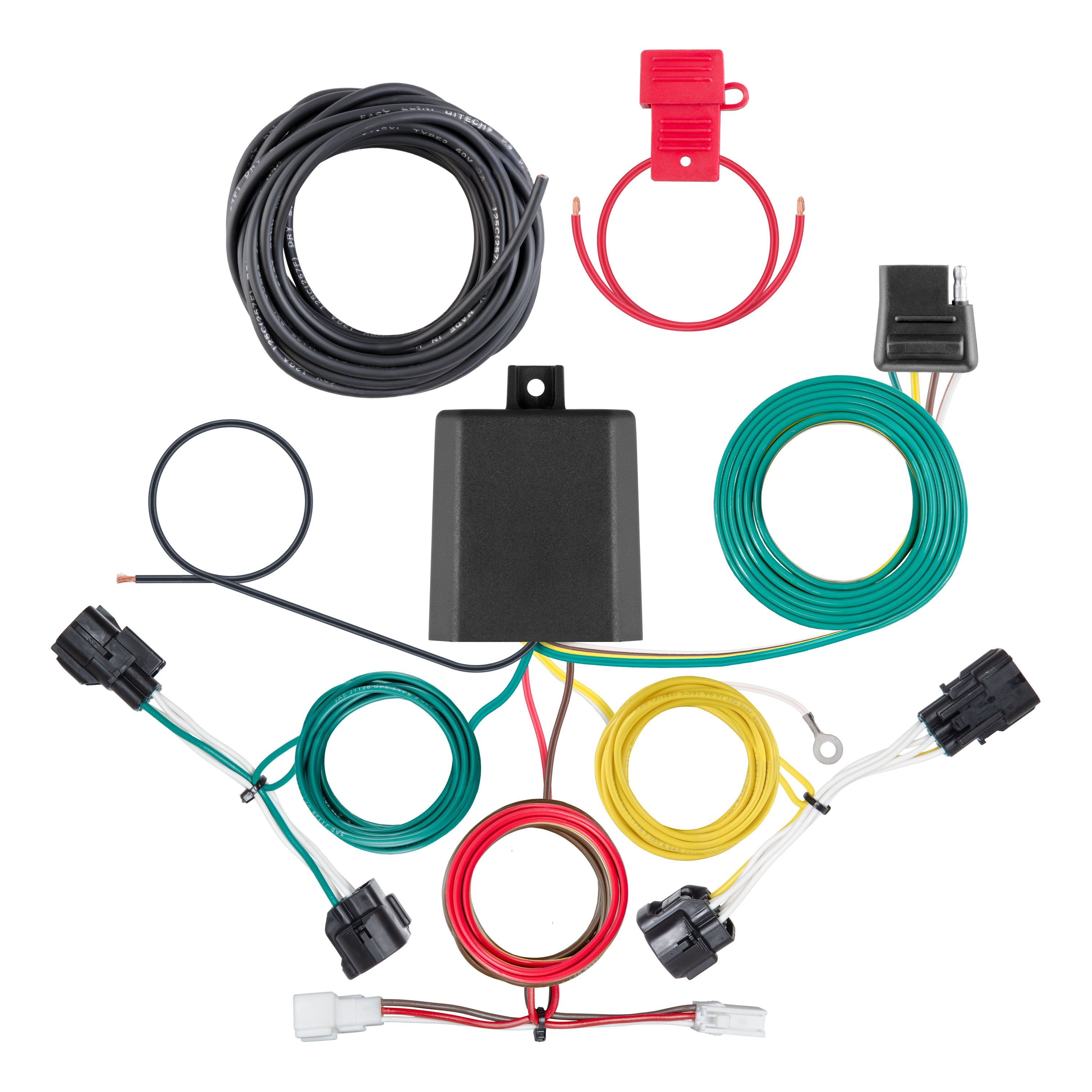

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Niro (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2026 | Kia Niro EV | — |
Yes, the 22 - 24 Kia Niro EV Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13531 (Part #CHW-2032) is designed to fit the 2022-2024 Kia Niro EV.
The 22 - 24 Kia Niro EV Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13531 (Part #CHW-2032) fits the following vehicles: 2022-2024 Kia Niro EV. Always verify your specific year, make, and model before ordering.
The 22 - 24 Kia Niro EV Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13531 (Part #CHW-2032) fits 2022-2024 Kia Niro EV models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 22 - 24 Kia Niro EV Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13531 (Part #CHW-2032) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 13531 has a gross trailer weight (GTW) capacity of 2,000 lbs and a tongue weight (TW) capacity of 200 lbs.
The manual does not specify vehicle make, model or year compatibility. Contact CURT product support at 877.287.8634 or visit curtmfg.com for fitment information.
Required tools: 10mm, 13mm, 15mm and 17mm sockets; ratchet; torque wrench; flathead screwdriver; paint marker; utility knife or aviation shears; and tape measure. A tools reference guide is available at curtmfg.com/trailer-hitch-installation.
Yes. You must remove the underbody panel by removing seven push pins with a screwdriver, six nuts with a 10mm socket, and loosening two plastic zip nuts in the center with a 15mm socket. The panel is then trimmed and reinstalled after hitch installation.
On gas models, yes. Lower the canister on the driver side and the exhaust by removing two nuts and one bolt with a 13mm socket, and unhook the two muffler hangers. Support both components during hitch installation, then reinstall and rehook after.
Yes. Trim the bumper cover tab off in the center of the vehicle. The underbody panel is also trimmed as shown in the manual before reinstallation.
All 10mm hex head cap screws must be torqued to 48 ft-lbs.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has a 2,000 lbs GTW and 200 lbs tongue weight capacity, but your vehicle's limits may be lower.
The package includes four M10 x 1.25" hex head cap screws, four 7/16" conical washers, and two spacers. These are the only components supplied; you must provide your own tools.
CURT rates the installation difficulty as Easy. However, installation difficulty varies depending on installer expertise, vehicle condition, and availability of proper tools and equipment.
Yes. On some models there will be a gap between the side plates and frame. Use the supplied spacers as needed between the frame and side plates to fill the gap. Two spacers are included in the package.
The conical toothed washers must be oriented with the toothed side facing the vehicle frame. The assembly diagram on page 2 shows the correct orientation, with the washer positioned between the hex bolt and the hitch side plate.
Leave them loose initially. In Step 4, loosely install the supplied hex head cap screws and conical tooth washers. Only after raising the hitch into position and ensuring proper alignment should you torque all 10mm fasteners to 48 ft-lbs in Step 5.
1. Remove underbody panel (Step 1). 2. On gas models, lower canister and exhaust (Step 2). 3. Trim bumper cover tab (Step 3). 4. Raise hitch and loosely install fasteners and washers (Step 4). 5. Torque all 10mm fasteners to 48 ft-lbs (Step 5). 6. Reinstall canister and exhaust if lowered (Step 6). 7. Trim and reinstall underbody panel (Step 7).
Yes. After lowering the canister on the driver side and the exhaust by removing fasteners and unhooking muffler hangers, you must support both components while installing the hitch to prevent damage.
Safety glasses must be worn at all times while installing this product. Additionally, after installation is complete, periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
The hitch uses four M10 x 1.25" hex head cap screws and four 7/16" conical washers. All 10mm fasteners must be torqued to 48 ft-lbs. The underbody panel is secured with push pins, nuts, and plastic zip nuts that are removed and reinstalled during the process.
After installation, verify that all mounting hardware is tight and structural components are secure. Periodic inspection should be performed to ensure the trailer hitch remains in proper condition. The manual recommends visiting curtmfg.com/understanding-towing for information on safely towing your trailer.
The manual states that periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure, but does not specify an inspection interval. Contact CURT product support at 877.287.8634 for maintenance recommendations.
Remove seven push pins with a screwdriver, six nuts with a 10mm socket, and loosen two plastic zip nuts in the center of the panel with a 15mm socket.
Two nuts and one bolt secure the canister and exhaust. These are removed using a 13mm socket. Additionally, two muffler hangers must be unhooked.
