Understanding 5,200 LB Axles with 12" Brake Systems

The combination of a 5,200 lb capacity axle with 12" x 2" electric brakes is unique in the trailer industry. While most 5.2K axles come with 10" brakes, this configuration provides exceptional stopping power that exceeds typical requirements. This "overbraked" design offers superior safety margins and extended component life, making it ideal for applications where braking performance cannot be compromised.

Why 12" Brakes on a 5,200 LB Axle?

• Superior stopping power - 40% more brake surface than standard 10" brakes
• Reduced brake fade during extended downhill runs
• Lower operating temperatures extend component life
• Better performance when towing at or near capacity
• Increased safety margins for commercial applications
• Compatible with tandem axle setups requiring balanced braking

Typical Applications

These heavy-duty axles excel in demanding commercial and industrial applications:

• Equipment Trailers: Construction and agricultural machinery transport
• Car Haulers: Multi-vehicle transport requiring superior braking
• Dump Trailers: Heavy material hauling with frequent stops
• Gooseneck Trailers: Commercial freight and equipment transport
• Mobile Workshops: Heavy tool trailers and mobile service units
• RV Trailers: Large fifth wheels and toy haulers

Complete Parts Breakdown: Heavy-Duty 12" Electric Brake Assembly

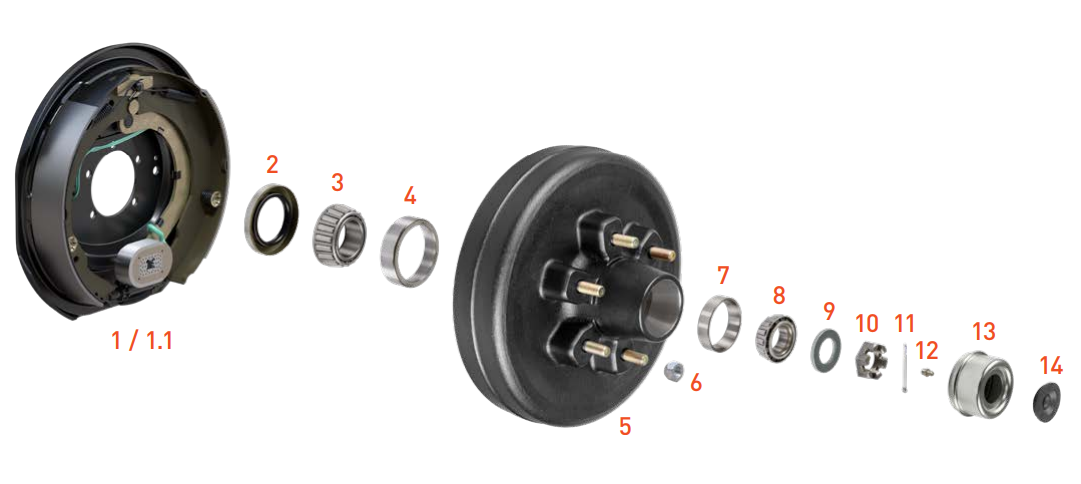

Exploded view of heavy-duty 12" electric brake axle components

The following table details all components for this commercial-grade axle assembly. Note the upgraded bearing sizes and 6-lug configuration designed for heavy-duty applications.

Critical Heavy-Duty Components Analysis

12" x 2" Electric Brake Assemblies (Parts #122451, #122259)

The 12-inch brake assemblies represent a significant upgrade in braking capability:

• Brake Surface: 75.4 square inches per wheel vs. 47.1 for 10" brakes
• Heat Capacity: 60% better heat dissipation than 10" systems
• Magnet Size: Larger electromagnets provide stronger initial grab
• Shoe Width: 2" wide shoes last longer under heavy use
• Adjustment Range: Extended range accommodates more shoe wear

Commercial-Grade Bearing System

The bearing configuration uses larger, heavier-duty components:

• Inner Bearings (25580/25520):
  • Dynamic load rating: 17,000 lbs
  • Larger roller diameter for increased capacity
  • Better heat dissipation due to larger mass
• Outer Bearings (LM67048/LM67010):
  • Specifically designed for heavy trailer applications
  • Enhanced thrust load capacity
  • Precision tolerances for smooth operation

2.25" ID Double-Lip Seal (Part #122088)

The larger seal accommodates the heavy-duty spindle and provides:

• Increased sealing surface area for better protection
• Heavy-duty construction resists deformation under load
• Compatible with high-temperature synthetic greases
• Extended service life in commercial applications

6-Lug Hub Configuration (Part #122094)

The 6 on 5-1/2" bolt pattern offers several advantages:

• 33% more wheel attachment points than 5-lug
• Better load distribution reduces stud stress
• Compatible with heavy-duty commercial wheels
• Reduced risk of wheel separation under extreme loads
• Standard pattern for many heavy-duty applications

Maintenance Requirements for Heavy-Duty Applications

Intensive Use Maintenance Schedule

Heavy-duty applications demand more frequent maintenance:

• Daily (Commercial Use): Pre-trip brake and hub temperature checks
• Weekly: Visual brake inspection through backing plate
• Monthly or 3,000 miles: Brake adjustment check
• Quarterly or 10,000 miles: Complete brake inspection
• Semi-annually or 25,000 miles: Bearing service and brake component replacement as needed
• Annually: Complete hub disassembly and inspection

Heavy-Duty Bearing Service

Proper bearing maintenance is critical for heavy loads:

1. Cleaning: Use solvent to thoroughly clean all bearing surfaces
2. Inspection: Check for spalling, pitting, or discoloration
3. Grease Selection: Use only high-temperature disc brake rated grease
4. Packing: Ensure complete grease coverage of all rollers
5. Adjustment: Follow manufacturer torque specifications exactly
6. Break-in: Monitor hub temperatures during first 50 miles

12" Brake Specific Maintenance

• Magnet Inspection: Check for uneven wear patterns monthly
• Shoe Thickness: Replace when worn to 3/16" (more material than 10" brakes)
• Drum Condition: Maximum drum diameter typically 12.090"
• Wiring: Use minimum 10-gauge wire for 12" brake circuits
• Controller Settings: May require adjustment from 10" brake settings

Troubleshooting Heavy-Duty Brake Systems

Uneven Brake Wear

Common causes in heavy-duty applications:

• Load Distribution: Uneven loading causes disproportionate wear
• Controller Issues: Incorrect gain settings for 12" brakes
• Electrical Resistance: Check all connections for voltage drop
• Suspension Problems: Worn components affect brake contact
• Solution: Address root cause and replace brakes in axle sets

Overheating Issues

• Dragging Brakes: Adjust or repair self-adjusters
• Overloading: Verify actual weights vs. ratings
• Continuous Use: Allow cooling periods on long descents
• Bearing Issues: Overheating often starts with bearings
• Brake Balance: Ensure all brakes share load equally

Premature Magnet Failure

• Voltage Issues: Check for over-voltage conditions
• Poor Ground: Ensure solid ground at each brake
• Contamination: Oil or grease on magnets reduces effectiveness
• Drum Condition: Grooved drums accelerate magnet wear
• Quality: Use only OEM or high-quality replacement magnets

Upgrading to Heavy-Duty 12" Systems

When to Consider 12" Brakes

• Frequent operation at or near axle weight ratings
• Regular mountain or steep grade operation
• Commercial hauling requirements
• History of brake fade with 10" systems
• Towing with heavy-duty pickup trucks
• Multi-axle trailers requiring balanced braking

Conversion Considerations

Upgrading from 10" to 12" brakes requires:

• Complete Axle Change: Different spindle sizes and mounting
• Wheel Compatibility: Minimum 15" wheels for 12" brakes
• Electrical Upgrade: Heavier gauge wiring may be needed
• Controller Adjustment: Recalibration for larger brakes
• Cost Analysis: Significant investment but improved safety

Frequently Asked Questions

What's the actual weight capacity with 12" brakes?

Weight capacity depends on the complete axle assembly, not just brake size. 12" brakes are typically found on 5,200 lb to 8,000 lb axles. The larger brakes provide the stopping power needed for these heavier ratings but don't determine the weight capacity themselves.

Can I mix 10" and 12" brakes on the same trailer?

No, mixing brake sizes causes dangerous imbalances. The different sizes have different response characteristics and braking force, leading to uneven braking, potential jackknifing, and premature wear. All axles should have the same size brakes.

Why are 12" brake magnets more expensive?

12" brake magnets are physically larger with more coil windings, use heavier gauge components, and must meet tighter specifications for commercial applications. The larger size also means more raw materials and more complex manufacturing processes.

How do I identify if I have 25580 or 15123 inner bearings?

The bearing number is typically stamped on the bearing cage. The 25580 is larger (1.75" ID vs 1.25" ID) and is standard on heavier axles with 12" brakes. When in doubt, measure the spindle diameter where the bearing sits or consult your axle manufacturer's specifications.

What's the minimum tow vehicle requirement for trailers with 12" brakes?

Generally, 3/4-ton (2500/250 series) pickups or larger are recommended for trailers equipped with 12" brakes, as these trailers are typically heavier. The tow vehicle must have adequate brake controller capacity and proper weight ratings for the loaded trailer weight.

Cost-Benefit Analysis of 12" Brake Systems

Initial Investment

• Brake Assemblies: 40-50% higher than 10" systems
• Replacement Parts: Shoes, magnets, and drums cost more
• Wheels: May require larger, more expensive wheels
• Installation: Similar labor costs to 10" systems

Long-Term Benefits

• Safety: Reduced stopping distances with heavy loads
• Component Life: Less stress equals longer service intervals
• Reduced Fade: Better performance in demanding conditions
• Resale Value: Heavy-duty components command premium
• Versatility: Capacity for varying load conditions
• Insurance: May qualify for commercial policy discounts

Return on Investment

For commercial operations or frequent heavy hauling, 12" brakes typically pay for themselves through:

• Reduced accident risk and liability
• Extended service intervals (less downtime)
• Improved driver confidence and comfort
• Ability to meet commercial safety requirements
• Lower total cost of ownership over equipment lifetime

Professional Installation Tips

Critical Installation Points

• Bearing Preload: Follow exact specifications - critical for heavy loads
• Brake Adjustment: Initial adjustment more critical with 12" brakes
• Wiring Gauge: Never undersize brake circuit wiring
• Breakaway System: Ensure battery capacity for larger brakes
• Controller Programming: Update settings for 12" brake response

Common Installation Mistakes

• Using standard grade hardware instead of grade 8
• Mixing left and right brake assemblies
• Inadequate electrical connections
• Incorrect bearing adjustment procedures
• Failing to properly break in new components

Conclusion

Heavy-duty axles with 12" x 2" electric brakes represent the pinnacle of trailer braking technology for commercial and demanding applications. The larger components, from the 25580 series bearings to the 6-lug hubs, are engineered to handle the stresses of heavy loads and frequent use while maintaining safety margins.

Understanding these components and their maintenance requirements is essential for fleet managers, owner-operators, and anyone responsible for heavy equipment transport. The initial investment in 12" brake systems pays dividends through improved safety, reduced maintenance costs, and extended component life when properly maintained.

Whether you're upgrading existing equipment or specifying new trailers, this guide provides the technical knowledge needed to make informed decisions. Remember that with heavy-duty equipment comes the responsibility of proper maintenance and operation - your safety and that of others on the road depends on it.

For specific applications or technical questions about 12" brake systems, consult with qualified professionals who understand the demands of commercial hauling and can ensure your equipment meets all safety and regulatory requirements.
