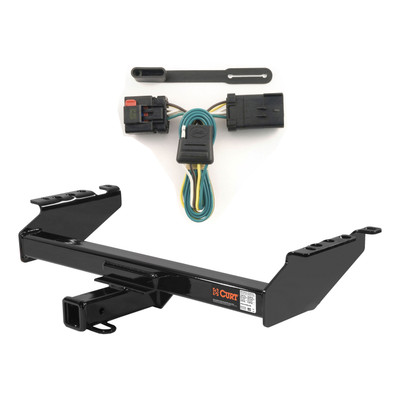

Complete CURT Class 4 2" trailer hitch and 4-flat custom wiring kit engineered for the 2000 - 2002 Dodge Ram 2500 Excluding roll pan bumper. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Dodge D100, D150, D200, D250, D300, D350, Ram 1500, 2500 or 3500 and Ford Bronco, F100, F150, F250, F250 HD or F350 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Dodge Ram 2500, 1500 Van, 2500 Van, Dodge Sprinter 2500 and 3500, Jeep Commander, Grand Cherokee and Liberty and Mitsubishi Raider (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Dodge Ram 2500 | Excluding roll pan bumper |

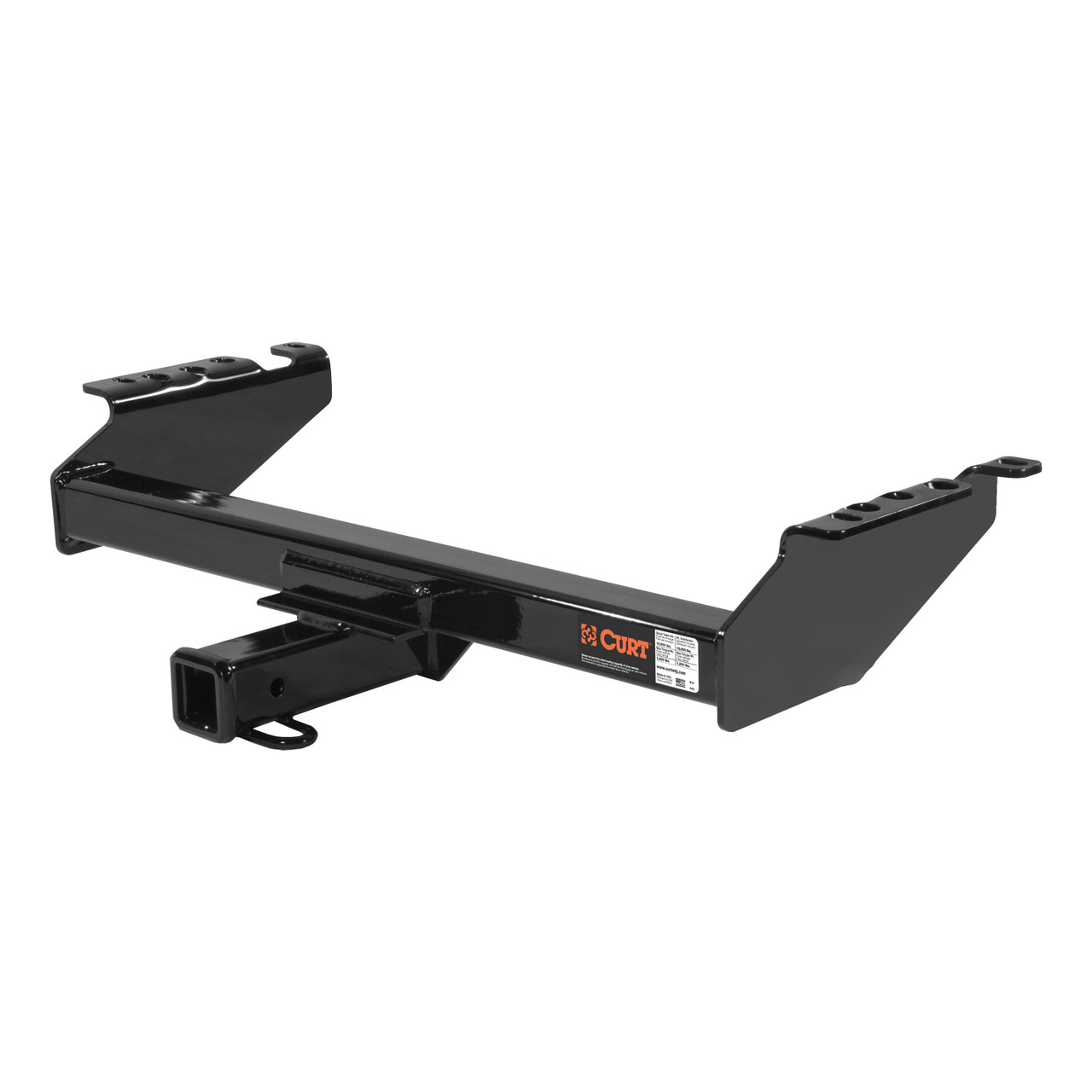

The 68 - 02 Dodge Ram 2500 Excluding roll pan bumper Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14001 (Part #CHW-860) fits 1968-2002 Dodge Ram 2500 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The 68 - 02 Dodge Ram 2500 Excluding roll pan bumper Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14001 (Part #CHW-860) fits the following vehicles: 1968-2002 Dodge Ram 2500. Always verify your specific year, make, and model before ordering.
Yes, the 68 - 02 Dodge Ram 2500 Excluding roll pan bumper Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14001 (Part #CHW-860) is designed to fit the 1968-2002 Dodge Ram 2500.
The 68 - 02 Dodge Ram 2500 Excluding roll pan bumper Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14001 (Part #CHW-860) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT model 14001 fits 1973-1997 Ford F-Series trucks, except 1973-1979 crew cab models. Your 1985 F-150 is compatible. Note that if your truck has a lower spare tire, you will need to lower it before installation.
No. CURT model 14001 is not compatible with 1973-1979 Ford F-Series crew cab models. It fits 1980-1997 F-Series crew cabs and all other F-Series models from 1973-1997 (except the excluded crew cab years).
Yes, CURT model 14001 fits 1978-1997 Ford Bronco full size. Your 1990 Bronco is compatible. Note that the bumper bolts can be loosened and the bumper raised to increase clearance for the hitch during installation.
Yes, CURT model 14001 fits 1967-2002 Dodge full size vehicles. Your 1985 Dodge is compatible. If the bumper interferes with the receiver hitch, loosen the bumper brackets and reposition them upward, then re-tighten.
When used as a weight carrying hitch: 10,000 lbs trailer weight and 1,000 lbs tongue weight. When used as a weight distribution hitch: 12,000 lbs trailer weight and 1,200 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 50 lbs.
The kit includes: 6 carriage bolts (1/2-13 UNC, grade 8, part number 10-10288), 6 serrated flange nuts (1/2-13 UNC, grade 8, part number 20-00062), and 8 square hole spacers (0.250 x 1.50 x 2.00 inch, part number CM-SP1).
No. The kit includes all required fasteners: 6 carriage bolts and 6 flange nuts for the 6 mounting holes. You will also receive 8 spacers, with 2 spacers required at the middle mounting hole on each side (4 total) and 2 additional spacers included.
A torque wrench is required to tighten all fasteners to 110 ft-lbs. Drilling equipment is required to create the mounting holes using the step drilling method (1/8" pilot hole, then 3/8", then 1/2" final hole). For Ford Bronco installations, thin wire is needed for the fishwiring technique on the two forward bolts on each side.
Yes, if your 1973-1997 Ford F-Series has a lower spare tire, you must lower it before installation. The installation notes state "LOWER SPARE TIRE" for this application. After installation is complete, you can reposition the spare tire if necessary.
Yes, drilling is required. The manual explicitly states "DRILLING REQUIRED" and "NO TRIMMING REQUIRED." You must drill six 1/2" mounting holes using the step drilling method: first a 1/8" pilot hole, then 3/8", then finish with 1/2".
The step drilling method involves three stages: (1) drill a 1/8" pilot hole, (2) drill a 3/8" hole, (3) finish with a 1/2" hole. This method is required for Ford F-Series and Dodge full size installations to create the six 1/2" mounting holes.
Yes, you must drill six 1/2" holes on a Ford Bronco. However, the drilling procedure differs from F-Series: you do not use the step drilling method. The manual notes to "take extra care around the gas tank" when drilling. Additionally, the two forward bolts on each side must be fishwired (a thin wire wrapped around the bolt and through the spacer) due to tight gas tank clearance.
Fishwiring is a technique used on 1978-1997 Ford Bronco installations. It involves wrapping a thin wire around the end of the bolt and through the square hole spacer. This technique is required for the two forward bolts on each side of the Bronco due to tight clearance with the gas tank. The bolts are fed through using the access hole in the crossmember next to the frame.
You can use existing holes for the first two bolts. The Dodge installation procedure uses the existing 1/2" round holes at the rear of the frame for the first and third mounting positions. You then use the hitch as a template to drill the two remaining holes to 1/2" diameter. All six holes receive 1/2" carriage bolts and spacers.
No. The manual explicitly states "NO TRIMMING REQUIRED." Drilling is required, but no cutting, trimming, or modification of vehicle body panels is necessary.
All fasteners must be tightened to 110 ft-lbs using a torque wrench. This applies to all six mounting bolts on all vehicle applications (Ford F-Series, Ford Bronco, and Dodge full size).
The carriage bolts are 1/2-13 UNC (1/2 inch diameter, 13 threads per inch, Unified National Coarse), grade 8, 2 inches long. Part number 10-10288. Six bolts are included.
The flange nuts are 1/2-13 UNC (1/2 inch diameter, 13 threads per inch, Unified National Coarse), grade 8, serrated. Part number 20-00062. Six nuts are included.
The spacers are 0.250 x 1.50 x 2.00 inches (square hole spacers). Part number CM-SP1. Eight spacers are included in the kit.
Due to the large size of the middle mounting hole, a spacer must be placed between the hitch and the flange nut at that location on both sides. This means two spacers are used at the middle hole on each side (four total), with two additional spacers included in the kit.
1. Using the large hole in the hitch hanger as a guide, place it over the stock rivet on each side of the frame. Center the hitch and mark the six holes to be drilled. 2. Using the step drilling method (1/8" pilot, 3/8" intermediate, 1/2" final), drill the six 1/2" mounting holes. Place a 1/2" carriage bolt and spacer through each hole in the frame. 3. Raise the hitch into position and secure each bolt with a 1/2" flange nut. 4. Tighten all fasteners to 110 ft-lbs with a torque wrench. 5. Reposition the spare tire if necessary.
1. Using the largest hole in the hitch hanger as a guide, place it over the stock rivet on each side of the frame. Center the hitch and mark the six holes to be drilled. 2. Drill the six 1/2" holes, taking extra care around the gas tank. 3. Place a 1/2" carriage bolt and spacer in each hole. For the two forward holes on each side, use the fishwiring technique (wrap thin wire around the bolt and through the spacer) and feed bolts through the access hole in the crossmember. 4. Raise the hitch into position and secure each bolt with a 1/2" flange nut. 5. Tighten all fasteners to 110 ft-lbs with a torque wrench.
1. At the rear of the frame, find the 1/2" round holes. 2. In the first and third 1/2" round holes, place a 1/2" carriage bolt and spacer down through the frame. 3. Raise the hitch into position and secure with a 1/2" flange nut on each bolt, hand tighten only. 4. Center the hitch and use it as a template to drill the two remaining holes to 1/2" diameter. 5. Place a 1/2" x 2" carriage bolt and spacer in all mounting holes and secure with a 1/2" flange nut. 6. Tighten all fasteners to 110 ft-lbs with a torque wrench.
For Ford F-Series and Ford Bronco, tighten fasteners to 110 ft-lbs after raising the hitch into position. For Dodge full size, hand tighten the first two bolts only when initially securing the hitch, then after drilling the remaining holes and installing all bolts, tighten all fasteners to 110 ft-lbs with a torque wrench.
For Ford F-Series and Ford Bronco: After using the large/largest hole in the hitch hanger as a guide over the stock rivet on each side of the frame, center the hitch on the frame before marking the six holes to be drilled. For Dodge full size: After hand tightening the first two bolts, center the hitch and use it as a template to drill the two remaining holes.
For Ford Bronco: The bumper bolts can be loosened and the bumper raised to increase clearance for the hitch. Re-tighten the bolts after installation. For Dodge full size: Loosen the bumper brackets and reposition them upward, then re-tighten.
If the 9/16" slots in the hitch hangers line up with the small 1/4" holes in the vehicle frame on some Ford F-Series models, drill these holes out to 1/2" to accommodate the carriage bolts.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval, but regular inspection of fastener tightness is recommended.
Do not exceed your vehicle manufacturer's recommended towing capacity. The CURT 14001 has a gross load capacity of 10,000 lbs trailer weight / 1,000 lbs tongue weight (weight carrying) or 12,000 lbs trailer weight / 1,200 lbs tongue weight (weight distribution), but you must follow the lower of either the hitch capacity or your vehicle manufacturer's limit.
CURT 14001 fits 1973-1997 Ford F-Series (except 73-79 crew cab), 1978-1997 Ford Bronco full size, and 1967-2002 Dodge full size. Check your vehicle year and model against these ranges.
The kit includes 6 carriage bolts (1/2-13 UNC, 2" long), 6 flange nuts (1/2-13 UNC), and 8 square hole spacers. All fasteners are grade 8 steel.
Yes, drilling is required. You must drill six 1/2" mounting holes. For Ford F-Series, use the step drilling method (1/8" pilot, 3/8" intermediate, 1/2" final). For Ford Bronco and Dodge, drilling procedures differ. No trimming is required.
All fasteners must be tightened to 110 ft-lbs using a torque wrench. This applies to all six mounting bolts on all vehicle applications.
Weight carrying: 10,000 lbs trailer / 1,000 lbs tongue. Weight distribution: 12,000 lbs trailer / 1,200 lbs tongue. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. You must use the fishwiring technique for the two forward bolts on each side due to gas tank clearance. This involves wrapping thin wire around the bolt and feeding it through an access hole in the crossmember. Take extra care when drilling around the gas tank.
Part 55381 fits Dodge Ram 1500, 2500, and 3500 models equipped with a factory 7-way connector. If your vehicle has the factory 7-way connector, this harness is compatible. Vehicles without the factory 7-way connector are not supported by this product.
Yes, part 55381 is compatible with Jeep Grand Cherokee models that have a factory 7-way connector. The harness is designed to work with the factory 7-way connector on this vehicle.
Yes, part 55381 fits Dodge Sprinter 2500 and 3500 models, as well as Freightliner Sprinter 2500 and 3500 models, provided they have a factory 7-way connector.
Yes. The 55381 custom wiring harness is designed to work only with vehicles equipped with a factory 7-way connector. The harness is inserted between the factory 7-way connector and the vehicle wiring harness. Vehicles without a factory 7-way connector cannot use this product.
The 55381 is a custom wiring harness that connects between your vehicle's factory 7-way connector and the vehicle wiring harness. It allows you to use aftermarket trailers and towing equipment with your vehicle's existing electrical system.
The manual does not specify any special tools required. The installation involves locating the factory 7-way connector under the driver side bumper, removing mounting screws or bolts, separating connectors by pressing a red locking tab, and reinstalling components. Standard hand tools for removing fasteners should be sufficient.
The factory 7-way connector is located under the bumper on the driver side of the vehicle, near the taillight wiring harness. The exact location varies by vehicle type: on SUVs, vans and pickup trucks, look behind the driver side taillight housing (location S1 for SUVs/vans, T1 for pickup trucks).
Carefully press the red locking tab on the connector sideways and pull the connectors apart. Take care not to damage the locking tabs during this process. Once separated, ensure the mating surfaces of both connectors are free of dirt and clean if necessary before proceeding.
Insert the custom wiring harness between the separated factory 7-way connector and vehicle wiring harness. Make sure both connectors are fully inserted with locking tabs in place. Push the red locking tabs back to their original position to secure the connection.
Reinstall all items you removed during installation. Install the provided 4-flat dust cover to help prevent corrosion of the connectors.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Before drilling to avoid damage and personal injury, check for miscellaneous items that may be hidden behind or under any surface. However, the standard installation of the 55381 does not require drilling—it is a connector-based installation.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The 55381 fits Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Ram 1500/2500/3500, Ram vans, and Sprinter vans, Freightliner Sprinter vans, Jeep Commander, Grand Cherokee, and Liberty, and Mitsubishi Raider—all with factory 7-way connectors. Check your vehicle's documentation to confirm it has a factory 7-way connector.
No. The 55381 is a connector-based installation that requires no drilling, cutting, or permanent modifications. It connects between your factory 7-way connector and vehicle wiring harness.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and fire. Check your vehicle owner's manual for the tow vehicle lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Ensure all installation steps have been completed.
