Understanding the 7,000 LB Axle Advantage

The 7K axle occupies a unique position in the trailer industry, offering maximum single-axle capacity before stepping up to tandem configurations. This makes it ideal for applications requiring substantial load capacity while maintaining single-axle simplicity and maneuverability.

Why Choose 7K Over Tandem 3.5K Axles?

• Simplicity: One axle means half the maintenance of tandems
• Weight Savings: Single 7K weighs less than dual 3.5K axles
• Cost Efficiency: Lower initial cost and ongoing maintenance
• Maneuverability: Shorter wheelbase improves turning radius
• Ground Clearance: Better approach angles for job sites
• 8-Lug Security: Extra wheel attachment points for heavy loads

Ideal 7K Axle Applications

The 7,000 lb capacity serves specific niches where maximum single-axle capacity is essential:

• Heavy Equipment Trailers: Compact excavators, large skid steers
• Industrial Cargo Trailers: Maximum payload in single-axle configuration
• Specialty Car Haulers: Heavy vehicles requiring low deck height
• Agricultural Trailers: Implements and machinery transport
• Commercial Dump Trailers: Single-axle dumps for tight job sites
• Mobile Workshops: Heavy tool trailers and service units
• Tiny House Trailers: Maximum capacity for mobile homes

Complete Parts Breakdown: 7,000 LB Electric Brake Assembly

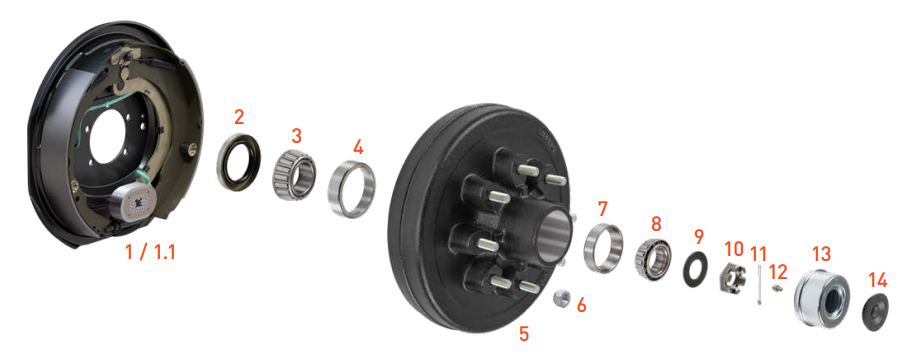

Exploded view of 7K axle with 12" electric brakes and 8-lug hub configuration

The following table provides a complete breakdown of the 7K axle wheel end assembly. Note the heavy-duty components throughout, including the distinctive 8-lug hub pattern exclusive to 7,000 lb and heavier axles.

Critical 7K-Specific Components Analysis

The 8-Lug Advantage (Part #122096)

The 8 on 6-1/2" bolt pattern is the defining feature of 7K axles:

• 60% More Attachment Points: 8 lugs vs 5 on lighter axles
• Load Distribution: Each stud carries only 875 lbs vs 1,400 lbs on 5-lug
• Redundancy: Loss of one stud less critical with 8-lug design
• Wheel Options: Compatible with heavy-duty truck wheels
• Professional Image: 8-lug wheels signal serious capacity
• Reduced Stress: Lower stress per stud extends component life

Heavy-Duty Bearing System

The 7K bearing configuration uses the largest standard trailer bearings:

• Inner Bearings (25580/25520):
  • Same as 5.2K and 6K axles - proven reliability
  • 1.750" ID accommodates heavy spindle
  • Rated for continuous 7,000 lb service
  • Excellent heat dissipation characteristics
• Outer Bearings (14125A/14276):
  • Exclusive to 7K axles - largest outer bearing
  • 1.250" ID for maximum support
  • Increased roller count for load distribution
  • Superior thrust load capacity
  • Designed for 7,000 lb continuous duty

12" x 2" Brakes for 7K Applications

While the brake size remains 12", the 7K application demands peak performance:

• Magnet Rating: Must handle full 7,000 lb stopping loads
• Shoe Material: Premium compounds for heavy-duty use
• Drum Thickness: Heavier drums resist warping
• Heat Management: Critical with maximum loads
• Adjustment Range: Extended to accommodate wear
• Wiring Requirements: 10-gauge minimum, 8-gauge preferred

Unique Dust Cap (Part #127300)

The 7K dust cap differs from other capacities:

• Larger diameter to fit 7K hubs
• Heavier construction for durability
• Increased grease capacity
• Not interchangeable with 6K or lighter caps

Maintenance Requirements for 7K Axles

Intensive Maintenance Schedule

The 7,000 lb capacity demands rigorous maintenance:

• Daily (Commercial Use): Visual inspection of hubs, brakes, and wheels
• Weekly or 1,000 miles: Temperature check after operation
• Monthly or 3,000 miles: Brake adjustment and bearing inspection
• Every 10,000 miles: Complete brake component inspection
• Every 20,000 miles: Mandatory bearing repack and seal replacement
• Annually: Complete hub disassembly and component measurement

7K-Specific Bearing Service

1. Cleaning: Thorough solvent cleaning of all components
2. Inspection:
   • Check 25580 inner bearing for heat discoloration
   • Inspect 14125A outer bearing for unusual wear patterns
   • Verify cup surfaces are mirror-smooth
3. Grease Selection: Only premium disc-brake rated grease
4. Packing Method: Hand-pack to ensure complete coverage
5. Installation: Follow 7K-specific torque procedures
6. Break-in: Critical first 100 miles at reduced speed

8-Lug Wheel Maintenance

• Torque Pattern: Star pattern across 8 lugs
• Torque Specification: 120-140 ft-lbs (verify with manufacturer)
• Re-torque: After first 50 miles, then every 3,000 miles
• Stud Inspection: Check all 8 studs for stretching or damage
• Wheel Condition: Inspect for cracks at all 8 mounting holes

Common 7K Axle Issues and Solutions

Bearing Failures Specific to 7K

• Outer Bearing (14125A) Failures:
  • Often first to fail due to smaller size vs load
  • Requires precise adjustment - too tight accelerates wear
  • Solution: Follow exact adjustment procedures
• Inner Bearing (25580) Overheating:
  • Common when operating at full 7,000 lb capacity
  • Insufficient grease or wrong type
  • Solution: Use high-temp grease, maintain proper levels

8-Lug Hub Problems

• Stud Failure:
  • Usually from improper torque or cheap wheels
  • Replace all studs if one fails
  • Use only grade 8 replacements
• Wheel Mounting Issues:
  • 8-lug wheels must be hub-centric
  • Lug-centric wheels cause vibration
  • Verify wheel specifications before purchase

Brake Performance at 7K Capacity

• Fade Under Load:
  • 12" brakes work harder on 7K vs lighter axles
  • Allow cooling on long descents
  • Consider brake controller upgrade
• Uneven Wear:
  • Weight distribution critical at 7K
  • Verify proper tongue weight (10-15%)
  • Check suspension components

Load Management for 7K Axles

Understanding True Capacity

While rated for 7,000 lbs, real-world considerations include:

• Safety Factor: Operate at 85% (5,950 lbs) for longevity
• Dynamic Loading: Road conditions add 20-30% momentary loads
• Weight Distribution: Centered loads reduce bearing stress
• Tire Capacity: Must match or exceed 3,500 lbs each
• Wheel Rating: Verify 3,500+ lb rating per wheel

Signs of Overloading

• Excessive hub temperature (over 200°F)
• Rapid brake wear
• Bearing seal leakage
• Unusual tire wear patterns
• Suspension bottoming out
• Frame or tongue deflection

Cost Considerations for 7K Axles

Initial Investment

• Complete 7K Axle: 30-40% premium over 5K axles
• 8-Lug Wheels: $150-250 each (heavy-duty required)
• Tires: Load range E minimum, G preferred ($200-300 each)
• Brake Components: Same as 6K but work harder

Maintenance Costs

• Bearing Sets: $80-100 per wheel (14125A costs more)
• Annual Service: $300-400 per axle
• Brake Replacement: Every 25,000-40,000 miles
• Emergency Repairs: Higher due to commercial use

7K vs Tandem 3.5K Cost Analysis

Single 7K Advantages:

• 50% fewer bearings to maintain
• Half the brake assemblies
• Two wheels/tires vs four
• Simplified suspension
• Lower overall maintenance cost

Upgrading to 7K Axles

When to Consider 7K

• Consistently loading 5K axles to capacity
• Need for single-axle maneuverability
• Trailer length restrictions
• Simplified maintenance requirements
• Commercial reliability demands

Upgrade Requirements

• Frame: Must handle concentrated 7K load
• Coupler: Minimum 10,000 lb rating
• Jack: 8,000 lb minimum capacity
• Safety Chains: 3/8" Grade 70 minimum
• Breakaway System: Sized for 12" brakes
• Tow Vehicle: 3/4-ton minimum, 1-ton preferred

Frequently Asked Questions

What makes 7K axles different from 6K besides capacity?

The main differences are the 8-lug hub (vs 6-lug), larger outer bearings (14125A vs 15123), and a unique dust cap size. The 8-lug design is the most visible difference, providing superior wheel attachment security for the higher load rating. The frame mounting and brake sizes remain the same.

Can I use 6-lug wheels on a 7K axle?

No, 7K axles exclusively use 8 on 6-1/2" bolt pattern hubs. This isn't just about capacity - it's a safety requirement. The 8-lug design distributes the load properly for 7,000 lb service. Using adapters or modifications would be dangerous and likely illegal.

Why do 7K axles use different outer bearings than 6K?

The 14125A/14276 outer bearing set is specifically engineered for 7,000 lb capacity. While the inner bearing (25580) is shared across multiple capacities, the outer bearing is optimized for each weight rating. The larger 14125A provides the extra capacity needed for 7K service.

Is a single 7K axle really better than tandem 3.5K axles?

It depends on your needs. Single 7K advantages include simplicity, lower maintenance, better maneuverability, and lower initial cost. Tandem advantages include redundancy (if one axle fails), better stability, and superior braking with four brake assemblies. Choose based on your specific application.

What's the minimum tire size for 7K axles?

Tires must be rated for at least 3,500 lbs each. Common sizes include ST235/80R16 Load Range E (3,520 lbs) or ST235/85R16 Load Range G (4,080 lbs). Always choose tires with ratings exceeding half your axle capacity for safety margins. Larger diameter tires also help with ground clearance.

Professional Tips for 7K Axle Success

Installation Best Practices

• Use a torque wrench for all critical fasteners
• Apply anti-seize to wheel studs
• Verify bearing end play with dial indicator
• Test brake operation before loading
• Document all torque specifications used
• Perform test pull with partial load first

Maximizing Component Life

• Never exceed 85% of rated capacity routinely
• Maintain proper tire pressure religiously
• Use synthetic high-temp bearing grease
• Install temperature strips on hubs
• Keep detailed maintenance records
• Replace components proactively

Emergency Preparedness

• Carry spare bearings and seals
• Have proper jack rated for 7K
• Include 8-lug lug wrench
• Stock extra wheel studs and nuts
• Maintain roadside service contacts

Conclusion

The 7,000 lb electric brake axle represents the maximum practical capacity for single-axle applications. With its distinctive 8-lug hubs, heavy-duty 14125A outer bearings, and robust 12" electric brakes, this configuration delivers uncompromising performance for the most demanding commercial and industrial applications.

Success with 7K axles requires understanding their unique components and maintenance requirements. From the exclusive 8-lug bolt pattern to the specific bearing combinations, every component is optimized for 7,000 lb service. This specialization demands attention to detail but rewards operators with reliable, efficient heavy hauling capability.

Whether you're upgrading from lighter axles or maintaining an existing 7K setup, this guide provides the technical foundation for safe, reliable operation. Remember that the 7,000 lb rating represents both capability and responsibility - proper maintenance and operation within limits ensures safety for you and others sharing the road.

For those who need maximum single-axle capacity, the 7K configuration offers an elegant solution. By following proper maintenance procedures and using quality components, these axles deliver years of dependable service in the most challenging applications. Keep this reference guide handy, and don't hesitate to consult with professionals when questions arise about your 7K axle system.
