CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1995 - 2004 Toyota Tacoma
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | T1,T2 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1995 - 2004 | Toyota Tacoma | — |

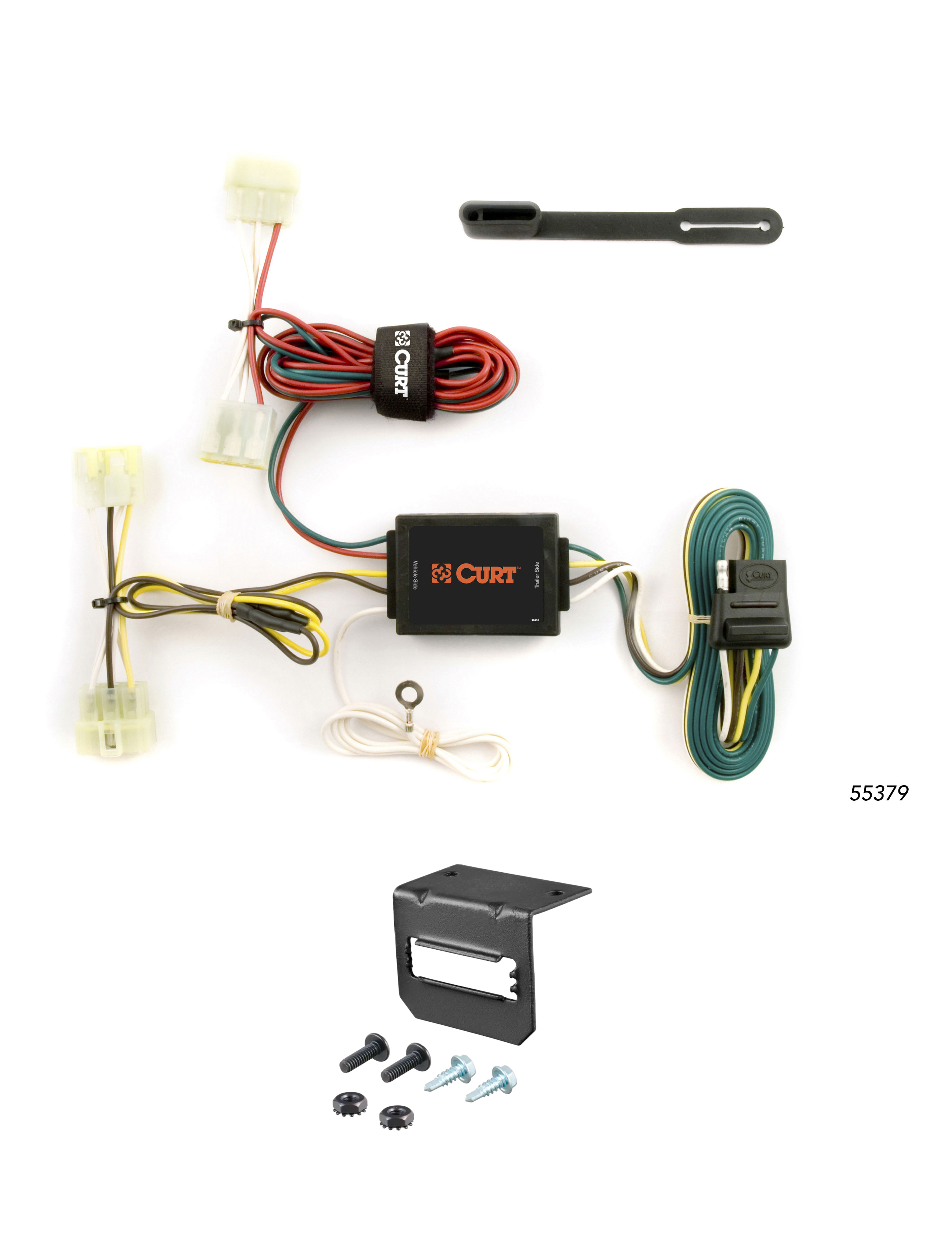

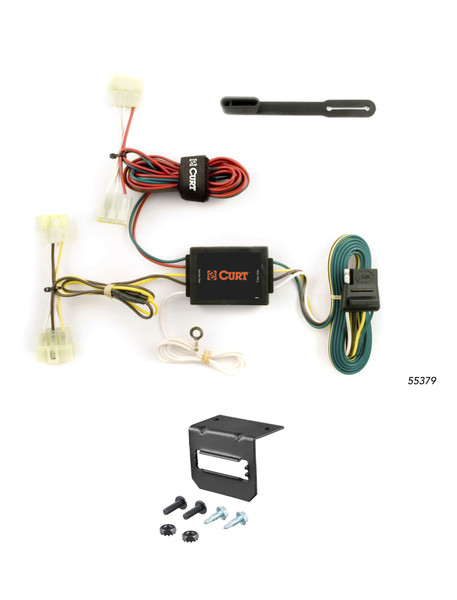

Yes, the 95-04 Toyota Tacoma CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2449) is designed to fit the 1995-2004 Toyota Tacoma.
The 95-04 Toyota Tacoma CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2449) fits 1995-2004 Toyota Tacoma models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 95-04 Toyota Tacoma CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2449) fits the following vehicles: 1995-2004 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
The 95-04 Toyota Tacoma CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2449) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 55379 Custom Wiring Harness is designed for Toyota Pickup and Toyota Tacoma models. Confirm your vehicle matches one of these applications before purchasing.
The 55379 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 5.0 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.

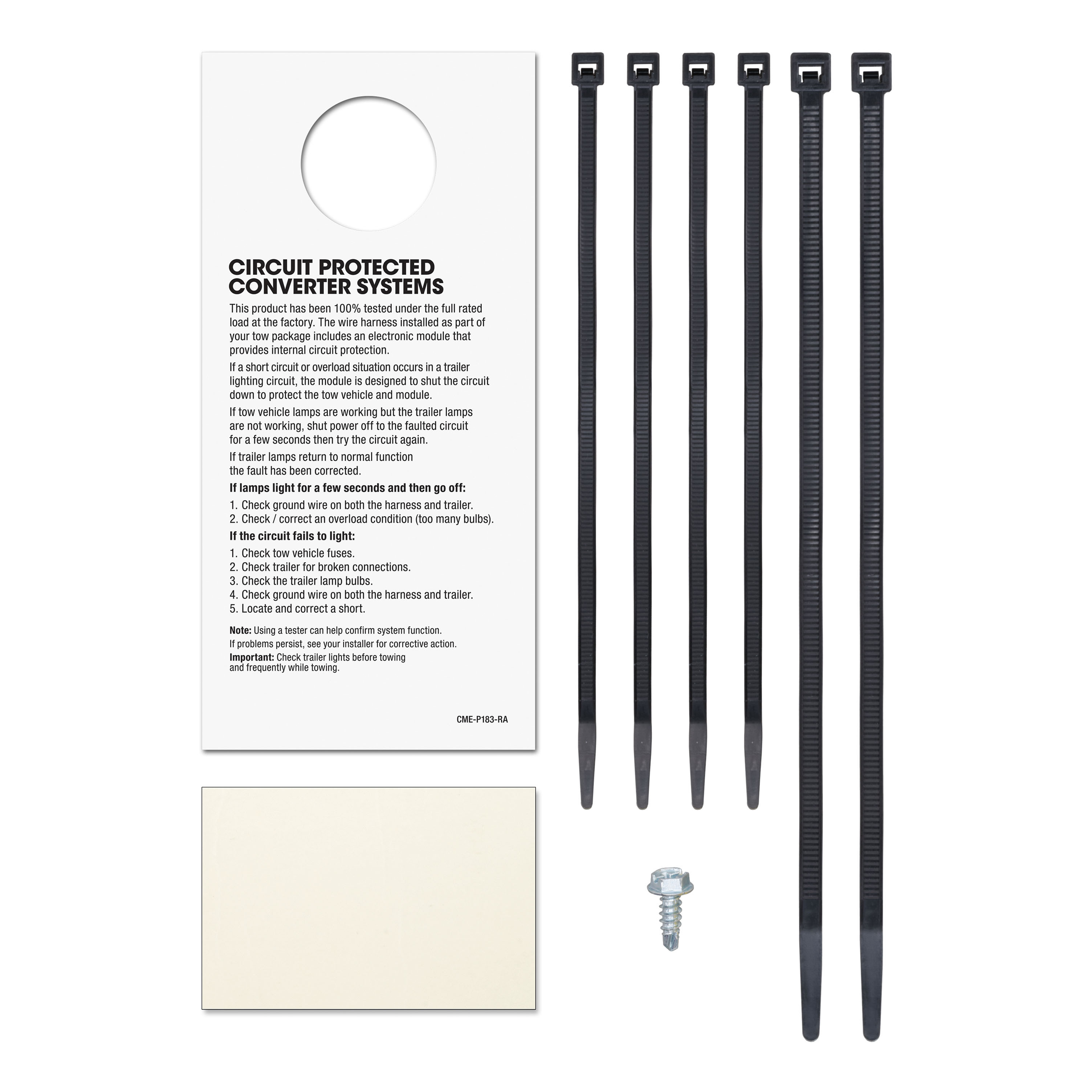

You will need a Phillips screwdriver and a panel trim removal tool. The harness comes with a provided screw, ring terminal, double-sided tape, cable ties and a 4-flat dust cover.
Yes. Both taillight assemblies must be removed by taking out four Phillips screws from each assembly. Pull out carefully to avoid damaging the alignment tabs on the back. This gives you access to the vehicle taillight wiring harness connectors where the custom harness is inserted.
Locate the vehicle taillight wiring harness connectors behind the taillights. Separate them from the taillight housing, taking care not to damage the locking tabs. On the driver's side, insert the custom harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Route the harness end with the green wire to the passenger side and repeat the process.
Drilling may be required for the ground connection. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The box should be positioned in a convenient location that does not interfere with vehicle operation.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion of the connector.
All installation steps must be followed to ensure the harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer. This confirms that all connections are secure and the harness is operating correctly.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 5.0 amps total) or your tow vehicle's lamp load rating, whichever is lower.
The 55379 Custom Wiring Harness fits Toyota Pickup and Toyota Tacoma models.
You need a Phillips screwdriver and a panel trim removal tool. The harness includes a screw, ring terminal, double-sided tape, cable ties and a 4-flat dust cover.
Yes, both taillight assemblies must be removed by taking out four Phillips screws from each. This provides access to the vehicle taillight connectors where the harness is inserted.
Drilling may be required for the ground connection if no existing screw with nut is available in the vehicle frame. If drilling is needed, a 3/32" pilot hole is required. Always check for hidden items before drilling.
Signal Circuits are rated at 3.0 amps per side; Tail/Running Circuits are rated at 5.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Test for proper function using a test light or by connecting a properly wired trailer. All installation steps must be followed to ensure the harness functions properly.
Total for 4 items:
$177.71
Free Shipping
Ships free on all orders
Authorized DealerQuick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Aug 15 - Tue, Aug 18
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
