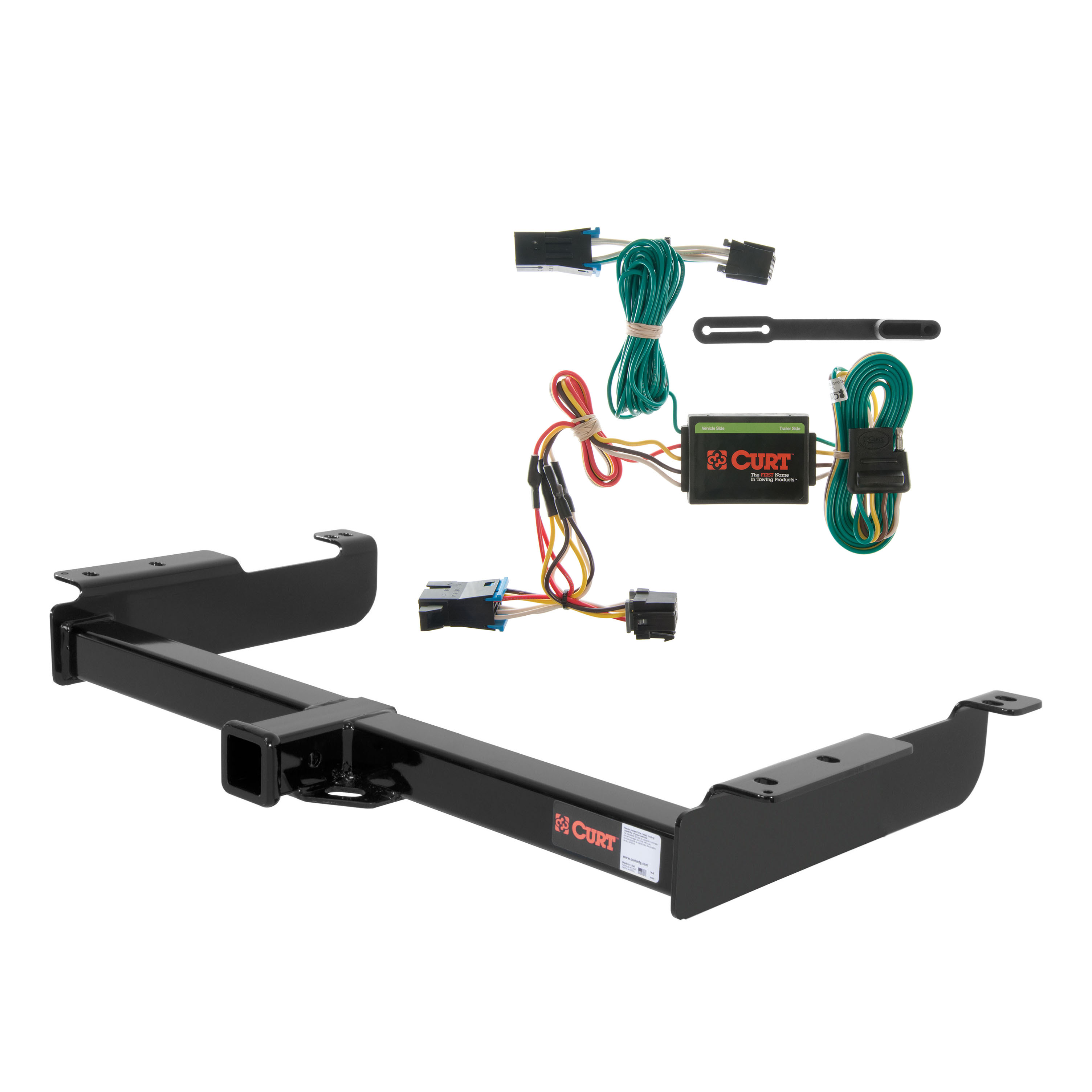

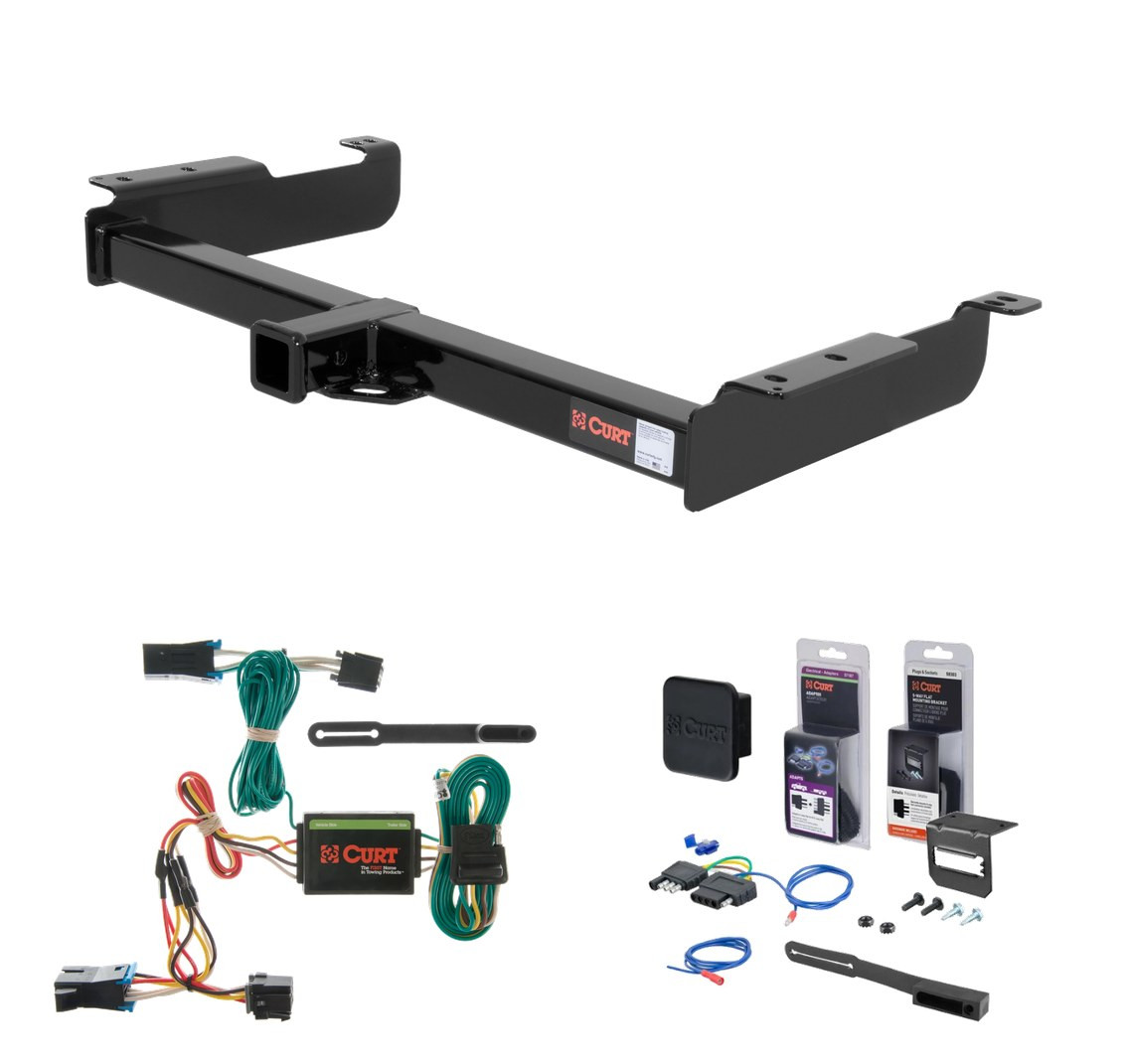

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 1996 - 1999 GMC Savana 1500. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Express and GMC Savana 1500, 2500 and 3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | GMC Savana 1500 | — |
Yes, the 96 - 99 GMC Savana 1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13040 (Part #CHW-1474) is designed to fit the 1996-1999 GMC Savana 1500.
The 96 - 99 GMC Savana 1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13040 (Part #CHW-1474) fits the following vehicles: 1996-1999 GMC Savana 1500. Always verify your specific year, make, and model before ordering.
The 96 - 99 GMC Savana 1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13040 (Part #CHW-1474) fits 1996-1999 GMC Savana 1500 models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
The 96 - 99 GMC Savana 1500 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13040 (Part #CHW-1474) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

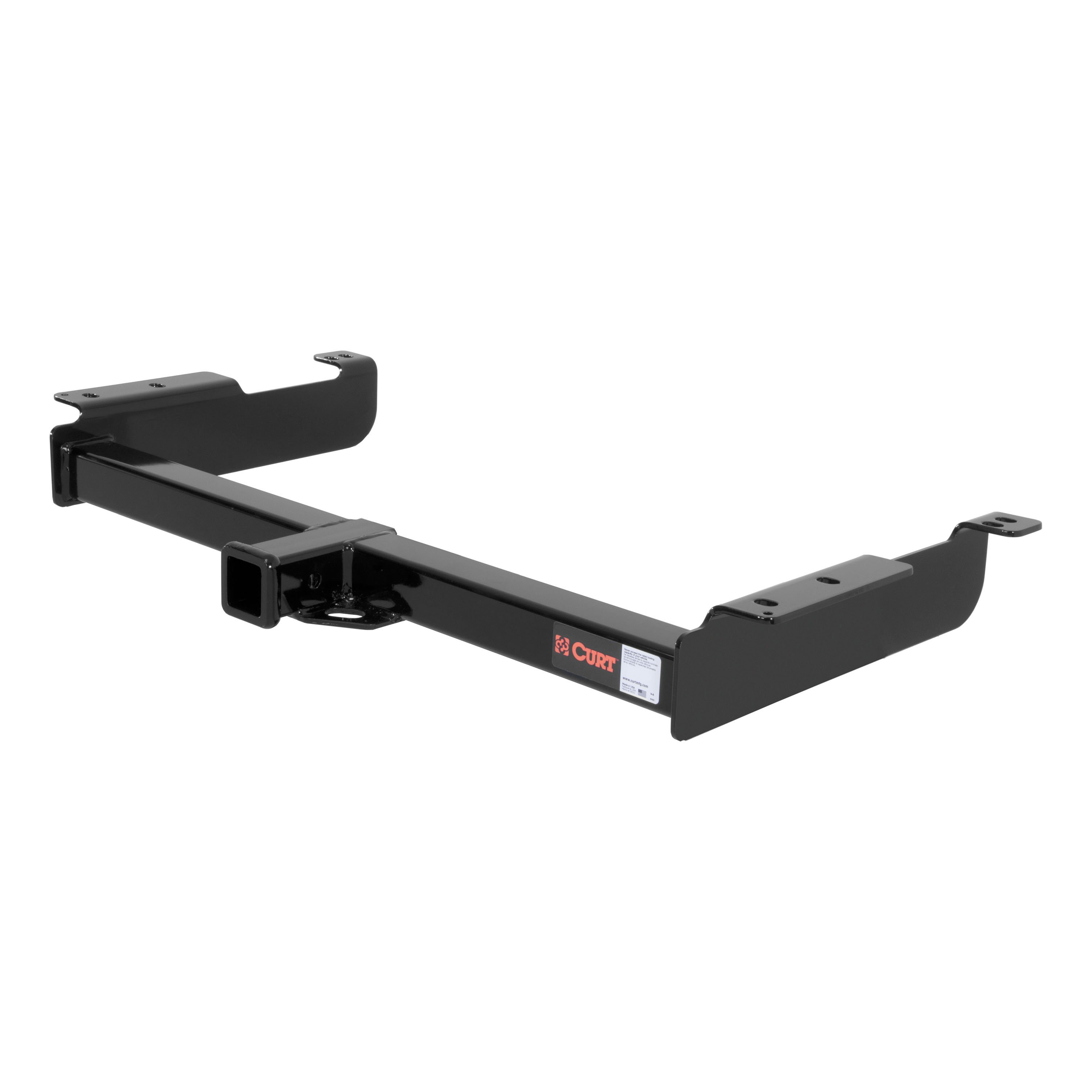

The Curt 13040 receiver hitch is designed for Chevy/GMC full-size vans including the Savannah and Express models. Confirm your vehicle matches this description before purchasing. The manual does not list specific model years or exclude any variants within this category.
No. The manual explicitly states "NO DRILLING REQUIRED." The hitch uses existing holes in the vehicle frame for installation.
The kit includes 6 square hole spacers (CM-SP1, 0.250 x 1.50 x 2.00"), 6 Grade 8 bolts (1/2-13 UNC, 1-3/4" long, part 10-10272), and 6 Grade 8 serrated flange nuts (1/2-13 UNC, part 20-00062). All fasteners are Grade 8 and zinc-plated.
Torque all fasteners to 110 lb-ft using a torque wrench.
1. Raise the hitch into position. 2. Using existing holes in the frame, place 1/2" bolts and spacers through the access slots and into the hitch through the holes in the frame. 3. Tighten with 1/2" flange nuts. 4. Torque all fasteners to 110 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; regular inspection before towing is recommended.
Chevy/GMC full-size vans including Savannah and Express models.
No drilling required. The hitch uses existing frame holes.
110 lb-ft for all fasteners.
A torque wrench capable of 110 lb-ft. The manual does not specify other tools required (e.g., socket size, ratchet, or lifting equipment).

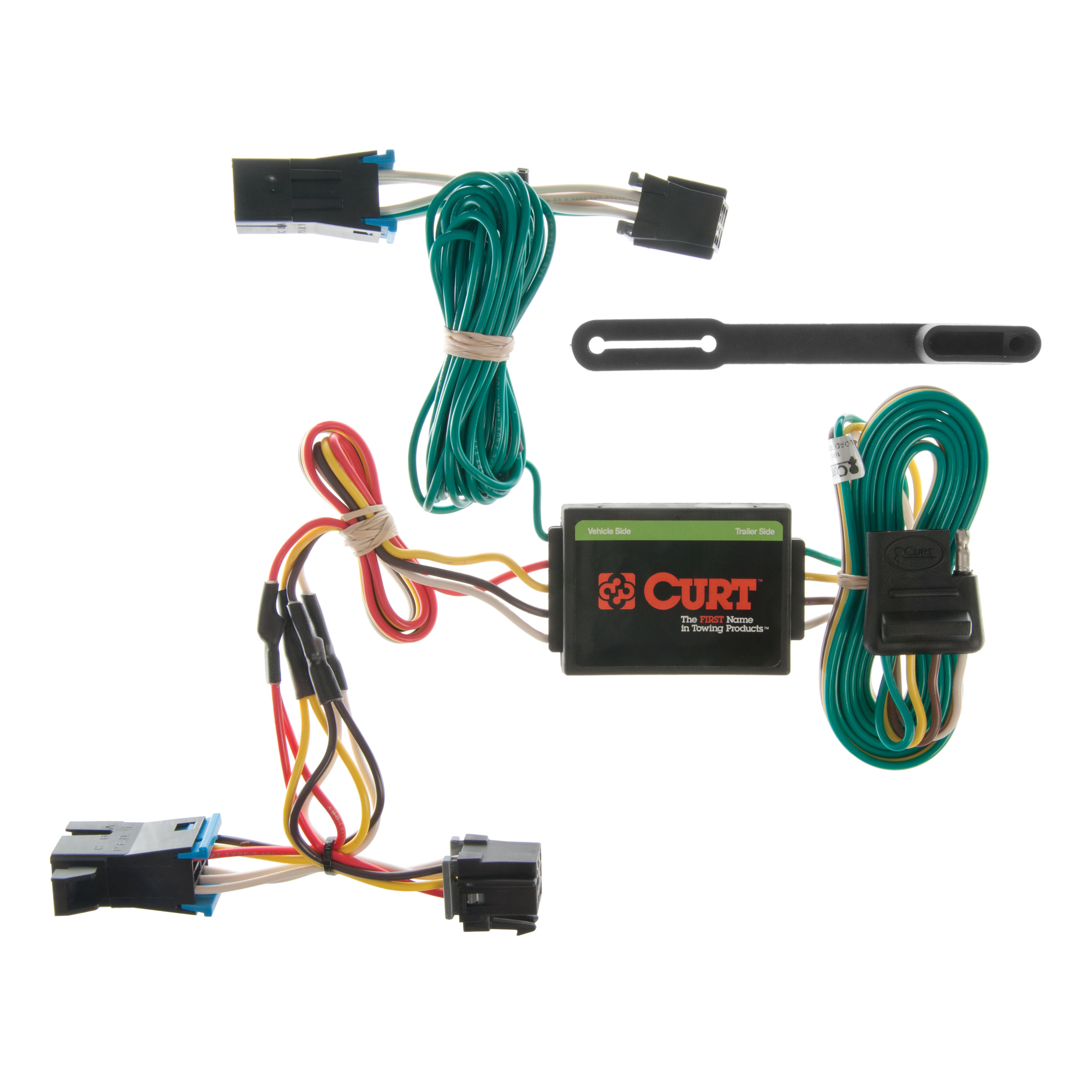

Yes, Curt part number 55335 is designed for GMC Savana and Chevy Express vehicles. The installation involves connecting to the vehicle's existing taillight wiring harnesses on both the driver's and passenger's sides.
Yes. You must open the rear doors and remove the rear scuff panel to access the vehicle's taillight wiring harnesses on both the driver's and passenger's sides.
Locate the vehicle's taillight wiring harness on the inside of the vehicle directly behind the driver's side taillight. Separate the vehicle's wiring harness connectors carefully, being sure not to damage the locking tabs. Insert the T-connector end with the yellow wire in-between the separated connectors.
Route the T-connector end with the green wire down to the floor and across to the passenger's side under the removed scuff panel, then up to the vehicle's taillight wiring harness on the passenger's side. Repeat the connection process on the passenger's side using the green wire, separating the connectors carefully and inserting the green wire T-connector between them.
Drilling is optional. On the driver's side, locate a suitable existing grounding point such as an existing screw with nut in the vehicle's frame. If no suitable grounding point is available, drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
If you need to drill a grounding hole, drill a 3/32" hole on the driver's side near the connector. Secure the white wire using the eyelet and screw provided in the kit.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit.
The kit includes: a T-connector with yellow and green wires, a white ground wire, a black converter box, double-sided tape for securing the converter box, cable ties for securing loose parts of the T-connector, an eyelet, and a screw for the optional ground wire installation.
When in use, route the 4-flat wire to the center of the vehicle and out the rear cargo doors. When not in use, roll up the wire and store it in an out-of-the-way location in the rear cargo area.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. Drilling without checking can cause damage to hidden components and/or personal injury.
When separating the vehicle's wiring harness connectors, be sure not to damage the locking tabs. The locking tabs hold the connectors together and must remain intact for proper operation.
Yes. After connecting the T-connector, secure any loose parts of the T-connector with the cable ties provided in the kit.
GMC Savana and Chevy Express.
Drilling is optional. A 3/32" hole is only needed if no suitable existing grounding point (screw with nut) is available on the vehicle's frame.
The manual does not specify required tools. A drill may be needed if you must create a 3/32" grounding hole, and basic hand tools are likely needed to separate connectors and secure fasteners.
Yes, you must open the rear doors and remove the rear scuff panel to access the taillight wiring harnesses.
