Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 1997 - 2001 Toyota Camry. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

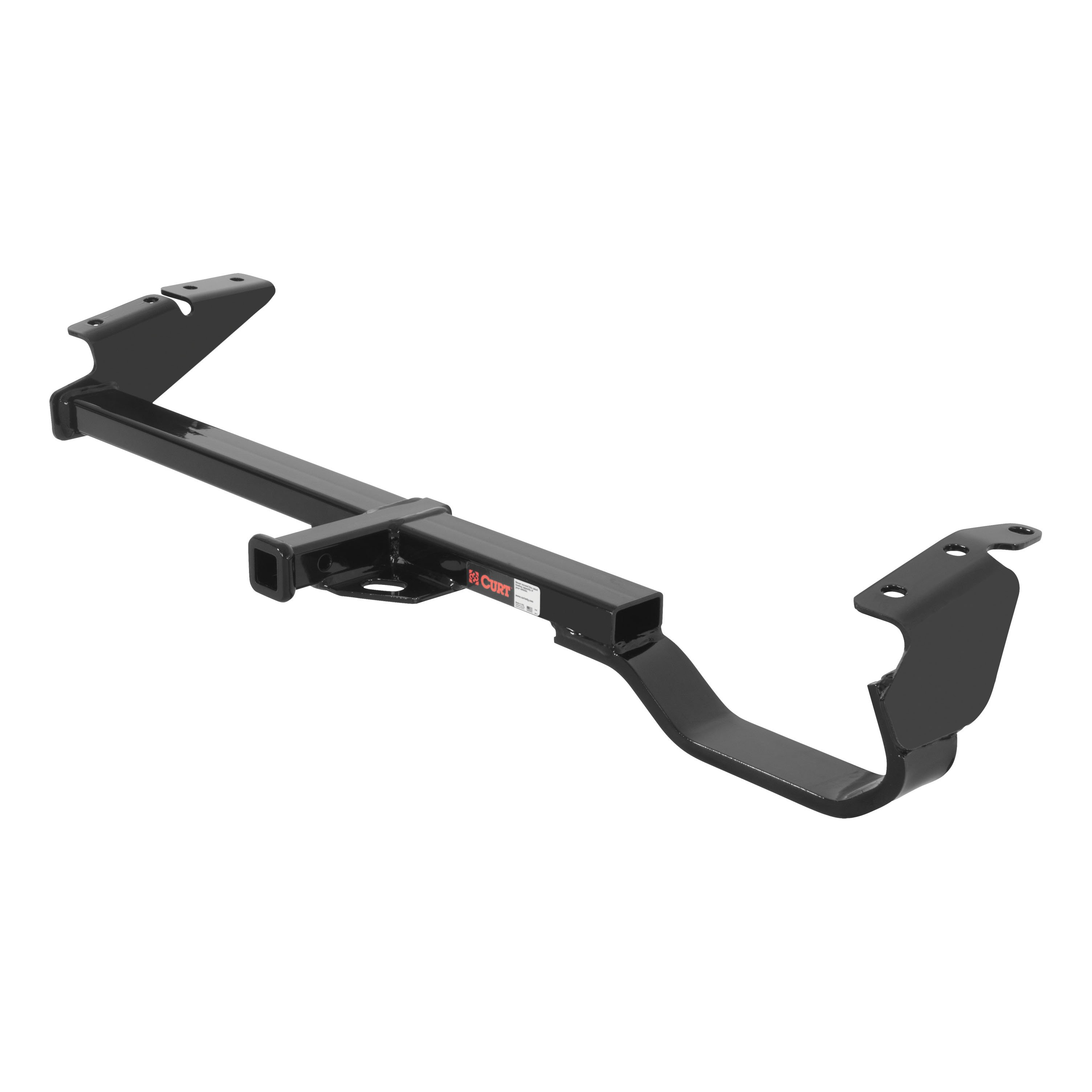

Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Lexus ES300 or ES330 and Toyota Avalon, Camry or Solara (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 300 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.

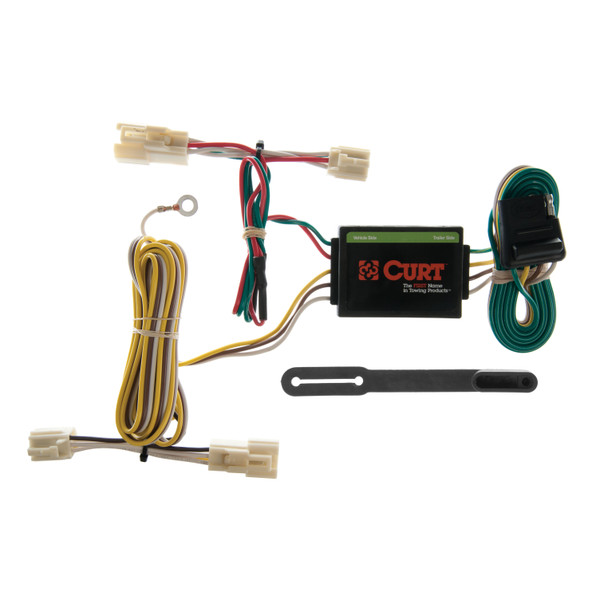

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Camry (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2001 | Toyota Camry | — |
Yes, the 97 - 01 Toyota Camry Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12339 (Part #CHW-2856) is designed to fit the 1997-2001 Toyota Camry.
The 97 - 01 Toyota Camry Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12339 (Part #CHW-2856) fits the following vehicles: 1997-2001 Toyota Camry. Always verify your specific year, make, and model before ordering.
The 97 - 01 Toyota Camry Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12339 (Part #CHW-2856) fits 1997-2001 Toyota Camry models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The 97 - 01 Toyota Camry Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12339 (Part #CHW-2856) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt 12339 fits Toyota Camry models 1997 through 2006. It also fits Toyota Solara (1999–2003), Toyota Avalon (1995–2004), Lexus ES300 (1997–2001), and Lexus ES330 (2002–2006). The hitch is designed for use with ball mount D-20 / 45520.
Yes, Curt 12339 fits Camry 2002 and newer (through 2006). However, 2002 and newer Camry and Solara 2002–2003 models use a different fastening method: three hex bolt locations instead of a U-bolt on the driver side. The passenger side still uses a U-bolt.
The gross load capacity is 3500 lbs trailer weight and 300 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 90 lbs.
The kit includes: 6× M10×1.25×30 hex head cap screws (grade 10.9), 2× 3/8-16 UNC serrated flange nuts (grade 8), 1× 3/8-16 UNC U-bolt (13/16 inch), and 6× 3/8 inch split-cone washers. Note: Camry 2002 and newer and Solara 2002–2003 use hex bolts instead of the U-bolt on the driver side.
Yes. Remove the tie-down brackets from both sides (return these to the customer). On the passenger side, remove the rearmost heat shield bolt and discard it.
Yes, drilling is required. You must drill 2 holes for the 3/8" U-bolt using the hitch as a template. (Note: Camry 2002 and newer and Solara 2002–2003 do not require U-bolt drilling; they use hex bolts at three existing locations instead.)
Torque all 3/8" fasteners to 45 ft-lbs and all M10 fasteners to 48 ft-lbs.
Non-trailer loads can be carried, but all non-trailer loads applied to this product must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Toyota Camry (1997–2006), Solara (1999–2003), Avalon (1995–2004), Lexus ES300 (1997–2001), and ES330 (2002–2006).
3500 lbs trailer weight and 300 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, you must drill 2 holes for the U-bolt (except Camry 2002+ and Solara 2002–2003, which use hex bolts at existing locations).
Torque 3/8" fasteners to 45 ft-lbs and M10 fasteners to 48 ft-lbs.
Yes. All non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty is voided.
Yes, Curt part 55358 is designed for Toyota Camry. The manual does not specify which model years are compatible, so contact Curt or your retailer to confirm your specific year and trim level.
Yes. You must remove the rear trunk fascia inside the trunk to route the wire from the driver's side to the passenger side of the vehicle during installation.
Remove each of the plastic trim panels inside the vehicle's trunk to locate the vehicle wiring and connection points that match the ends of the T-connector. The manual does not specify which panels or provide a diagram, so inspect your trunk carefully to identify all trim panels blocking access to the wiring.
1. Begin with the driver's side and separate the vehicle's wiring connectors carefully without breaking the locking tabs. 2. Attach each end to the T-connector containing the yellow wire, ensuring connectors are fully inserted with locking tabs in place. 3. Remove the rear trunk fascia and route the wire to the passenger side. 4. Repeat the connection process using the T-connector containing the green wire.
Separate the vehicle's wiring connectors carefully, being careful not to break the locking tabs. Attach each end to the appropriate T-connector (yellow wire for driver's side, green wire for passenger side). Ensure that the connectors are fully inserted with locking tabs in place.
Yes. You must drill a 3/32" hole to secure the white wire using the eyelet and screw provided. Before drilling, verify that no miscellaneous items are hidden behind or under any surface to avoid damage to the vehicle and/or personal injury.
Drill a 3/32" hole at a suitable grounding point near the adapter to secure the white wire using the eyelet and screw provided.
The 55358 includes an eyelet, screw, cable ties, and double-sided tape. The eyelet and screw are used to secure the white grounding wire. The cable ties and double-sided tape are used to secure loose wires and the black converter box to the vehicle.
You will need a drill capable of drilling a 3/32" hole. The manual does not specify other tools required, such as a screwdriver, wire strippers, or trim removal tools, so consult the manufacturer or your installer if you are unsure.
Secure any loose wires and the black converter box to the vehicle using the cable ties and double-sided tape provided with the kit.
Yes. After securing the loose wires and converter box, reattach all trim panels that were removed to access the vehicle wiring.
Before drilling, verify that no miscellaneous items are hidden behind or under any surface. Drilling without checking can cause damage to the vehicle and/or personal injury.
The T-connector has a yellow wire for the driver's side connection and a green wire for the passenger side connection. The manual does not specify what these wires control or their electrical function.
Yes, the 55358 is designed for Toyota Camry. Confirm your specific model year with Curt or your retailer.
Yes. You must drill a 3/32" hole for the grounding wire. Before drilling, verify no hidden items are behind or under surfaces to avoid vehicle damage or injury.
The kit includes an eyelet, screw, cable ties, and double-sided tape for securing the grounding wire, loose wires, and converter box.
