| Battery-Powered | Yes |
| Converter Type | Circuit Protected, Powered, Potted |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S6,T4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2002 | Nissan Quest | — |
The CURT 56423 is a powered converter lead that converts your vehicle's taillight wiring to a 4-flat trailer connector. It allows you to connect a trailer with standard 4-flat wiring to vehicles with factory taillight harness connectors. The converter is powered by the vehicle battery and includes a fuse-protected power circuit.
The CURT 56423 is designed for 12-volt negative ground vehicles with taillight wiring harness connectors. It is compatible with trucks (wiring location T4, behind center of rear bumper fascia) and SUVs/vans (wiring location S6, behind center of rear bumper). The manual states that battery location may differ depending on the vehicle, so you should verify your vehicle has accessible taillight connectors before purchasing.
You need a cutting tool. The manual also indicates that you may need to drill a 3/32" pilot hole for the ground screw if a suitable existing screw with nut is not available on the vehicle frame. A drill capable of making a 3/32" hole is recommended.

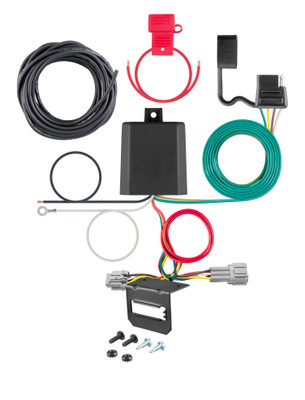

The kit includes: a custom wiring harness with connectors, a black converter box, double-sided tape for mounting the converter, a white ground wire with ring terminal and screw, cable ties for securing loose wires, a 4-flat dust cover, and a 10-amp fuse holder with fuse. The manual also references a 12 GA power wire and butt connectors for battery connection.
Yes. The manual explicitly states: 'Disconnect negative battery (-) cable before wiring the power wire.' This is a required safety step before beginning the installation.
The manual states that the vehicle taillight wiring harness connectors are located 'under the vehicle behind the spare tire,' but does not explicitly state whether the spare tire must be removed. You should check your vehicle's configuration to determine if removal is necessary to access the connectors.
Follow these steps in order: 1) Locate the vehicle taillight wiring harness connectors under the vehicle behind the spare tire and separate them from the taillight housing. 2) Insert the custom wiring harness between the separated connectors, ensuring they are fully inserted with locking tabs in place. 3) Locate a suitable grounding point near the connector and secure the white ground wire using the ring terminal and provided screw (drill a 3/32" pilot hole if necessary). 4) Adhere the black converter box to a flat spot near the vehicle factory plug using the provided double-sided tape. 5) Route the 4-flat to the center of the vehicle near the hitch and secure loose wires with cable ties. 6) Reconnect the negative battery terminal and install the 4-flat dust cover.
Route a 12 GA wire or larger from the converter to the vehicle battery location, taking care to avoid pinch points and hot or rotating components. Use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges when passing through sheet metal. Attach the ring terminal of the power wire to the positive (+) battery terminal. Secure the power wire to the vehicle chassis using the provided cable ties. Install the 10-amp fuse holder with fuse after all other steps are complete.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw. If no suitable existing screw is available, drill a 3/32" pilot hole and use the provided screw to secure the ground wire to the vehicle body.
Locate a flat spot near the vehicle factory plug. Adhere the black converter box using the provided double-sided tape. Ensure the surface is clean and dry for proper adhesion.
Route the 4-flat to the center of the vehicle near the hitch. Secure any loose wires with the provided cable ties to prevent movement and potential damage.
Drilling is not always required. If a suitable existing screw with nut is available on the vehicle frame near the connector, you can use that for grounding. If no suitable existing screw is available, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be behind or under any surface to avoid personal injury or property damage.
Drill a 3/32" pilot hole for the provided ground screw if a suitable existing screw with nut is not available on the vehicle frame.
Signal circuits: 3.0 amps per side. Tail/Running circuits: 6.0 amps total. The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Use a 10-amp fuse maximum. The manual states: 'The battery connection must be fuse-protected, 10-amp max.' Install the fuse after all other installation steps are complete.
Use 12 GA wire or larger for the power connection from the converter to the vehicle battery.
The converter uses the following wire colors: Green for right turn signal, Red for brake, Yellow for left turn signal, and Brown for taillight. The white ground wire is used for grounding to the vehicle body. The black power wire connects to the positive battery terminal.
No. The manual explicitly states: 'This converter system is to be used only on 12 volt negative ground systems.' It is not compatible with positive ground systems.
If using the converter as a powered module for a two-wire system, the red brake wire must be grounded.
When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The battery connection must be fuse-protected, 10-amp max. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Before drilling, check for miscellaneous items that may be behind or under any surface to avoid personal injury or property damage.
Route the 12 GA power wire to the vehicle battery location, taking care to avoid any pinch points and hot or rotating components. Secure the power wire to the vehicle chassis using the provided cable ties.
After installation, reinstall all items removed during installation. If the negative battery terminal was disconnected, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Test for proper function by using a test light or connecting a properly wired trailer. This will verify that all wiring connections are correct and the converter is functioning properly.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This will help maintain proper function and prevent electrical issues.
The CURT 56423 is designed for 12-volt negative ground vehicles with taillight wiring harness connectors. It fits trucks (T4 location) and SUVs/vans (S6 location). Verify your vehicle has accessible taillight connectors before purchasing.
Yes, you must disconnect the negative battery cable before wiring the power wire. Reconnect it after all other installation steps are complete.
Use a 10-amp fuse maximum. The battery connection must be fuse-protected with a 10-amp max fuse. Install the fuse after all other steps are complete.
Use 12 GA wire or larger for the power connection from the converter to the vehicle battery.
