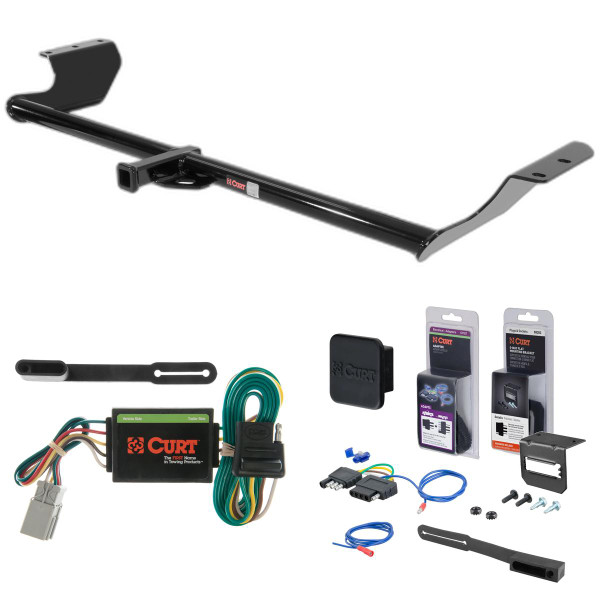

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1999 - 2004 Honda Odyssey. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Honda Odyssey (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Accord, CRV, Element, Odyssey, Pilot and Prelude, Acura Integra, CL, RL, TL and MDX and Isuzu Oasis (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2004 | Honda Odyssey | — |
Yes, the 99 - 04 Honda Odyssey Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12031 (Part #5W-CHW-1774) is designed to fit the 1999-2004 Honda Odyssey.
The 99 - 04 Honda Odyssey Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12031 (Part #5W-CHW-1774) fits 1999-2004 Honda Odyssey models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 99 - 04 Honda Odyssey Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12031 (Part #5W-CHW-1774) fits the following vehicles: 1999-2004 Honda Odyssey. Always verify your specific year, make, and model before ordering.
The 99 - 04 Honda Odyssey Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12031 (Part #5W-CHW-1774) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

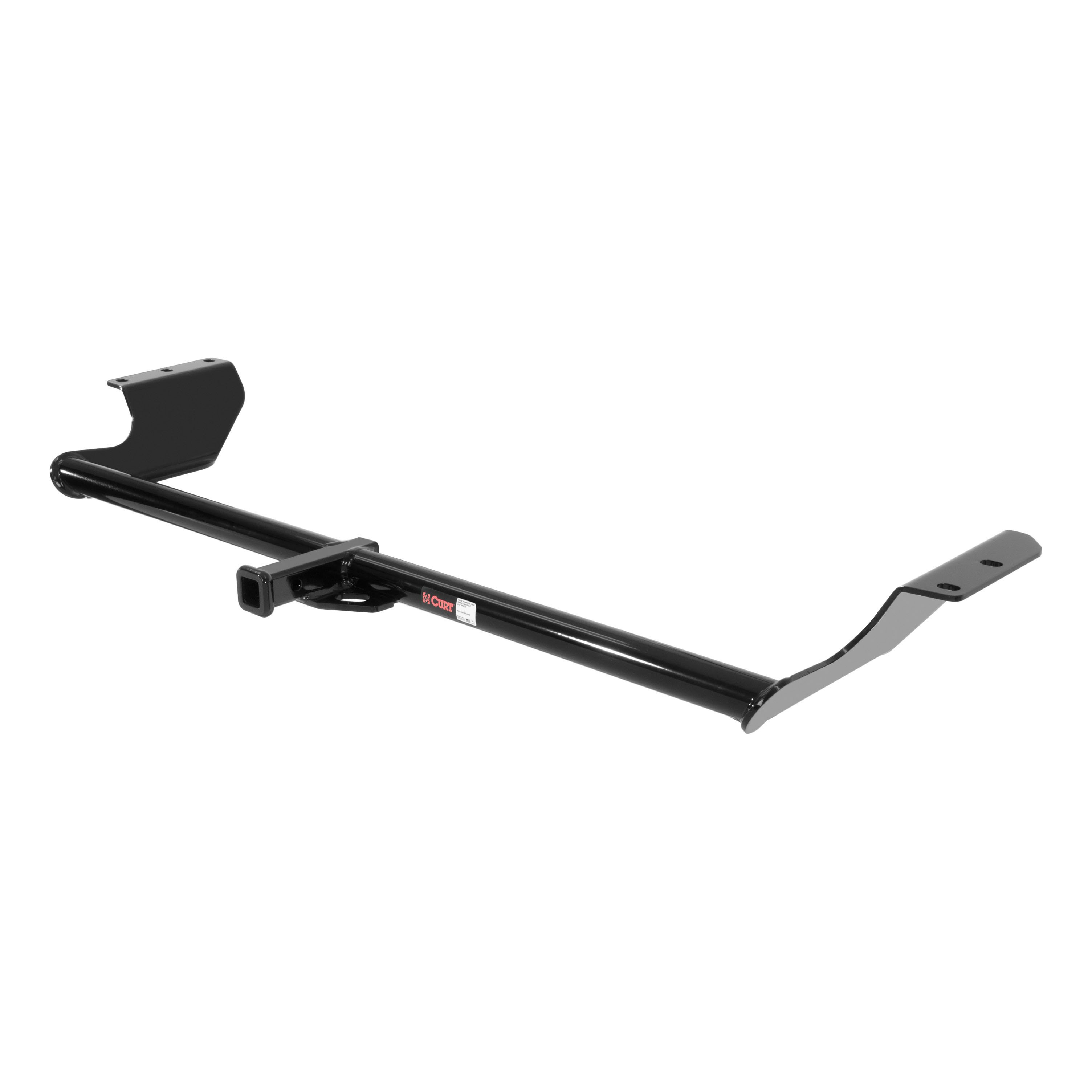

Yes, the CURT 12031 is designed for Honda Odyssey vans from 1999 to present. It is a weight-carrying hitch with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 350 lbs. Always verify your vehicle's manufacturer towing capacity before towing, as you must never exceed it.
The CURT 12031 is rated for a maximum trailer weight of 3,500 lbs and a tongue weight of 350 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
You will need: a ratchet, torque wrench, 9" extension, 11/16" socket, 19mm socket, 10mm socket, and a screwdriver. A torque wrench is essential because fasteners must be torqued to specific values (12mm hardware to 86 ft-lbs and 7/16" hardware to 59 ft-lbs).
No, drilling is not required. The hitch uses existing weldnuts on the frame rails and an existing access hole on the driver side frame rail. The installation uses fishwire hardware to secure the driver side fastener through the access hole.
If a plastic fascia is present covering the driver side frame rail, you will need to remove it. The fascia is held by 5 fasteners. You should return these fasteners and the fascia to the vehicle owner. Note: you may trim the fascia and re-attach it after hitch installation if desired.
1. Remove the plastic fascia covering the driver side frame rail if present (5 fasteners). 2. Locate and clean the 2 weldnuts near the end of each frame rail of debris and rust. 3. Raise the hitch into position by sliding the passenger side plate over the exhaust first. Secure using M12-1.25 x 35mm bolts and 1/2" conical toothed washers. 4. On the driver side, fishwire a 7/16-14 x 1 1/2" carriage bolt and CM-SP2 spacer through the access hole into the existing hole in the frame rail bottom. Secure with 7/16" flange nut. 5. Torque all 12mm hardware to 86 ft-lbs and all 7/16" hardware to 59 ft-lbs.
Sliding the passenger side plate over the exhaust first ensures the hitch is positioned correctly and avoids interference with the exhaust system during installation. This is the correct sequence for raising the hitch into position.
All 12mm hardware (the M12-1.25 x 35mm bolts) must be torqued to 86 ft-lbs. All 7/16" hardware (the carriage bolt and flange nut) must be torqued to 59 ft-lbs. Use a torque wrench to ensure proper tightness.
The kit includes: 4 M12-1.25 x 35mm hex head cap screws (part 10-10275), 1 carriage bolt 7/16-14 UNC 1-1/2" (part 10-10282), 1 serrated flange nut 7/16-14 UNC (part 20-00103), 4 conical toothed washers 1/2" (part 30-00149), 1 square hole spacer .250 x .88 x 2.25" (part CM-SP2), and 1 length of 7/16" fishwire (part 7_16 FISHWIRE).
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can make the process easier, particularly when raising the hitch into position.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. You can reach CURT technical support at 877-287-8634.
All non-trailer (wheel-less) loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. For further information about stabilizing straps, see the CURT catalog or visit www.curtmfg.com.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the hitch.
The CURT 12031 is designed for use with ball mount D-55001 or 45501. A euro mount option is also available with part numbers 45571 (1-7/8" ball) and 45572 (2" ball).
Fishwire is a technique used to route the 7/16-14 x 1 1/2" carriage bolt and CM-SP2 spacer through the access hole on the driver side frame rail and into the existing hole in the bottom of the frame rail. The bolt is then secured with a 7/16" flange nut. This allows fastening without drilling new holes.
The weldnuts on the frame rails should be cleaned of debris and rust to ease hitch installation. Clean weldnuts ensure proper seating of the bolts and washers, which is important for achieving correct torque values and hitch security.
Yes. The CURT 12031 is rated for 3,500 lbs trailer weight and 350 lbs tongue weight. Never exceed your vehicle manufacturer's towing capacity.
No. The hitch uses existing weldnuts and an existing access hole on the driver side frame rail. No drilling is required.
Ratchet, torque wrench, 9" extension, 11/16" socket, 19mm socket, 10mm socket, and screwdriver. A torque wrench is essential for proper fastener tightening.
12mm hardware: 86 ft-lbs. 7/16" hardware: 59 ft-lbs. Use a torque wrench for all fasteners.
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to do so voids the warranty.
Periodically check that all fasteners are tight and structural components are sound.
The 55336 custom wiring connector is designed for Acura CL Series, Integra, MDX, RL Series, and TL Series; Honda Accord, CR-V, Element, Odyssey, Pilot, and Prelude; and Isuzu Oasis. Check your vehicle's make and model against this list. If your vehicle is not listed, this connector is not compatible.
The 55336 is a custom wiring connector that interfaces with your vehicle's taillight wiring system. It converts the vehicle's taillight connector to a 4-flat plug for trailer lighting compatibility.
You will need a panel trim removal tool, Phillips screwdriver, and flat blade screwdriver. These are standard hand tools; no power tools or lifting equipment are required.
Yes. You must disconnect the negative battery terminal before beginning installation. Reconnect it only after all installation steps are complete and all items removed during installation have been reinstalled.
On Honda Accord and other passenger cars (Acura CL, Integra, RL, TL), the connector is located behind the driver side taillight housing, inside the trunk. Open the trunk and remove the plastic screw securing the trunk liner on the passenger side, then pull back the felt liner to locate the connector.
On 95–98 Honda Odyssey models, the connector is located behind the driver side taillight. Remove the rear access panel located inside the van to access it.
On 99–04 Honda Odyssey models, open the vehicle trunk and remove the driver side cargo bracket screw. Pull back the trim panel to locate the vehicle wiring connector.
On 97–01 Honda CR-V models, remove the three screws securing the rear driver side speaker and cover. Remove the speaker and cover to locate the vehicle wiring connector, which will be secured to the speaker wires.
On 02–06 Honda CR-V models, open the trunk and remove the cargo door on the floor. Remove the storage container, rear threshold, and driver side cargo bracket screw. Remove the cargo screw on the driver side trim panel and the cargo bracket bolt from the vehicle floor. Carefully pry the trim panel away to reveal the wiring connector taped to wires near the vehicle floor.
On Acura MDX models, open the trunk and remove the cargo door on the floor. Remove the head rests from the storage location. Locate and remove two clips inside the storage area on the threshold. Carefully pry the threshold to remove it. The vehicle wiring connector will be located inside the cargo area on the driver side, attached to the threshold plate. Remove the connector from its protective cap.
On Honda Pilot models, open the trunk and carefully pry the driver side threshold to locate the vehicle wiring connector.
On Honda Element models, open the trunk and remove the cargo door on the floor. Remove the screws holding the spring loaded hinge cover and set it aside. Carefully remove the three plastic clips holding the passenger side trim panel to the floor. Remove the five screws holding the passenger side trim panel in place. Remove the cargo net bracket and carefully pull back the trim panel, being careful not to break any tabs or clips. The connector is located in this area.
First, untape the vehicle connectors carefully, taking care not to damage the locking tabs. Inspect the connector for dirt and debris and clean if necessary. Then insert the custom wiring connector into the vehicle connector. Make sure the connectors are fully inserted with the locking tabs in place.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape.
Yes. On Honda CR-V models only, route the custom wiring connector 4-flat plug out from under the trim panel and along the carpet edge.
Reinstall all items you removed during installation. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
The 55336 is rated for 3.0 amps per side on signal circuits and 5.0 amps total on tail and running circuits. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the wiring connector will function properly.
The 55336 fits Acura CL, Integra, MDX, RL, and TL Series; Honda Accord, CR-V, Element, Odyssey, Pilot, and Prelude; and Isuzu Oasis. Check your exact make and model against this list.
Panel trim removal tool, Phillips screwdriver, and flat blade screwdriver.
Yes, disconnect the negative battery terminal before starting. Reconnect it after all installation steps are complete.
Signal circuits: 3.0 amps per side. Tail/running circuits: 5.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The kit includes the custom wiring connector, a black converter box, double-sided tape for mounting, and a 4-flat dust cover.
Yes. Install the provided 4-flat dust cover after reconnecting the battery to help prevent corrosion.
