99-05 Suzuki Grand Vitara XL-7 CURT 4-flat Plug and Play Trailer WiringCURT$61.76In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1999 - 2004 Suzuki Vitara
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2004 | Suzuki Vitara | — |
The 99-04 Suzuki Vitara CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2340) fits the following vehicles: 1999-2004 Suzuki Vitara. Always verify your specific year, make, and model before ordering.
Yes, the 99-04 Suzuki Vitara CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2340) is designed to fit the 1999-2004 Suzuki Vitara.
The 99-04 Suzuki Vitara CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2340) fits 1999-2004 Suzuki Vitara models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The 99-04 Suzuki Vitara CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2340) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 55372 is designed for Suzuki Vitara. It is also compatible with Suzuki Grand Vitara, Suzuki XL-7, and Chevrolet Tracker. The connector uses a 6-pin vehicle connector located inside the driver side tire jack compartment (Vitara/Grand Vitara/Tracker) or under the rear blower motor (XL-7).
Yes, the Curt 55372 is compatible with Chevrolet Tracker. The installation procedure is the same as for Suzuki Vitara and Grand Vitara: locate the 6-pin vehicle taillight wiring harness connector inside the driver side tire jack compartment, remove the tape, and insert the custom wiring harness into the vehicle connector.
Yes, the Curt 55372 is compatible with Suzuki XL-7. The installation procedure differs slightly from other models: you must remove the storage compartment from the tailgate and pull back the left inner trim panel to access the vehicle taillight wiring harness connector under the rear blower motor.
The Curt 55372 has a maximum amperage rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
The manual lists 'TOOLS NEEDED' but does not specify any tools. The installation involves locating connectors, inserting the custom wiring harness, adhering the converter box with provided double-sided tape, and securing wires with provided cable ties. You may need basic hand tools to remove trim panels or storage compartments, depending on your vehicle model.
1. Inside the driver side tire jack compartment, locate the vehicle taillight wiring harness connector. 2. Locate the 6-pin connector taped to the vehicle wiring harness, remove the tape, and insert the custom wiring harness into the vehicle connector, ensuring the locking tabs are in place. 3. Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. 4. Route the 4-flat to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. Secure loose wires with provided cable ties. 5. Reinstall all removed items and install the provided 4-flat dust cover.
1. Open the tailgate and remove the four screws securing the storage compartment to the floor. Remove the storage compartment by lifting the back first. 2. Remove the two plastic push clips from the bottom rear edge of the left inner trim panel and pull the rear edge away from the body. 3. Pull back the left trim panel to locate the vehicle taillight wiring harness connector under the rear blower motor. Insert the custom wiring harness into the vehicle connector, ensuring the locking tabs are in place. 4. Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. 5. Route the 4-flat to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. Secure loose wires with provided cable ties. 6. Reinstall all removed items and install the provided 4-flat dust cover.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The exact location varies by vehicle model but should be accessible and out of the way.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.

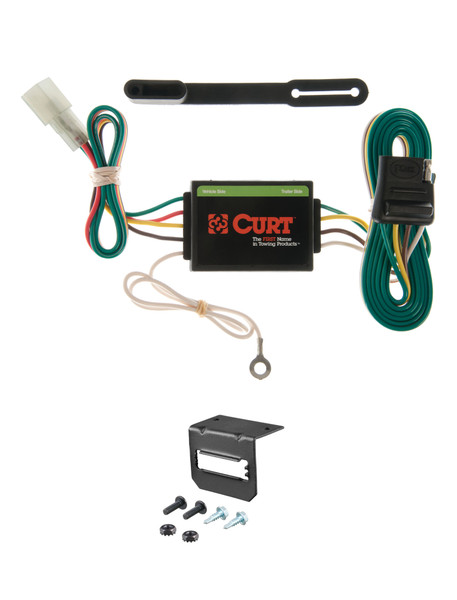

The Curt 55372 includes a custom wiring harness with a 6-pin connector, a black converter box, a 4-flat connector, provided double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
No. For Suzuki Vitara, Grand Vitara, and Chevrolet Tracker, you access the taillight wiring harness connector inside the driver side tire jack compartment without removing the taillight housing. For Suzuki XL-7, you access the connector under the rear blower motor by removing the storage compartment and pulling back the left inner trim panel.
The 6-pin vehicle connector has locking tabs that secure the custom wiring harness in place. You must push the custom wiring harness into the vehicle connector until it is fully seated and the locking tabs engage. This ensures a secure electrical connection.
All installation steps must be followed to ensure the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or the tow vehicle lamp load rating, whichever is lower. Exceeding either limit can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Exceeding the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or the tow vehicle lamp load rating can cause loss of warranty, overheating and potential fire.
The provided 4-flat dust cover helps prevent corrosion of the connector. Install it after completing the installation.
The Curt 55372 fits Chevrolet Tracker, Suzuki Grand Vitara, Suzuki Vitara, and Suzuki XL-7.
Signal circuits: 3.0 amps per side. Tail and running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The installation steps do not require drilling. However, a warning on page 2 advises checking for hidden items before drilling, suggesting drilling may be involved in some installations or modifications. Refer to your specific vehicle's installation steps.
The manual does not specify required tools. Installation involves locating connectors, inserting the wiring harness, and adhering the converter box with provided tape and cable ties. You may need basic hand tools to remove trim panels or storage compartments depending on your vehicle.
