This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

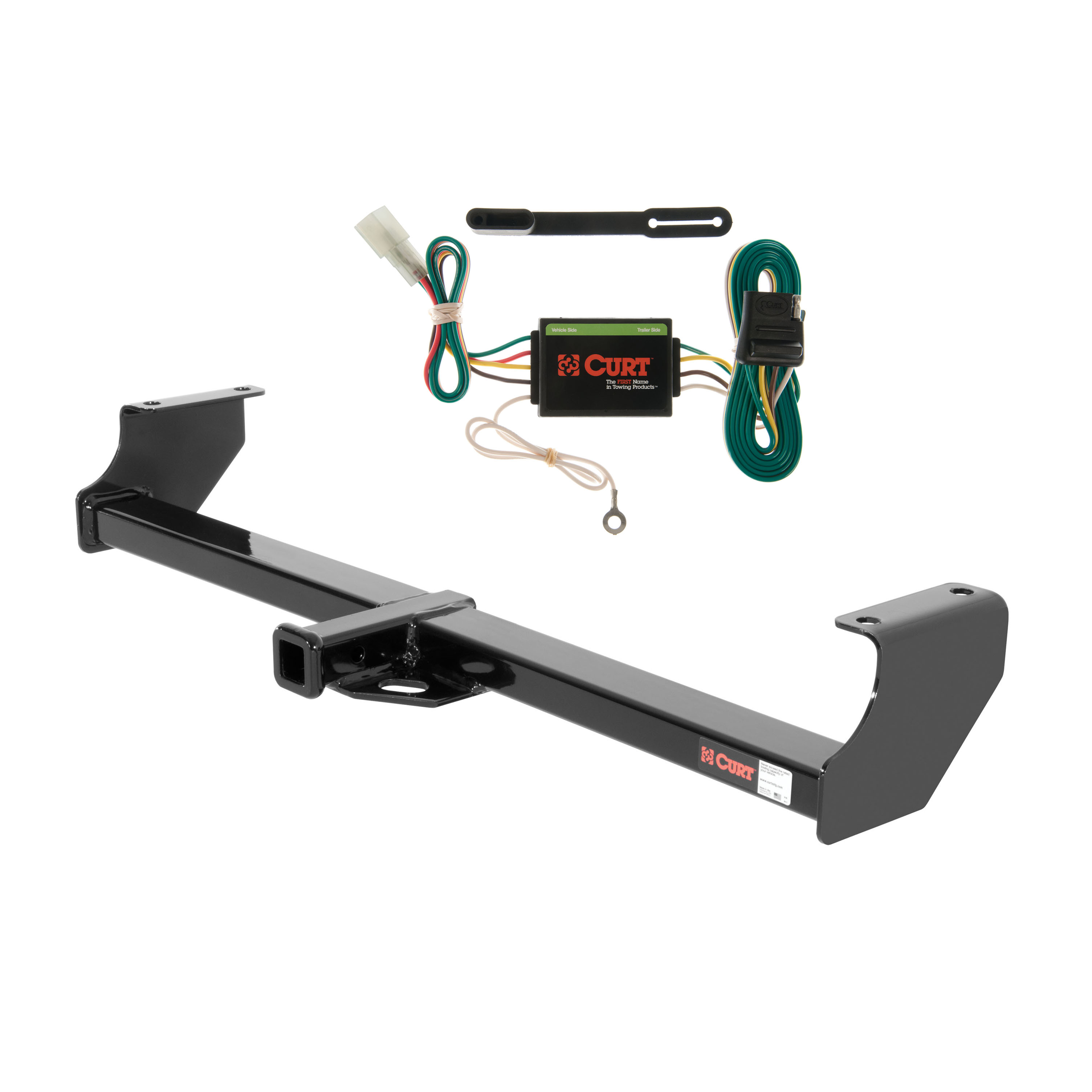

Like all CURT custom trailer hitches, each class 1 trailer hitch is designed to fit a specific vehicle application. A vehicle-specific design ensures the best possible fit with the simplest and most secure installation. This particular class 1 hitch offers a custom fit for certain years of the Suzuki SX4 (to verify vehicle compatibility, see the application information or use the Vehicle Lookup tool). The custom-fit design optimizes the installation to eliminate all unnecessary modifications, and it promotes an integrated look with the vehicle�s existing design features and layout. This Suzuki SX4 hitch is rated to tow up to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight. This makes it an excellent choice for any cargo carrier or bike rack as well as a variety of lightweight trailers (never exceed the lowest-rated towing component). It features a 1-1/4" x 1-1/4" receiver tube to accept a ball mount or other trailer hitch accessories. The hitch receiver tube also has an open back to allow for easy cleaning as needed.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Chevy Tracker, Suzuki Grand Vitara, Suzuki XL7 and Suzuki Sidekick (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2005 | Suzuki Grand Vitara | Excluding XL: 7 |
Yes, the Curt 55372 is designed for Suzuki Vitara. It is also compatible with Suzuki Grand Vitara, Suzuki XL-7, and Chevrolet Tracker. The connector uses a 6-pin vehicle connector located inside the driver side tire jack compartment (Vitara/Grand Vitara/Tracker) or under the rear blower motor (XL-7).
Yes, the Curt 55372 is compatible with Chevrolet Tracker. The installation procedure is the same as for Suzuki Vitara and Grand Vitara: locate the 6-pin vehicle taillight wiring harness connector inside the driver side tire jack compartment, remove the tape, and insert the custom wiring harness into the vehicle connector.
Yes, the Curt 55372 is compatible with Suzuki XL-7. The installation procedure differs slightly from other models: you must remove the storage compartment from the tailgate and pull back the left inner trim panel to access the vehicle taillight wiring harness connector under the rear blower motor.
The Curt 55372 has a maximum amperage rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
The manual lists 'TOOLS NEEDED' but does not specify any tools. The installation involves locating connectors, inserting the custom wiring harness, adhering the converter box with provided double-sided tape, and securing wires with provided cable ties. You may need basic hand tools to remove trim panels or storage compartments, depending on your vehicle model.
1. Inside the driver side tire jack compartment, locate the vehicle taillight wiring harness connector. 2. Locate the 6-pin connector taped to the vehicle wiring harness, remove the tape, and insert the custom wiring harness into the vehicle connector, ensuring the locking tabs are in place. 3. Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. 4. Route the 4-flat to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. Secure loose wires with provided cable ties. 5. Reinstall all removed items and install the provided 4-flat dust cover.
1. Open the tailgate and remove the four screws securing the storage compartment to the floor. Remove the storage compartment by lifting the back first. 2. Remove the two plastic push clips from the bottom rear edge of the left inner trim panel and pull the rear edge away from the body. 3. Pull back the left trim panel to locate the vehicle taillight wiring harness connector under the rear blower motor. Insert the custom wiring harness into the vehicle connector, ensuring the locking tabs are in place. 4. Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. 5. Route the 4-flat to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. Secure loose wires with provided cable ties. 6. Reinstall all removed items and install the provided 4-flat dust cover.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The exact location varies by vehicle model but should be accessible and out of the way.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.

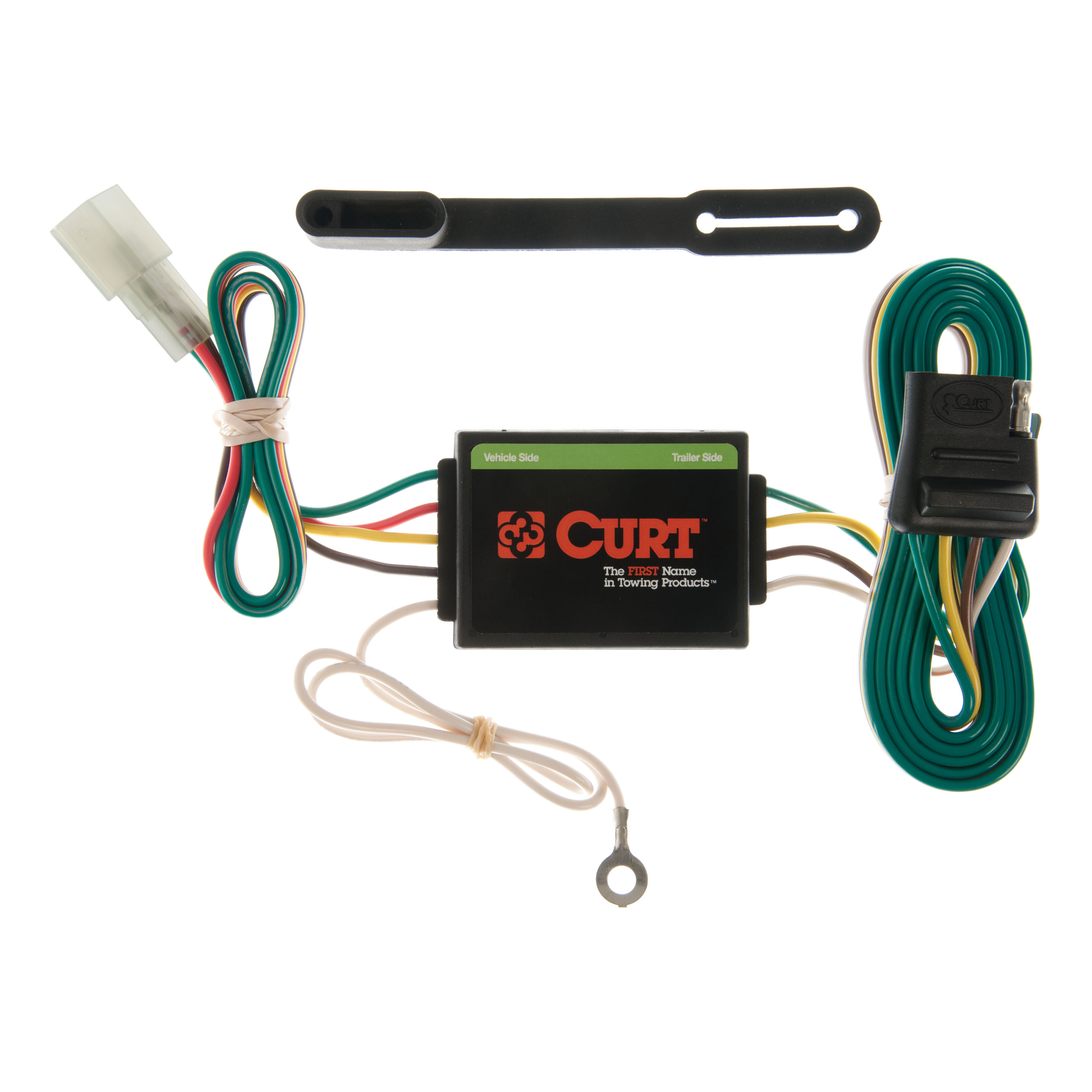

The Curt 55372 includes a custom wiring harness with a 6-pin connector, a black converter box, a 4-flat connector, provided double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
No. For Suzuki Vitara, Grand Vitara, and Chevrolet Tracker, you access the taillight wiring harness connector inside the driver side tire jack compartment without removing the taillight housing. For Suzuki XL-7, you access the connector under the rear blower motor by removing the storage compartment and pulling back the left inner trim panel.
The 6-pin vehicle connector has locking tabs that secure the custom wiring harness in place. You must push the custom wiring harness into the vehicle connector until it is fully seated and the locking tabs engage. This ensures a secure electrical connection.
All installation steps must be followed to ensure the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or the tow vehicle lamp load rating, whichever is lower. Exceeding either limit can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Exceeding the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or the tow vehicle lamp load rating can cause loss of warranty, overheating and potential fire.
The provided 4-flat dust cover helps prevent corrosion of the connector. Install it after completing the installation.
The Curt 55372 fits Chevrolet Tracker, Suzuki Grand Vitara, Suzuki Vitara, and Suzuki XL-7.
Signal circuits: 3.0 amps per side. Tail and running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The installation steps do not require drilling. However, a warning on page 2 advises checking for hidden items before drilling, suggesting drilling may be involved in some installations or modifications. Refer to your specific vehicle's installation steps.
The manual does not specify required tools. Installation involves locating connectors, inserting the wiring harness, and adhering the converter box with provided tape and cable ties. You may need basic hand tools to remove trim panels or storage compartments depending on your vehicle.
