Air Lift Company now offers sets of Universal Air Spring Spacers, specifically designed to enable drivers of lifted pickups to add air suspension applications to their vehicles. Available in a 4", 6", and angled varieties.
For drivers of lifted trucks, it's common to find that the towing and hauling capabilities of the stock suspension are compromised. With the new Universal Air Spring Spacers from Air Lift, drivers are now able to add a load support solution and restore the full potential of the vehicle. Available in 4 in. straight, 6 in. straight, 4 in. angled, and 6 in. angled varieties, the Universal Air Spring Spacers are designed to accommodate most lift kits, up to six inches. With a unique spinal design, the spacers are easy to attach to bellows-style air spring systems, including Air Lift's best-selling LoadLifter 5000 series and LoadLifter 7500 XL, using the provided hardware. With air springs equipped, drivers of lifted vehicles will find that the towing and hauling capabilities of their vehicles are restored. Adding air springs will eliminate many common issues faced when towing and hauling heavy loads, including squat, poor headlight aim, trailer sway, and bottoming out. Drivers and passengers alike will notice that handling, ride quality, and braking power are all greatly improved. Each Universal Air Spring Spacer kit comes with a clear, easy-to-follow, fully illustrated instruction manual to make the installation process easy clear and simple. As the leader in air suspension products for more than 70 years, Air Lift is committed to delivering quality load support parts that last. The key suspension components have all been torture-tested to ensure the highest quality, longevity, and customer satisfaction. With a limited-lifetime warranty, you can purchase this kit with peace of mind. Take your existing air suspension solution to the next level of safety and comfort with Universal Air Spring Spacers today!
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty

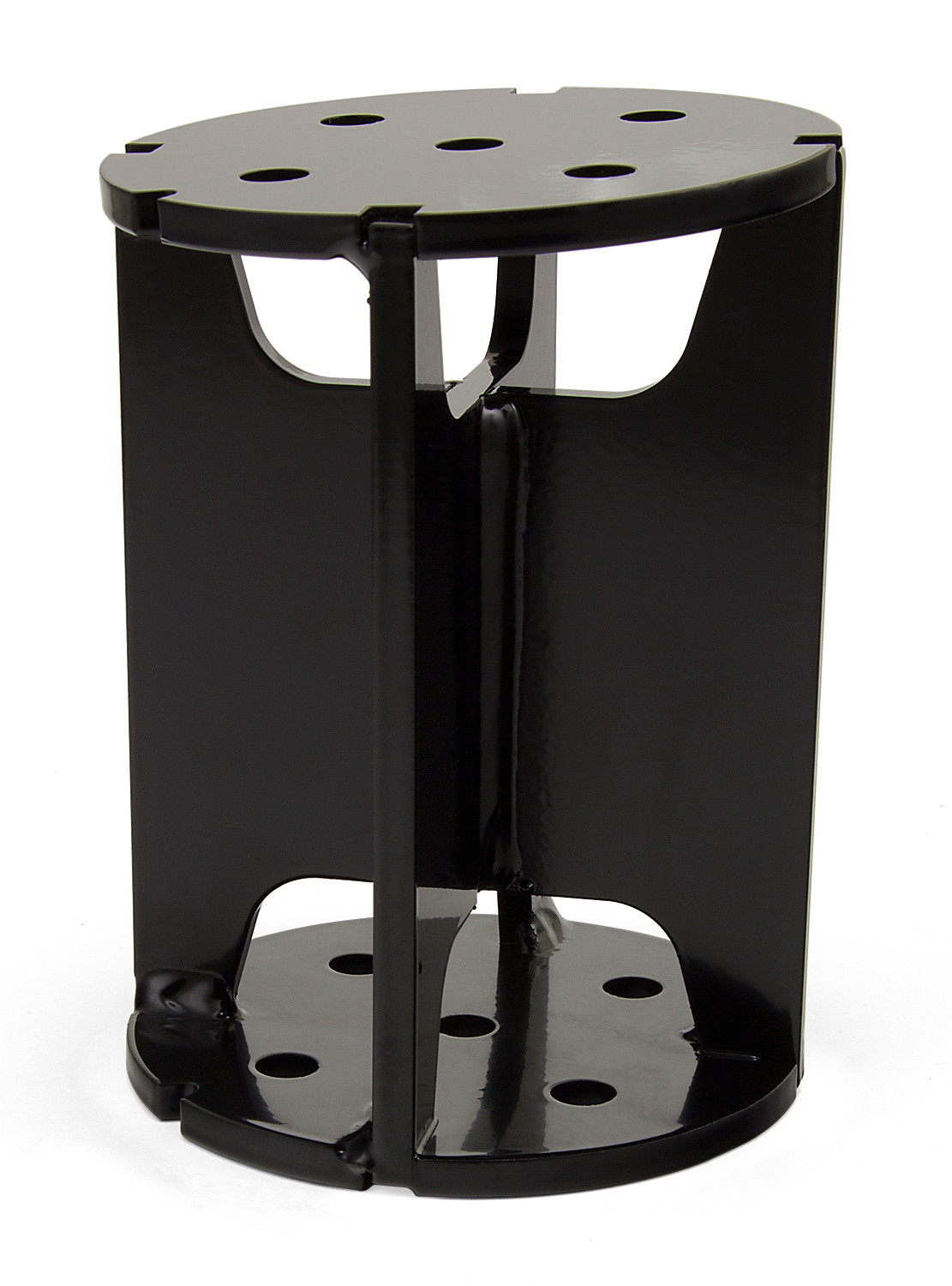

The Universal Air Spring Spacer is a lift kit component designed to increase the height of air spring suspension systems. It consists of spacer blocks that mount between the air spring and the lower bracket to raise the suspension. The kit is universal and may work with various air spring manufacturers, but compatibility must be verified at air-lift.co/liftspacer for your specific application.
Go to air-lift.co/liftspacer to determine which spacer is needed for your application. The kits are available in different lift heights: 2" (52420), 4" (52440), 4" angled (52445), 6" (52460), and 6" angled (52465). The website tool will match your vehicle to the correct kit.
Yes, this product can be used with other air spring manufacturers' kits. However, be aware that air spring mounting hardware may be different from what is supplied in this kit. Additionally, some lift kit manufacturers may make significant changes to stock components that could cause incompatibility, meaning the air spring kit may not install properly. Verify compatibility at air-lift.co/liftspacer before purchasing.
Yes. The installation instructions assume air springs have previously been installed on the vehicle. If air springs are not currently installed, the manual does not provide guidance for that scenario. Contact Air Lift customer service at (800) 248-0892 for assistance with vehicles that do not have pre-existing air springs.
The following tools are required: 9/16" socket, 9/16" wrench, ratchet, 7/32" hex wrench, and torque wrench. A torque wrench is essential because fasteners must be tightened to specific torque values during installation.
Each kit includes: 2 lift spacers (quantity and height vary by kit), 4 hex-head cap screws (3/8"-16 x 1 1/4"), 4 hex-head cap screws (3/8"-24 x 7/8"), 4 flat-head socket cap screws (3/8"-16 x 1 1/4"), 4 button-head cap screws (3/8"-16 x 1 1/4"), 4 split lock washers (3/8"), 4 nylon lock nuts (3/8"-16), and 12 flat washers (3/8"). The specific screw type used depends on your application.
1. Release all air from the air springs. 2. Remove the lower bracket from the vehicle. 3. Remove the fasteners that attach the air spring to the lower bracket. 4. For angled spacers, orient the low side with the alignment notch to best align the air spring so top and bottom mounting surfaces are as close to parallel as possible. 5. Attach the lift spacer to the lower bracket using the longer hardware supplied, torqued to 31 lb.-ft. (42 Nm). 6. Attach the lift spacer to the air spring using new hardware, torqued to no more than 20 lb.-ft. (27 Nm). 7. Reattach the lower bracket to the vehicle following the air spring kit's installation guide. 8. Cycle the suspension to verify 1/2" (13 mm) clearance all around.
Air spring fasteners must be torqued to no more than 20 lb.-ft. (27 Nm). This applies to the fasteners that attach the air spring to the spacer. Do not exceed this torque value.
The fasteners connecting the lift spacer to the lower bracket must be torqued to 31 lb.-ft. (42 Nm). These are the longer hardware supplied with the kit.
No. The installation of this kit does not alter the gross vehicle weight rating (GVWR) or payload of the vehicle. You must check your vehicle's owner's manual and not exceed the maximum load listed for your vehicle. GVWR is the maximum allowable weight of the fully loaded vehicle (including passengers and cargo) and is shown on the vehicle's Safety Compliance Certification Label. Payload is the combined maximum allowable weight of cargo and passengers, calculated as GVWR minus base curb weight.
There must be nothing within 1/2" (13 mm) of the inflated air spring and its mounting brackets throughout the full travel of the suspension once installation is complete. With air springs inflated to 40–60 PSI (2.8–4.1 bar), you must verify at least 1/2" (13 mm) clearance from anything that might rub against each air spring, including tires, frame, wires, hoses, shock absorbers, brake lines, brackets and cables. Check clearance by cycling the suspension through its full range of motion.
No. Air springs cannot serve as the suspension limiter in extension. A suspension travel limiting device such as a limit strap must be used to prevent over-extension of the suspension.
Brake line bracket modifications may be needed based on the lift kit manufacturer's design. Most modifications to the emergency brake line or electrical lines are addressed in the air spring kit's instruction guide; however, the lift kit manufacturer may have different modifications that may affect this installation. Refer to your specific air spring kit's installation guide for any required modifications.
After installation, cycle the suspension to make sure the air spring has 1/2" (13 mm) of clearance all the way around. With air springs inflated to 40–60 PSI (2.8–4.1 bar), verify at least 1/2" (13 mm) clearance from tires, frame, wires, hoses, shock absorbers, brake lines, brackets and cables. Ensure nothing can rub against the air springs throughout the full range of suspension travel.
Air Lift Company provides a limited lifetime warranty to the original purchaser of its Load Support products. The warranty covers defects in workmanship and materials when the products are used on vehicles as specified by Air Lift Company and under normal operating conditions. For the full Limited Warranty and Return Policy details, visit www.airliftcompany.com/warranty or contact Air Lift customer service at (800) 248-0892.
Compatibility varies by vehicle and lift kit manufacturer. Go to air-lift.co/liftspacer to verify which spacer kit (52420, 52440, 52445, 52460, or 52465) is correct for your application. Some lift kit manufacturers' modifications may cause incompatibility.
Yes. This kit is designed for vehicles that already have air springs installed. If your vehicle does not have air springs, contact Air Lift customer service at (800) 248-0892.
You will need a 9/16" socket and wrench, ratchet, 7/32" hex wrench, and a torque wrench. The torque wrench is essential for tightening fasteners to the correct specifications.
Torque the air spring fasteners to no more than 20 lb.-ft. (27 Nm). Torque the spacer-to-lower-bracket fasteners to 31 lb.-ft. (42 Nm). Do not exceed the air spring torque specification.
Maintain at least 1/2" (13 mm) clearance around the inflated air spring throughout the full suspension travel. Check clearance of tires, frame, wires, hoses, shock absorbers, brake lines, brackets and cables with air springs at 40–60 PSI.
No. The kit does not alter GVWR or payload. Do not exceed the maximum load listed in your vehicle's owner's manual.
