Air Lift’s LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor offers up to 5,000 lbs. of load-leveling capacity, making towing and hauling a stress-free experience, eliminating swat and trailer sway.
Air Lift’s LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor offers up to 5,000 lbs. of load-leveling capacity, making towing and hauling a stress-free experience. This kit features an internal jounce bumper, helping to absorb shock, even with zero air pressure. With the air springs’ double bellow air bags, issues frequently faced when towing are no longer a concern. This kit helps to eliminate the problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the added stability that air springs provide, the user can safely haul, knowing they have optimal braking and steering control. With the ability to adjust the air pressure from 5-100 PSI, the vehicle can be ready for any weight and any situation. This kit will require professional installation. Special tools, drilling, cutting and/or grinding are required. Removal or temporary disconnection of factory components may be required. As experts in air suspension products for 70 years, Air Lift is committed to delivering quality load support parts that last. The key suspension components have all been torture-tested to ensure the highest quality, longevity, and customer satisfaction. With a lifetime warranty and a 60-day ride satisfaction guarantee, you can purchase this kit with peace of mind. Whether it is towing or hauling, the LoadLifter Ultimate kit from Air Lift will allow you to use your Raptor with added safety and comfort.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2014 | Ford F-150 | — |
The Air Lift LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor. 88412 (Part #BBCG88412) fits 2010-2014 Ford F-150 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Air Lift LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor. 88412 (Part #BBCG88412) is designed to fit the 2010-2014 Ford F-150.
The Air Lift LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor. 88412 (Part #BBCG88412) fits the following vehicles: 2010-2014 Ford F-150. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 5000 Ultimate for the 2009-2014 Ford F-150 Raptor. 88412 (Part #BBCG88412) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Ultimate is an air spring suspension support system that provides up to 5,000 pounds (2,268 kg) of load-leveling support. It uses reinforced, commercial-grade convolute bellows and allows air adjustability from 5–100 PSI (0.34–7 BAR). The system helps level your vehicle when carrying heavy loads.
Yes, Kit 88412 is designed for the Ford Raptor. This is the application stated in the installation manual.
Required tools include: hack saw or handheld grinder with cut-off wheel; tire marker, crayon or paint; standard and metric open-end or boxed wrenches; standard and metric regular and deep-well sockets; ratchet; 9/16" ratchet wrench; torque wrench; standard and metric hex-key wrenches; hose cutter, razor blade or sharp knife; hoist and axle lift or floor jack; 2 tire chocks; 3 safety stands; safety glasses; air compressor or compressed air source; spray bottle with dish soap/water solution; and small wire brush.

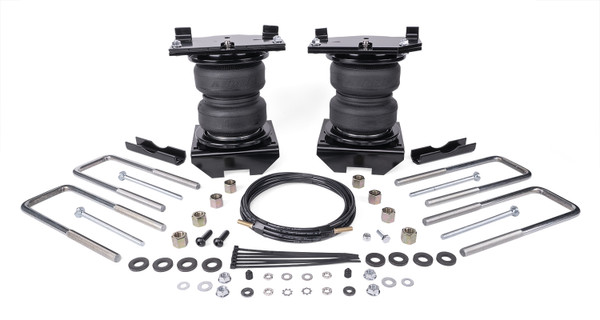

The kit includes: 2 clamp bars (01531), 2 lower brackets (03875), 1 LH upper frame bracket (07079), 1 RH upper frame bracket (07566), 1 RH upper spring bracket (07788), 1 LH upper spring bracket (07799), 4 U-bolts (11686), 4 black roll plates (11967), 2 air springs with jounce bumper (58496), 2 straight fittings (21839), 4 flat-head socket cap screws 3/8"-24 x 3/4" (17215), 4 hex cap screws 3/8"-24 x 7/8" (17203), 4 split lock washers 3/8" (18427), 4 flat washers 3/8" (18444), 1 hex cap screw 5/16"-18 x 1" (17103), 4 carriage bolts 3/8"-16 x 1" (17134), 4 carriage bolts 3/8"-16 x 6 1/2" (17490), 2 button-head cap screws M10 x 1.5 x 35 (17366), 8 deep nuts 9/16"-18 (18203), 8 serrated flange lock nuts 3/8"-16 (18422), 2 flat washers 5/16" (18433), 1 nylon lock nut 5/16"-18 (18438), 2 flat washers 3/8" (18444), 8 flat washers 9/16" (18635), 1 air line (20086), 6 zip ties (10466), 2 M8 flat washers (18501), 2 valve caps (21230), 2 rubber washers (21234), 2 stainless steel star washers (21233), and 4 hex nuts 5/16" (21233).
The manual does not specify whether the battery must be disconnected. Contact Air Lift customer service at (800) 248-0892 for clarification on this step.
The jounce bumper strike plate/axle spacer block must be moved from one side to the other to provide clearance for the air spring assembly. With the vehicle on a hoist, block one tire front and rear with chocks, lift the frame slightly to relieve pressure on the leaf springs, and place a safety stand under the front of the differential. Mark the back side of each jounce bumper strike plate/axle spacer for reference. Remove the stock U-bolts on both sides and discard them. Lower the axle or raise the frame to remove the jounce bumper strike plates/spacer blocks, then swap them side-to-side (driver's left to passenger's right and vice versa) and reinstall between the leaf spring and axle. The mark on the back must face the rear, with the strike plate facing the wheel.
The jounce bumper strike plate/axle spacer block must be moved from one side to the other to provide clearance for the air spring assembly, which installs between the axle and frame. If the jounce bumper strike plate/spacer block is not positioned correctly, the pinion angle will be incorrect and may cause vibration while operating.
Drilling is required only for the Schrader valve installation. You must drill a 5/16" (8 mm) hole in your chosen location for each Schrader valve (inside fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area). No drilling is required for the main air spring assembly installation.
You must cut the end of a bracket using a hack saw or grinder with a cut-off wheel to make room for the lower bracket (marked location shown in Fig. 7). The ABS/brake line bracket may also need to be trimmed if the lower bracket does not fit into position without interference. Additionally, the jounce bumper cup must be unbolted from the frame, and the driver's side ABS line must be removed from the ABS/brake line junction bolted to the axle and zip-tied to the axle vent tube. The emergency brake line bracket must be removed from the axle on the front, passenger's right side.
The upper frame brackets (C & D) must be torqued to 38 lb.-ft. (52 Nm) using the M10 bolt (R) and flat washer (W).
In a criss-cross pattern, evenly torque the U-bolts to 90 lb.-ft. (122 Nm). U-bolts must be retorqued after 100 miles.
The 3/8" lower bracket axle clamp hardware must be torqued to 16 lb.-ft. (22 Nm).
The two flat-head screws (K) that attach the upper spring brackets (E and F) to the air springs must be torqued to no more than 20 lb.-ft. (27 Nm).
The 3/8" carriage bolts (P) that attach the air spring assemblies to the upper and lower brackets must be torqued to 31 lb.-ft. (42 Nm).
The maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. The minimum recommended air pressure is 5 PSI (0.34 BAR).
The manual does not describe any electrical connections or wiring for the air spring system itself. The only electrical-related work mentioned is relocating the driver's side ABS line from the ABS/brake line junction bolted to the axle and zip-tying it to the axle vent tube. For questions about integrating the system with vehicle electronics, contact Air Lift customer service at (800) 248-0892.
The air springs provide up to 5,000 pounds (2,268 kg) of load-leveling support. However, you must not exceed the maximum GVWR or payload rating as indicated by the vehicle manufacturer. The air pressure actually needed is dependent on load and GVWR.
Keep at least 6 inches (152 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges. The minimum bend radius for the air line is 1 inch (25 mm). Leave at least 2 inches (51 mm) of slack in the air line to allow for any movement that might pull on the air line.

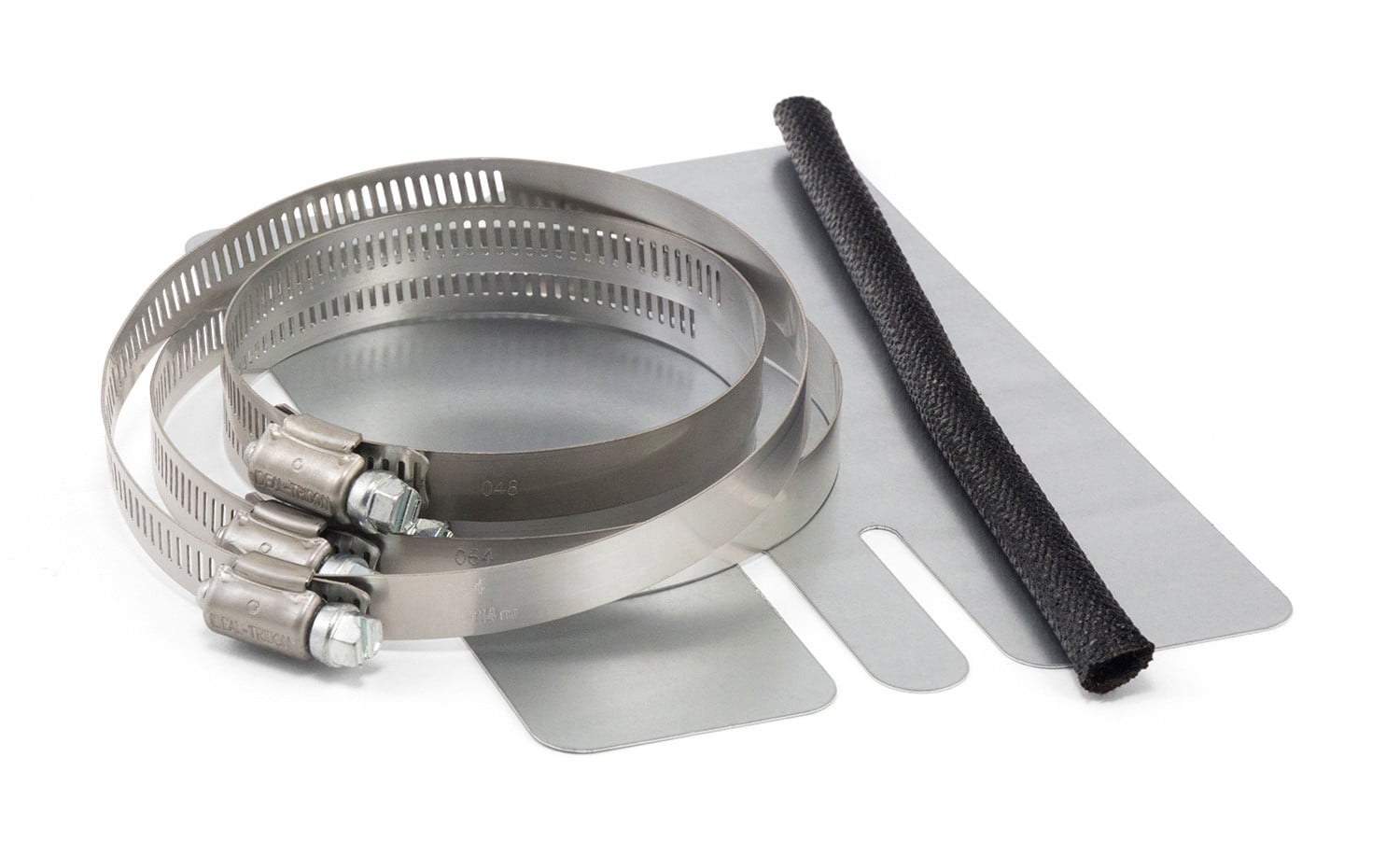

The heat shield is a protective barrier installed above the air spring assembly on the inside pipe to protect the air line from exhaust heat. It must be positioned between the pipe and the air line with at least 1/2 inch (13 mm) of dead air space between the shield and exhaust. The kit includes a heat shield for the passenger's right side air line. If a heat shield is required but not included, call Air Lift customer service at (800) 248-0892.
Before operating the vehicle, perform the following checks: (1) Clearance test—inflate air springs to 40–60 PSI (2.8–4.1 BAR) and verify at least 1/2 inch (13 mm) clearance from anything that might rub (tire, brakes, frame, shock absorbers, brake cables). (2) Leak test—inflate to 40–60 PSI and check all connections for leaks; all leaks must be eliminated before road testing. (3) Heat test—verify at least 6 inches (152 mm) clearance from heat sources; install heat shield if included. (4) Fastener test—after 500 miles (800 km), recheck all bolts for proper torque. (5) Road test—drive 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR). If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. U-bolts must be retorqued after 100 miles. After 500 miles (800 km), recheck all bolts for proper torque.
Use a spray bottle with a soapy water solution (dish soap and water). Spray all air line connections and the inflation valve core. Bubbles will form at any leak location. All leaks must be eliminated before the vehicle is road-tested. If you find a leak, deflate and remove the air spring before attempting repairs.
Yes, Kit 88412 is designed specifically for the Ford Raptor.
You will need a hoist and axle lift or floor jack, torque wrench, hack saw or grinder with cut-off wheel, standard and metric wrenches and sockets, hose cutter, air compressor, and safety stands. A complete tools list is provided in the manual.
Drilling is required only for the Schrader valve installation (5/16" hole). The main air spring assembly does not require drilling. Cutting with a hack saw or grinder is required to modify a bracket for clearance.
Maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. Minimum recommended pressure is 5 PSI (0.34 BAR).
Inflate to 40–60 PSI and check for clearance (1/2" minimum from tires, brakes, frame, shocks, cables), leaks using soapy water, and heat clearance (6" minimum from exhaust). After 500 miles, retorque all fasteners. Road test for 10 miles and recheck.
Check air pressure weekly. Retorque U-bolts after 100 miles and all fasteners after 500 miles.
