LoadLifter 5000 ULTIMATE with internal jounce bumper to absorb shock for best ride comfort
Adjustable air spring kit for leaf springs
Rear
Safely run w/zero air pressure
LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort. Fits vehicles with in-bed hitches. Tow and haul the heaviest loads with safety and comfort with LoadLifter 5000 ULTIMATE. Works with vehicle's leaf springs to provide up to 5,000 lbs. of front load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. Fully adjustable from 5 to 100 PSI. The closed-cell urethane foam jounce bumper inside the ULTIMATE air springs provide a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE! LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs. Includes industry-exclusive 60 Day No Questions Money Back Guarantee! Includes the most comprehensive Lifetime Warranty in the industry---covers all kit contents including brackets, fittings and air line. Air springs are built like a tire and are reinforced by durable, 2-ply fabric for maximum strength. Exclusive upper and lower roll plates included. Protect the springs from sharp edges, such as brackets or the frame. The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware needed for installation. Includes fully illustrated instruction manual. Add an Air Lift on-board air compressor system to inflate and deflate air springs with the touch of a button from inside or outside of the vehicle. Air Lift is a 3rd generation family owned company that has been manufacturing the highest quality suspension products in Lansing, MI.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
The LoadLifter 5000 Ultimate is an adjustable air helper spring system that provides up to 5,000 lbs of load-leveling support with air adjustability from 5–100 PSI. It uses reinforced, commercial-grade single or double convolute bellows with an internal jounce bumper that absorbs shock and allows the springs to safely run at zero air pressure. The kit is designed for 3/4 and 1 ton pickups and SUVs with leaf springs, motor home rear applications, and various front applications where leaf springs are used.
The kit is recommended for most 3/4 and 1 ton pickups and SUVs with leaf springs. It is also used in motor home rear applications and various front applications where leaf springs are used. The manual does not list specific vehicle models or years. Contact Air Lift Company at (800) 248-0892 to confirm fitment for your specific vehicle.

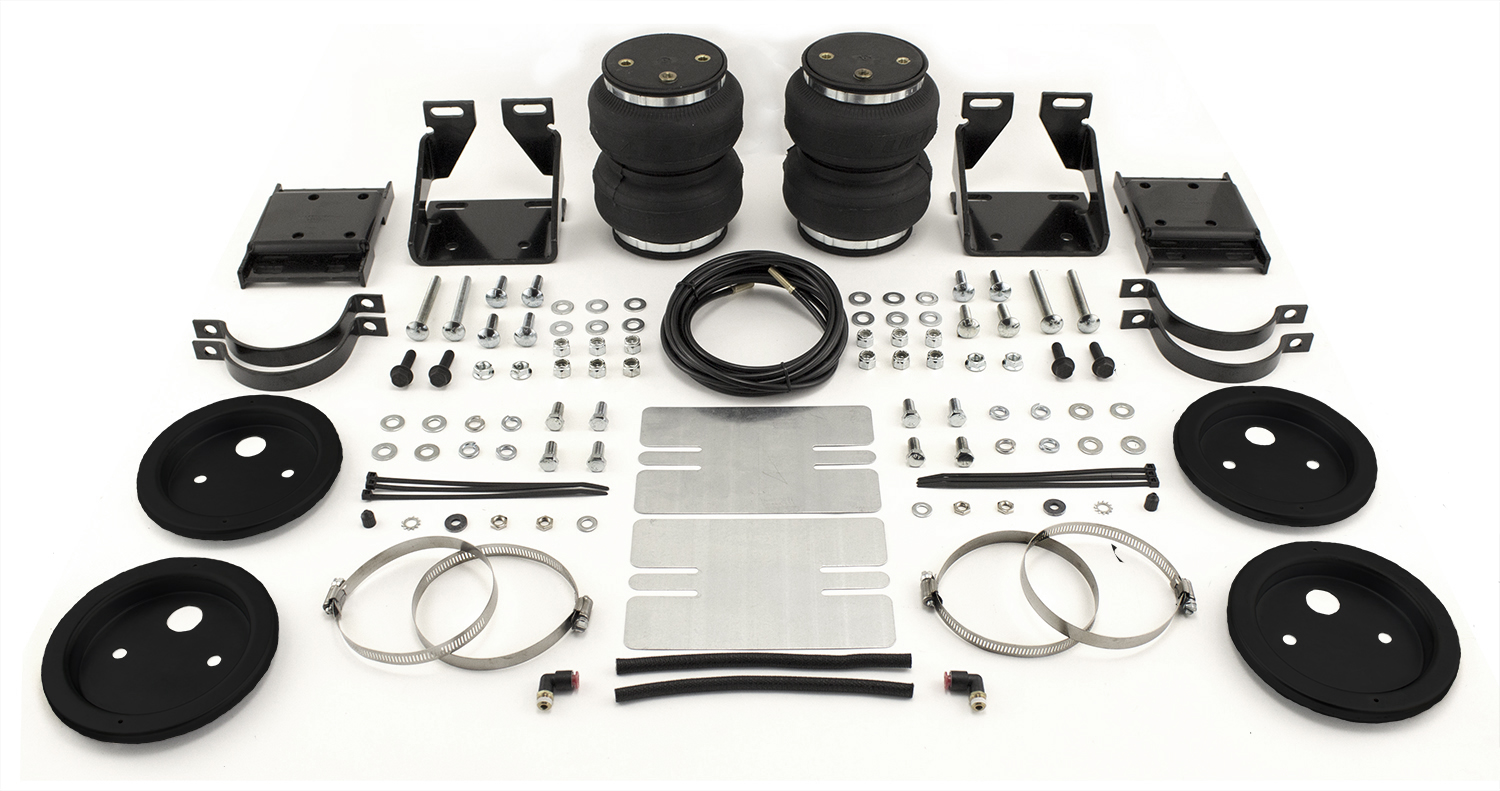

The kit includes: 2 air springs, 2 upper brackets, 2 lower brackets, 4 roll plates, 2 elbow fittings, 8 bolts (3/8"-24 x 0.875"), 8 lock washers (3/8"), 20 flat washers (3/8"), 4 J-straps, 4 carriage bolts (3/8"-16 x 3.5"), 8 carriage bolts (3/8"-16 x 1.5"), 4 washerhead bolts (3/8"-16 x 1.5"), 12 Nylock nuts (3/8"), 4 Whiz nuts (3/8"), 2 thermal sleeves, 2 heat shields, 4 heat shield clamps, 1 air line assembly, 6 tie straps, 2 valve caps, 2 flat washers (5/16"), 2 rubber washers, 2 star washers (5/16"), and 4 hex nuts (5/16").
Normal ride height is the distance between the bottom edge of the wheel well to the center point of the hub with the vehicle in an "as delivered condition" (without a load such as a tool box or camper). Measure this distance before beginning installation and record it. During installation, adjust safety jack stands so the axle to ride aid bracket distance is 4" ± 0.25", which places the vehicle at normal ride height. The kit is designed to be installed and operated at this height.
All fasteners should be torqued to 15–20 lb-ft. Do not over-tighten. After installation, axle clamp bar carriage bolt lock nuts should be re-torqued to 16 lb-ft after 100 miles.
1. Install roll plates (D) to the top and bottom of the bellow. 2. In the forward holes on the lower bracket, insert two 3/8" x 1.5" carriage bolts (K). In the rearward holes, insert two 3/8" x 3.5" carriage bolts (J). Ensure the rounded head of the carriage bolts faces the bellow. 3. Attach the lower bracket to the bottom of the bellows using two 3/8" x 0.875" bolts (F), two 3/8" lock washers (G), and two 3/8" flat washers (H). 4. Install the swivel elbow fitting on the top side of the bellows. Tighten finger tight plus 1.5 turns using a 7/16" open end wrench on the metal hex nut only. Do not over-tighten; this fitting is precoated with thread sealant. 5. Attach the upper bracket (B) to the top of the bellows with two 3/8" x 0.875" bolts (F), two 3/8" lock washers (G), and two 3/8" flat washers (H).
1. Remove and discard the two nuts and bolts holding the line bracket on the bottom of the flange. 2. Gently pull the lines out just far enough to slide the upper mounting bracket up behind them, flat to the rail. The upper bracket is designed to fit behind any lines that run along the inside of the frame rail. 3. Loosely attach the upper bracket to the frame rail using the 3/8" x 1.5" washerhead frame bolts (L) and Whiz nuts (N) through the side of the rail, and two 3/8" x 1.5" carriage bolts (K) through the flange. 4. The upper bracket is slotted for adjustment. Inspect the assembly to ensure the bellows is mounted straight up and down, the lower bracket is centered, and fasteners are in proper positions. 5. Tighten all nuts to the carriage bolts to 15–20 lb-ft.
Secure the lower bracket with two J-straps (I) and corresponding nuts, bolts, and washers. On the shock absorber side of the lower bracket, the J-strap will fit between the installed shock and the axle housing. It is not necessary to remove the shock absorber. Loosely assemble the lower straps using the short carriage bolts on the shock side. After the assembly is inspected and properly aligned, tighten all nuts to 15–20 lb-ft.

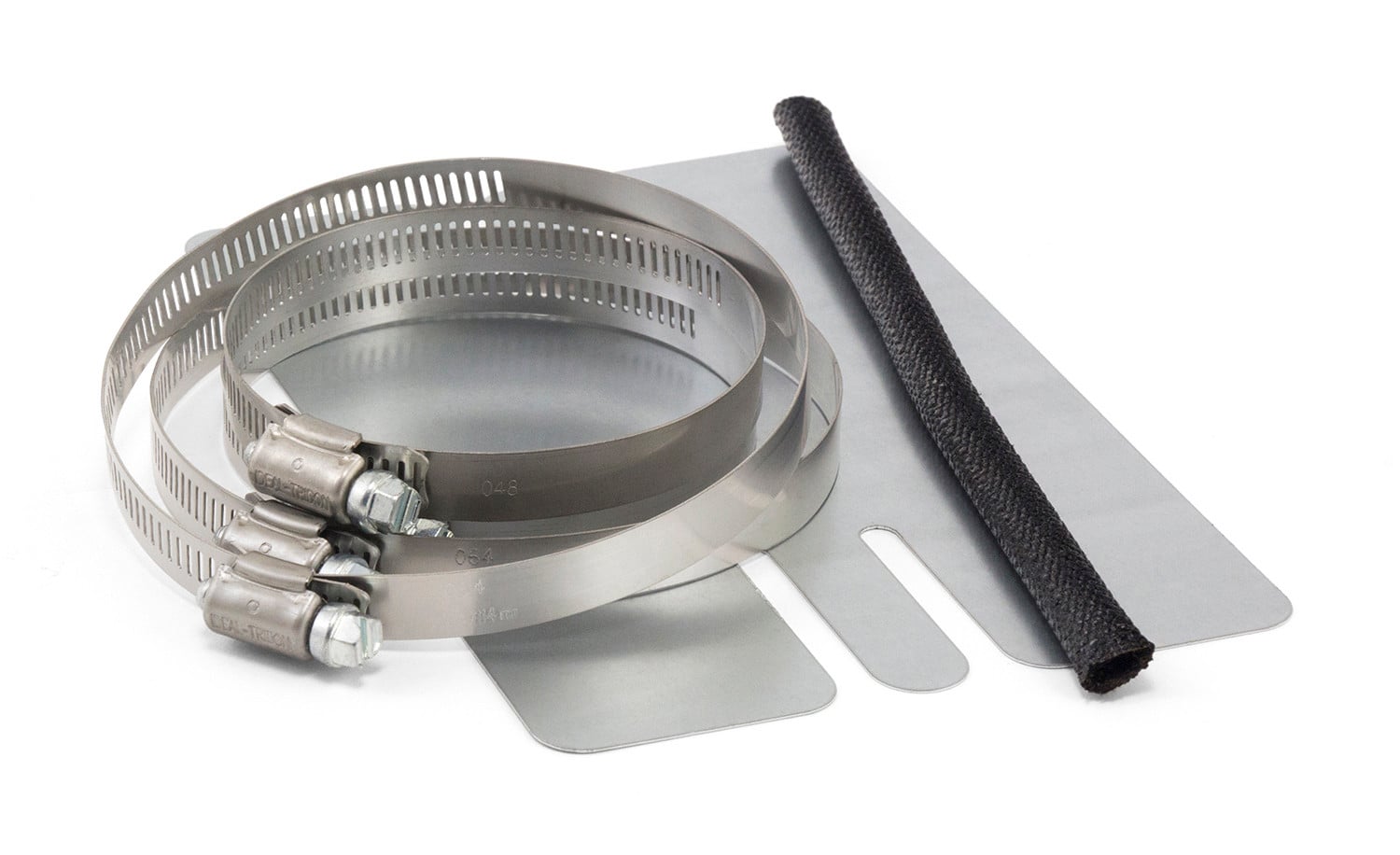

Yes. Installation of this kit requires two exhaust heat shields (P). The shields are attached with stainless steel clamps (Q) to the exhaust pipe, with the flanges bent inward. Shields may be trimmed or bent to attain component clearance. Bend tabs to provide 1/2" dead air space between exhaust pipes and heat shield and maximum clearance with bellows.
1. Select locations on the vehicle for the air inflation valve, preferably in the wheel well or lower body ahead of the rear wheel. One on each side provides ease of filling and checking. 2. Measure from the selected location inboard along the frame rail. Measure this same distance from each pre-installed inflation valve on the air line and cut the air line off squarely using a standard tube cutter, razor blade, or sharp knife. 3. Slide a thermal sleeve (O) onto the air line (AA) from the cut end on the tail pipe side. 4. Push the air line into the swivel elbow fitting as far as it will go. A definite "click" (approximately 9/16") can be heard/felt, indicating the self-locking fitting is installed. 5. Slide the thermal sleeve down to the air fitting. 6. Route the air line from the bellows to the inflation valve location, ensuring it is protected from direct exhaust heat and kept away from sharp edges. Secure along the frame with the nylon ties supplied. 7. Drill two 5/16" holes and install inflation valves, nuts, and washers as shown in the manual.
Push the air line into the swivel elbow fitting as far as it will go. A definite "click" (approximately 9/16") can be heard or felt. This is a self-locking fitting and indicates the air line is now installed. Slide the thermal sleeve down to the air fitting after insertion.
1. Inflate the bellows and check the fittings for air leaks with a solution of soap and water. 2. Raise the vehicle and remove safety jack stands. Lower the vehicle to the ground. 3. Recheck air pressure after 24 hours. A 5–7 PSI loss after initial installation is normal. If pressure has dropped more than 7 PSI, retest for leaks with a soapy water solution. 4. Before road testing, inflate the air springs to 60 PSI and check all connections for leaks with a soapy water solution.
1. Check the air line connection by deflating the spring and removing the line by pulling the collar against the fitting and pulling firmly on the air line. Trim 1" off the end of the air line. Be sure the cut is clean and square. Reinsert the air line into the push-to-connect fitting. 2. Check the threaded connection by tightening the swivel fitting another 1/2 turn. If it still leaks, deflate the air spring, remove the fitting, and re-coat the threads with thread sealant. Reinstall by hand-tightening as much as possible and then use a wrench for an additional two turns.
1. Check the valve core by tightening it with a valve core tool. 2. Check the air line by removing the air line from the barbed-type fitting. Cut the air line off a few inches in front of the fitting and use pliers or vice grips to pull/twist the air line off the fitting. Do not cut off the air line completely as this will usually nick the barb and render the fitting useless.
1. Inflate the air springs to 60 PSI and ensure there is at least 1/2" clearance around each bellow, away from anything that might rub against them. Check the tire, brake drum, frame, shock absorbers, and brake cables. 2. With a load on the vehicle and the helper springs inflated, there must be at least 1/2" clearance all around the bellows. 3. Ensure sufficient clearance from heat sources—at least 6" for air springs and air lines. If a heat shield was included in the kit, install it.
Recheck the air spring system after 30 days or 500 miles, whichever comes first. If any part shows signs of rubbing or abrasion, identify the source and move it if possible. If relocation is not possible, the air spring may need to be remounted. If professionally installed, consult the installer. Check all fasteners for tightness.
No. Installing air springs will not change the weight ratings (GAWR, GCWR, and/or GVWR) of a vehicle. You must check your vehicle's owner's manual and not exceed the maximum load listed for your vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty.
The minimum recommended air pressure is 5 PSI, but the air springs can safely be run at zero air pressure. The maximum air pressure is 100 PSI. Never inflate beyond 100 PSI. The air pressure actually needed depends on your load and GVWR. Loaded vehicles require at least 25 PSI or more. A "loaded vehicle" refers to a vehicle with a heavy bed load, a trailer, or both.
Check the air pressure weekly. Always maintain normal ride height. Recheck air pressure after 24 hours of initial installation; a 5–7 PSI loss is normal. If pressure drops more than 7 PSI, retest for leaks. Recheck the air spring system after 30 days or 500 miles, whichever comes first.
1. Check air pressure weekly. 2. Always maintain normal ride height. Never inflate beyond 100 PSI. 3. If you develop an air leak, use a soapy water solution (1/5 liquid dish soap and 4/5 water) to check all air line connections and the inflation valve core before deflating and removing the air spring. 4. Loaded vehicles require at least 25 PSI or more. 5. When increasing load, adjust air pressure to maintain normal ride height. 6. Always add air in small quantities, checking pressure frequently. 7. If raising the vehicle by the frame, ensure the system is at minimum pressure (5 PSI) to reduce tension on suspension/brake components. 8. Periodically check fasteners for tightness and check air springs for signs of rubbing. 9. Occasionally spray the air springs with a garden hose to remove mud, sand, gravel, or other abrasive debris.
If the air springs are properly installed and maintained, they can last indefinitely.
Yes, the vehicle can be lifted on a hoist for short-term service work such as tire rotation or oil changes. However, if the vehicle will be on the hoist for a prolonged period of time, support the axle with jack stands to take the tension off the air springs.
No. Air pressure can be adjusted with any type of compressor as long as it can produce sufficient pressure to service the springs. Even a bicycle tire pump can be used, but it requires significant effort. However, Air Lift offers optional on-board air compressor systems for convenient, on-the-go control of your air springs from inside or outside the vehicle. These systems eliminate the need to search for gas stations with working compressors.
1. Leak test the air line connections, the threaded connection into the air spring, and all fittings in the control system. 2. Inspect the air lines to be sure none are pinched. Tie straps may be too tight; loosen or replace the strap and replace leaking components. 3. Inspect the air line for holes and cracks. Replace as needed. 4. Look for a kink or fold in the air line. Reroute as needed. If these steps do not solve the problem, it may be caused by a failed air spring (factory defect or operating problem). Call Air Lift at (800) 248-0892 for assistance.
Loaded vehicles require at least 25 PSI or more. A "loaded vehicle" refers to a vehicle with a heavy bed load, a trailer, or both. The springs support approximately 40 lbs of load (combined on both springs) for each 1 PSI of pressure. The required air pressure varies depending on the state of the original suspension. For best ride, use only enough air pressure to level the vehicle when viewed from the side (front to rear). Adjust pressure to maintain normal ride height under various load conditions. Remember that loads carried behind the axle (including tongue loads) require more leveling force (pressure) than those carried directly over the axle.
Pressure determination comes down to three things: level vehicle, ride comfort, and stability. 1. Level vehicle: If headlights are shining into the trees or the vehicle is leaning to one side, raise the air pressure to level the vehicle. 2. Ride comfort: If the vehicle has a rough or harsh ride, it may be due to either too much or too little pressure. Try different pressures to determine the best ride comfort. 3. Stability: Stability translates into safety and should be the priority. Stability issues include roll control, bounce, dive during braking, and sponginess. Tuning out these problems usually requires an increase in pressure. Start with the vehicle level or slightly above. When in doubt, always add air. If the front dives while braking, increase pressure in the front air bags if equipped. If air bags have bottomed out, increase pressure. Adjust pressure up and down to find the best ride. If the vehicle rocks and rolls, adjust air pressure to reduce movement.
Yes. It may be necessary to maintain different pressures on each side of the vehicle. Loads such as water, fuel, and appliances will cause the vehicle to be heavier on one side. As much as a 50 PSI difference is not uncommon.
The kit is recommended for most 3/4 and 1 ton pickups and SUVs with leaf springs, motor home rear applications, and various front applications where leaf springs are used. Contact Air Lift at (800) 248-0892 to confirm fitment for your specific vehicle model and year.
Yes. Two exhaust heat shields and four heat shield clamps are included. Installation of these shields is required.
Yes. You must drill two 5/16" holes to install the inflation valves on the vehicle body or bumper.
All fasteners should be torqued to 15–20 lb-ft. After 100 miles, re-torque axle clamp bar carriage bolt lock nuts to 16 lb-ft.
The maximum air pressure is 100 PSI. Never inflate beyond 100 PSI.
No. Installing air springs does not change the GVWR or payload. You must not exceed your vehicle's GVWR as stated in your owner's manual.
Check air pressure weekly. Recheck after 24 hours of initial installation (5–7 PSI loss is normal). Recheck after 30 days or 500 miles, whichever comes first.
The recommended minimum is 5 PSI, but the air springs can safely run at zero air pressure.
A 5–7 PSI loss after initial installation is normal. If pressure has dropped more than 7 PSI after 24 hours, there is a leak that must be fixed. Use a soapy water solution (1/5 liquid dish soap and 4/5 water) to check all air line connections, the threaded connection into the air spring, and all fittings. Inspect air lines for pinches, holes, cracks, kinks, or folds. If these steps do not resolve the problem, call Air Lift at (800) 248-0892.
The air line should produce a definite "click" (approximately 9/16") when pushed into the swivel elbow fitting, indicating the self-locking fitting is properly installed. If no click is heard or felt, the line may not be fully inserted. Push the air line in as far as it will go until the click is felt. If the problem persists, deflate the spring, remove the line by pulling the collar against the fitting, trim 1" off the end of the air line with a clean square cut, and reinsert the air line into the fitting.
After 30 days or 500 miles, if any part shows signs of rubbing or abrasion, identify the source and move it if possible. If relocation is not possible, the air spring may need to be remounted. If professionally installed, consult the installer. Ensure there is at least 1/2" clearance all around the bellows at all times.
A rough or harsh ride may be due to either too much or too little air pressure. Try different pressures to determine the best ride comfort. Start with the vehicle level or slightly above. If the problem persists, increase the air pressure gradually in small quantities, checking pressure frequently. If the vehicle rocks and rolls, adjust air pressure to reduce movement. If these adjustments do not resolve the issue, call Air Lift at (800) 248-0892.
The vehicle is not level. Raise the air pressure to correct this problem and level the vehicle. It may be necessary to maintain different pressures on each side of the vehicle. Loads such as water, fuel, and appliances will cause the vehicle to be heavier on one side. As much as a 50 PSI difference is not uncommon.
Bounce and dive during braking are stability issues that usually require an increase in air pressure. If the front of the vehicle dives while braking, increase the pressure in the front air bags if equipped. Adjust the air pressure up and down to find the best ride and handling. Stability should be the priority, as it translates into safety.
If it is suspected that the air bags have bottomed out, increase the air pressure. Bottoming out indicates insufficient air pressure to support the load. Adjust pressure gradually in small quantities, checking pressure frequently, until the vehicle maintains proper ride height.
