Includes Pro Series grille guard #P3067, mounting hardware, 30" LED light bar #1501264 and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black
Light - Beam Type: Combo
Light - Configuration: Single-row

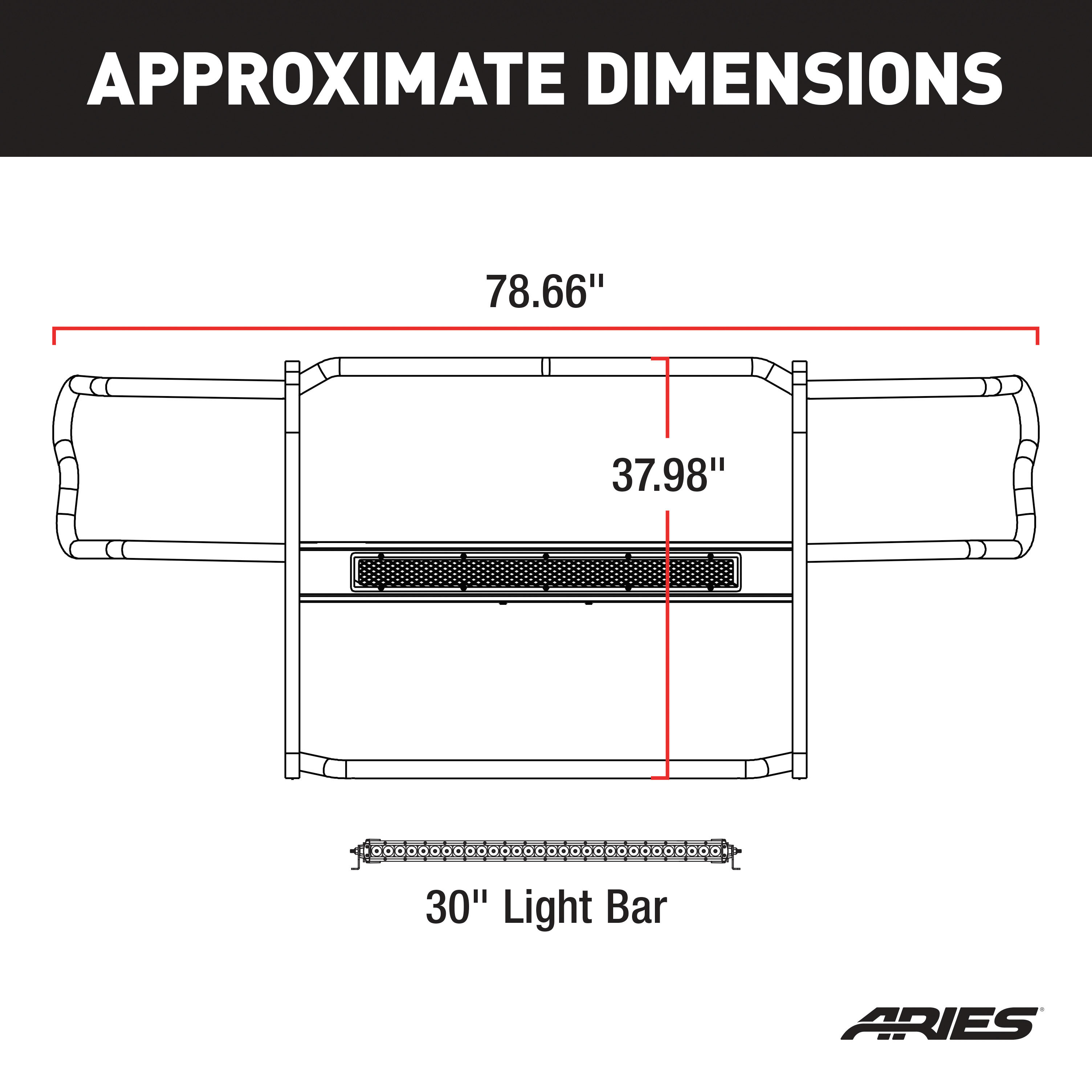

Light - Light Size: 30 IN
Light - Light Type: Light Bar
Light - Lumens: 14,800

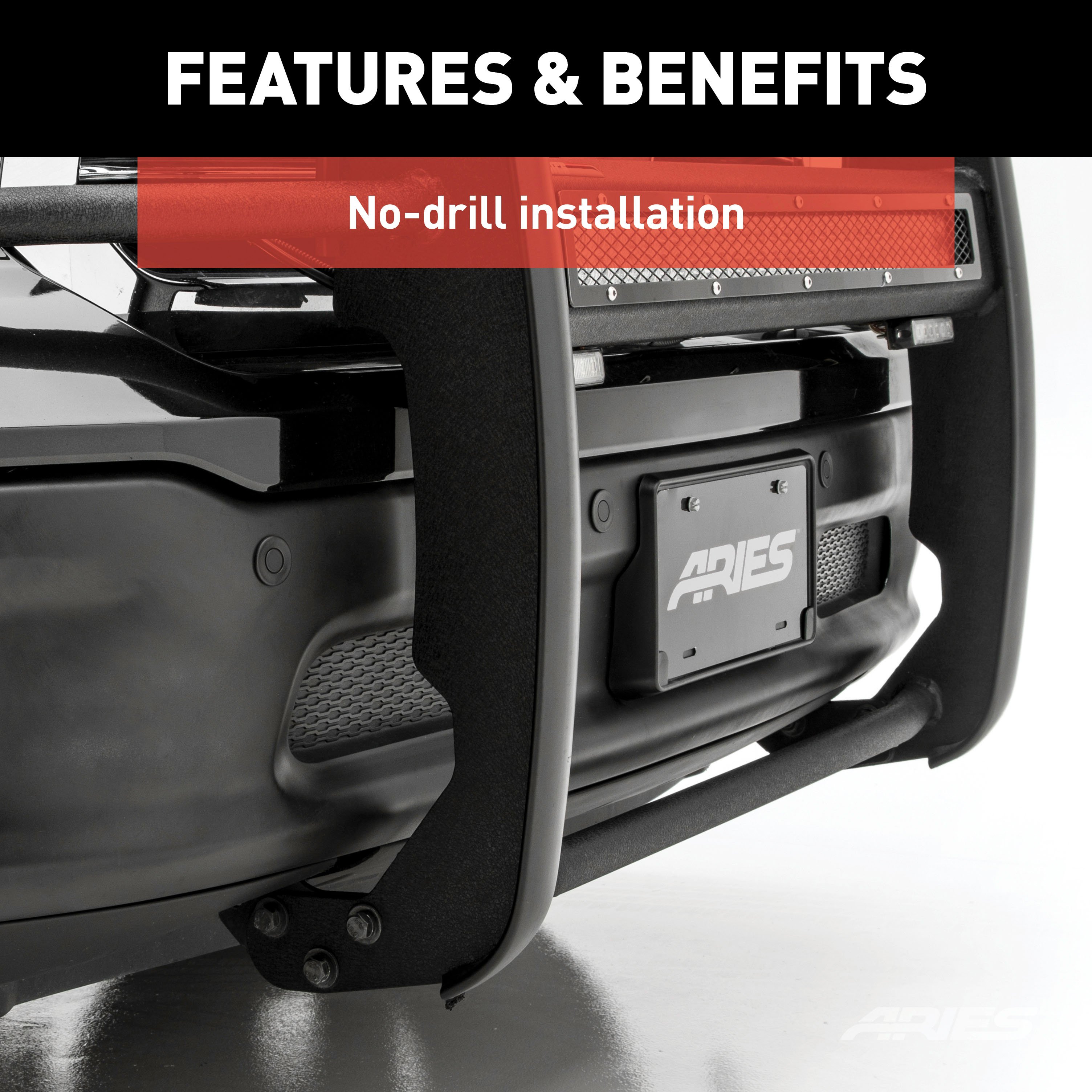

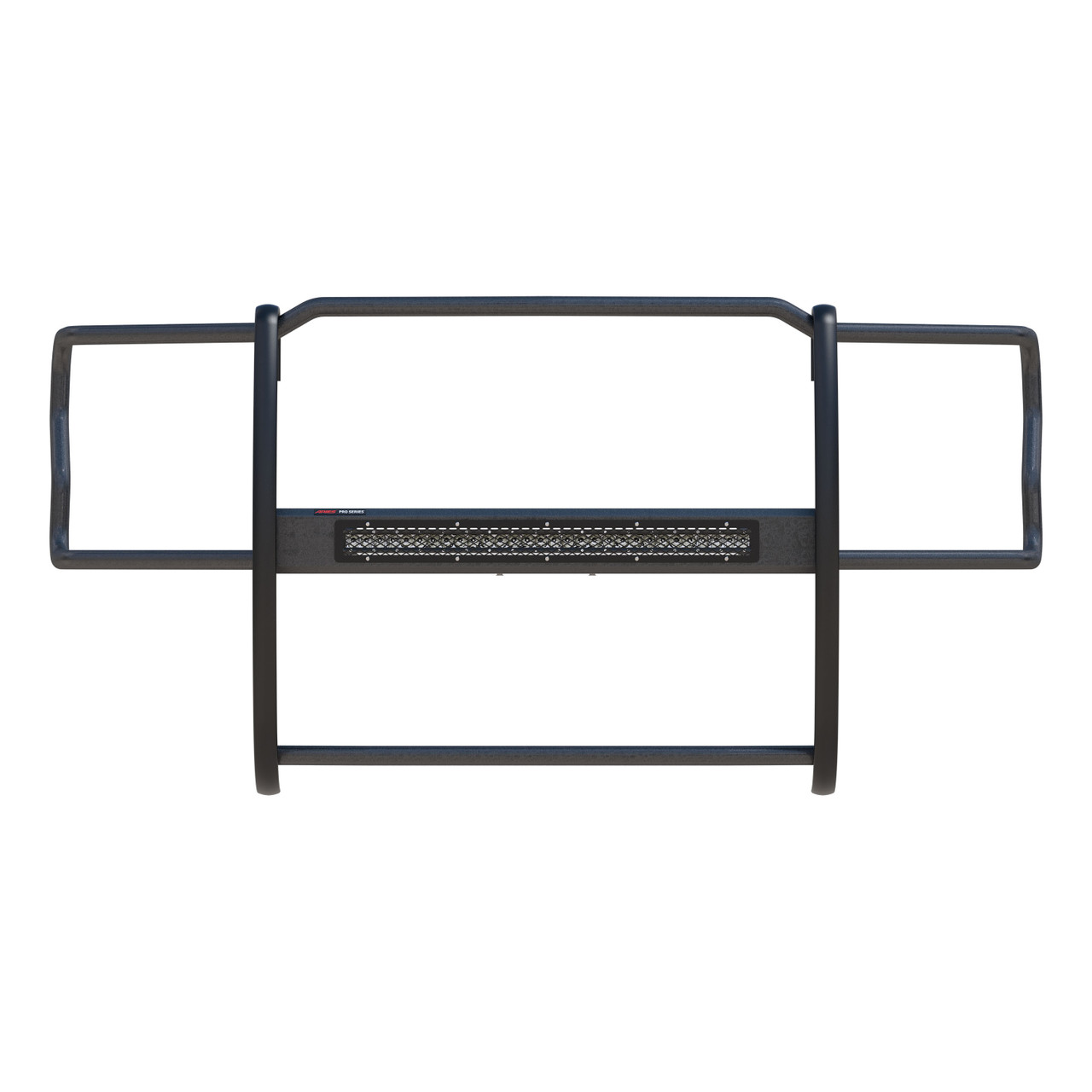

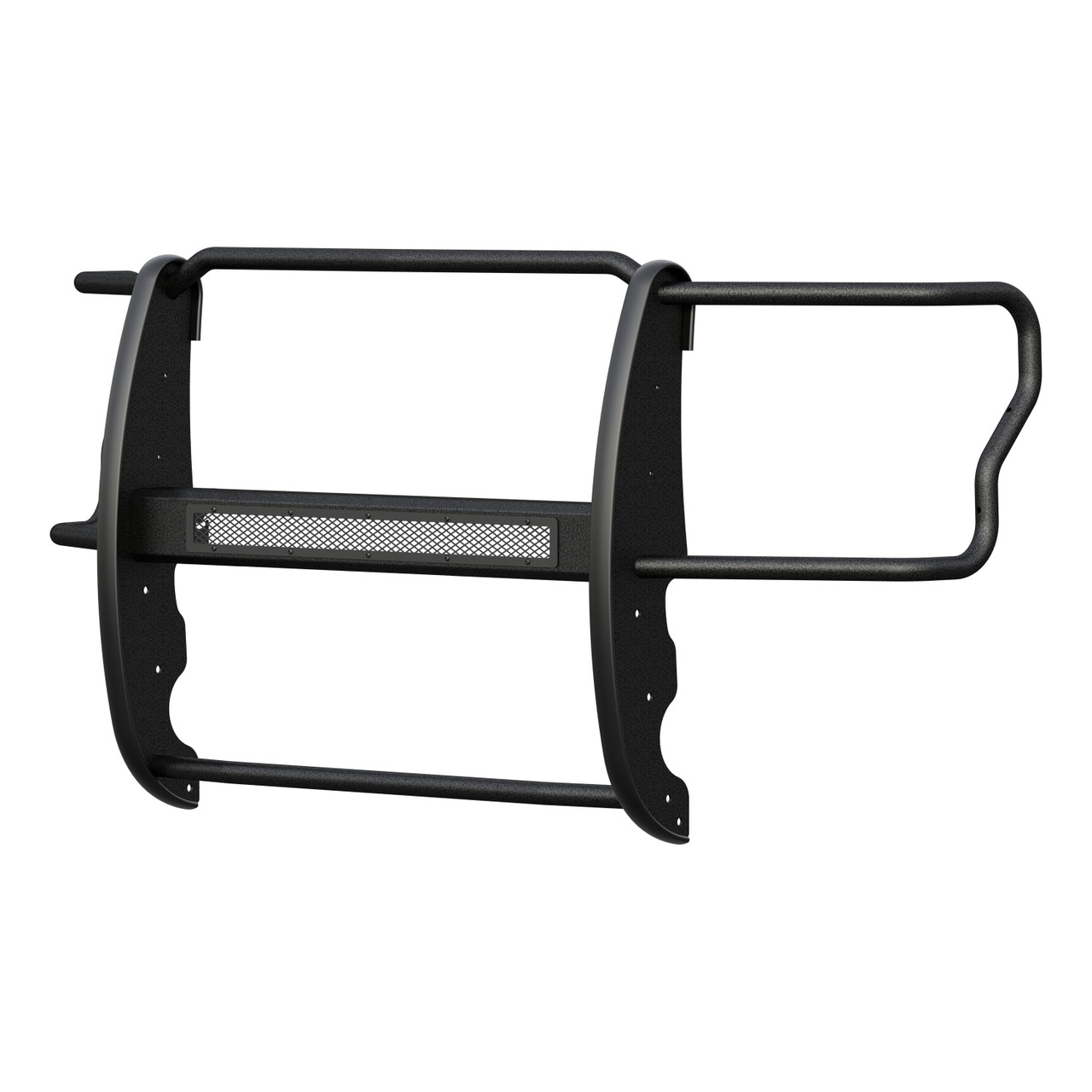

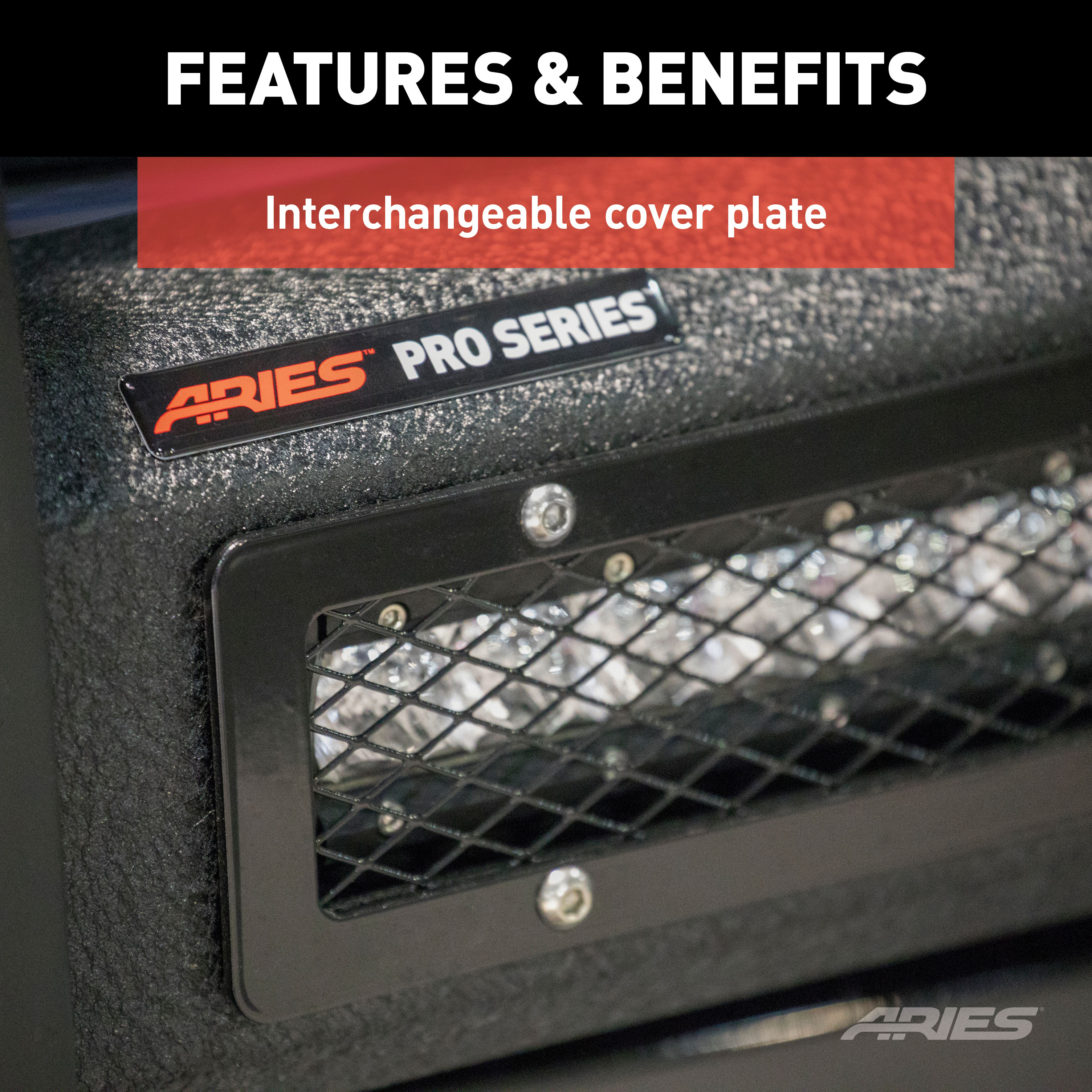

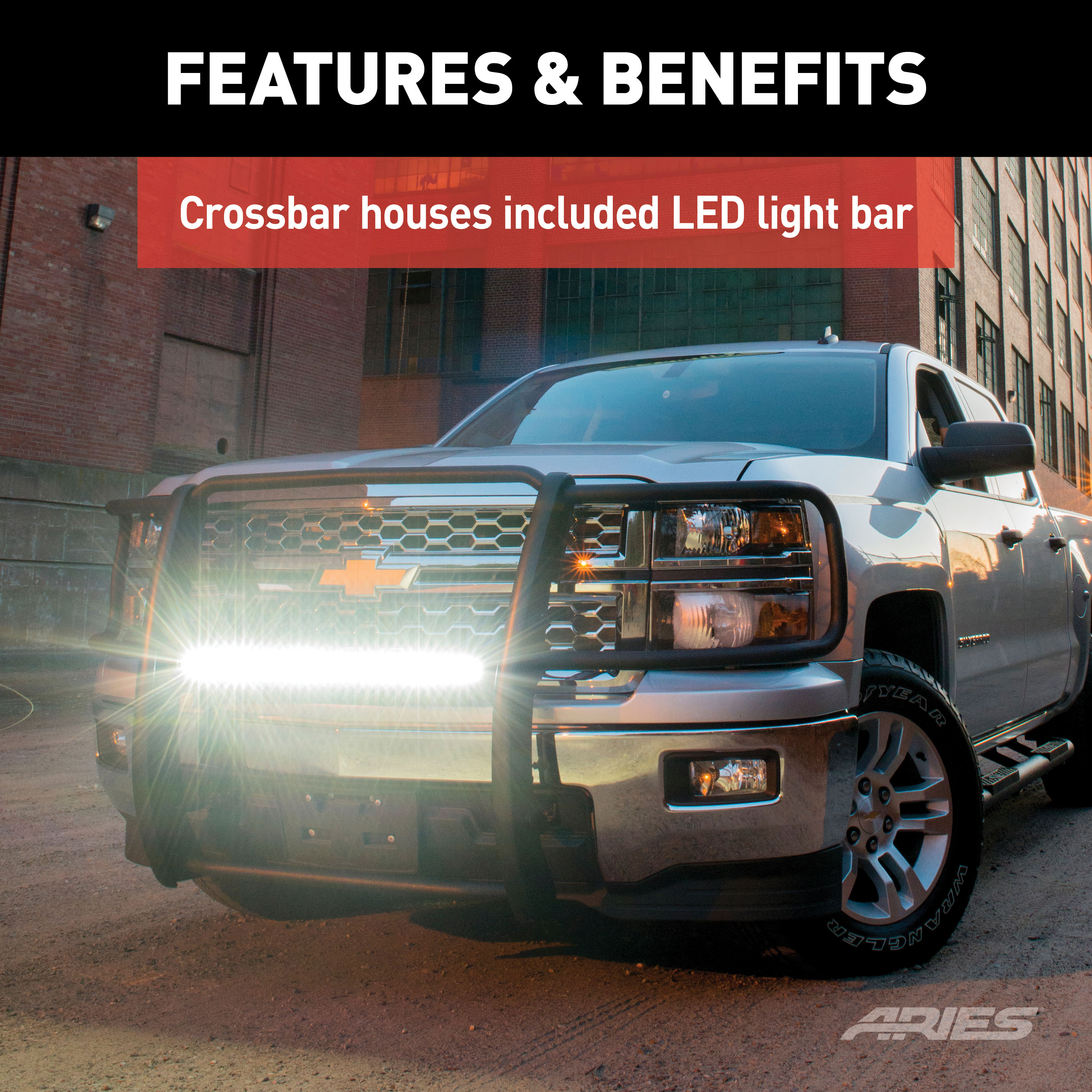

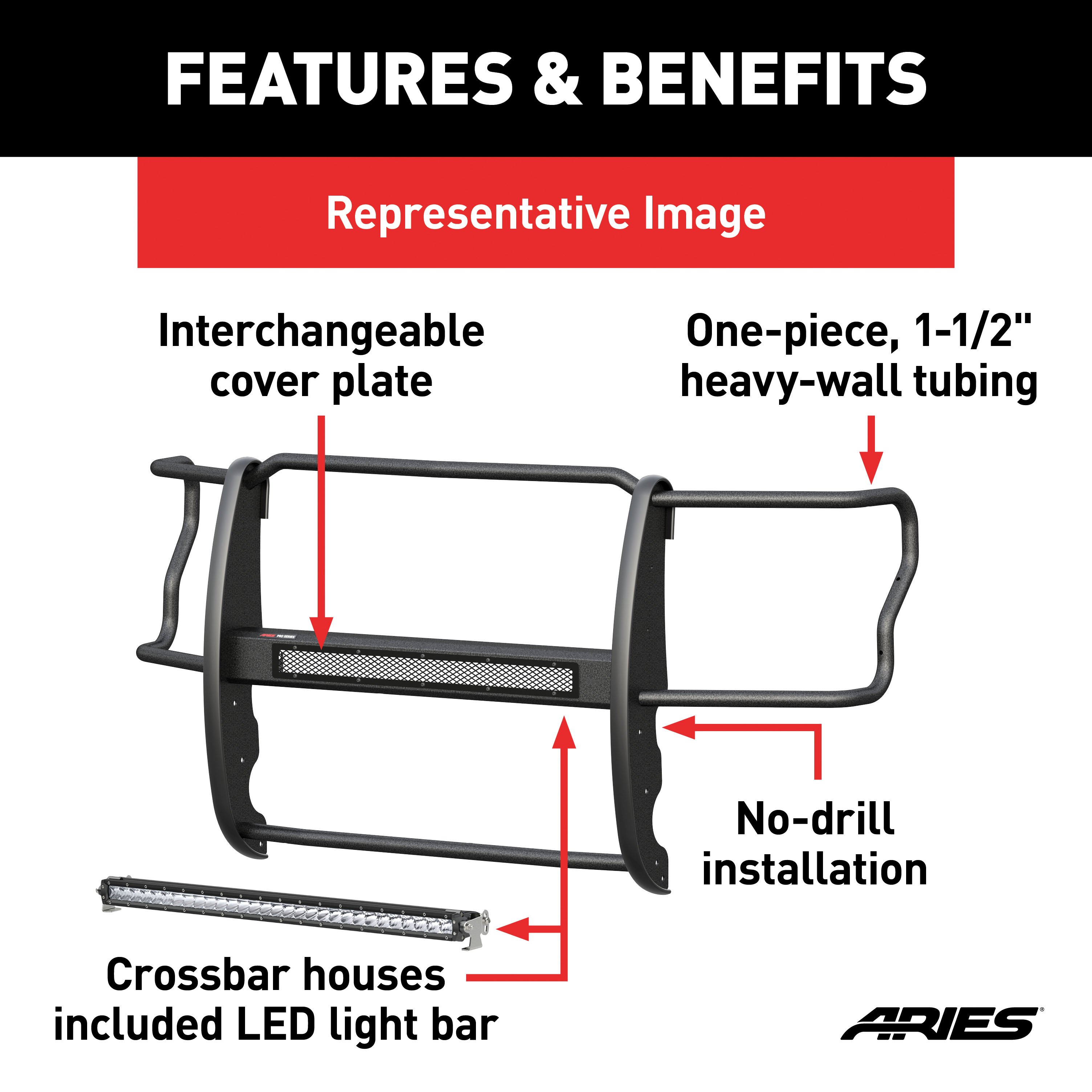

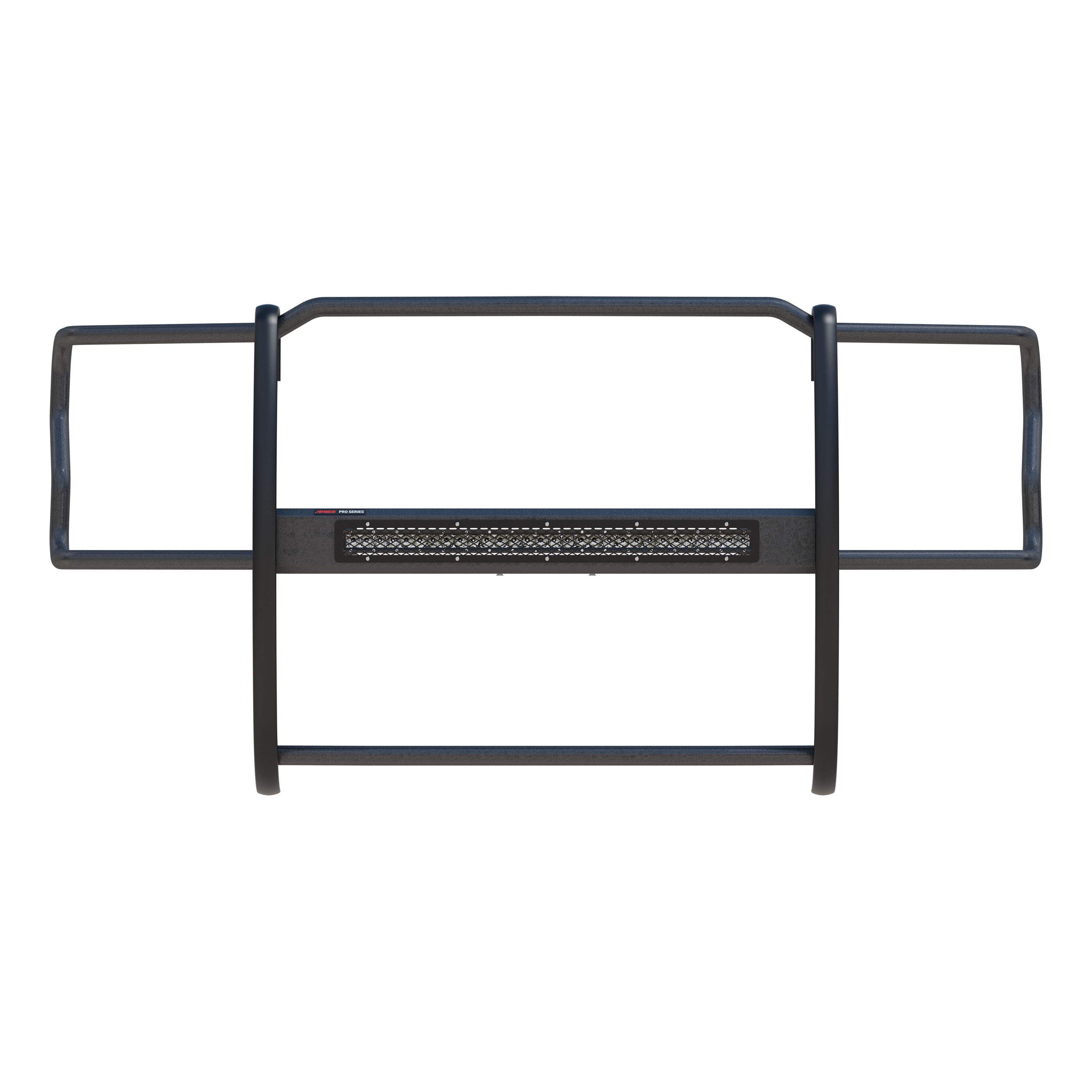

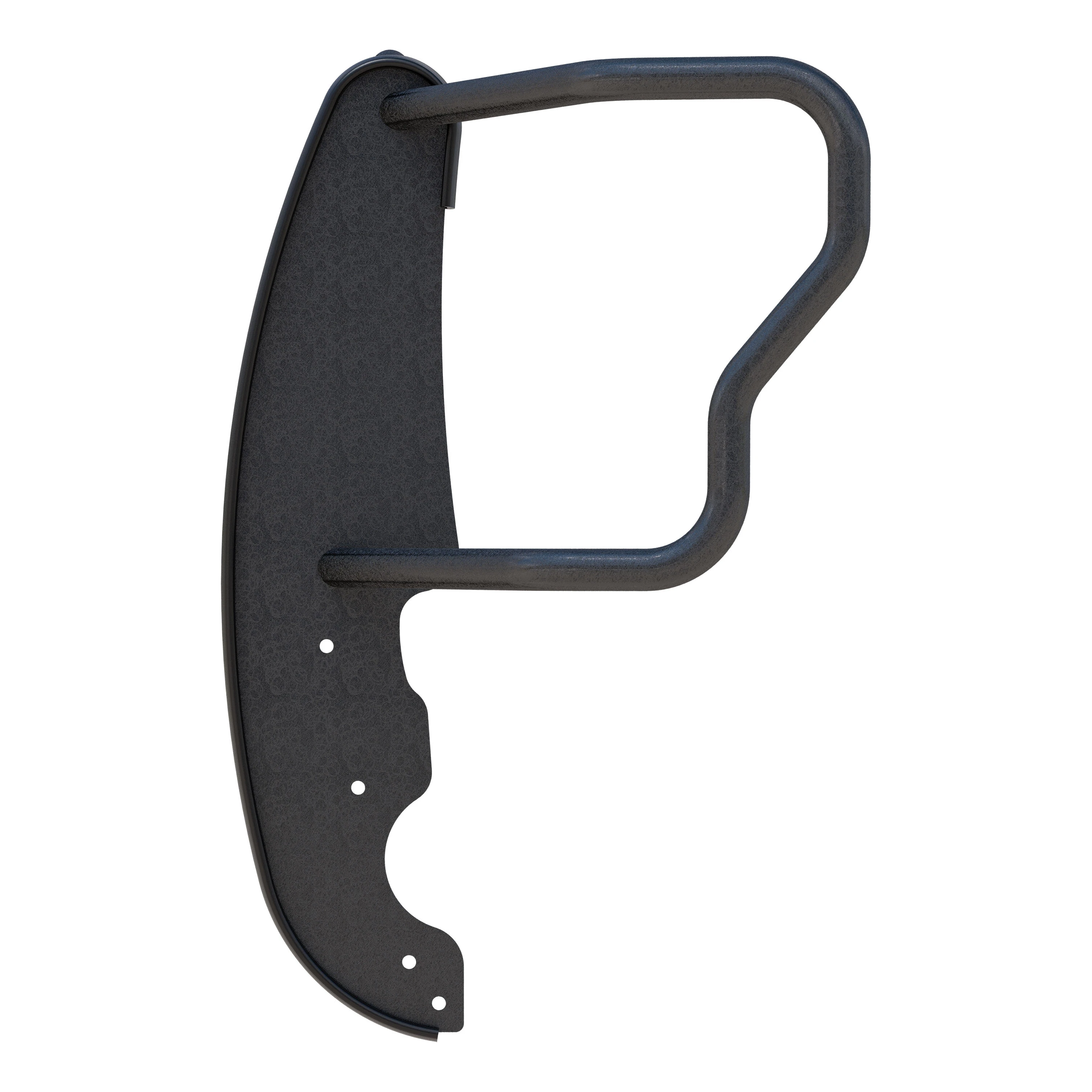

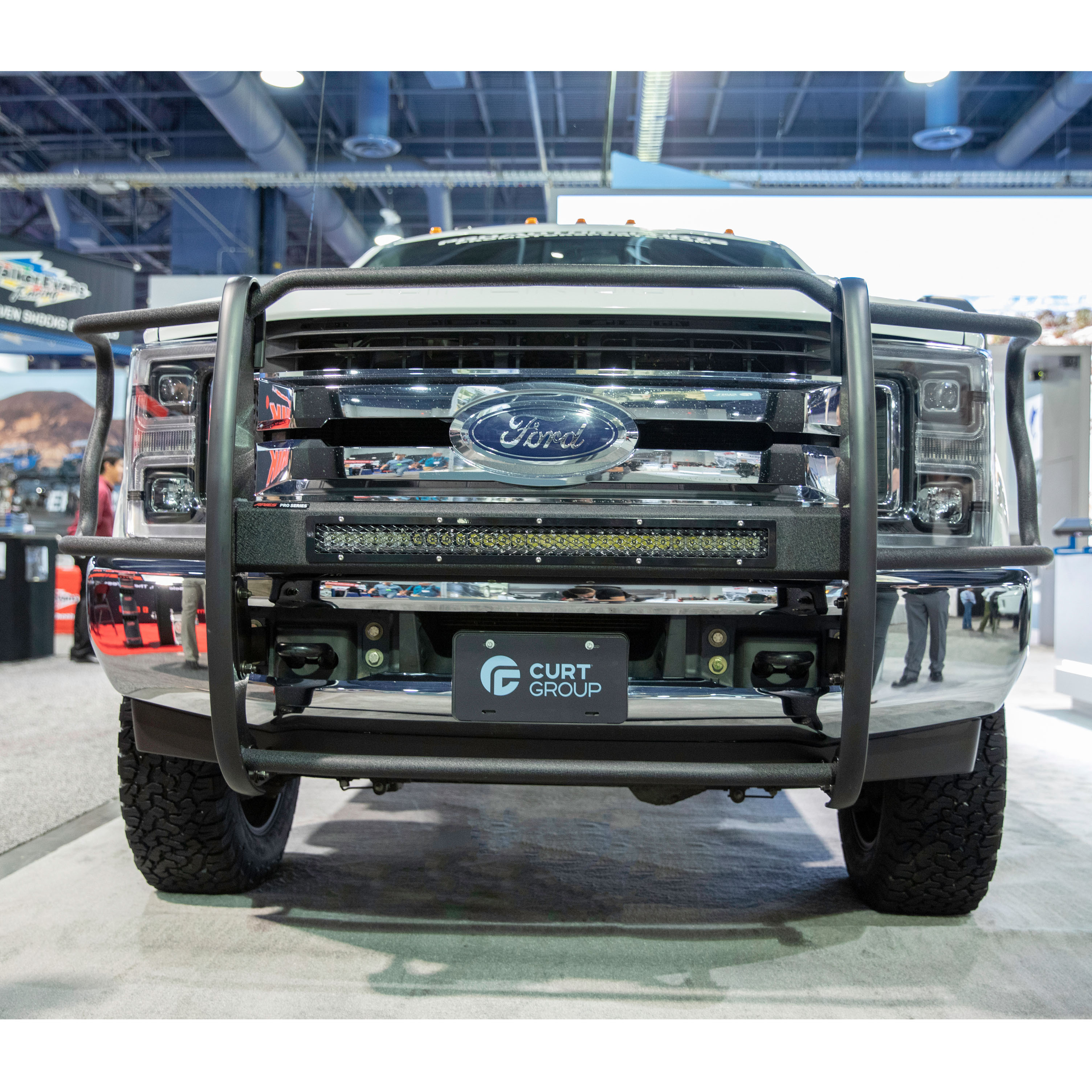

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that houses an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to mount the included 30" LED light bar #1501264. The bracket can also accept other single-row light bars (some 30" light bars may not fit). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Ford F-250, F-350, F-450 and F-550 Super Duty (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Ford F-250 Super Duty | — |
| 2017 - 2022 | Ford F-350 Super Duty | — |
| 2017 - 2022 | Ford F-450 Super Duty | — |
| 2017 - 2022 | Ford F-550 Super Duty | — |
The ARIES 2170014 Pro Series Black Steel Grille Guard with Light Bar, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDR2170014) fits 2017-2022 Ford F-250 Super Duty models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES 2170014 Pro Series Black Steel Grille Guard with Light Bar, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDR2170014) fits the following vehicles: 2017-2022 Ford F-250 Super Duty; 2017-2022 Ford F-350 Super Duty; 2017-2022 Ford F-450 Super Duty; 2017-2022 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the ARIES 2170014 Pro Series Black Steel Grille Guard with Light Bar, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDR2170014) is designed to fit the 2017-2022 Ford F-250 Super Duty.
The ARIES 2170014 Pro Series Black Steel Grille Guard with Light Bar, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDR2170014) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P3067 kit includes: 1 grille guard, 2 frame mounting brackets (driver and passenger), 2 spacer plates, 2 lower mounting brackets, 1 LED support flange, 2 clip nuts (M8), 2 hex bolts (M8), 2 flat washers (M8), 2 lock washers (M8), 8 hex bolts (M12 - 1.75mm x 35mm), 16 flat washers (M12 x 32mm OD x 3mm), 8 lock washers (M12), 8 hex nuts (M12), and 2 plastic retainers (M12).
The 1501264 kit includes: 1 LED light bar (10"), 2 mounting brackets (left and right), 1 wiring harness, 2 security screws (M6 - 1.0 x 25mm), 2 rubber spacers (M6), 2 flat washers (M6), 2 hex head cap screws (M8 - 1.25 x 18mm), 2 flat washers (M8), 2 Nylock nuts (M8 - 1.25mm), 1 security screw L-wrench, and 1 pre-installed 15-amp fuse.
No. Installation requires removal of the plastic cover and outer bumper bolts on both sides of the tow hook. The plastic air dam must also be removed from the bottom of the bumper. However, the inner bumper bolts must not be removed or the bumper may fall.
Yes. The manual provides specific cutting instructions for both short and tall air dams. For the tall air dam, you must not cut through the top or bottom edge—only remove enough material to clear the lower brackets, approximately 3/4" down from the top. For the short air dam, measurements differ; check all measurements on your vehicle before cutting.
The manual does not specify required tools. However, the installation involves removing and installing bolts, which typically requires wrenches or sockets, and cutting the air dam, which requires a hacksaw blade or utility knife. Proper tools are recommended to improve installation quality and reduce time.
Yes. The manual states that assistance is recommended to avoid possible injury or damage to the vehicle, particularly when positioning the grille guard up to the mounting brackets.
No. The manual explicitly states that the plastic cover cannot be reinstalled after removal.
The plastic retainer is designed to help hold the factory double bolt plate in place in the frame channel and to assist with bracket installation. One retainer is threaded onto the threaded end of the double bolt plate after removing one factory hex nut and before removing the second nut.
No. The manual specifies multiple stages: do not tighten hardware when first attaching the frame brackets to the spacer and bumper (Step 2), do not tighten when attaching the lower mounting brackets (Step 6), do not fully tighten when attaching the grille guard to the frame brackets (Step 11), and do not tighten when attaching to the lower mounting brackets (Step 12). Only tighten the bracket-to-vehicle hardware after leveling and adjusting the grille guard (Step 13), then fully tighten all hardware after reinstalling the grille guard (Step 16).
The spacer plate is placed over the holes for the bumper bolts to ensure proper spacing and clearance. The manual explicitly states: "Do not install Bracket without Spacer."
Yes. The frame brackets are attached to the spacer and bumper using the factory bumper bolts, which are reused.
Yes. The lower mounting brackets are attached to the double bolt plate using the two factory hex nuts that were removed from the frame extension.
Yes. Cutting is required. The plastic air dam must be cut to create openings for the lower mounting brackets. Use a hacksaw blade or utility knife to carefully cut two openings. For the tall air dam, do not cut through the top or bottom edge—only remove enough material to clear the brackets. Measure carefully on your vehicle before cutting, and trim as necessary to ensure proper fit.
The manual provides example measurements only and emphasizes that you must check all measurements on your vehicle before cutting. The example shows a 3/4" wide slot cut 3/4" down from the top of the air dam, with a 2-1/2" measurement also referenced. Do not cut through the top or bottom edge of the tall air dam.
M8 bolts should be torqued to 7 ft.-lbs. according to the torque specifications table.
M12 bolts should be torqued to 28 ft.-lbs. according to the torque specifications table.
The red fused wire with ring terminal connects to the positive (+) battery post. The black wire ring terminal connects to the negative (-) battery post or other suitable vehicle grounding point. The wiring harness male plug inserts into the female socket on the LED light. The blue, red, and black spade connectors reconnect to the switch according to the wiring diagram.
A 15-amp fuse is pre-installed in the kit.
The light bar can be used with a 24V system, but the relay will need to be replaced with a 24V unit. The kit includes a relay for standard voltage systems.
Improper electrical installation may damage electronic components, resulting in personal injury, property, or equipment damage. Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Damaged caused by incorrect installation is not covered by warranty. All wires must be secured with zip ties away from moving parts to avoid damage.
Mount the LED light with a rubber spacer between the mounting surface and each bracket. This prevents direct contact and potential damage.
Perform periodic inspections to ensure that all hardware is secure and tight.
After installation, test the light to ensure proper function. Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
For black finishes, mild soap may be used to clean the product.
No full removal is needed, but the plastic cover and outer bumper bolts must be removed. Inner bumper bolts must stay in place or the bumper may fall.
Yes, the plastic air dam must be cut to create openings for the lower mounting brackets using a hacksaw blade or utility knife. Measure your vehicle before cutting.
Yes, assistance is recommended to avoid possible injury or damage to the vehicle.
M8 bolts: 7 ft.-lbs.; M12 bolts: 28 ft.-lbs. Do not fully tighten until the grille guard is leveled and adjusted.
Connect the red fused wire ring terminal to the positive (+) battery post and the black wire ring terminal to the negative (-) battery post or suitable grounding point.
Yes, but the relay must be replaced with a 24V unit. The kit includes a standard voltage relay.
Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Improper installation may damage electronic components and cause personal injury.
