ARIES
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2022 Ford F-250 Super Duty
Confirmed to Fit
2017 - 2022 Ford F-350 Super Duty
Confirmed to Fit
2017 - 2022 Ford F-450 Super Duty
Confirmed to Fit
2017 - 2022 Ford F-550 Super Duty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

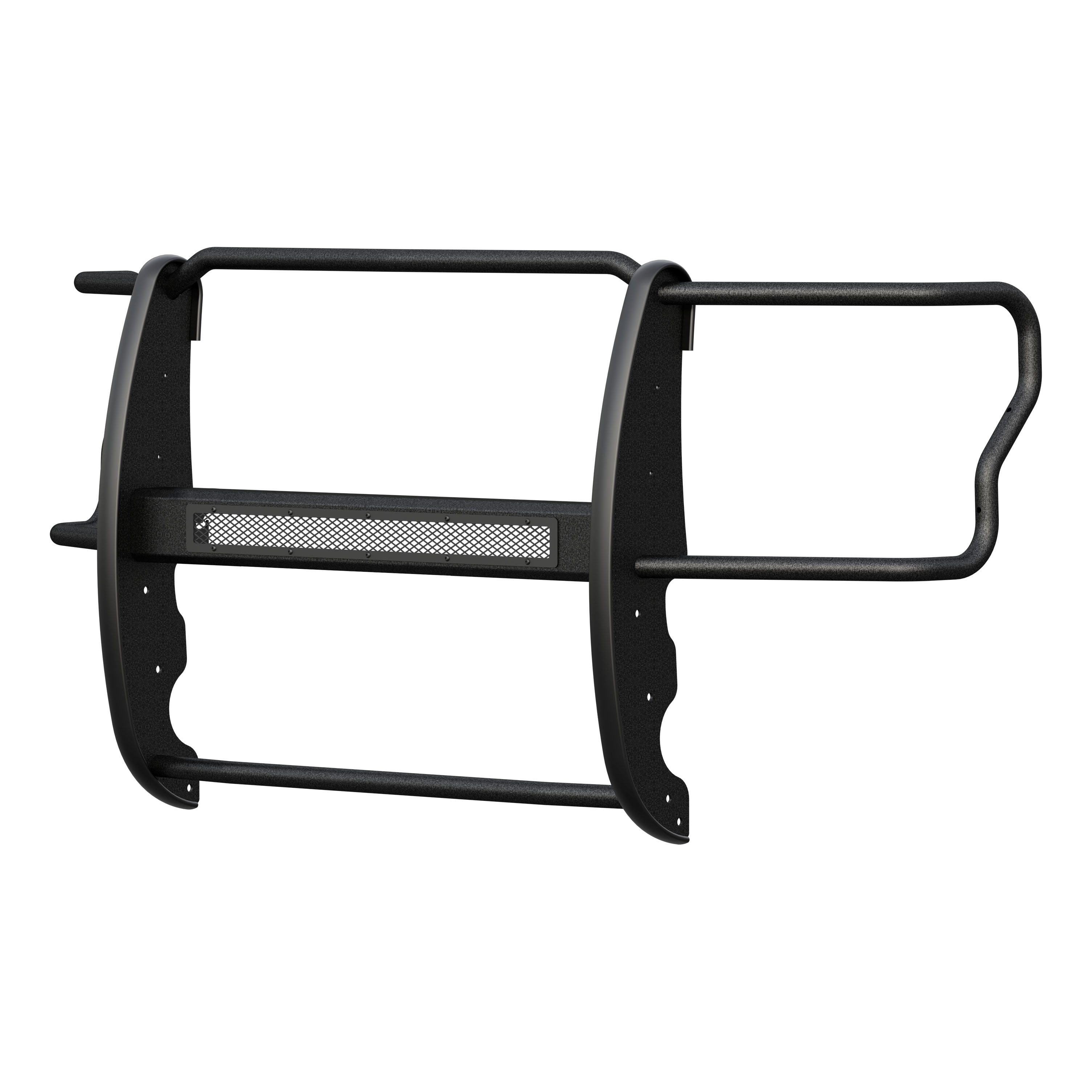

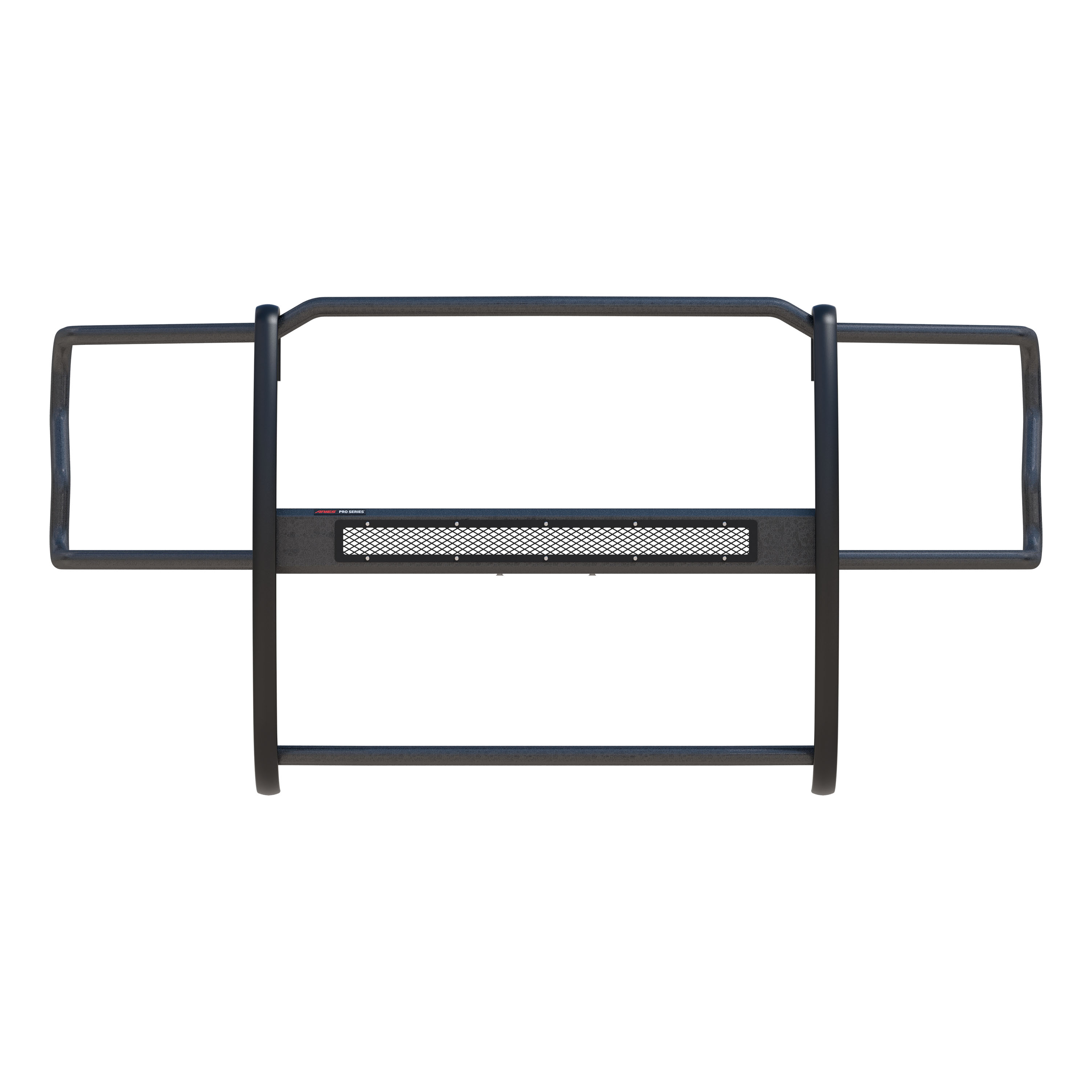

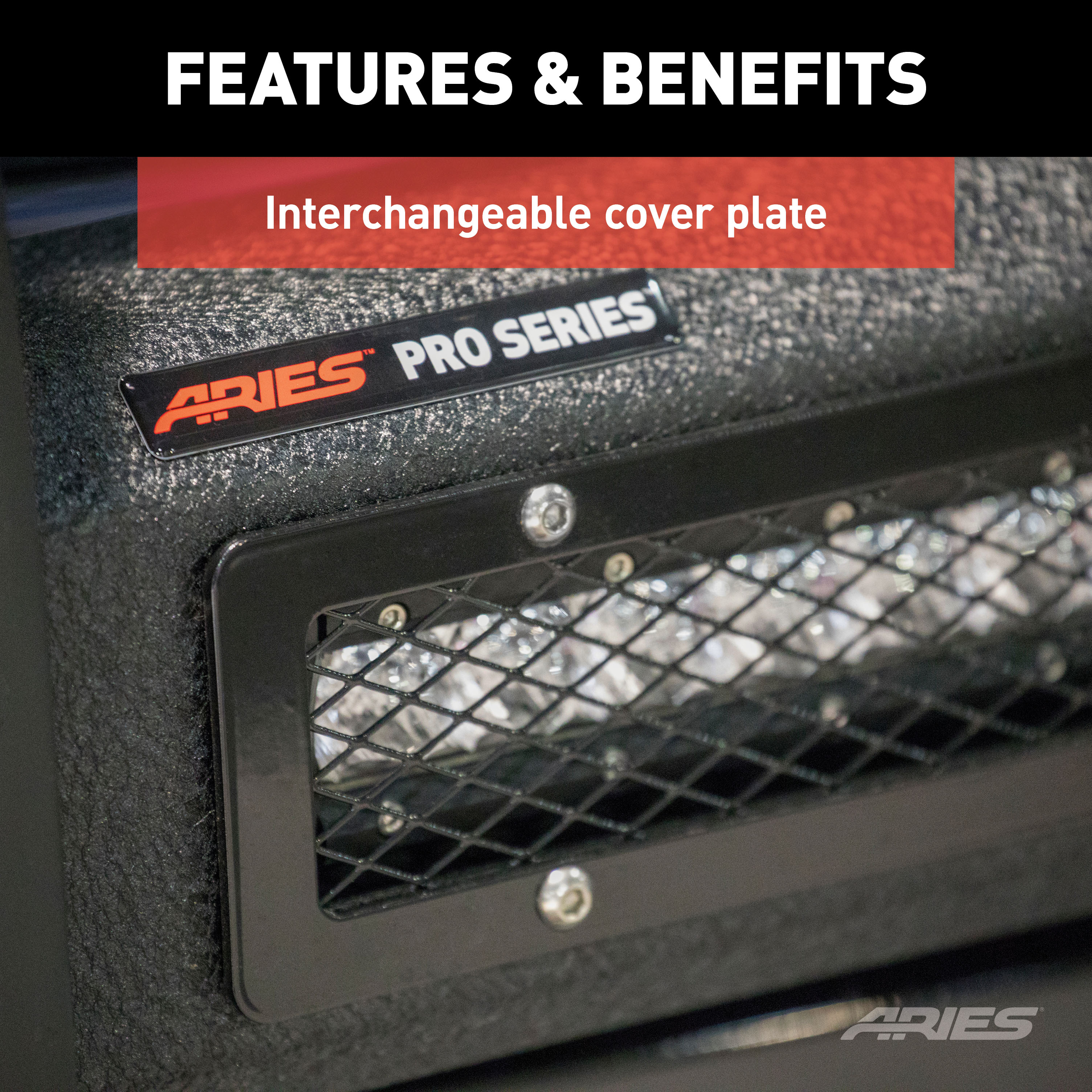

Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Carbon Steel

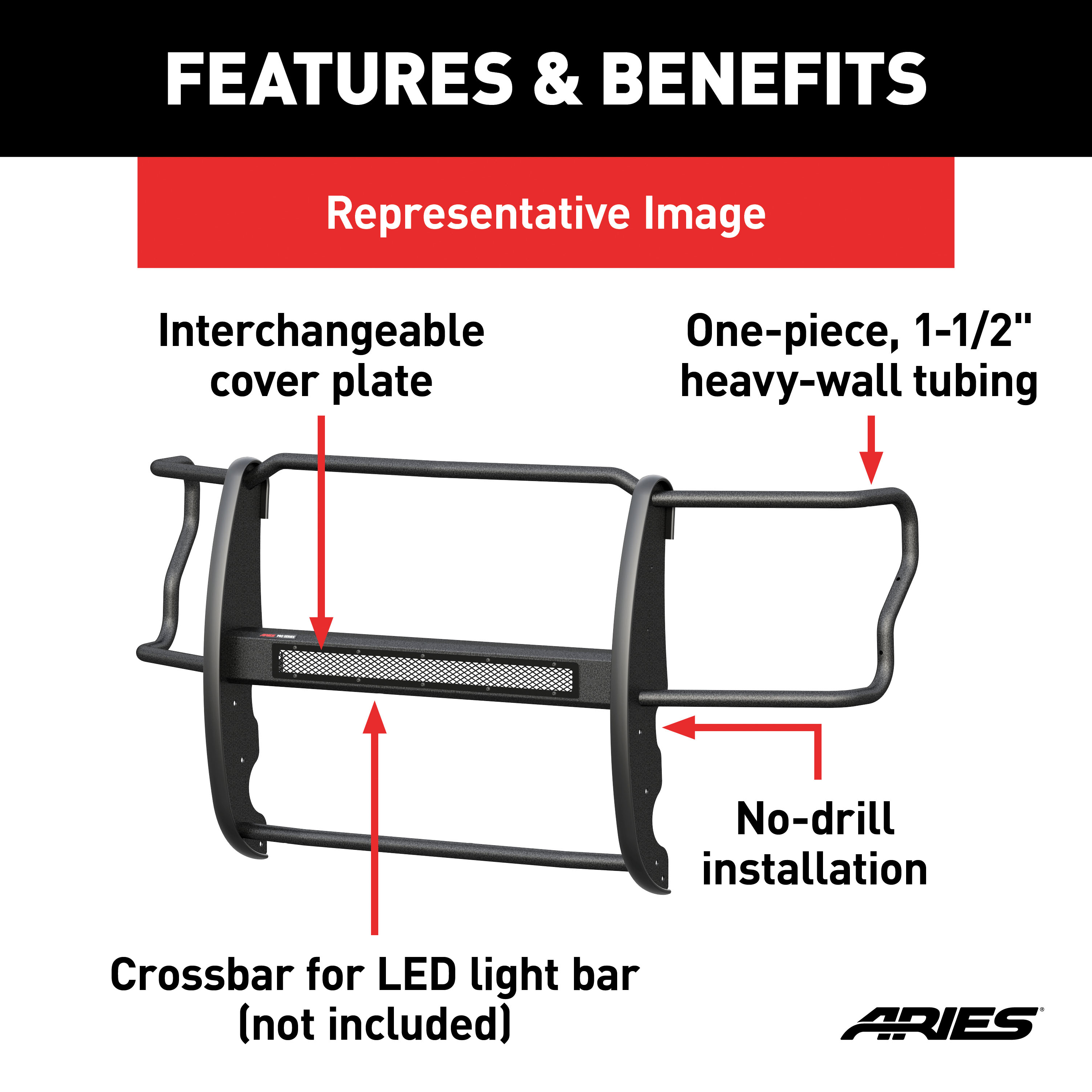

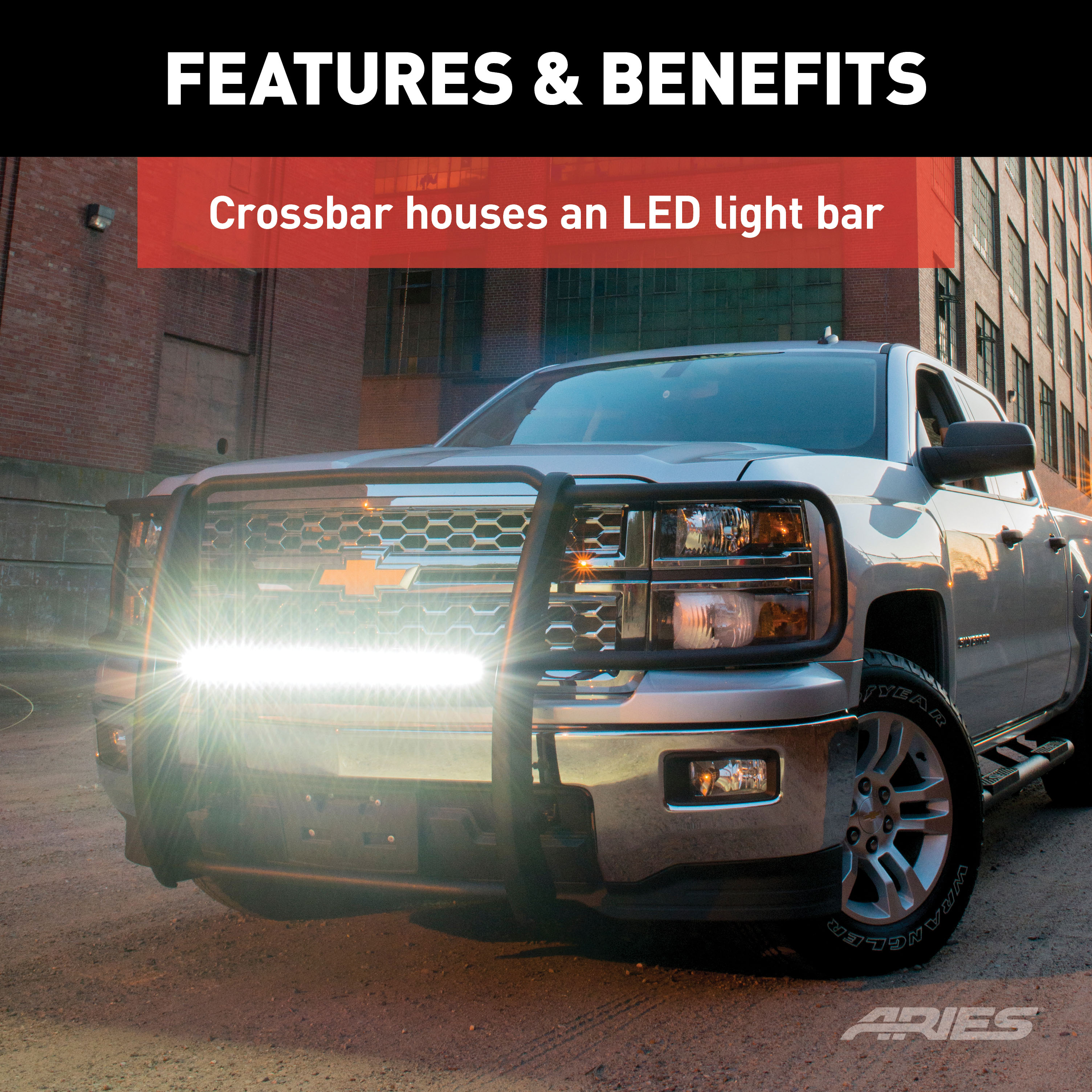

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Ford F-250, F-350, F-450 and F-550 Super Duty (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Ford F-250 Super Duty | — |
| 2017 - 2022 | Ford F-350 Super Duty | — |
| 2017 - 2022 | Ford F-450 Super Duty | — |
| 2017 - 2022 | Ford F-550 Super Duty | — |
Yes, the ARIES P3067 Pro Series Black Steel Grille Guard, No-Drill, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDRP3067) is designed to fit the 2017-2022 Ford F-250 Super Duty.
The ARIES P3067 Pro Series Black Steel Grille Guard, No-Drill, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDRP3067) fits the following vehicles: 2017-2022 Ford F-250 Super Duty; 2017-2022 Ford F-350 Super Duty; 2017-2022 Ford F-450 Super Duty; 2017-2022 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
The ARIES P3067 Pro Series Black Steel Grille Guard, No-Drill, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDRP3067) fits 2017-2022 Ford F-250 Super Duty models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES P3067 Pro Series Black Steel Grille Guard, No-Drill, Select Ford F-250, F-350, F-450, F-550 Super Duty (Part #BBDRP3067) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P3067 kit includes: 1 grille guard, 2 frame mounting brackets (driver and passenger), 2 spacer plates, 2 lower mounting brackets, 1 LED support flange, 2 clip nuts (M8), 2 hex bolts (M8), 2 flat washers (M8), 2 lock washers (M8), 8 hex bolts (M12 - 1.75mm x 35mm), 16 flat washers (M12 x 32mm OD x 3mm), 8 lock washers (M12), 8 hex nuts (M12), and 2 plastic retainers (M12).
The manual does not specify which vehicles are compatible with the P3067. Contact Aries Automotive at 877.287.8634 or visit ARIESAUTOMOTIVE.COM to confirm fitment for your specific vehicle make, model, and year.
Yes, assistance is recommended to avoid possible injury or damage to the vehicle. The manual specifically states that help is needed when positioning the grille guard up to the mounting brackets.
The manual does not specify which tools are required. However, based on the installation steps, you will need tools to remove and install bolts and nuts, and a hacksaw blade or utility knife to cut the plastic air dam. Proper tools are recommended to improve installation quality and reduce time.
No, you do not need to remove the bumper. You only remove the 2 outer bumper bolts on each side of the tow hook (4 bolts total). The plastic cover over these bolts is removed first. The inner bumper bolts must remain in place or the bumper may fall. The factory bumper bolts are then reused to attach the frame brackets and spacer plates.
The spacer plate is placed over the bumper bolt holes before the frame bracket is attached. The manual states 'Do not install Bracket without Spacer' and emphasizes ensuring clearance between the top and bottom of the frame bracket and the opening in the bumper. The spacer helps maintain proper alignment and clearance.
The plastic retainer (M12) is threaded onto the threaded end of the double bolt plate inside the frame before the second factory hex nut is removed. It is designed to help hold the factory double bolt plate in place in the frame and to assist with bracket installation. This prevents the double bolt plate from falling into the frame channel.
No. The manual specifies multiple stages: (1) Do not tighten hardware when first attaching the frame brackets to the spacer and bumper (Step 2). (2) Do not tighten when attaching the lower mounting brackets to the double bolt plate (Step 6). (3) Do not fully tighten when first attaching the grille guard to the frame brackets or lower mounting brackets (Steps 11–12). (4) Only tighten the bracket-to-vehicle hardware after leveling and adjusting the grille guard (Step 13). (5) Finally, fully tighten all hardware after reinstalling the grille guard (Step 16).
1. Remove plastic cover and 2 outer bumper bolts on each side (Steps 1–3). 2. Install frame brackets and spacer plates using factory bumper bolts, do not tighten (Steps 2–3). 3. Remove plastic air dam (Step 4). 4. Remove factory hex nuts from frame extension, install plastic retainer, and attach lower mounting brackets using factory nuts, do not tighten (Steps 5–7). 5. Install LED support flange and clip nuts if using LED lights (Steps 8–10). 6. Position grille guard and attach to frame brackets and lower mounting brackets with M12 bolts, washers, and nuts, do not fully tighten (Steps 11–12). 7. Level and adjust grille guard, tighten bracket-to-vehicle hardware only, then temporarily remove grille guard (Step 13). 8. Mark, measure, and cut air dam openings, then reinstall air dam (Steps 14–15). 9. Reinstall grille guard, level, adjust, and fully tighten all hardware (Step 16).
Yes, cutting is required. The plastic air dam at the bottom of the bumper must be removed and modified. You must carefully cut 2 openings in the air dam to clear the lower mounting brackets. A hacksaw blade or utility knife is used for cutting. The manual emphasizes checking all measurements on the vehicle before cutting and trimming as necessary for proper fit. On the tall air dam only, do not cut through the top or bottom edge—only remove enough material to clear the brackets.
The torque specification for M12 bolts is 28 ft.-lbs. This applies to the M12 hex bolts (1.75mm x 35mm) used to attach the grille guard to the frame brackets and lower mounting brackets.
The torque specification for M8 bolts is 7 ft.-lbs. This applies to the M8 hex bolts used to attach the LED support flange to the light bar cage.
1. Select an LED light, mounting hardware, and brackets. Attach the hardware to the LED support flange (Step 8). 2. Place a clip nut on both ends of the support flange. Insert an M8 hex bolt, lock washer, and flat washer into each clip nut, leaving enough space between the flat washer and clip nut to slot the support flange into the light bar cage (Step 9). 3. Place the grille guard face down on a flat, stable work surface. Insert the support flange into the light bar cage, ensuring the flat washer, lock washer, and bolt head are on the outside of the center flange. Tighten the support flange to the light bar cage using the M8 bolts (Step 10).
No. The manual states 'Cover cannot be reinstalled.' The plastic cover over the bumper bolts on both sides of the tow hook must be removed in Step 1 and cannot be put back on.
Yes. The factory bumper bolts are reused to attach the frame brackets and spacer plates to the bumper (Step 2). The factory hex nuts from the frame extension are reused to attach the lower mounting brackets to the double bolt plate (Step 6). The manual emphasizes noting the location and type of all factory hardware for reinstallation (Step 4).
Do periodic inspections to ensure that all hardware is secure and tight. The manual does not specify the inspection interval. For black finishes, mild soap may be used to clean the product.
1. Hold the plastic air dam up in position against the lower mounting brackets and mark the location of the brackets onto the top of the air dam (Step 14). 2. Measure the location of the lower brackets and transfer these measurements onto the back of the air dam (Step 14). 3. Place the air dam back up to the lower mounting brackets to verify location before cutting. Check all measurements on the vehicle. 4. Once absolutely satisfied, use a hacksaw blade or utility knife to carefully cut 2 openings in the air dam. Check fit and trim as necessary. The manual notes that measurements shown are for reference and example only—you must check all measurements before cutting.
On the tall air dam only, do not cut through the top or bottom edge of the air dam. Only remove enough material to clear the brackets. The short air dam does not have this restriction. The manual provides example measurements for both versions, but emphasizes that all measurements must be checked on the vehicle before cutting, as the measurements shown are for reference and example only.
The manual does not specify vehicle compatibility. Contact Aries Automotive at 877.287.8634 or visit ARIESAUTOMOTIVE.COM to confirm fitment for your specific vehicle.
The manual does not specify required tools. You will need tools to remove and install bolts and nuts, and a hacksaw blade or utility knife to cut the plastic air dam.
Yes, assistance is recommended to avoid possible injury or damage to the vehicle, particularly when positioning the grille guard to the mounting brackets.
M12 bolts: 28 ft.-lbs. M8 bolts: 7 ft.-lbs. These specifications apply to the grille guard attachment bolts and LED support flange bolts respectively.
No. You only remove the 2 outer bumper bolts on each side (4 total). The inner bumper bolts must remain in place. Factory bumper bolts are reused to attach the frame brackets.
Do not tighten bolts when first installing frame brackets or lower mounting brackets. After positioning the grille guard and attaching it to all brackets, tighten only the bracket-to-vehicle hardware. Then remove the grille guard, modify the air dam, reinstall the grille guard, and fully tighten all hardware.
Do periodic inspections to ensure all hardware is secure and tight. For black finishes, clean with mild soap.
On Sale Today
Original price was $1,127.95. Current price is $670.00.You save $457.95 (41%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Lancaster, TXFREE SHIPPING
Estimated delivery Wed, Sep 23 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
