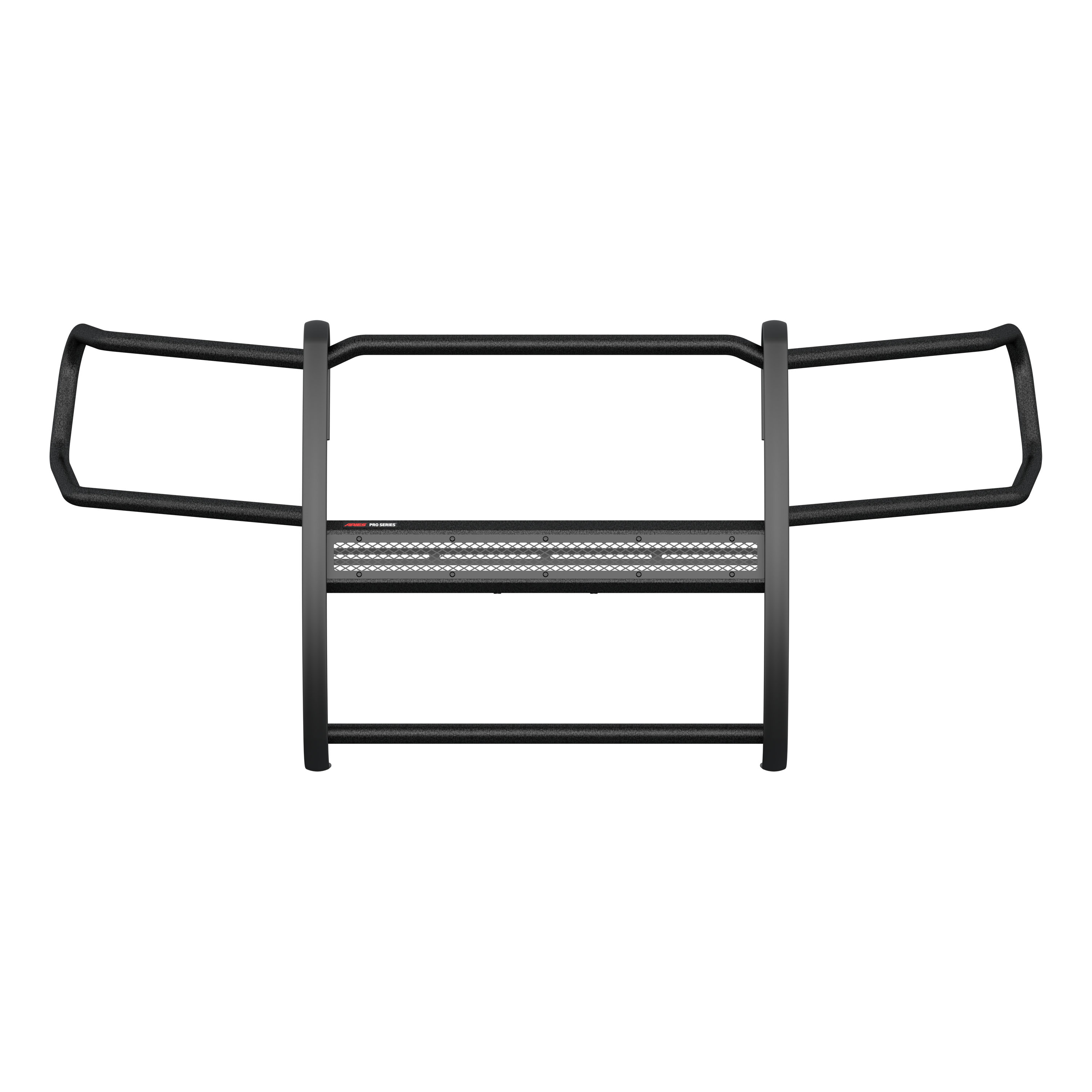

Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Carbon Steel

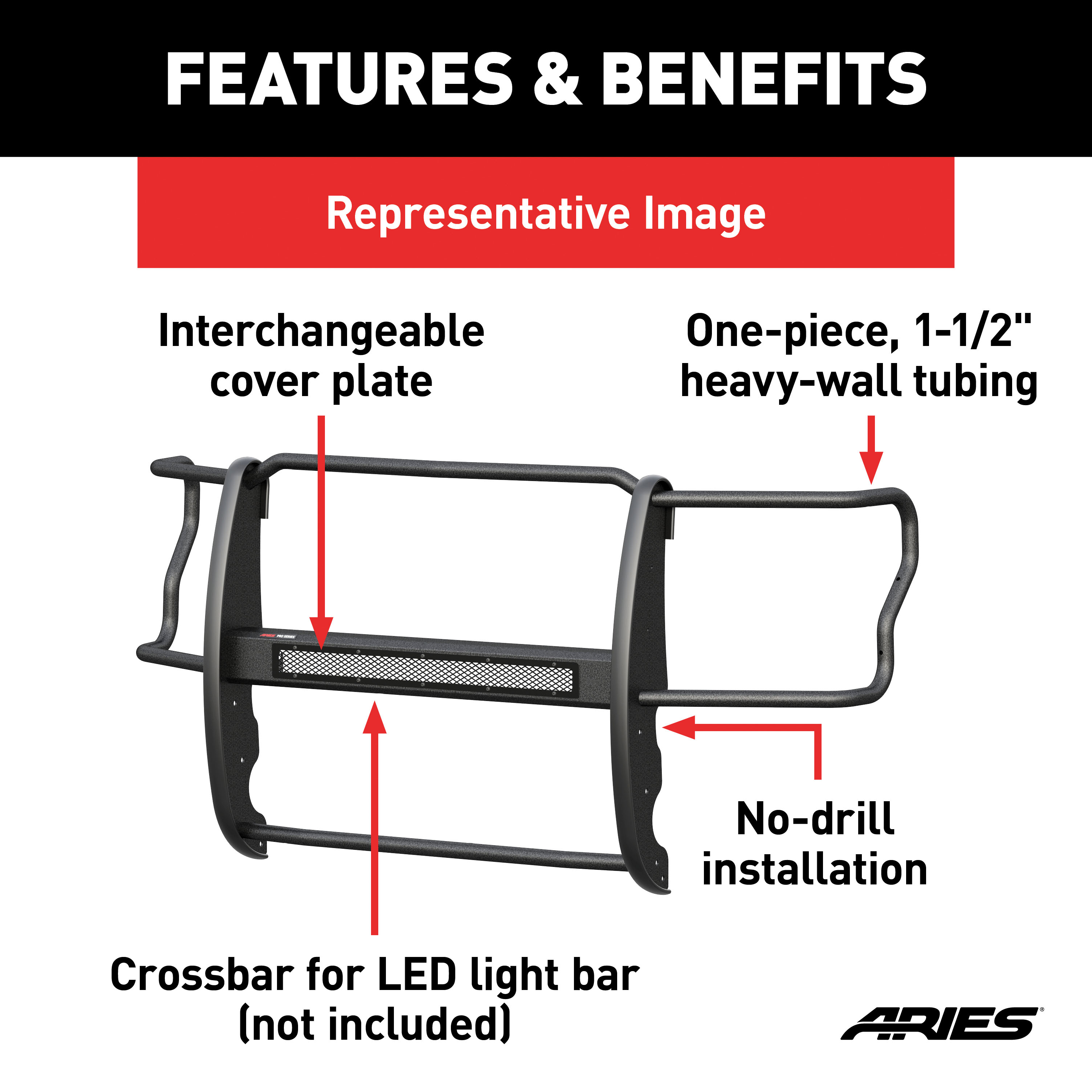

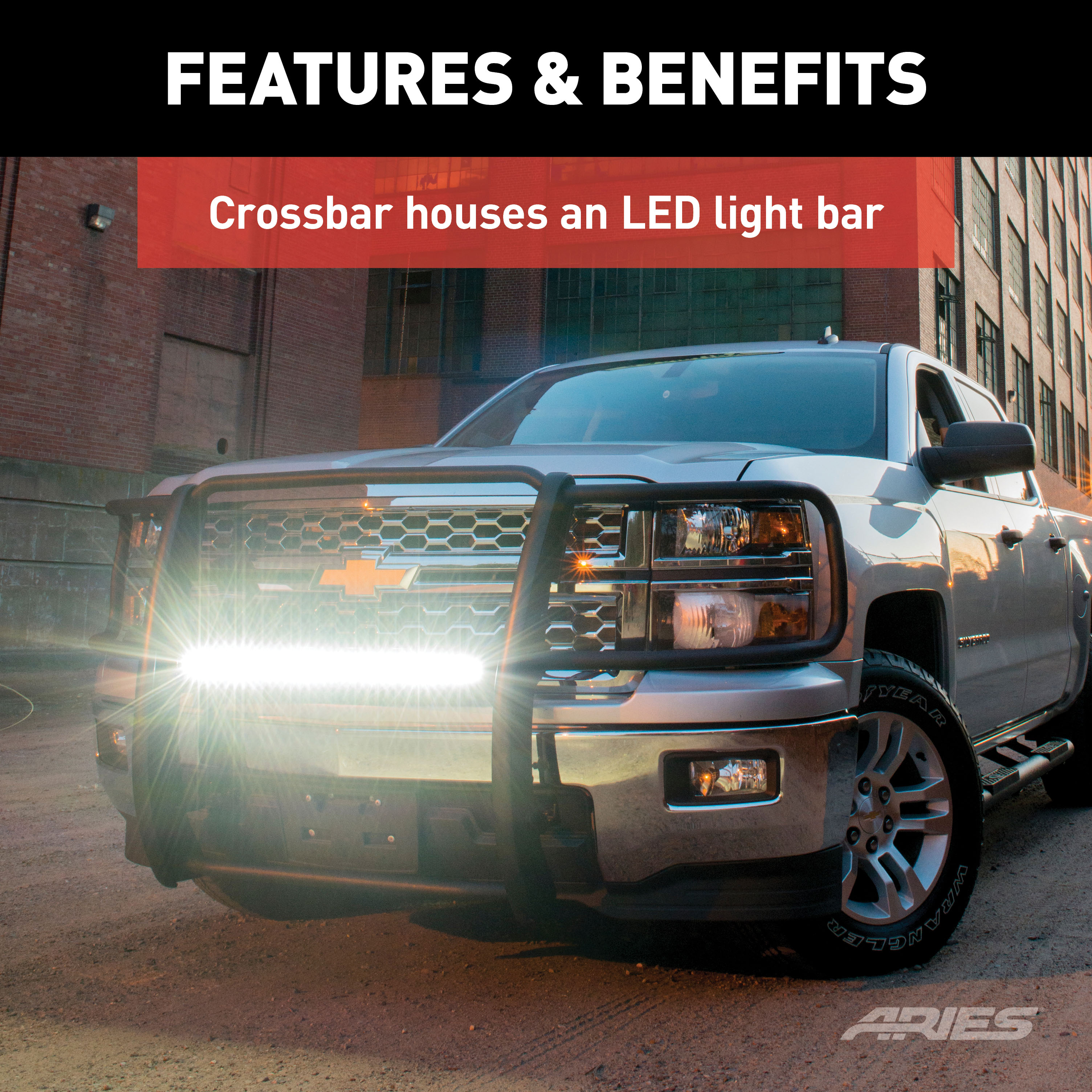

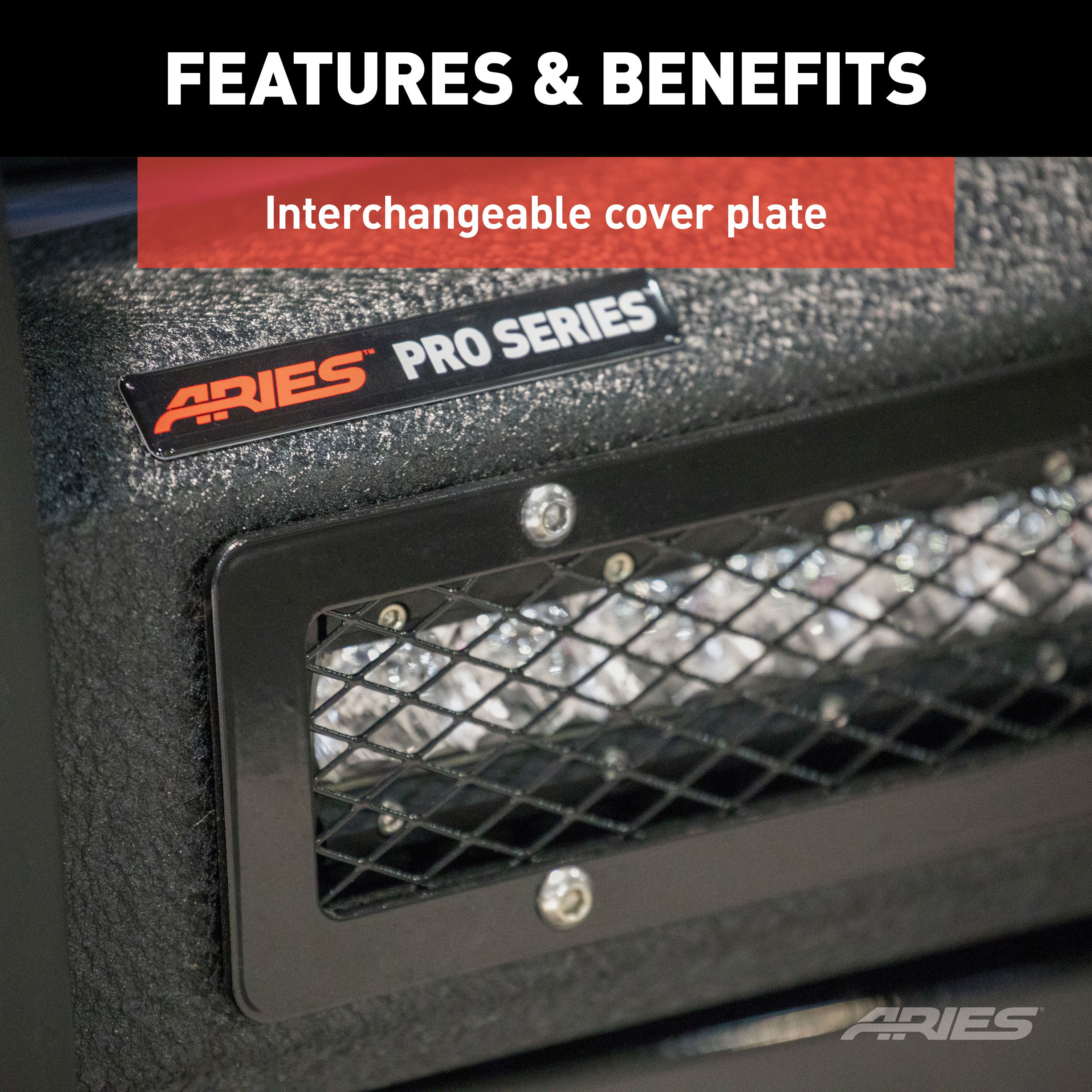

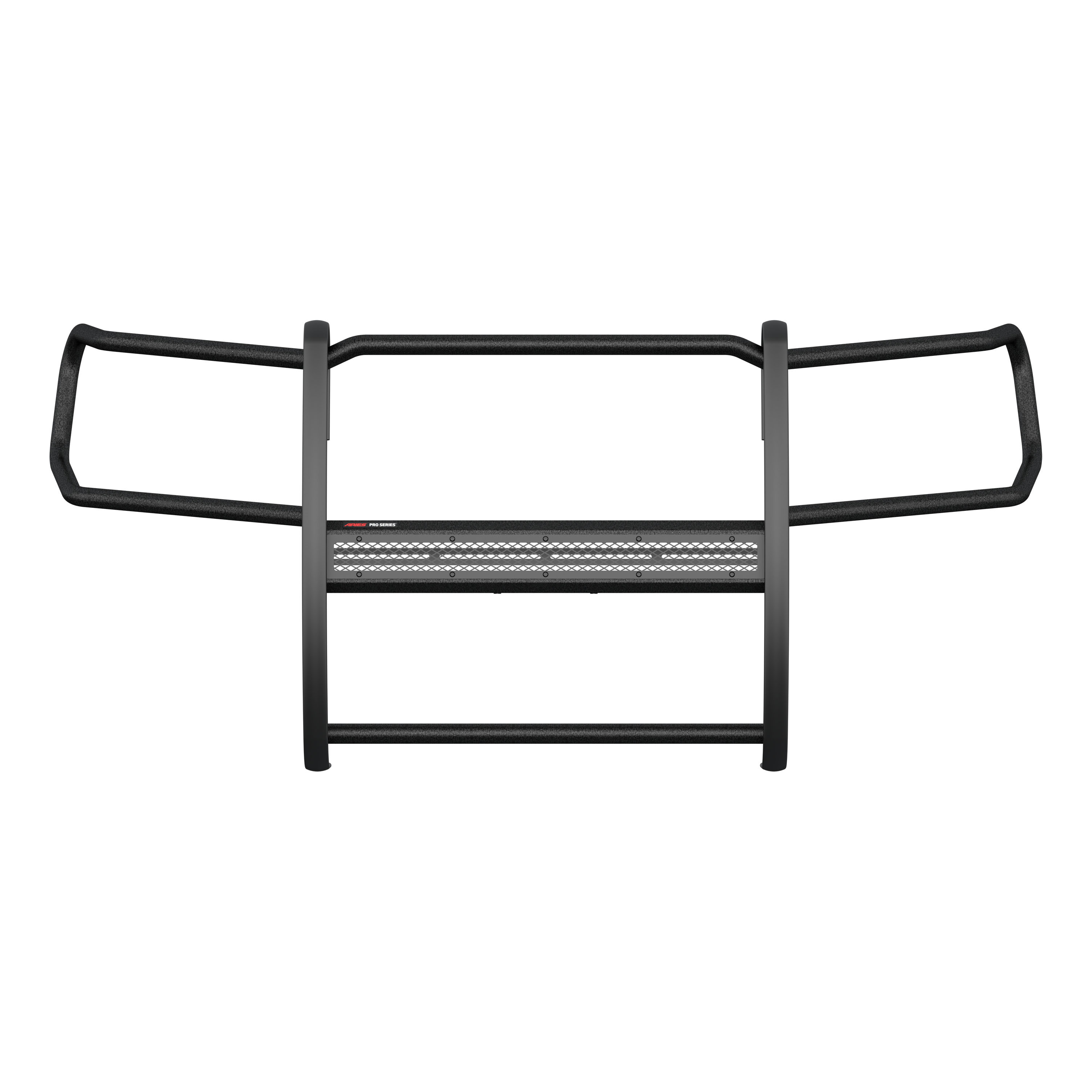

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Toyota 4Runner (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2024 | Toyota 4Runner | — |
The ARIES P2066 Pro Series Black Steel Grille Guard, No-Drill, Select Toyota 4Runner (Part #BBDRP2066) fits 2014-2024 Toyota 4Runner models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES P2066 Pro Series Black Steel Grille Guard, No-Drill, Select Toyota 4Runner (Part #BBDRP2066) fits the following vehicles: 2014-2024 Toyota 4Runner. Always verify your specific year, make, and model before ordering.
Yes, the ARIES P2066 Pro Series Black Steel Grille Guard, No-Drill, Select Toyota 4Runner (Part #BBDRP2066) is designed to fit the 2014-2024 Toyota 4Runner.
The ARIES P2066 Pro Series Black Steel Grille Guard, No-Drill, Select Toyota 4Runner (Part #BBDRP2066) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P2066 kit includes: 1 grille guard, 1 driver/left frame mounting bracket, 1 passenger/right frame mounting bracket, 1 driver/left top mounting bracket (2015-on only), 1 passenger/right top mounting bracket (2015-on only), 2 button head screws 8mm x 20mm, 2 button head screws 8mm x 25mm, 4 lock nuts 8mm, 2 lock washers 8mm, 10 flat washers 8mm, 2 hex bolts 8mm x 40mm, 4 lock washers 10mm, 8 flat washers 10mm, 4 hex nuts 10mm, 4 hex bolts 10mm x 35mm, 2 clip nuts 8mm, 2 spacers 13mm ID x 25mm OD x 16.5mm, and 2 wrenches (S=4 and S=5).
The manual states the P2066 is designed for 2015-on models. The specific vehicle make and model are not identified in the installation manual. Contact ARIES Automotive at 877.287.8634 or visit ariesautomotive.com to confirm fitment for your specific vehicle.
No. The manual states the P2066 is not recommended for vehicles with optional active laser guided cruise control systems. Installation may interfere with front sensors on these vehicles.
A socket set and wrench are required. Two wrenches (S=4 and S=5) are included in the kit. Proper tools will improve the quality of installation and reduce the time required.
Yes, assistance is recommended. The manual specifically states that assistance is recommended during installation, particularly when lining up and bolting the grille guard to the frame brackets.
Cutting may be required. The manual states that cutting may be required, but does not specify what parts require cutting or whether this applies to all vehicles. Contact ARIES Automotive at 877.287.8634 for vehicle-specific guidance.
1. Remove the 3 factory bumper mount bolts on the driver side. 2. Attach the driver side frame bracket using the 3 factory bolts (snug but do not tighten). 3. Repeat for the passenger side. 4. Remove the plastic cover between the radiator and grille. 5. For 2015-on models, install the top brackets to the cross member. 6. Line up and bolt the grille guard to the frame brackets with 4 hex bolts, 8 flat washers, 4 lock washers and 4 hex nuts (do not tighten). 7. For 2015-on models, attach the top brackets to the grille guard. 8. Level and adjust the grille guard, then tighten all hardware.
No. The manual instructs to snug but not tighten hardware at multiple stages: after attaching frame brackets to bumper brackets, after attaching the support flange (if installing LED lights), after attaching the grille guard to frame brackets, and after attaching top brackets. Only tighten all hardware after leveling and adjusting the grille guard properly in the final step.
1. Remove the inner plastic clip closest to the center grille emblem that attaches the bottom of the grille to the top of the cross member. 2. Insert the top bracket through the opening in the grille from behind. 3. Attach the bracket to the cross member with 1 hex bolt 8mm x 30mm, 2 flat washers 8mm x 24mm x 2mm, and 1 nylon lock nut 8mm. Leave hardware loose. 4. Repeat for the passenger side. 5. After positioning the grille guard, attach the outer end of each top bracket to the bottom of the top tube on the grille guard with 1 button head bolt 8mm x 25mm, 1 lock washer 8mm, and 1 flat washer 8mm. Leave hardware loose until final tightening.
The grille guard is bolted to the outside of the frame brackets using 4 hex bolts 10mm x 35mm, 8 flat washers 10mm, 4 lock washers 10mm, and 4 hex nuts 10mm.
1. Select your LED light mounting hardware and brackets (sold separately). 2. Attach the LED light to the support flange according to the LED manufacturer's mounting style. 3. Place 2 clip nuts 8mm into the slotted holes on either side of the support flange. 4. Lay the grille guard face down on cardboard or a blanket to protect the finish. 5. Place the support flange with the LED attached into the center flange. 6. Attach each side of the support flange to the inner brackets inside the center flange with 2 hex bolts 8mm, 2 flat washers 8mm, and 2 lock washers 8mm. Snug but do not tighten at this time. The LED light installation is optional; if not installing LED lights, proceed directly to frame bracket installation.
Use the following torque specifications unless otherwise noted: M6/1/4" bolt: 3 ft-lbs. M8/5/16" bolt: 7 ft-lbs. M10/3/8" bolt: 16 ft-lbs. M12/7/16" bolt: 28 ft-lbs. 1/2" bolt: 28 ft-lbs. The manual also includes a specific warning: do not over-tighten the 8mm hex bolts attaching the top mounting brackets to the plastic grille and cross member, as this may damage the grille.
Remove all contents from the box and verify all parts are present. Read all instructions carefully before starting installation. Pay close attention to the type and location of all factory hardware (especially when removing the plastic cover between the radiator and grille) for easier reinstallation.
Perform periodic inspections to ensure all hardware is secure and tight. The manual recommends regular inspection of the installation to maintain security of all hardware and components.
Wax the product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs. Clean the product with mild automotive detergent only. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
The P2066 is designed for 2015-on models. Contact ARIES Automotive at 877.287.8634 or visit ariesautomotive.com to confirm fitment for your specific vehicle make and model.
No. The P2066 is not recommended for vehicles with optional active laser guided cruise control systems, as installation may interfere with front sensors.
You need a socket set and wrench. Two wrenches (S=4 and S=5) are included in the kit.
Yes, assistance is recommended during installation.
Cutting may be required. Contact ARIES Automotive at 877.287.8634 for vehicle-specific guidance on whether cutting is needed for your vehicle.
Use these torque values: 8mm bolts (5/16"): 7 ft-lbs. 10mm bolts (3/8"): 16 ft-lbs. Do not over-tighten the 8mm bolts on the top mounting brackets as this may damage the grille.
Wax after installing and regularly thereafter. Use only mild automotive detergent for cleaning. Do not use abrasive cleaners, polishes with abrasives, wire brushes or dish detergent.
