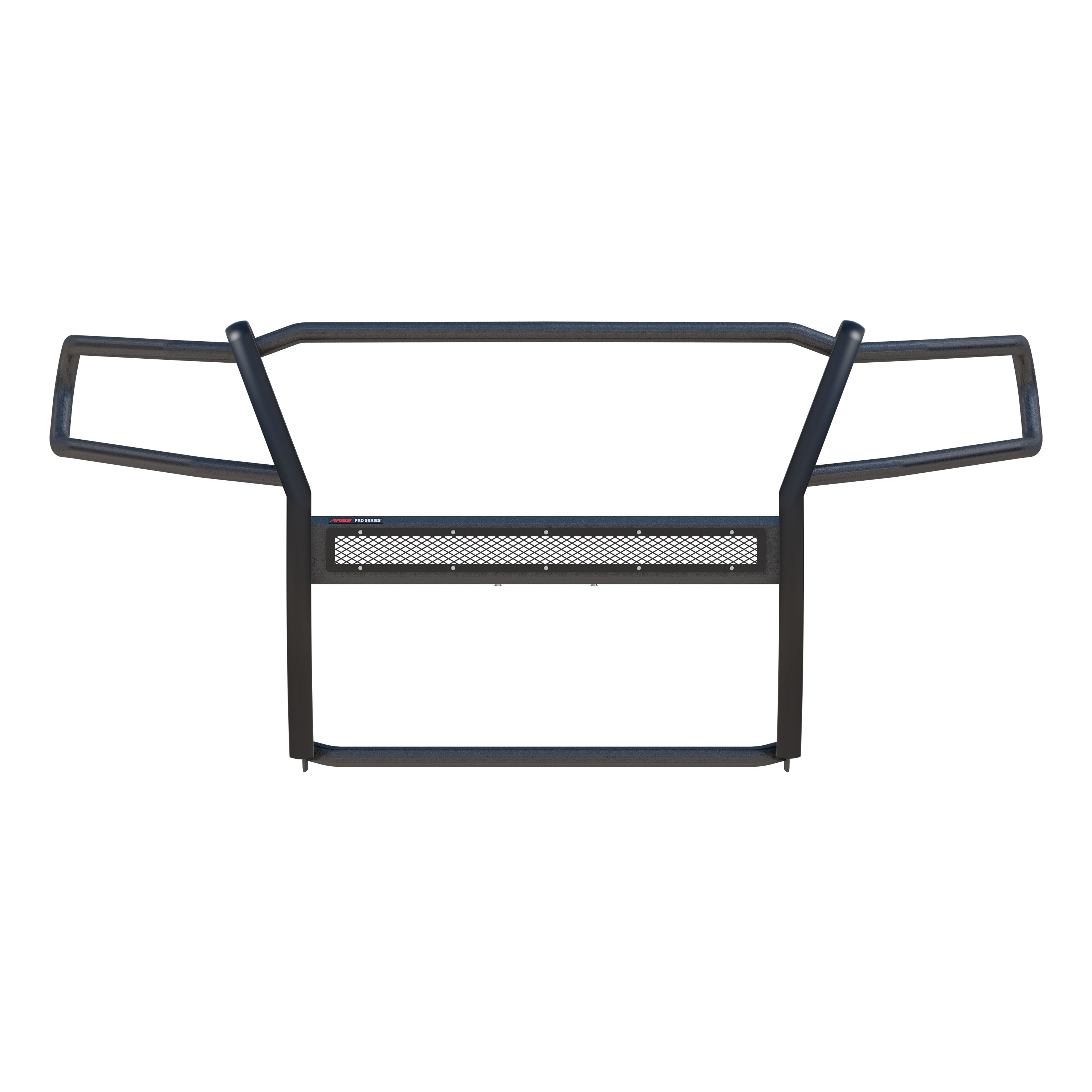

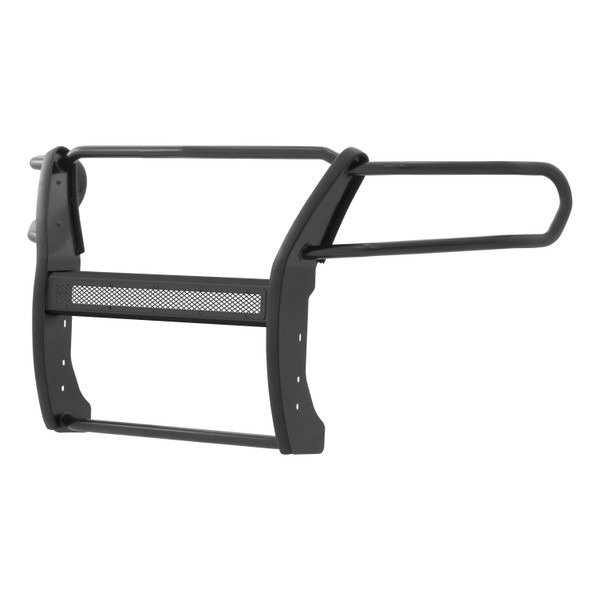

Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black

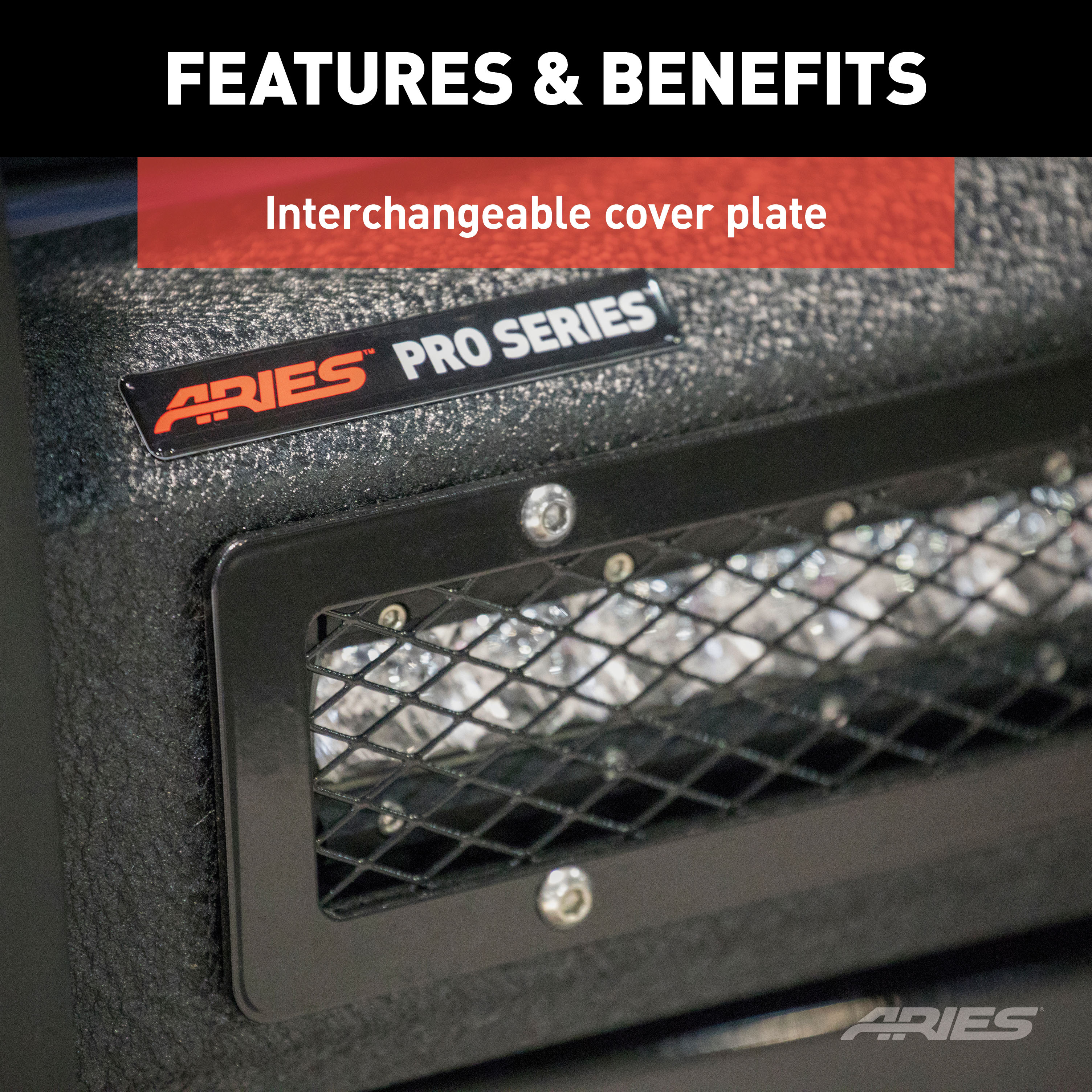

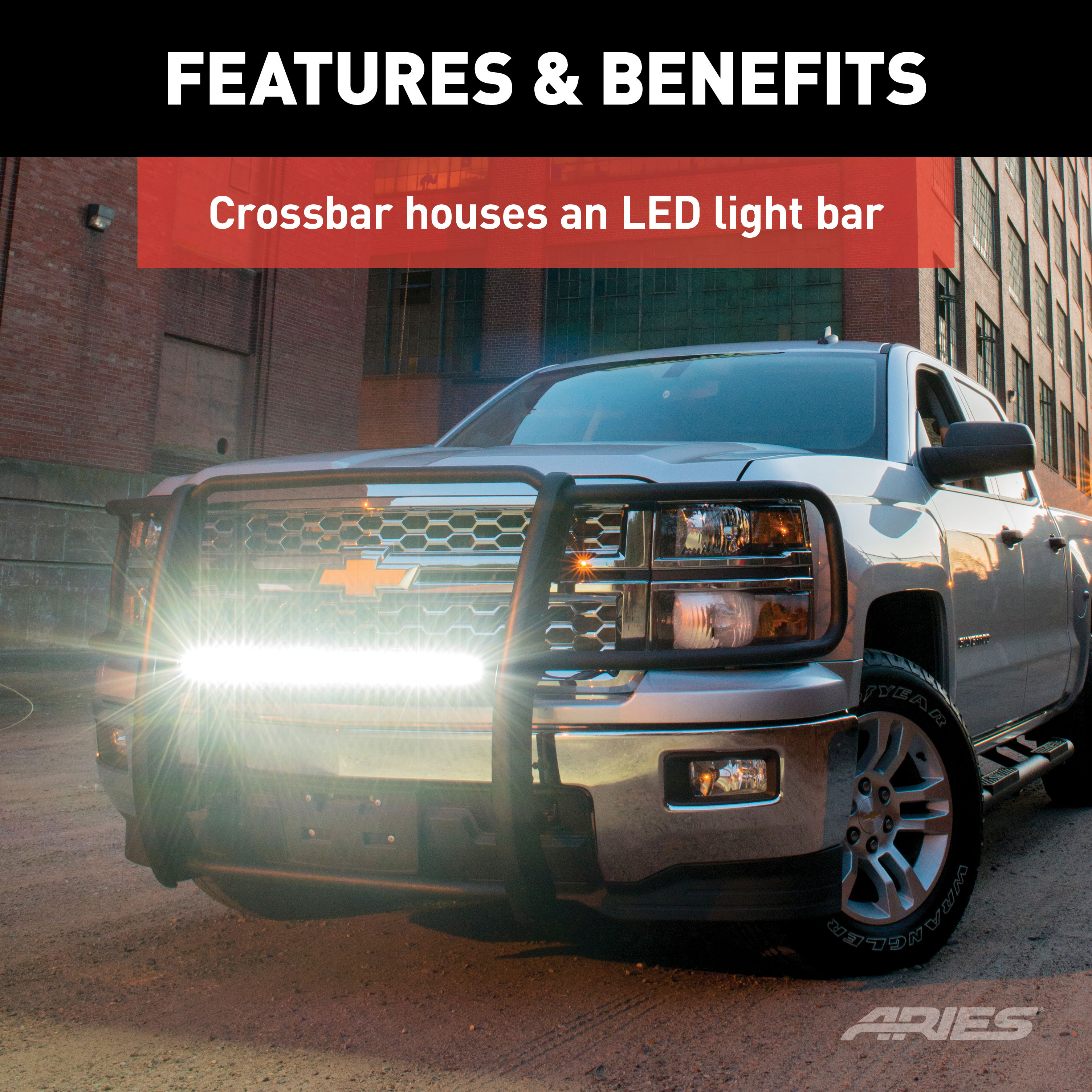

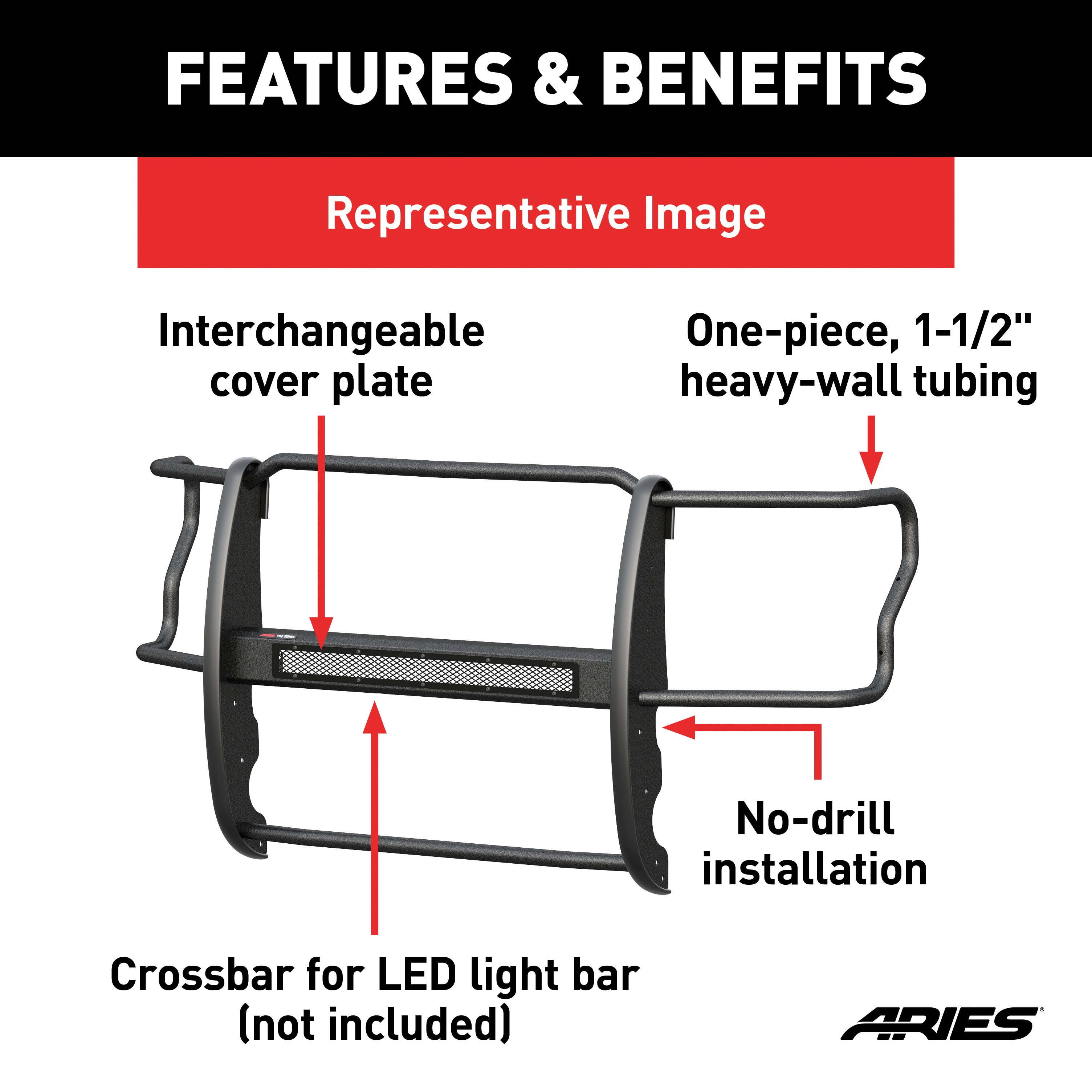

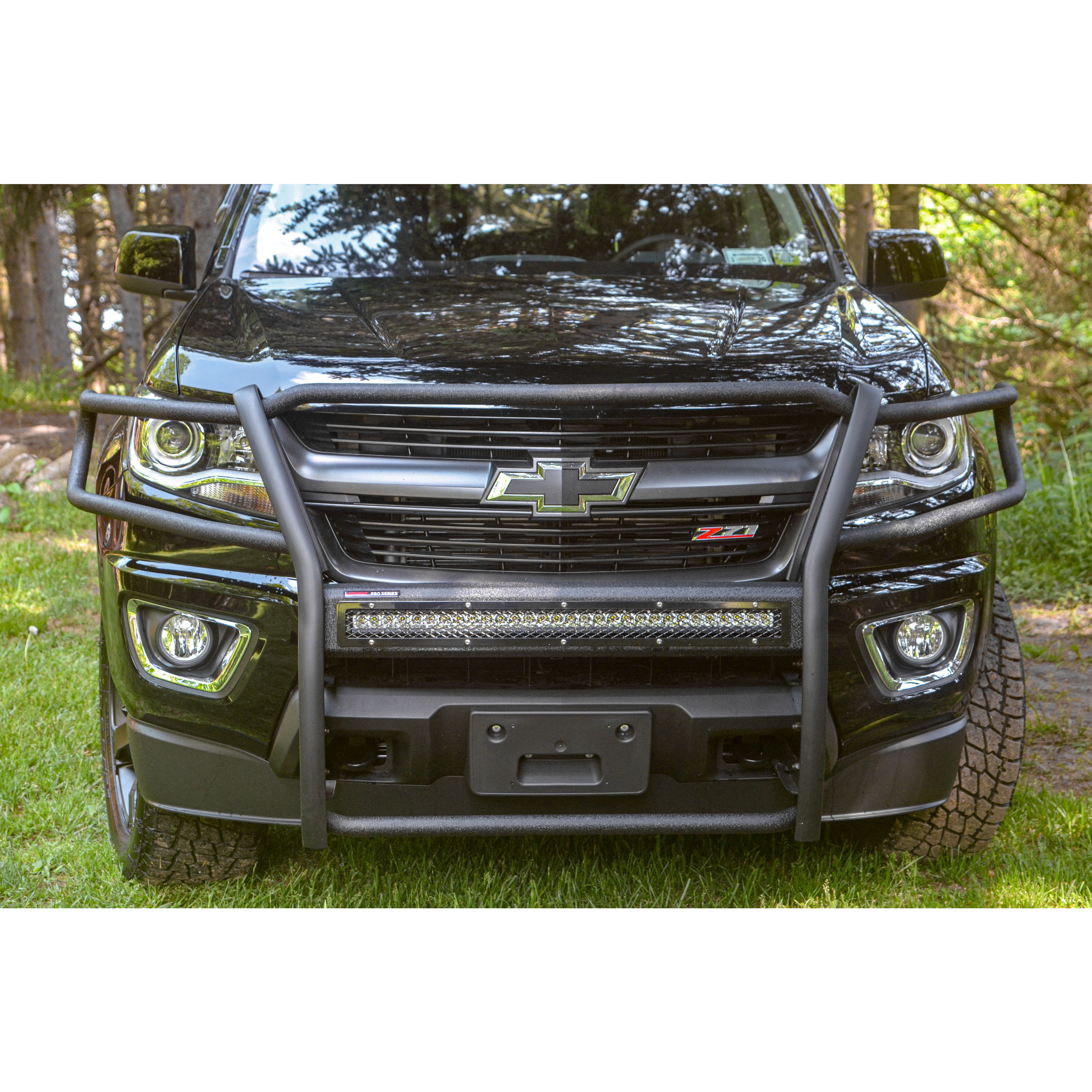

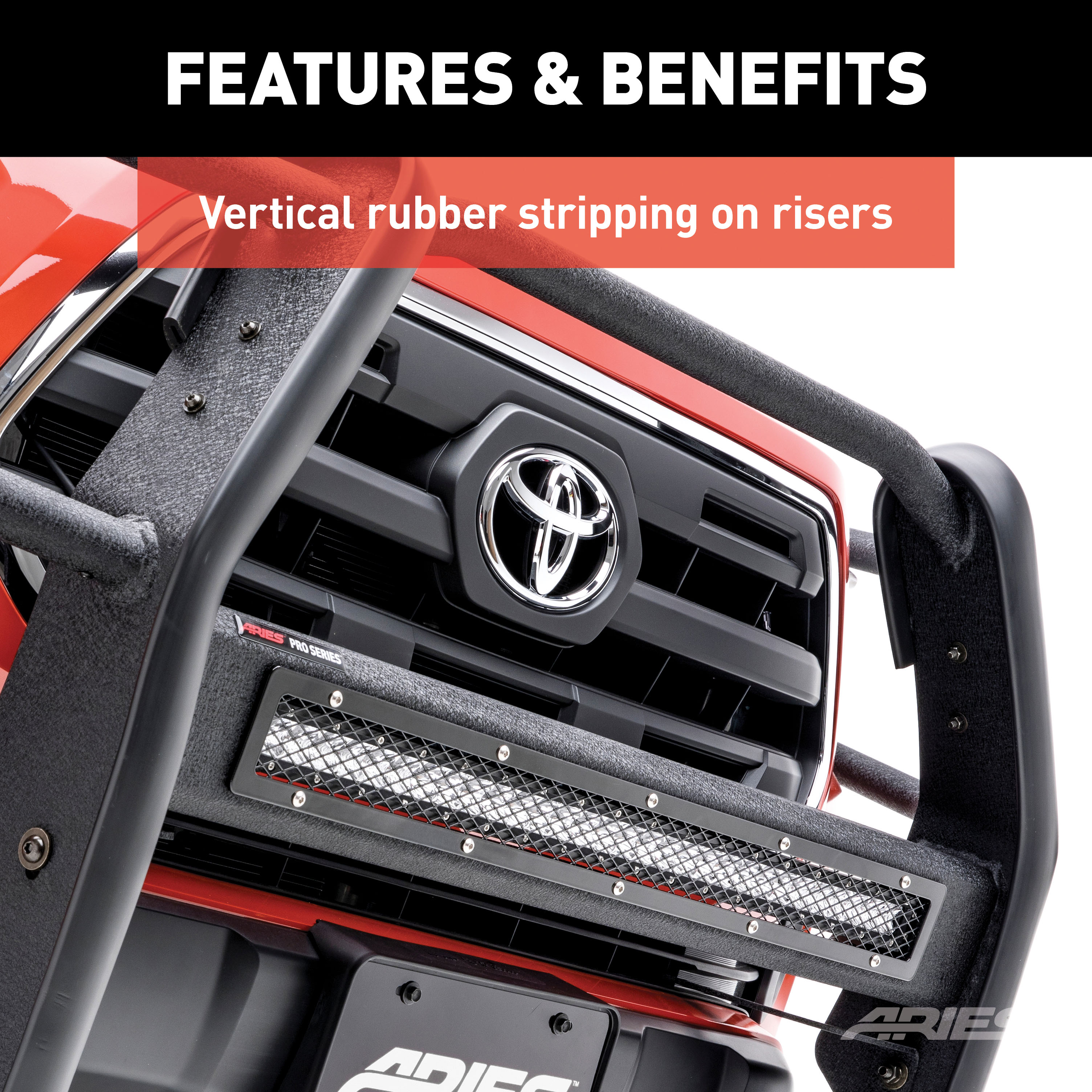

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Chevrolet Colorado and GMC Canyon (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Chevrolet Colorado | — |
| 2015 - 2020 | GMC Canyon | — |
The ARIES P4088 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Colorado, GMC Canyon (Part #BBDRP4088) fits 2015-2022 Chevrolet Colorado models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES P4088 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Colorado, GMC Canyon (Part #BBDRP4088) fits the following vehicles: 2015-2022 Chevrolet Colorado; 2015-2020 GMC Canyon. Always verify your specific year, make, and model before ordering.
Yes, the ARIES P4088 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Colorado, GMC Canyon (Part #BBDRP4088) is designed to fit the 2015-2022 Chevrolet Colorado.
The ARIES P4088 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Colorado, GMC Canyon (Part #BBDRP4088) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

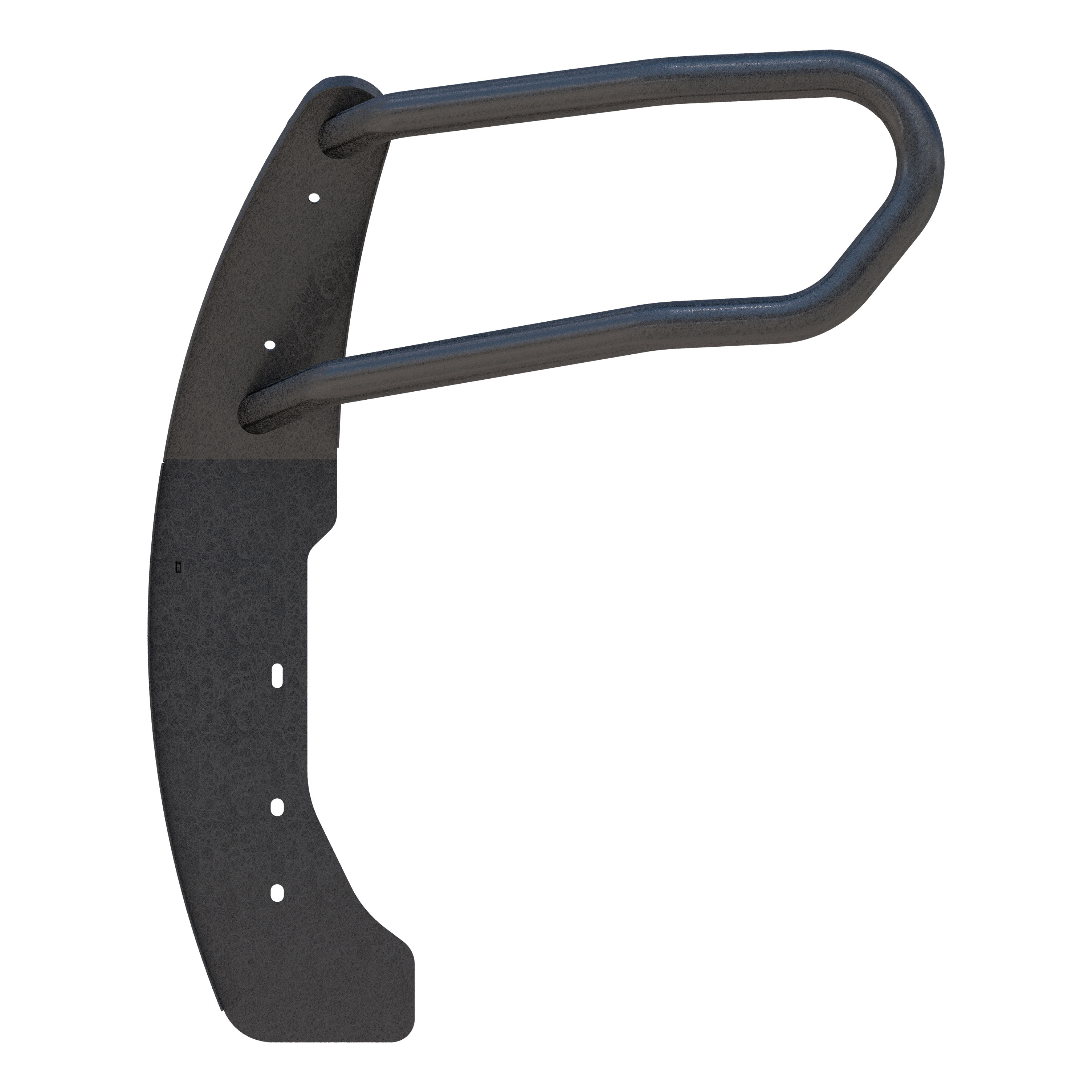

The P4088 kit includes one grille guard, driver and passenger frame mounting brackets, driver and passenger support brackets, one LED support flange, and all fastening hardware: 4× 8mm hex bolts, 6× 8mm flat washers, 2× 8mm lock washers, 2× 8mm clip nuts, 2× 8mm nylock nuts, 4× 10mm hex bolts (30mm and 80mm lengths), 10× 10mm flat washers, 2× 10mm lock washers, 4× 10mm nylock nuts, 2× 12mm double bolt plates, 4× 12mm flat washers, 4× 12mm nylock nuts, and 4 spacers. The LED light and its mounting hardware are sold separately.
No. The LED light and its mounting hardware are sold separately. You will need to select and purchase an LED light compatible with the support flange, as LED manufacturers may have different mounting styles and brackets.
You will need: a ratchet, 17mm socket, 13mm socket, 19mm socket, utility knife, and 6mm Allen wrench. The utility knife is used to cut the air deflector and potentially bumper openings.
Yes. The installation requires removal of the front bumper cover, skid plate, plastic fill panels on both driver and passenger sides, and the front portion of the fender liner. You will also need to unplug any lights attached to the front bumper before removing it.
Yes. You must carefully cut the lower section of the air deflector to allow the support bracket to be installed. Additionally, if your vehicle does not have factory tow hooks, you must cut openings in the front bumper to allow the mounting bracket to fit through.
Yes. The installation process differs depending on whether your vehicle has factory tow hooks. If it does, you will remove the driver-side tow hook and use a double bolt plate to align and secure the mounting bracket through the tow hook mounting locations. The same process is repeated on the passenger side. If your vehicle does not have factory tow hooks, you will use spacers and cut bumper openings instead.
1. Attach your LED light and mounting hardware to the support flange (sold separately). 2. Attach clip nuts and 8mm hex bolts to both ends of the support flange. 3. Place the grille guard face down and insert the support flange into the light bar cage. 4. Remove the vehicle's skid plate, bumper cover hardware, plastic fill panels, and fender liner. 5. Unplug front bumper lights and remove remaining bumper hardware. 6. Remove the top frame bolt and install the support brackets with 10mm x 80mm hex bolts and spacers, cutting the air deflector as needed. 7. Install the lower frame brackets using either the factory tow hook method (Step 8) or the spacer method (Step 9A). 8. Reinstall bumper, fender liner, fill panels, and skid plate. 9. Secure the support brackets and frame brackets to the grille guard using 8mm and 10mm fasteners. 10. Align and tighten all hardware.
First, attach your LED light and its mounting hardware to the LED support flange (sold separately) according to the LED manufacturer's instructions, as different manufacturers may have different mounting styles. Then, place clip nuts on both ends of the support flange and insert 8mm hex bolts with lock washers and flat washers into the clip nuts, leaving enough space between the flat washer and clip nut to slot the support flange into the light bar cage on the grille guard.
The top support brackets are secured using 8mm hex bolts with 8mm flat washers on the outside of the grille guard and 8mm flat washers with 8mm nylock nuts on the inside, for both driver and passenger sides. The lower frame brackets are secured using 10mm hex bolts with 10mm flat washers on the outside and 10mm flat washers with 10mm nylock nuts on the inside for both driver and passenger mounting points.
The lower frame brackets are secured to the vehicle frame using 12mm double bolt plates, 12mm flat washers, and 12mm nylock nuts. If your vehicle has factory tow hooks, the double bolt plate is inserted through the center of the vehicle and the bracket is secured with two 12mm flat washers and two 12mm nylock nuts. If your vehicle does not have factory tow hooks, spacers are placed on the outside of the frame mount location before the bracket is secured with the same 12mm fasteners.
Spacers are used in the lower frame bracket installation for vehicles without factory tow hooks. Two spacers are placed on the outside of the frame mount location before the driver-side mounting bracket is positioned against them. This ensures proper alignment and spacing before the bracket is secured with 12mm fasteners. The same process is repeated on the passenger side.
After removing the top frame bolt from the front bumper, insert a 10mm x 80mm hex bolt through the mounting tab of the support bracket. Slide a tube spacer over the bolt thread. Carefully cut the lower section of the air deflector to allow the support bracket to fit. Install the passenger-side support bracket first, then repeat the process for the driver side.
Periodic inspections should be performed to ensure all mounting hardware remains tight. For black finishes, mild soap may be used to clean the product. Regular hardware checks will help protect your investment and ensure the grille guard remains securely mounted.
The manual specifies that periodic inspections should be performed to ensure all mounting hardware remains tight, but does not define a specific interval. It is recommended to check hardware after the initial installation and then at regular intervals during vehicle use.
For black finishes, mild soap may be used to clean the product. Do not use harsh chemicals or abrasive cleaners.
The manual does not specify which vehicle models are compatible with the P4088. Contact ARIES Automotive at 877.287.8634 or visit ARIESAUTOMOTIVE.COM to confirm fitment for your specific vehicle.
No, the LED light and mounting hardware are sold separately. You will need to purchase an LED light compatible with the support flange.
You will need a ratchet, 17mm, 13mm, and 19mm sockets, a utility knife, and a 6mm Allen wrench.
Yes, the front bumper cover, skid plate, fender liner, and plastic fill panels must be removed.
Yes. The installation uses the factory tow hook mounting locations. You will remove the tow hook and use a double bolt plate to secure the mounting bracket.
Perform periodic inspections to ensure all mounting hardware remains tight. For black finishes, clean with mild soap only.
