Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Carbon Steel

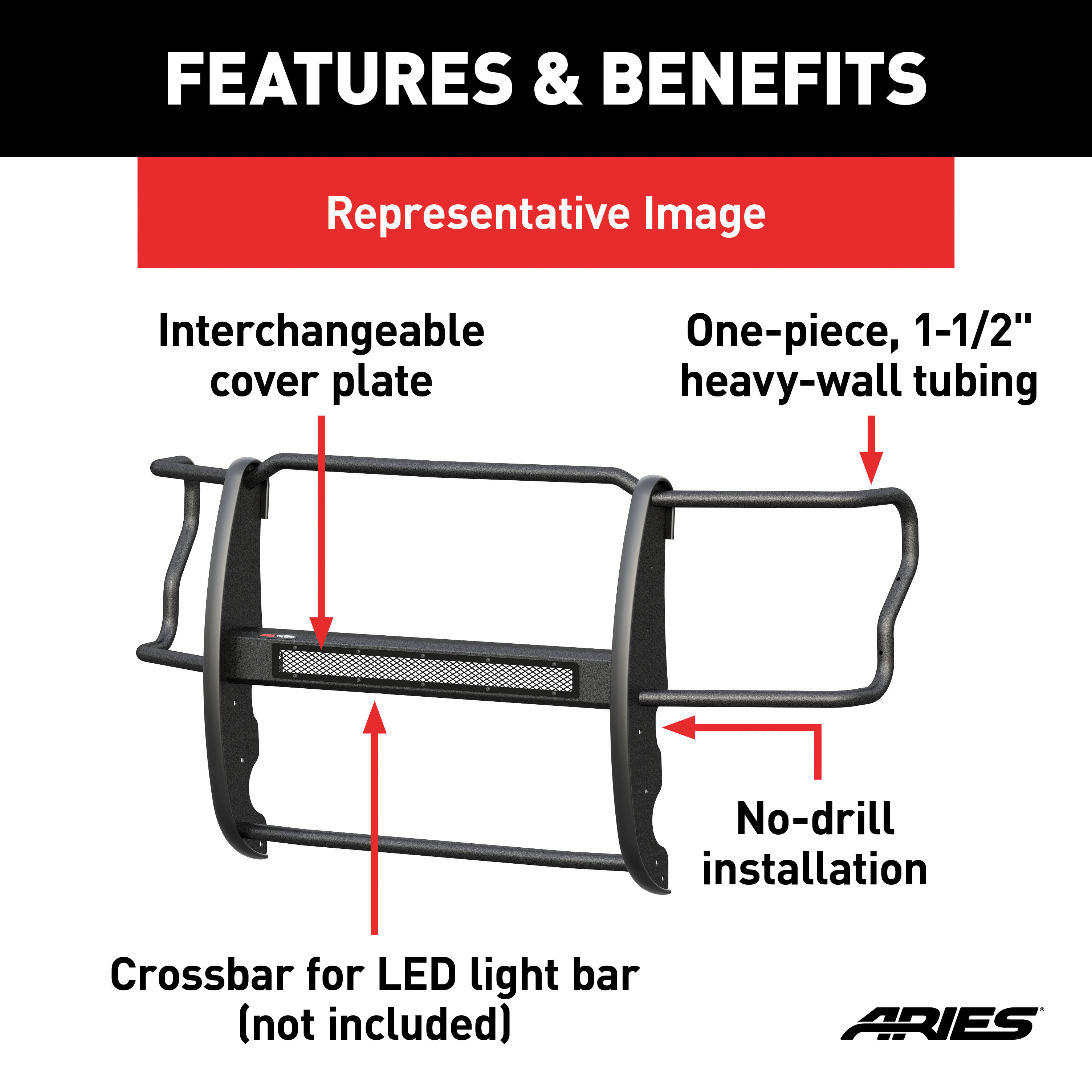

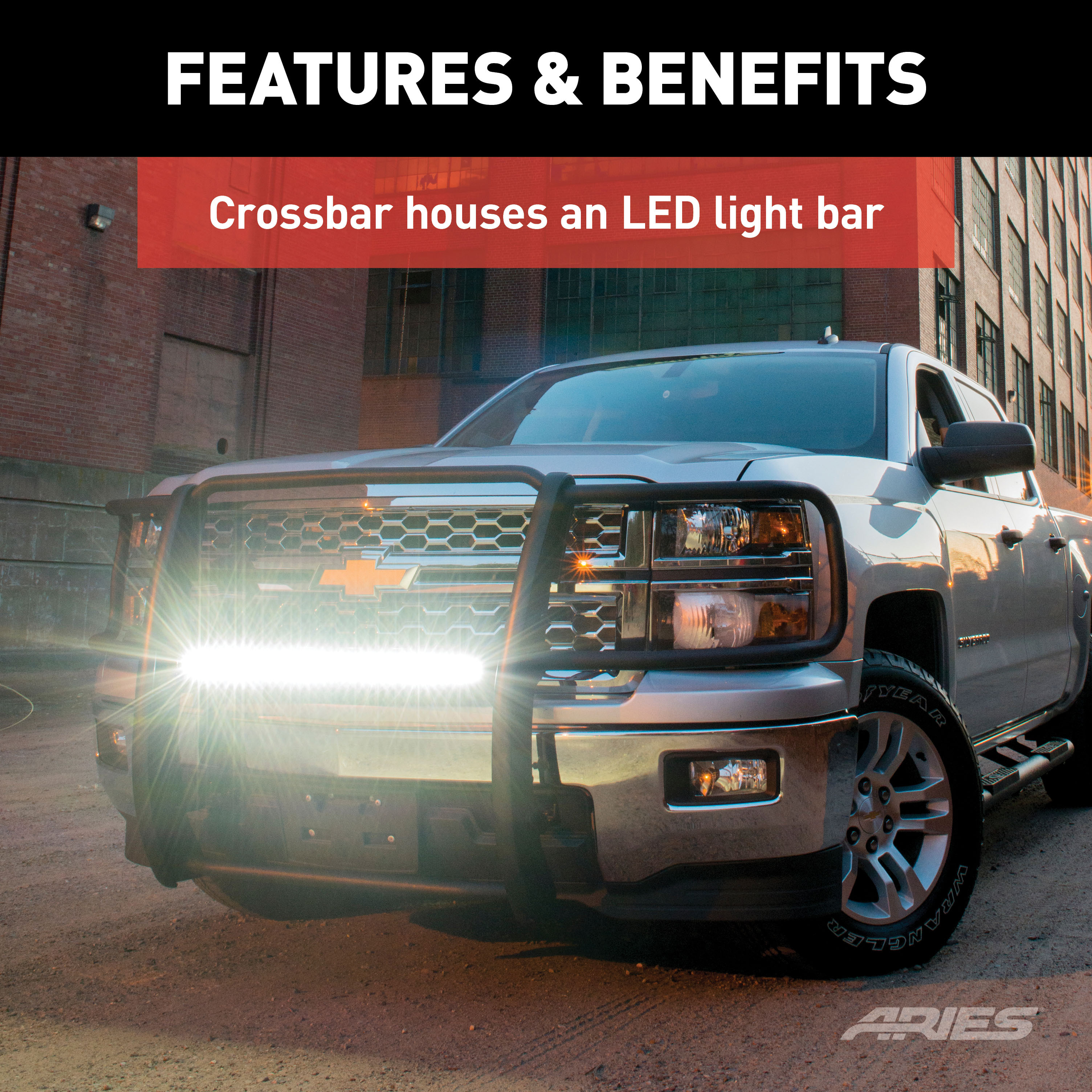

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Chevrolet Silverado 1500 (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2021 | Chevrolet Silverado 1500 | — |
| 2022 | Chevrolet Silverado 1500 LTD | — |
Yes, the ARIES Pro Series Black Steel Grille Guard, Select Chevrolet Silverado 1500 Grille Guard (Part #BBDRP4092) is designed to fit the 2019-2021 Chevrolet Silverado 1500.
The ARIES Pro Series Black Steel Grille Guard, Select Chevrolet Silverado 1500 Grille Guard (Part #BBDRP4092) fits the following vehicles: 2019-2021 Chevrolet Silverado 1500; 2022 Chevrolet Silverado 1500 LTD. Always verify your specific year, make, and model before ordering.
The ARIES Pro Series Black Steel Grille Guard, Select Chevrolet Silverado 1500 Grille Guard (Part #BBDRP4092) fits 2019-2021 Chevrolet Silverado 1500 models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES Pro Series Black Steel Grille Guard, Select Chevrolet Silverado 1500 Grille Guard (Part #BBDRP4092) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P4092 kit includes: 1 grille guard, 2 frame mounting brackets, 1 driver/left and 1 passenger/right mounting bracket, 1 driver/left and 1 passenger/right top bracket, 2 double bolt plates (12-1.75mm x 30mm), 2 single bolt plates (12-1.75mm x 35mm), 6 flat washers (12mm x 24mm OD x 2.5mm), 6 lock washers (12mm), 6 hex nuts (12-1.75mm), 6 hex bolts (10-1.50mm x 30mm), 12 flat washers (10mm x 27mm OD x 3mm), 6 lock washers (10mm), 6 hex nuts (10-1.50mm), 6 hex bolts (8-1.25mm x 30mm), 8 flat washers (8mm x 24mm OD x 2mm), 8 lock washers (8mm), 2 hex bolts (8mm x 20mm), and 2 adhesive-backed foam tape strips.
The P4092 can be installed on vehicles with factory tow hooks, but the tow hooks must be removed first and cannot be reinstalled once the grille guard is in place. The manual states: 'Tow hooks cannot be reinstalled with the Grille Guard.' You will need to remove the factory tow hooks and their hardware before proceeding with installation.
Yes. On vehicles without tow hooks, you must cut out the indented area in both sides of the plastic bumper insert to clear the brackets. The manual recommends making several small cuts for best fit and warns: 'Do not cut through the top or bottom edge of the panel.' The frame bracket assembly will then be inserted through the opening created by these cuts.
The manual states: 'Installation may interfere with front mounted sensors.' If your vehicle has front-mounted sensors, you should verify compatibility before installation. The manual notes that a parking sensor relocation kit is available separately (shown in Figure 18), suggesting that sensor relocation may be necessary on some vehicles.
The required tools are: ratchet, socket set, utility knife, and torque wrench. The manual notes that 'Proper tools will improve the quality of installation and reduce the time required.'
Yes, assistance is highly recommended. The manual states at the beginning: 'Assistance is highly recommended.' Additionally, Step 13 specifically notes: 'With assistance, hold the Grille Guard up in position on the outside of the Mounting Brackets' when attaching the grille guard to the brackets.
The manual does not mention disconnecting the battery. However, since the installation may interfere with front-mounted sensors, you should consult your vehicle's service manual or contact the manufacturer if you have concerns about electrical systems.
Yes, cutting may be required. The manual states: 'Cutting may be required.' On vehicles without factory tow hooks, you must cut out the indented area in both sides of the plastic bumper insert. The manual recommends making several small cuts for best fit and warns not to cut through the top or bottom edge of the panel. Additionally, the frame bracket opening may need to be trimmed to clear the bracket assembly.
The installation sequence is: (1) Remove factory tow hooks if equipped, or cut bumper insert on vehicles without tow hooks; (2) Assemble driver-side frame bracket with mounting bracket using 8mm bolts (do not tighten); (3) Insert frame bracket assembly through bumper opening and secure to frame using 12mm double and single bolt plates (snug but do not fully tighten); (4) Repeat for passenger side; (5) Remove grille and top cover; (6) Install top brackets with adhesive foam tape and reuse factory bolts (do not tighten); (7) With assistance, attach grille guard to mounting brackets using 10mm bolts (do not tighten); (8) Check alignment and fully tighten bracket-to-vehicle hardware only; (9) Reinstall grille and top cover; (10) Fully tighten all remaining hardware.
The manual requires a staged tightening process to allow for alignment adjustment. Hardware is snugged (partially tightened) during assembly, then fully tightened only after the grille guard alignment is checked and adjusted. Step 14 states: 'Check the Grille guard alignment with the vehicle. Adjust as required then fully tighten the Bracket to vehicle hardware only. Do not fully tighten the Grille Guard to Bracket hardware at this time.' Final tightening of all hardware occurs after the grille and top cover are reinstalled.
Yes. Step 8 requires you to open the hood and remove the cover between the top of the radiator and the grille. Step 9 requires removing the grille itself, which is held in place with screws at the top and several clips. The manual notes: 'Remove the screws and firmly pull the grille straight out from the vehicle to release the grille from clips.' The grille is reinstalled after the top brackets are attached.
The adhesive-backed foam tape is applied to the underside of the top brackets before they are attached to the bumper. Step 10 states: 'Apply a layer of the included Adhesive Backed Foam Tape to the bottom of the Bracket.' This creates a protective layer between the bracket and the bumper. Any remaining tape can be applied to the top of the bracket.
Yes. Step 11 specifically instructs you to reuse the factory outer hex bolt that attaches the top of the bumper to the inner bumper bracket. The manual states: 'Remove the outer hex bolt... Reuse the factory outer hex bolt to attach the Top Bracket to the back of the bumper.' This bolt should not be fully tightened until final assembly.
The manual provides these torque specifications: M6 bolt = 3 ft-lbs, M8 bolt = 7 ft-lbs, M10 bolt = 16 ft-lbs, M12 bolt = 28 ft-lbs. The manual states: 'Use above torque setting unless otherwise noted.' The P4092 uses 8mm, 10mm, and 12mm bolts, so apply 7 ft-lbs for 8mm bolts, 16 ft-lbs for 10mm bolts, and 28 ft-lbs for 12mm bolts unless the manual specifies otherwise for a particular step.
Three 8mm x 30mm hex bolts are used, along with 3 flat washers (8mm x 24mm OD x 2mm), 3 lock washers (8mm), and 3 hex nuts (8-1.25mm). These bolts attach the mounting bracket to the bottom of the frame bracket and should be torqued to 7 ft-lbs (M8 specification) but are not fully tightened until final assembly.
Six 10mm x 30mm hex bolts are used, along with 12 flat washers (10mm x 27mm OD x 3mm), 6 lock washers (10mm), and 6 hex nuts (10-1.50mm). These bolts should be torqued to 16 ft-lbs (M10 specification) but are not fully tightened until after alignment is checked and the grille is reinstalled.
Two types of bolt plates are used: (1) Double bolt plate (12-1.75mm x 30mm) secured with 2 flat washers (12mm x 24mm OD x 2.5mm), 2 lock washers (12mm), and 2 hex nuts (12-1.75mm); (2) Single bolt plate (12-1.75mm x 35mm) secured with 1 flat washer (12mm x 24mm OD x 2.5mm), 1 lock washer (12mm), and 1 hex nut (12-1.75mm). These should be torqued to 28 ft-lbs (M12 specification) but are snugged (not fully tightened) during initial assembly.
The manual recommends: (1) Wax the product after installing to protect it; (2) Regular waxing is recommended to add a protective layer; (3) Do not use any polish or wax containing abrasives that could damage the finish; (4) For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs; (5) Mild automotive detergent may be used to clean the product; (6) Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or similar products that may damage the finish. For stainless steel finishes, aluminum polish may be used. For gloss black finishes, mild soap may be used to clean.
Step 14 requires checking the grille guard alignment with the vehicle and adjusting as required before fully tightening bracket-to-vehicle hardware. Step 16 states: 'Do periodic inspections to the installation to make sure that all hardware is secure and tight.' This means you should regularly inspect the installation after completion to verify that all bolts and fasteners remain tight.
LED light installation is optional and sold separately. The manual includes instructions for installing an LED light if you choose to purchase one. The LED light mounting hardware and brackets vary by manufacturer, so you will need to follow the LED manufacturer's instructions for attaching the light to the support flange. The support flange is then attached to the center flange of the grille guard using 2 8mm hex bolts, 2 flat washers, and 2 lock washers.
The P4092 can be installed on vehicles with tow hooks, but the tow hooks must be removed and cannot be reinstalled. On vehicles without tow hooks, you must cut the bumper insert to clear the brackets.
You need a ratchet, socket set, utility knife, and torque wrench. Assistance is highly recommended.
Yes, cutting may be required. On vehicles without tow hooks, you must cut out the indented area in the plastic bumper insert. Make several small cuts for best fit and do not cut through the top or bottom edge of the panel.
10mm bolts (M10) should be torqued to 16 ft-lbs. This applies to the 6 bolts that attach the grille guard to the mounting brackets.
12mm bolts (M12) should be torqued to 28 ft-lbs. This applies to the bolts that secure the frame bracket to the double and single bolt plates.
The manual states that installation may interfere with front-mounted sensors. A parking sensor relocation kit is available separately if needed.
Yes. You must remove the grille and top cover to access the top bracket mounting locations. The grille is reinstalled after the top brackets are attached.
Wax the product after installing and regularly thereafter. Do not use abrasive polish, wax, cleaners, pads or wire brushes. Use mild automotive detergent to clean. For stainless steel, aluminum polish may be used; for gloss black, use mild soap.
The manual states: 'Trim the opening to clear the Bracket assembly as necessary.' Use the utility knife to carefully enlarge the opening in the bumper insert. The manual recommends making several small cuts for best fit rather than one large cut. Do not cut through the top or bottom edge of the bumper panel.
Step 14 instructs: 'Check the Grille guard alignment with the vehicle. Adjust as required then fully tighten the Bracket to vehicle hardware only.' Before fully tightening any hardware, loosen the 10mm bolts connecting the grille guard to the mounting brackets and adjust the position. Once alignment is correct, fully tighten the bracket-to-vehicle hardware (the 12mm bolts to the frame). Then reinstall the grille and top cover, and fully tighten the remaining hardware.
For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs on the finish. For stainless steel finishes, aluminum polish may be used. However, the manual warns: 'Do not use any type of polish or wax that may contain abrasives that could damage the finish.' Use only non-abrasive products. If damage is severe, contact the manufacturer.
