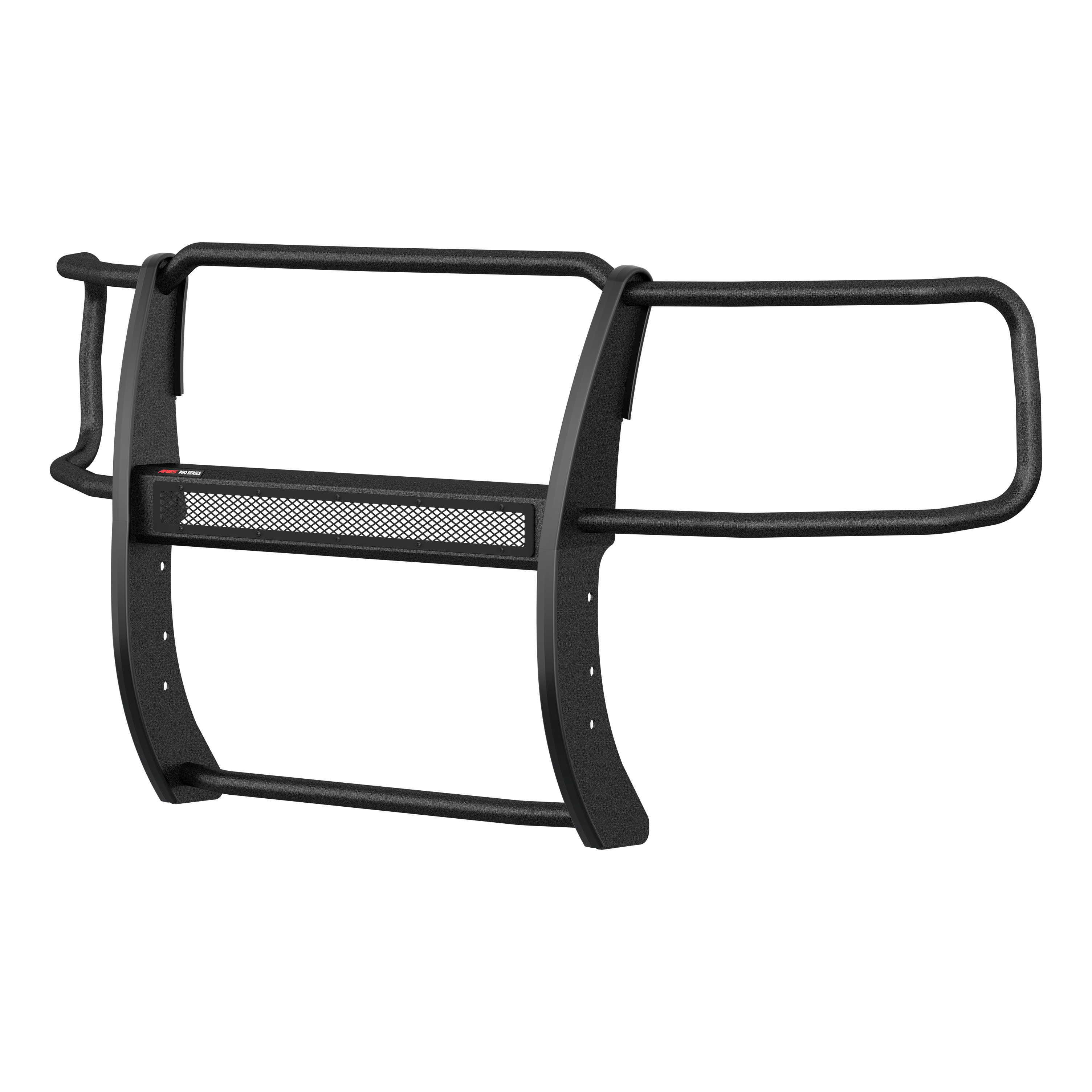

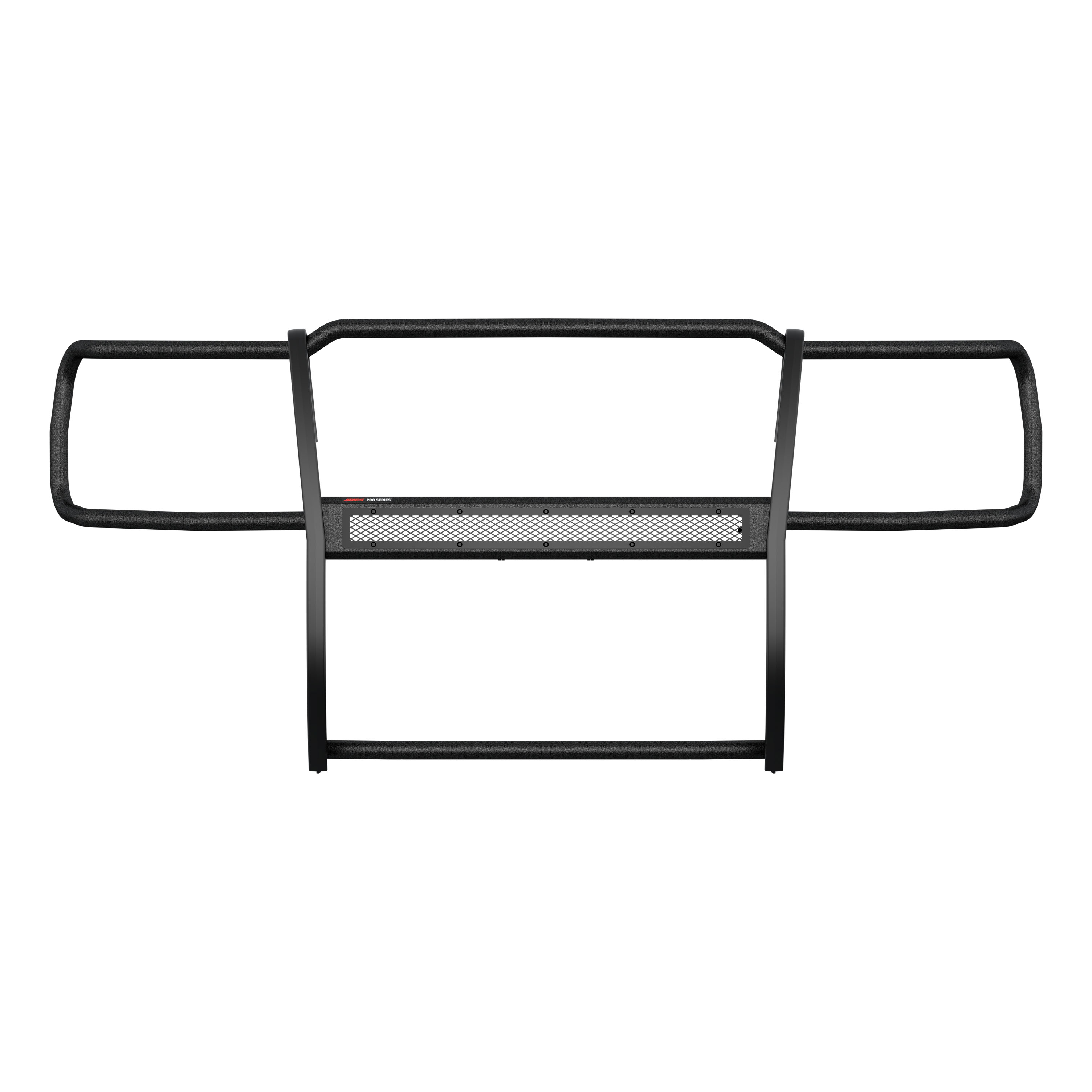

Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Carbon Steel

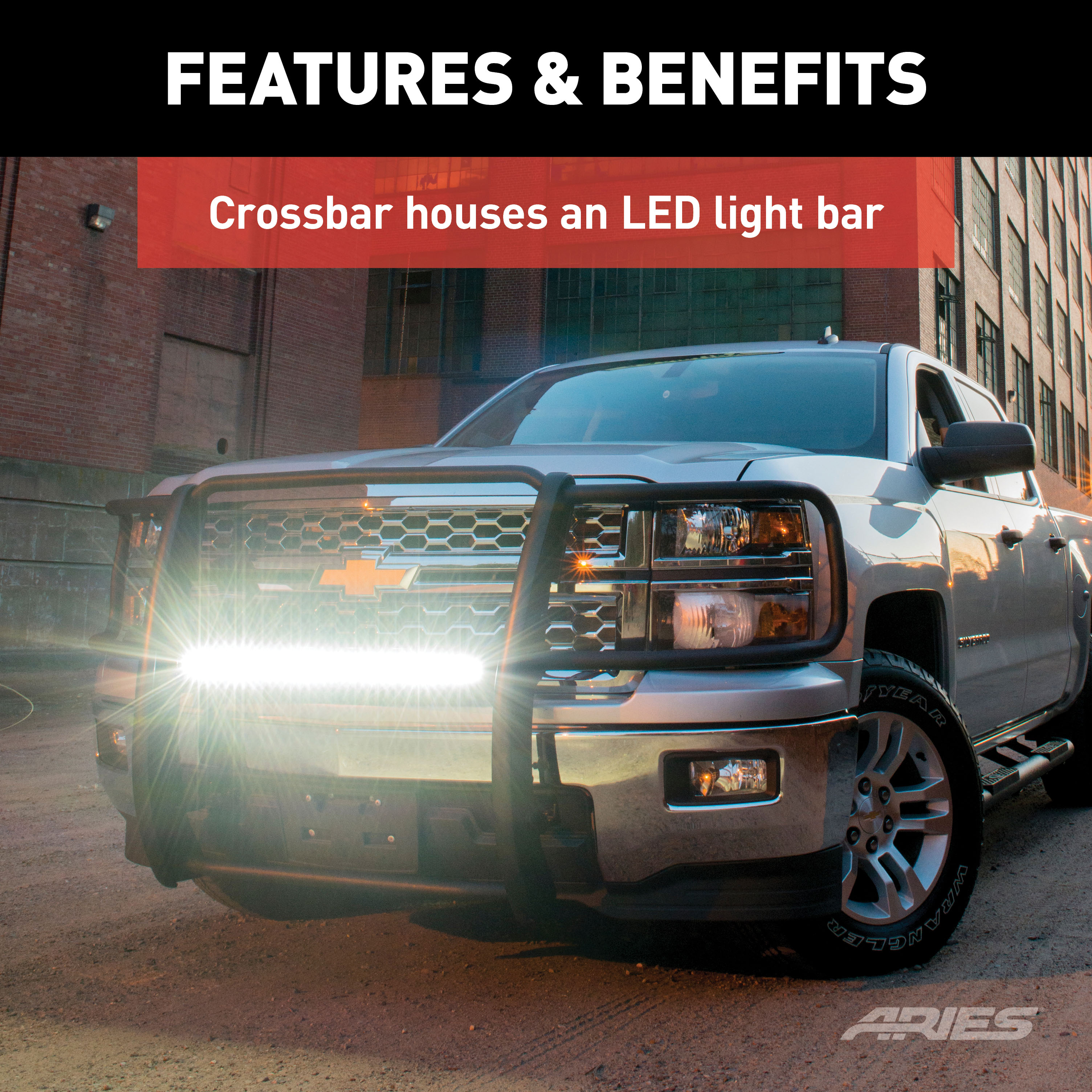

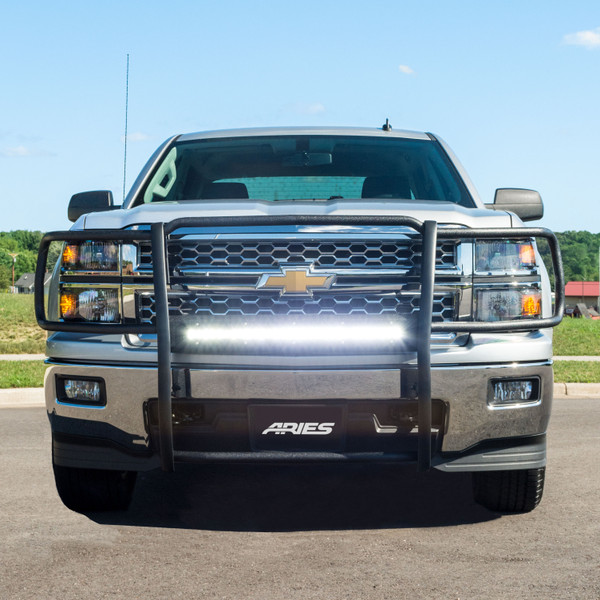

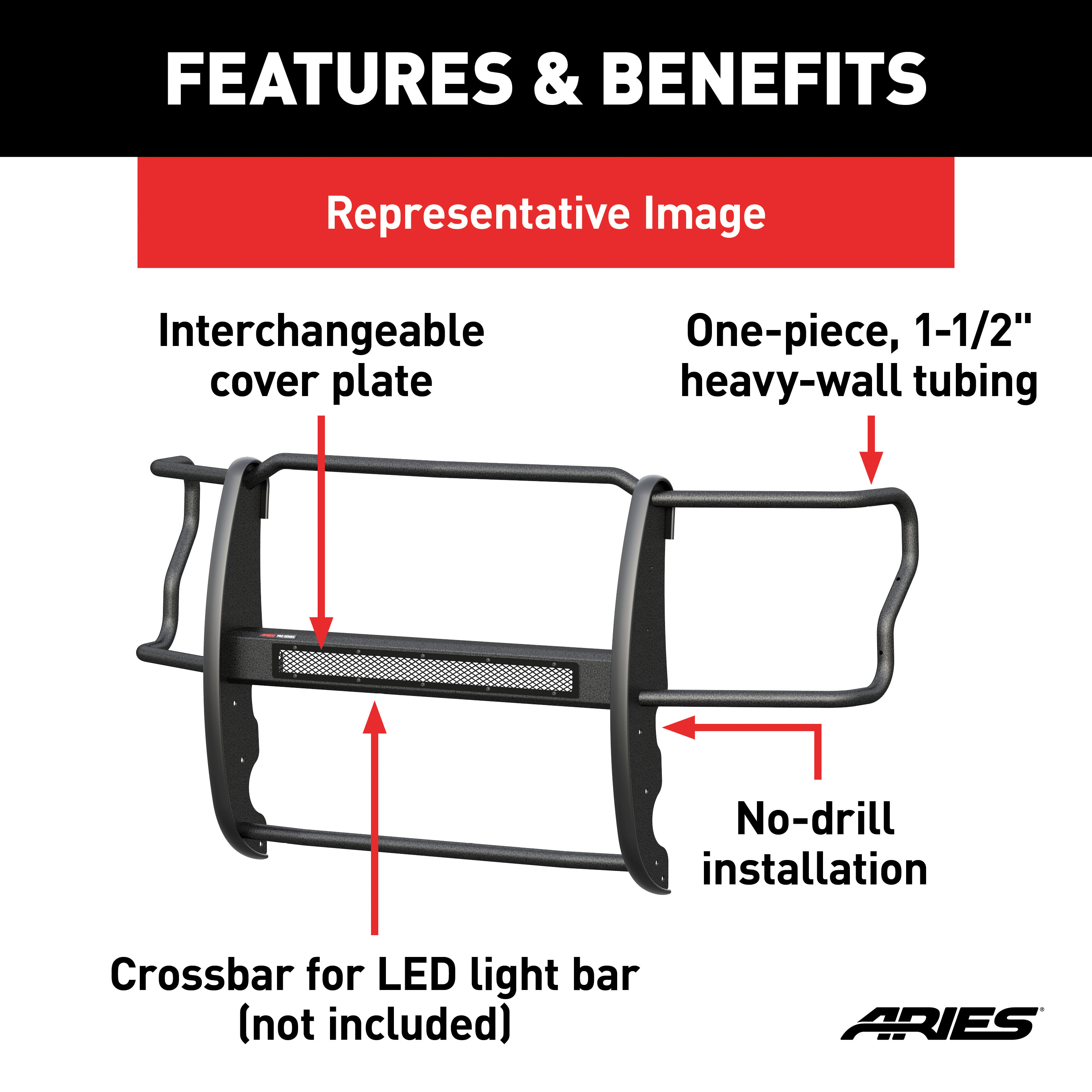

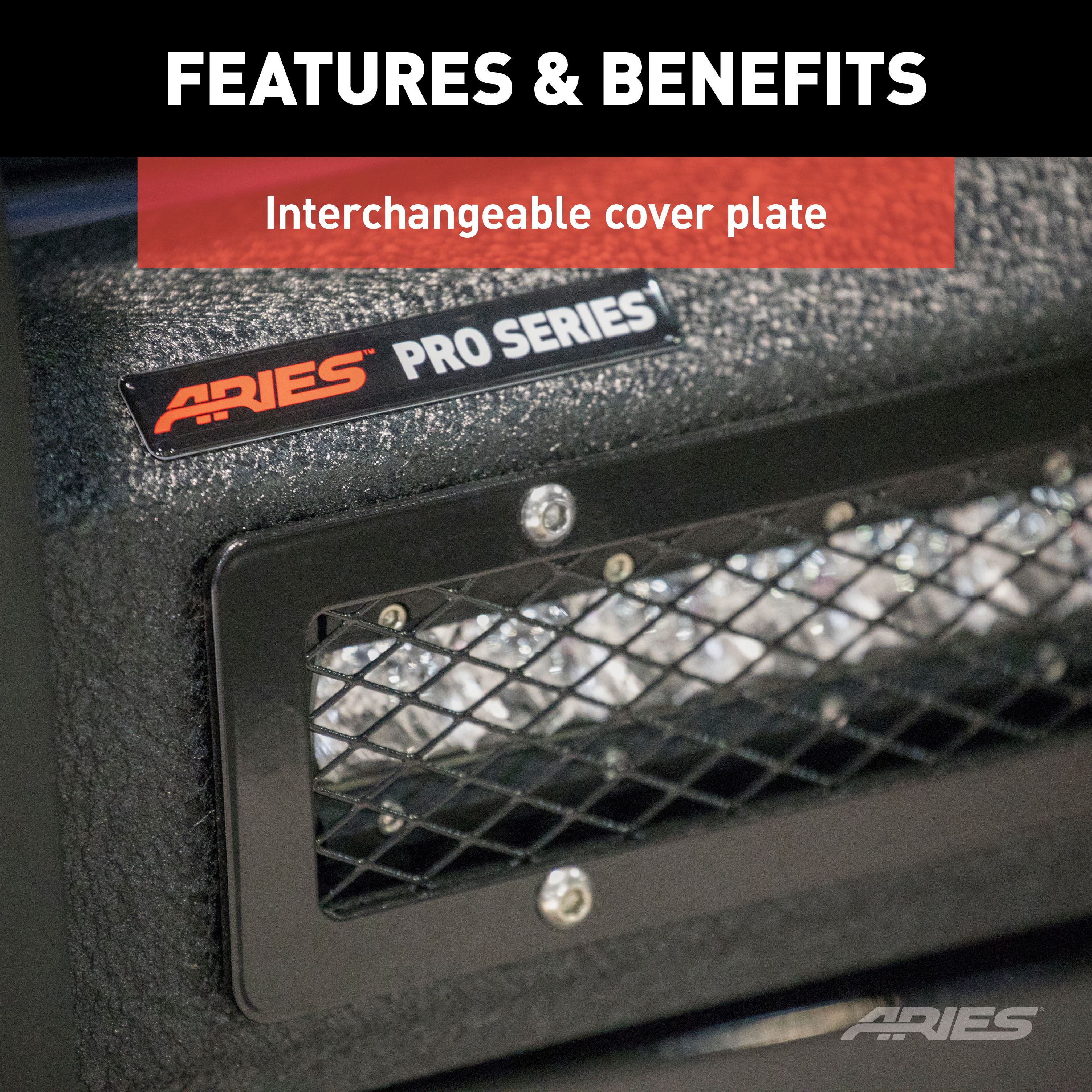

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart fro m all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Chevrolet Silverado 1500 and 1500 LD (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2018 | Chevrolet Silverado 1500 | — |
| 2019 | Chevrolet Silverado 1500 LD | — |
Yes, the ARIES P4091 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Silverado 1500 (Part #BBDRP4091) is designed to fit the 2014-2018 Chevrolet Silverado 1500.
The ARIES P4091 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Silverado 1500 (Part #BBDRP4091) fits 2014-2018 Chevrolet Silverado 1500 models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES P4091 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Silverado 1500 (Part #BBDRP4091) fits the following vehicles: 2014-2018 Chevrolet Silverado 1500; 2019 Chevrolet Silverado 1500 LD. Always verify your specific year, make, and model before ordering.
The ARIES P4091 Pro Series Black Steel Grille Guard, No-Drill, Select Chevrolet Silverado 1500 (Part #BBDRP4091) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P4091 is designed for 2014–2017 model years. The installation manual specifies different top brackets for 2014–2015 models versus 2016–2017 models, so you must select the correct bracket set for your year. Confirm your exact model year before purchasing. The manual does not list specific vehicle makes or models, so contact ARIES Automotive at 877.287.8634 or visit ARIESAUTOMOTIVE.COM to verify fitment for your vehicle.
Yes, but the factory tow hooks must be removed and cannot be reinstalled once the grille guard is installed. You do not need to remove the bumper; loosen the tow hook hardware enough to rotate the bumper and remove the long hex bolts. If your vehicle does not have factory tow hooks, you must cut out the indented area on both sides of the plastic bumper insert to clear the brackets. Make several small cuts for the best fit and do not cut through the top edge of the panel.
You will need: ratchet, 19 mm wrench, 10 mm socket, 13 mm socket, 17 mm socket, 19 mm socket, and 6 mm Allen wrench. These tools are required to remove the factory grille and install all mounting hardware.
The kit includes: 1 grille guard assembly, 2 frame brackets (driver/left and passenger/right), 2 driver/left top brackets (one set for 2014–2015, one for 2016–2017), 2 passenger/right top brackets (one set for 2014–2015, one for 2016–2017), 2 clip nuts (M8), 6 hex bolts M8 × 30 mm, 6 flat washers M8, 6 lock washers M8, 6 hex bolts M10 × 30 mm, 12 flat washers M10, 6 lock washers M10, 6 hex nuts M10, 2 double bolt plates M12 × 30 mm, 2 single bolt plates M12 × 35 mm, 6 flat washers M12, 6 lock washers M12, and 6 hex nuts M12. You must reuse your vehicle's factory bumper bolt hardware to secure the top brackets.
Yes. The manual states that you must select an LED light and mounting hardware sold separately. The LED manufacturer may have different mounting styles or brackets; once you determine the mounting option, attach it to the support flange as shown in Step 1 of the installation instructions.
No. The manual states it is not necessary to remove the bumper. However, you must remove the factory grille, the radiator cover, and (if equipped) the factory tow hooks. If your vehicle has tow hooks, you only need to loosen the hardware enough to rotate the bumper and remove the long hex bolts.
At least two people are recommended. Step 12 explicitly states 'With assistance, hold the grille guard up in position on the outside of the mounting brackets,' indicating that a second person is needed to support the grille guard during installation.
No drilling is required. However, if your vehicle does not have factory tow hooks, you must cut out the indented area on both sides of the plastic bumper insert to clear the brackets. The manual recommends making several small cuts for the best fit and warns not to cut through the top edge of the panel.
Cut out the indented area on both sides of the plastic bumper insert to clear the brackets. Make several small cuts for the best fit. Do not cut through the top edge of the panel. This modification is permanent and required only if your vehicle does not have factory tow hooks.
M8 bolts must be torqued to 7 ft.-lbs. This applies to the M8 hex bolts used to secure the mounting bracket to the frame bracket in Step 10.
M10 bolts must be torqued to 16 ft.-lbs. This applies to the M10 hex bolts used to secure the grille guard to the mounting brackets in Step 12.
M12 bolts must be torqued to 28 ft.-lbs. This applies to the M12 double bolt plates and single bolt plates used to secure the frame brackets to the vehicle frame in Steps 8 and 9.
Leave all hardware snug but not fully tightened until the final assembly step. Steps 8, 9, and 10 explicitly state 'Snug the hardware, but do not fully tighten.' Only after checking alignment and adjusting the grille guard in Step 13 should you fully tighten all hardware.
In Step 6, select the top bracket based on your vehicle's model year. Use the 2014–2015 driver/left and passenger/right top brackets if your vehicle is a 2014 or 2015 model. Use the 2016–2017 driver/left and passenger/right top brackets if your vehicle is a 2016 or 2017 model. The parts list includes all four bracket options; use only the pair that matches your year.
Step 6 instructs you to cover the top of the bumper with masking tape to prevent the top brackets from damaging the finish on the vehicle during installation. This is a protective measure to avoid scratches or scuffs.
Follow these steps in order: (1) Prepare the LED light and attach it to the support flange (Step 1–3); (2) Remove the radiator cover and factory grille (Steps 4–5); (3) Install the top brackets using factory bumper bolt hardware (Step 6); (4) Remove factory tow hooks or cut the bumper insert as required (Step 7); (5) Install the driver-side frame bracket and mounting bracket (Steps 8–10); (6) Repeat for the passenger side (Step 11); (7) Install the grille guard to the mounting brackets (Step 12); (8) Check alignment and fully tighten all hardware (Step 13); (9) Reinstall the grille and radiator cover (Step 13).
Use only mild automotive detergent to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes, or similar products that may damage the finish. For polished, gloss, and other smooth finishes, polish may be used to clear small scratches and scuffs. Do not use any type of polish or wax that contains abrasives.
Wax the product after installing to protect it. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish. Perform periodic inspections to ensure all mounting hardware remains tight. Use only mild automotive detergent to clean the product.
After installation, check the grille guard alignment with the vehicle and adjust as required before fully tightening the frame bracket hardware. Ensure the grille guard is level. Reinstall the grille and the top plastic cover. Perform periodic inspections after installation to ensure all mounting hardware remains tight.
The P4091 is designed for 2014–2017 model years. You must select the correct top bracket set for your year: 2014–2015 or 2016–2017. Contact ARIES Automotive at 877.287.8634 to confirm fitment for your specific vehicle.
Yes, the LED light and mounting hardware are sold separately. The manual requires you to select and attach an LED light to the support flange before installation.
No drilling is required. However, if your vehicle does not have factory tow hooks, you must cut out the indented area on both sides of the plastic bumper insert. Make several small cuts and do not cut through the top edge of the panel.
M8 bolts: 7 ft.-lbs. M10 bolts: 16 ft.-lbs. M12 bolts: 28 ft.-lbs. Leave all hardware snug but not fully tightened until final alignment in Step 13.
At least two people are recommended. A second person is needed to hold the grille guard in position during Step 12.
Wax after installation and regularly thereafter. Use only mild automotive detergent to clean. Do not use abrasive cleaners, polishes with abrasives, dish detergent, abrasive pads, or wire brushes. Perform periodic inspections to ensure hardware remains tight.
