2022 Toyota Tundra Trucks B&W Turnoverball Kit GNRK1222

2022 Toyota Tundra Trucks B&W Turnoverball Kit GNRK1222

$599.00
In-Stock

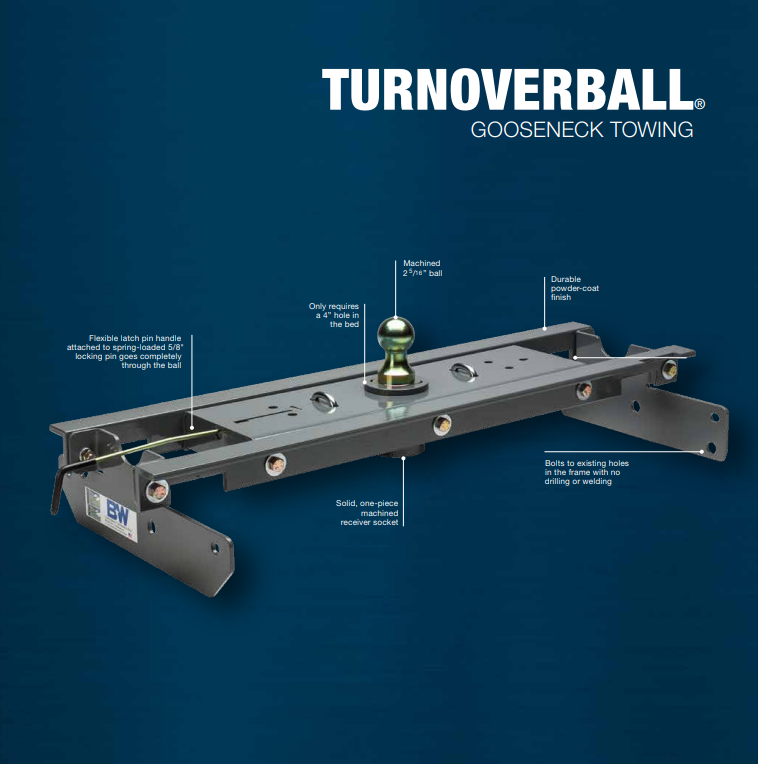

B and W Removable Ball - Conveniently Stored in Hitch

Under the Bed Storage | Wheel Well Release | Manual Ball Removal | 30000 lbs GTW | 2-5/16 Hitch Ball | 7500 lbs TW

Equip your vehicle with this robust hitch from B and W to securely tow your gooseneck trailer. The removable ball can be stored upside down in the hitch when not in use, providing complete bed access. The square ball base is designed to prevent rotation in the hitch.

Key Features:

  • Heavy-duty underbed hitch for secure towing of your gooseneck trailer
  • Complete truck bed access when not towing
  • Removable ball can be flipped and stored in the hitch
  • 5/8" thick, spring-loaded, steel locking pin secures ball in place
  • Access handle located at rear driver's-side wheel well
  • Single-piece, machined ball socket for rugged durability
  • Square ball base prevents rotation during hookup
  • "Corners only" fit of stowed ball prevents grime buildup inside of hitch
  • Customizable with specially designed accessories (sold separately)
  • Tow a 5th-wheel trailer with the B&W Companion hitch adapter
  • Built-in, spring-loaded safety-chain hookups
  • Simple installation with included custom mounting kit
  • No welding required and truck bed does not have to be removed
  • 4" Diameter hole must be cut into bed
  • Powder coated steel for durability and corrosion resistance
  • Made in the USA

Specifications:

  • Gross towing weight: 30,000 lbs
  • Vertical load limit: 7,500 lbs
  • Ball size: 2-5/16"
  • Limited lifetime warranty

The B&W Turnoverball underbed gooseneck trailer hitch offers the best of both worlds. It provides a sturdy, dependable connection with your gooseneck trailer for towing, and when not in use, the ball can be stowed upside down in the hitch for full bed access and a clean appearance.

The durable steel hitch ball included with the Turnoverball system secures in the hitch with a sturdy, 5/8" thick steel pin that is incorporated into the end of the operating handle. To lock the ball in place, drop it into the hitch hole in the bed of your truck. Then rotate the handle in your driver's-side wheel well counterclockwise until the latch engages. When the latch is engaged, the spring-loaded pin on the end of the handle will be inserted all the way through the base of the hitch ball, forming a strong, solid connection and ensuring absolute security when you're towing.

When you're done towing, remove the hitch ball by simply pulling the handle out as far as it will go and then rotating it clockwise until it unlatches. Remove the ball, flip it upside down, and drop it back into the ball hole of the hitch. Then reengage the latch to secure the stowed ball in place.

Unlike typical gooseneck balls - which have round bases - the Turnoverball hitch ball is designed with a square base. This makes latching the ball in the hitch easier because the base won't rotate inside of the hitch like a round base might, so lining the pin up is a snap. The base of the ball also fits tightly within the ball hole during storage. Because only the corners of the base contact the sides of the socket, any dirt or grime that gets into the hitch will fall through the socket, thus helping to prevent any buildup that could cause the ball to seize up in the hitch.

This hitch is custom designed for your vehicle. The included mounting brackets bolt to existing holes in your truck's frame. While some modification is required - you will need to cut a 4" diameter hole in your bed for the hitch ball and drill holes for the built-in safety chain loops - there is no need to weld onto or to drill into your frame.

Once you have the hitch brackets and body installed, set up the operating handle. This handle is designed to be accessed from the rear driver's-side wheel well. On the end of the handle is the heavy-duty steel pin that secures the hitch ball.

B&W makes it easy to tow just about anything. With the many adapters and accessories available, the Turnoverball can be made to work with almost any gooseneck trailer. Hitch balls are available that have a built-in rise, an offset, and even a different connection type. Add on the Companion fifth-wheel hitch - which attaches directly to the Turnoverball with no other parts required - and you can tow your fifth-wheel trailer.


Complete Kit: GNRK1222
Installation Kit: GNRM1222
Center Kit: GNRC1252
