B&W Trailer Hitches 2-5/16" Replacement Ball For Turnoverball Gooseneck Trailer Hitch Ball GNXA2000B&W Trailer Hitches$86.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
B&W Trailer Hitches
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2018 Ram 1500
Confirmed to Fit
2021 - 2023 Ram 1500 Classic
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Equip your vehicle with our robust B&W Detachable Ball Hitch for a secure towing experience with your gooseneck trailer. The hitch ball can be conveniently removed and stored when not in use, providing complete bed access. The square ball base design ensures the ball won't rotate in the hitch.

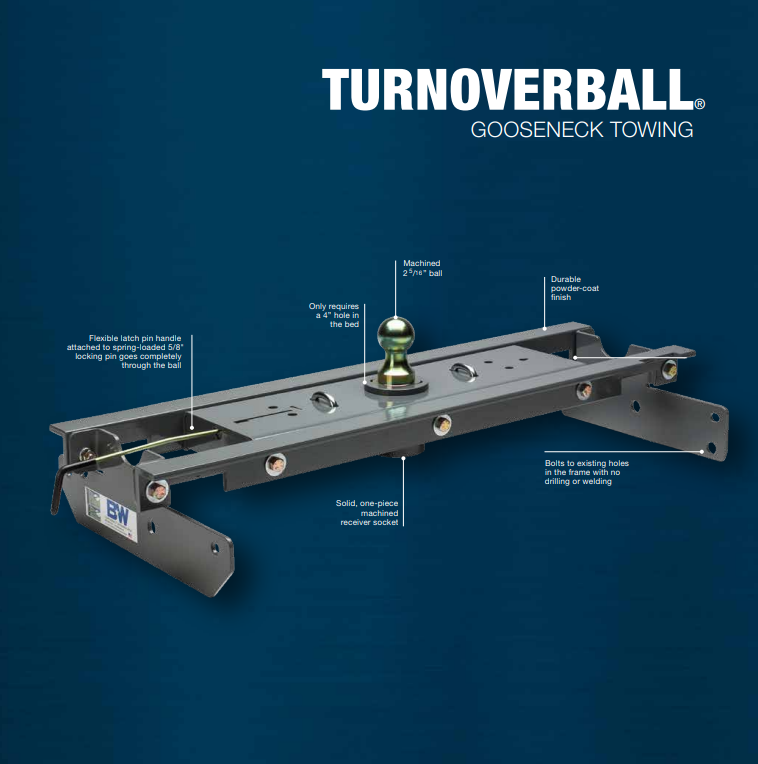

The B&W Turnoverball underbed gooseneck trailer hitch offers the perfect balance between functionality and convenience. When towing, the Turnoverball provides a reliable connection with your gooseneck trailer. Once you're done, simply stow the ball upside down in the hitch for a clean look and full bed access.
The robust steel hitch ball included with the Turnoverball system is secured in the hitch using a sturdy, 5/8" thick steel pin. To lock the ball in place, drop it into the hitch hole in your truck bed and rotate the handle until the latch engages. When not in use, remove the ball, flip it upside down, and drop it back into the hitch hole, reengaging the latch to secure the stowed ball.
Unlike conventional gooseneck balls with round bases, the Turnoverball hitch ball features a square base. This design prevents the base from rotating inside the hitch, making it easier to align the pin. The tight fit of the ball base during storage also helps prevent dirt or grime buildup that could cause the ball to seize up in the hitch.
The hitch is custom-designed for your vehicle. The included mounting brackets bolt to existing holes in your truck's frame. Some modification is required, including cutting a 4" diameter hole in your bed for the hitch ball and drilling holes for the built-in safety chain loops. However, there's no need for welding or drilling into your frame.
With a range of adapters and accessories, the Turnoverball can be adapted to work with almost any gooseneck trailer. Hitch balls with built-in rise, offset, and different connection types are available. Add the Companion fifth-wheel hitch for towing your fifth-wheel trailer. A truck bed utility rack is also available for easy hauling of ladders and lumber, with the load placed on the hitch (and therefore your truck's frame) instead of your bed rails.
B&W Trailer Hitches is an American manufacturer known for durable, innovative towing products, including gooseneck hitches, fifth-wheel hitches, receiver hitches, and ball mounts. Built in Kansas by employee-owners, B&W products are engineered for dependable performance, easy installation, and long-lasting quality.
B&W Trailer Hitches is an American manufacturer known for building innovative, dependable towing products designed to make hitching easier and towing more comfortable. The company began in 1987 in Humboldt, Kansas, when founders Roger Baker and Joe Works combined their fabrication experience to build custom truck beds and solve common problems faced by truck owners.
B&W changed the gooseneck hitch industry with the introduction of the Turnoverball Gooseneck Hitch. Its under-bed mounting system and reversible hitch ball allowed truck owners to quickly store the ball beneath the bed, leaving a clean and unobstructed surface when the hitch was not in use. B&W later applied the same practical approach to the Companion Fifth Wheel Hitch, creating a removable fifth-wheel hitch engineered for a quiet, smooth, and secure towing experience.
Today, B&W manufactures gooseneck hitches, fifth-wheel hitches, receiver hitches, ball mounts, and towing accessories at its nearly 600,000-square-foot facility. The company is owned by approximately 500 employee-owners who remain committed to American manufacturing, trusted materials, skilled craftsmanship, and long-lasting product quality.
Whether you are towing a work trailer, livestock trailer, camper, or fifth wheel, B&W Trailer Hitches offers thoughtfully engineered towing equipment built to perform mile after mile.
Experts available to answer your questions
Call 888-634-94942 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2018 | Ram 1500 | — |
| 2021 - 2023 | Ram 1500 Classic | — |
Yes, the 2009-2018 Dodge/Ram 1500 *Only GNXA4685 and RVK3500 with special post work with this hitch; 2019-2020 Ram 1500 Classic Trucks B&W Turnoverball Kit GNRK1309 (Part #BQVLGNRK1309) is designed to fit the 2011-2018 Ram 1500.
The 2009-2018 Dodge/Ram 1500 *Only GNXA4685 and RVK3500 with special post work with this hitch; 2019-2020 Ram 1500 Classic Trucks B&W Turnoverball Kit GNRK1309 (Part #BQVLGNRK1309) fits 2011-2018 Ram 1500 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2018 Dodge/Ram 1500 *Only GNXA4685 and RVK3500 with special post work with this hitch; 2019-2020 Ram 1500 Classic Trucks B&W Turnoverball Kit GNRK1309 (Part #BQVLGNRK1309) fits the following vehicles: 2011-2018 Ram 1500; 2021-2023 Ram 1500 Classic. Always verify your specific year, make, and model before ordering.
The 2009-2018 Dodge/Ram 1500 *Only GNXA4685 and RVK3500 with special post work with this hitch; 2019-2020 Ram 1500 Classic Trucks B&W Turnoverball Kit GNRK1309 (Part #BQVLGNRK1309) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Turnoverball Gooseneck Hitch Model 1309R is a gooseneck hitch system designed for towing trailers. It features a 2–5/16" ball that can be inverted and stored below the truck bed surface when not in use. The hitch is designed to fit 2009–2018 Dodge/Ram 1500 Trucks and 2019–2024 Ram 1500 Classic Trucks in their original, as-manufactured condition.
The Model 1309R is designed for 2009–2018 Dodge/Ram 1500 Trucks and 2019–2024 Ram 1500 Classic Trucks only. Your vehicle must be in its original, as-manufactured condition. If your truck has replacement parts or other modifications, compatibility is not guaranteed. Inspect your vehicle for modifications before installation.
Yes, the holes may be cut through both a plastic bed liner and the truck bed. However, the center of the truck bed may be more difficult to locate, and the mark may be harder to hit if the liner slides or moves. If your truck has a spray-in bed liner, you must account for the thickness of the applied liner when measuring and add that thickness to the specified hole locations. Failure to cut the holes in the correct location may adversely affect the installation.
The Turnoverball hitch comes equipped with a 2–5/16" ball. Trailers towed with this ball must have a 2–5/16" coupler. Towing with a larger coupler could cause loss of attachment between the trailer and the tow vehicle.
At this time, the following accessories are compatible with the Model 1309R: the 4" Dodge Hitch Extender (part# GNXA4685) and the RV Companion 5th wheel hitch (model RVK3500) with special socket post. The RVK3000 RV Companion 5th wheel hitch, RVK3400 slider, and RVK3405 slider are not compatible with this model.
Yes, the Model 1309R can be installed on trucks with four-corner air suspension. However, the air line along the passenger side of the frame will need to be relocated around the passenger side plate. After the U-bolt is installed, loosen the air line by pulling it away from the frame so the side plate can be installed between the air line and the frame. After the side plate is secure, pull the airline down and under the side plate. Make sure the airline is resting in a location that cannot be pinched or damaged.
Yes. Cab clearance on short bed trucks is very limited when towing certain trailers. You must measure the trailers to be towed with this hitch to ensure that the location of the 2–5/16" ball will provide ample turning clearance between the nose of the trailers and the cab of the truck. Failure to ensure adequate clearance may result in significant property damage or serious injury.
Required tools include: impact wrench or ratchet with 3/4" socket; 1/2", 3/4" and 15/16" box end wrenches; marking tool (pencil or permanent marker); 4" hole saw; flashlight; drill with 1/2" bit; ear protection; torque wrench; pry bar; tape measure; lifting device; pilot hole bit; and eye protection.
The Mounting Kit Box (GNRM1309) includes: 1 outside driver side plate, 1 inside driver side plate, 1 passenger side plate, 1 front cross member, 1 rear cross member, 1 rear brace, and 2 U-bolts (1/2" X 5–1/2" X 4–1/4"). The Mounting Kit Bolt Bag includes: 2 bolt guide assemblies, 1/2" X 1–1/2" cap screws, 1/2" X 2–1/4" cap screws, 1/2" lock washers, 1/2" flat washers, 1/2" finish nuts, and 5/8" serrated flange nuts. The Center Box (GNRC909) includes the center section, 2–5/16" ball, and latch pin handle. The Safety Chain Kit Bolt Bag includes 2 U-bolts (1/2"), 4 conical springs, 4 lock nuts (1/2"), 1 carriage bolt (5/16" X 3/4"), 1 cap screw (5/16" X 3/4"), and 1 lock nut (5/16").
All hardware required for installation is included in the mounting kit. Verify that all parts and hardware are present using the parts list on the front page of the instructions before beginning installation.
Removing the spare tire is optional but recommended. Following the vehicle manufacturer's instructions, removing the spare tire will provide easier access to the area where the hitch will be installed. Remember to replace the tire when installation is completed.
Yes. Installation of the hitch requires the installer to be under the truck bed in the area of the rear axle. Lifting the vehicle makes this area more accessible to the installer and improves the installation process. Lift the vehicle using only equipment designed for lifting and positioning vehicles for service. Failure to do so may result in property damage, serious injury, or death.
For an 8-foot long bed, the 4" hole should be located 42–1/8" from the back of the truck bed floor, centered between the wheel wells. For short beds (less than 8 feet long), the 4" hole should be located 40–1/8" from the back of the truck bed floor.
For an 8-foot long bed, the 3/4" hole should be located 39–3/8" from the back of the truck bed floor and 4–3/4" from the center of the 4" hole on the driver side of the bed. For short beds (less than 8 feet long), the 3/4" hole should be located 37–3/8" from the back of the truck bed floor and 4–3/4" from the center of the 4" hole on the driver side.
Yes. You must cut a 4" diameter hole and a 3/4" diameter hole in the truck bed floor at specified locations. You must also drill four 1/2" holes through the truck bed floor to install the safety chain brackets. The holes can be cut using a 4" and 3/4" hole saw or by marking out the holes and using a saber saw equipped with a metal cutting blade. Any burrs created while cutting holes must be removed.
Yes. The installation requires cutting holes in the truck bed floor. These are permanent modifications. The holes are critical to the installation of the hitch, so measure, mark, and saw carefully.
Removing the plastic wheel fenders is optional but recommended. Removing them will allow better access to the hitch installation area. Re-install the fenders when installation is complete.
Most trucks have fuel lines, brake lines, electrical wires or other vehicle systems located along the frame rails or in the general area where the Turnoverball hitch installs. You must carefully examine the locations of these systems before installation and make certain that they are not damaged during positioning hitch components, drilling holes, or tightening fasteners. Damage to these systems may result in property damage, serious injury, or death.
A wiring harness runs along the top of the driver's side frame and the frame cross member just behind the axle. The harness is secured to the top of the cross member by plug fasteners. You must pull each fastener as needed to move the harness so that it lays in the notch of the rear cross member and does not get pinched. The wiring harness must not be pinched or smashed during installation.
The vent tube comes out of the rear axle and is clipped onto the frame cross member just behind the axle. During installation, you must remove the vent tube, clip and all, and allow it to hang. After the hitch is installed, the vent tube must be relocated by clipping the end to the frame cross member.
The rear cross member is a 2" x 1" bar with threaded holes. It should be installed from the passenger side, just in front of the rear tire. Insert the cross member between the frame and the top suspension control arm with the notch machined into the cross member going first and facing the rear. Slide the leading end above the exhaust and over the frame on the driver side while moving toward the rear. Raise the opposite end until both ends can be positioned over the top of the frame with the cross member laying flat and the notch still facing the rear. Adjust the cross member so it is parallel to the axle and slide it toward the rear until it is over the frame cross member where the wiring harness was attached. Rotate the cross member from flat to vertical so the notch on the driver side is down. Slide the cross member rearward as far as possible while ensuring the wiring harness does not get pinched or smashed.
Position the center section so that the 4" diameter raised area fits into the 4" diameter hole in the truck bed while the 3/8" square hole is centered under the 3/4" diameter hole in the truck bed. When installed, the round receiver will be almost directly above the axle of the pickup. If the pickup is equipped with dual exhaust, send the end of the center without the spring over the axle first, then send the lead end toward the front of the truck and to the passenger side far enough so the end toward the rear of the truck will clear the exhaust. Once the hitch is clear of exhaust, rotate and lift it so the 4" raised area is toward the bottom of the truck bed. Slide the center rearward over the exhaust until the 4" diameter raised portion is in the 4" diameter hole in the truck bed while the 3/8" square hole is centered under the 3/4" diameter hole in the truck bed.
The front cross member is a 2" x 2–1/2" angle. Install it from the passenger side in front of the rear tire. Move the cross member so it spans the frame and sits in an upside down "V" position with the holes toward the rear of the truck. Slide the cross member rearward to the center section. Center the cross member in the truck so the holes in the cross member will line up with the slots in the center. Using an adjustable wrench or other means, stand the cross member up so the leg of the angle with the holes is vertical. Slide the cross member back against the center. Make sure the wiring harness does not get pinched between the frame and the hitch parts.
Place one U-bolt in front of each coil spring around the pickup frame. To ease installation of the side plates, start with the U-bolts pulled back from the frame so that the ends of the U-bolts are flush with the wall of the tubular frame.
Locate the passenger side plate. Position it so the two round holes match up to the U-bolt on the passenger side and push the U-bolt into the holes. Secure the side plate and U-bolt with lock washers and nuts. Attach the side plate to the front cross member and center using a 2–1/4" long bolt through the center, cross member and side plate along with a lock washer, two flat washers, and a finish nut. Finish attaching the side plate by placing another 1/2" x 1–1/2" long bolt through the cross member and the side plate adding a flat washer, lock washer, and finish nut. Hand tighten these connections at this time.
The two side plates on the driver side are combined to secure the hitch to the frame. Using the slot provided, maneuver the outside side plate around the brake lines and line the holes up with the U-bolt. The wiring harness may lay in this slot to prevent it from being pinched. Insert the U-bolt into the holes on the side plate just enough to hold it in place. Position the inside side plate over the first. Insert the U-bolt into the holes of the inside side plate. Secure the side plates and U-bolt with lock washers and nuts. Fasten the two side plates together using 1/2" x 1–1/2" long bolts, lock washers and finish nuts. Attach these side plates to the front cross member and center using a 2–1/4" long bolt through the center, cross member and side plate along with a lock washer, two flat washers, and a finish nut. Finish attaching the side plates by placing a 1/2" x 1–1/2" long bolt through the cross member and the side plates adding a flat washer, lock washer, and finish nut. Hand tighten these connections.
Locate the two 5/8" x 1" long bolts that are welded to thin straps (bolt guides). Using the straps, install the bolt guides into the frame cross member just behind the axle. Position the two large slots of the rear brace over the 5/8" bolts of the bolt guides. Attach the rear brace to the center section and the rear cross member with two 1/2" x 1–1/2" long bolts, lock washers and flat washers. Hand tighten only at this time. Using the 5/8" flange nuts, attach the rear brace to the frame cross member with the bolt guides. If the truck is equipped with dual exhaust, it may be helpful to pry the exhaust downward while installing the flange nut on the driver side bolt guide.
Before tightening, make sure that the center section is tight against the bottom of the truck bed, and that the hitch is centered and square in relation to the truck frame. The 3/8" square hole in the center must be close to the center of the 3/4" hole in the truck bed.
Torque the 5/8" flange nuts to 110 ft. lbs.
Torque the nuts on the U-bolts to 40 ft. lbs. Tighten the U-bolts by alternating between the top and bottom threads so that the U-bolt is secured evenly.
Torque all 1/2" hardware to 110 ft. lbs., except for the U-bolts which are torqued to 40 ft. lbs.
The manual does not specify whether the battery must be disconnected during installation. However, the manual warns that electrical wires may be located along the frame rails or in the general area where the hitch installs, and you must carefully examine these systems before installation to avoid damage.
Before towing, lubricate the 2–5/16" ball by applying a light coating of grease to the corners on the square shank. Ensure the latch pin passes through the holes in the 2–5/16" ball and fully engages through the hitch receiver. This can be determined by whether or not the handle returns to its original location. When installed properly, the latch pin will pass through the 2–5/16" ball and fully engage through both walls of the hitch receiver. Failure of the pin to engage the ball and hitch properly could result in a loss of attachment between the trailer and the tow vehicle.
To operate the latch pin, use the L-shaped handle provided. Insert the square end of the handle into the 3/8" square hole in the center from the top side of the truck bed. To retract the latch pin, rotate the handle counterclockwise. Place the 2–5/16" ball into the hitch receiver. Engage the latch pin by rotating the handle clockwise. Be certain the latch pin passes through the holes in the 2–5/16" ball and fully engages through the hitch receiver. This can be determined by whether or not the handle returns to its original location.
No. Inverting the ball while hauling heavy loads may cause the ball to strike the truck's differential, drive line, or other components. You must inspect the relationship between the ball and truck components to ensure proper clearance. Failure to remove the ball when hauling heavy loads may result in property damage, injury or death. A cover to prevent debris from entering the socket while operating without the ball in place is available from B&W.
Do not exceed the tow or tongue rating of the coupler, hitch, truck or trailer. See vehicle and trailer manufacturer information for ratings. Exceeding these ratings may cause damage to towing components or loss of attachment between the trailer and truck. Without proper knowledge, towing can be a dangerous activity. Understand all the risks involved with towing before proceeding. For information on towing safety, see "The Trailer Handbook: A Guide to Understanding Trailer and Towing Safety" from the National Association of Trailer Manufacturers (www.NATM.com) and your trailer manufacturer's owner's manual. Additional caution must be used when towing a wedge car trailer. Towing stability greatly depends on keeping the center of gravity as low as possible. Load heavy cars over the axles. Never tow with a single car on the front of the trailer. When towing a wedge car trailer, never exceed speeds that are reasonable for the roadway conditions. Failure to account for proper trailer center of gravity and speeds that are reasonable for the roadway conditions may cause damage to the truck, trailer, towing components, and loss of attachment between the truck and trailer.
A visual inspection of the hitch should be performed before each time you tow. Regularly check that all pinned connections are secure, and that all bolted connections are at the correct torque specification. Check for cracks or damage to the hitch. Do not tow with the hitch if cracks or damage outside of normal wear is found. Towing with a hitch that has cracks or damage could result in damage to the tow vehicle, trailer, towing components or loss of attachment between the tow vehicle and trailer.
Apply a light coating of grease to the corners on the square shank of the 2–5/16" ball before towing.
The manual specifies that all bolted connections should be regularly checked to ensure they are at the correct torque specification before each tow, but does not specify a retorque interval for after installation is complete.
No. Do not modify this product in any manner. Doing so could alter its integrity and lead to a loss of attachment between the trailer and the tow vehicle.
Yes, the Model 1309R is designed for 2009–2018 Dodge/Ram 1500 Trucks and 2019–2024 Ram 1500 Classic Trucks in original, as-manufactured condition. Compatibility with modified vehicles is not guaranteed.
A 4" hole saw is required to cut the main hole in the truck bed. You will also need a torque wrench, impact wrench or ratchet with 3/4" socket, box end wrenches (1/2", 3/4", 15/16"), drill with 1/2" bit, pry bar, tape measure, and lifting device.
Torque the 5/8" flange nuts to 110 ft. lbs. Torque the U-bolt nuts to 40 ft. lbs. Torque all other 1/2" hardware to 110 ft. lbs.
The Model 1309R comes equipped with a 2–5/16" ball. Trailers must have a 2–5/16" coupler. Towing with a larger coupler could cause loss of attachment.
Yes. Lifting the vehicle makes the installation area more accessible and improves the installation process. Use only equipment designed for lifting and positioning vehicles for service.
Insert the L-shaped handle into the 3/8" square hole in the center from the top of the truck bed. Rotate counterclockwise to retract the pin, place the 2–5/16" ball in the receiver, then rotate clockwise to engage. The pin must fully engage through both walls of the hitch receiver.
When installed properly, the latch pin will pass through the 2–5/16" ball and fully engage through both walls of the hitch receiver. This can be determined by whether or not the handle returns to its original location. If the pin does not fully engage, the hitch may not be properly positioned. Verify that the center section is tight against the bottom of the truck bed and that the hitch is centered and square in relation to the truck frame. The 3/8" square hole in the center must be close to the center of the 3/4" hole in the truck bed. Failure of the pin to engage the ball and hitch properly could result in a loss of attachment between the trailer and the tow vehicle.
In some cases, the exhaust may lay against the 5/8" bolt guides after installation is complete. This may cause the exhaust to rattle. Contact B&W customer service for additional information including possible solutions for the hardware interference.
The wiring harness that runs along the top of the driver's side frame must be relocated so that it lays in the notch of the rear cross member and does not get pinched. Pull the plug fasteners securing the harness to the frame cross member and move the harness into the notch. Ensure the harness does not get pinched between the frame and the hitch parts during installation. If the harness is pinched, it may be damaged, resulting in electrical system failure.
Before tightening the hardware, make sure that the center section is tight against the bottom of the truck bed, and that the hitch is centered and square in relation to the truck frame. The 3/8" square hole in the center must be close to the center of the 3/4" hole in the truck bed. If the center section is not flush, verify that the 4" hole and 3/4" hole were cut at the correct locations. For an 8-foot bed, the 4" hole should be 42–1/8" from the back and the 3/4" hole should be 39–3/8" from the back. For short beds, the 4" hole should be 40–1/8" from the back and the 3/4" hole should be 37–3/8" from the back.
