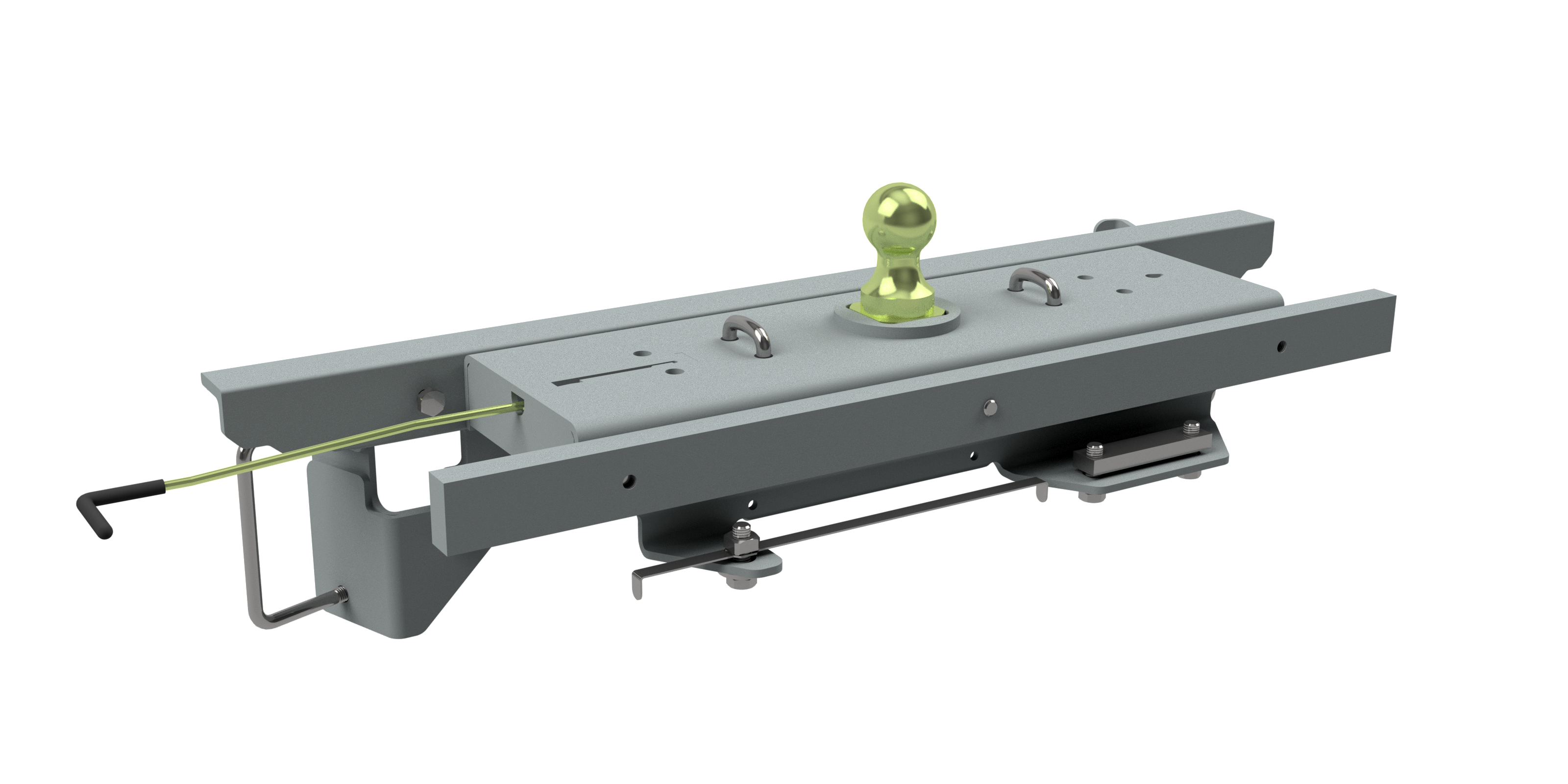

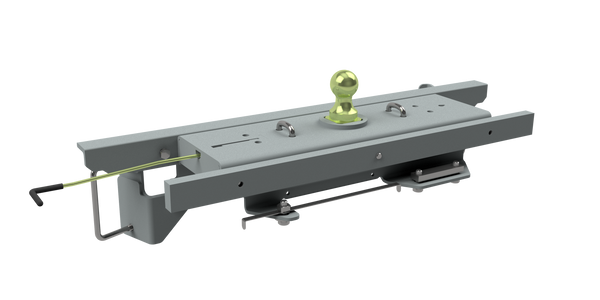

2019-2023 Ram 1500 - Excludes 2019 Ram 1500 Classic & Ram TRX Trucks B&W Turnoverball Kit GNRK1319

2019-2023 Ram 1500 - Excludes 2019 Ram 1500 Classic & Ram TRX Trucks B&W Turnoverball Kit GNRK1319

$599.00
In-Stock

B and W Removable Ball - Conveniently Stored in Hitch

Under-Bed Design, Wheel Well Release, Manual Ball Removal

Equip your vehicle with this robust hitch to safely tow your gooseneck trailer. The removable ball can be stored upside down in the hitch when not in use, providing complete bed access. The square ball base is designed to stay put in the hitch.

Key Features:

  • Heavy-duty under-bed hitch for towing your gooseneck trailer
  • Full truck bed access when not towing
  • Removable ball can be flipped and stored in the hitch
  • 5/8" thick, spring-loaded, steel locking pin secures ball in place
  • Access handle located at rear driver's-side wheel well
  • Single-piece, machined ball socket for rugged durability
  • Square ball base prevents ball rotation during hookup
  • "Corners only" fit of stowed ball prevents grime buildup inside of hitch
  • Customizable with specially designed accessories (sold separately)
  • Spring-loaded safety-chain hookups built in
  • Easy installation with included custom mounting kit, no welding required
  • Truck bed does not need to be removed
  • 4" diameter hole must be cut into bed
  • Sturdy, corrosion-resistant powder coated steel
  • Made in the USA

Specifications:

  • Gross towing weight: 30,000 lbs
  • Vertical load limit: 7,500 lbs
  • Ball size: 2-5/16"
  • Limited lifetime warranty

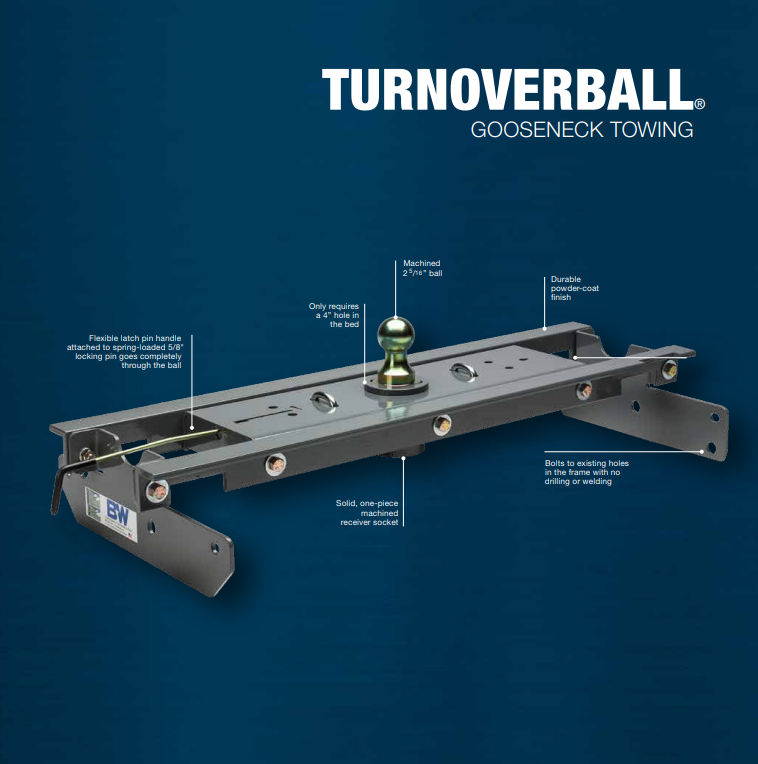

The B&W Turnoverball under-bed gooseneck trailer hitch offers the best of both worlds. It provides a sturdy, reliable connection with your gooseneck trailer for towing, and when not in use, the ball can be stowed upside down in the hitch for full bed access and a clean look.

Easy-to-Remove, Simple-to-Store Hitch Ball

The durable steel hitch ball included with the Turnoverball system is secured in the hitch with a sturdy, 5/8" thick steel pin integrated into the end of the operating handle. To lock the ball in place, drop it into the hitch hole in your truck bed. Then rotate the handle in your driver's-side wheel well counterclockwise until the latch engages. When the latch is engaged, the spring-loaded pin on the end of the handle will be inserted all the way through the base of the hitch ball, forming a strong, solid connection for secure towing.

B&W Turnoverball Gooseneck Hitch Operation

When you're done towing, remove the hitch ball by pulling the handle out as far as it will go and then rotating it clockwise until it unlatches. Flip the ball upside down and drop it back into the ball hole of the hitch. Then reengage the latch to secure the stowed ball in place.

The Turnoverball hitch ball is designed with a square base, unlike typical gooseneck balls with round bases. This design makes latching the ball in the hitch easier as the base won't rotate inside of the hitch, making pin alignment a breeze. The base of the ball also fits tightly within the ball hole during storage, preventing any dirt or grime buildup that could cause the ball to seize up in the hitch.

Simple, Custom Installation

This hitch is custom designed for your vehicle. The included mounting brackets bolt to existing holes in your truck's frame. While some modification is required - you will need to cut a 4" diameter hole in your bed for the hitch ball and drill holes for the built-in safety chain loops - there is no need to weld onto or to drill into your frame.

Once you have the hitch brackets and body installed, set up the operating handle. This handle is designed to be accessed from the rear driver's-side wheel well. On the end of the handle is the heavy-duty steel pin that secures the hitch ball.

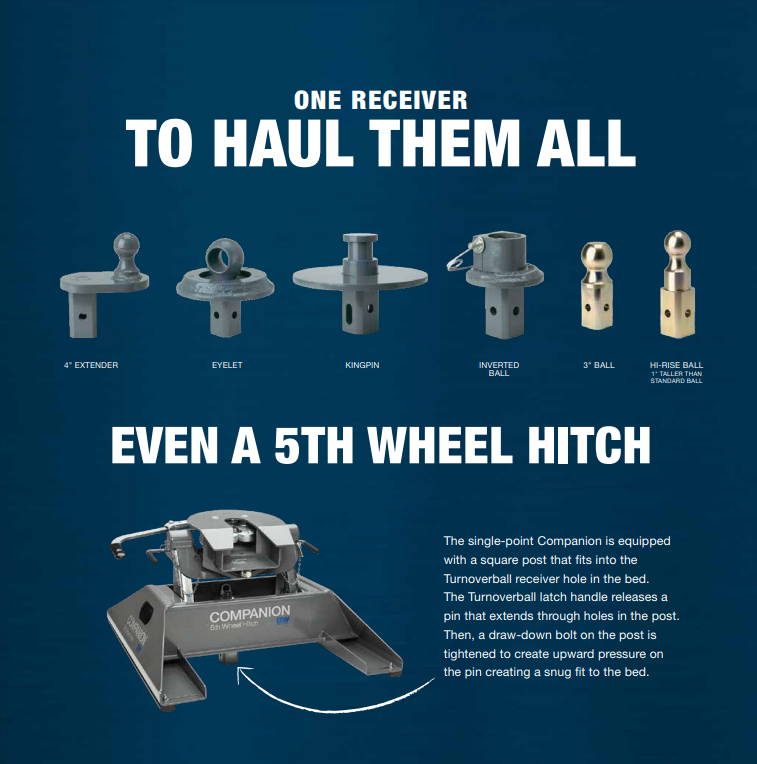

B&W Turnoverball Gooseneck Hitch Accessories

B&W makes it easy to tow just about anything. With the many adapters and accessories available, the Turnoverball can be made to work with almost any gooseneck trailer. Hitch balls are available that have a built-in rise, an offset, and even a different connection type. Add on the Companion fifth-wheel hitch - which attaches directly to the Turnoverball with no other parts required - and you can tow your fifth-wheel trailer.


Complete Kit: GNRK1319
Installation Kit: GNRM1319
Center Kit: GNRC800
