B&W Trailer Hitches 2-5/16" Replacement Ball For Turnoverball Gooseneck Trailer Hitch Ball GNXA2000B&W Trailer Hitches$86.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
B&W Trailer Hitches
Verify Fitment
Select your vehicle to confirm this part fits.
1988 - 1998 Chevrolet C1500
Confirmed to Fit
1988 - 2000 Chevrolet C2500
Confirmed to Fit
1988 - 2000 Chevrolet C3500
Confirmed to Fit
1991 - 2000 Chevrolet C3500HD
Confirmed to Fit
1988 - 1998 Chevrolet K1500
Confirmed to Fit
1988 - 2000 Chevrolet K2500
Confirmed to Fit
1988 - 2000 Chevrolet K3500
Confirmed to Fit
1988 - 1998 GMC C1500
Confirmed to Fit
1988 - 2000 GMC C2500
Confirmed to Fit
1988 - 2000 GMC C3500
Confirmed to Fit
1991 - 2000 GMC C3500HD
Confirmed to Fit
1988 - 1998 GMC K1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 22 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Effortlessly set up your B&W Turnoverball gooseneck trailer hitch center section (BQVLGNRC800 - not included) with our custom-designed, under-bed installation kit.
Upgrade your towing capabilities with our B&W Under-Bed Installation Kit for Turnoverball Gooseneck. Designed for quick and easy setup, this kit is the perfect companion for your B&W Turnoverball gooseneck trailer hitch center section (BQVLGNRC800 - not included).
B&W Trailer Hitches is an American manufacturer known for durable, innovative towing products, including gooseneck hitches, fifth-wheel hitches, receiver hitches, and ball mounts. Built in Kansas by employee-owners, B&W products are engineered for dependable performance, easy installation, and long-lasting quality.
B&W Trailer Hitches is an American manufacturer known for building innovative, dependable towing products designed to make hitching easier and towing more comfortable. The company began in 1987 in Humboldt, Kansas, when founders Roger Baker and Joe Works combined their fabrication experience to build custom truck beds and solve common problems faced by truck owners.
B&W changed the gooseneck hitch industry with the introduction of the Turnoverball Gooseneck Hitch. Its under-bed mounting system and reversible hitch ball allowed truck owners to quickly store the ball beneath the bed, leaving a clean and unobstructed surface when the hitch was not in use. B&W later applied the same practical approach to the Companion Fifth Wheel Hitch, creating a removable fifth-wheel hitch engineered for a quiet, smooth, and secure towing experience.
Today, B&W manufactures gooseneck hitches, fifth-wheel hitches, receiver hitches, ball mounts, and towing accessories at its nearly 600,000-square-foot facility. The company is owned by approximately 500 employee-owners who remain committed to American manufacturing, trusted materials, skilled craftsmanship, and long-lasting product quality.
Whether you are towing a work trailer, livestock trailer, camper, or fifth wheel, B&W Trailer Hitches offers thoughtfully engineered towing equipment built to perform mile after mile.
Experts available to answer your questions
Call 888-634-949414 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 1998 | Chevrolet C1500 | — |
| 1988 - 2000 | Chevrolet C2500 | — |
| 1988 - 2000 | Chevrolet C3500 | — |
| 1991 - 2000 | Chevrolet C3500HD | — |
| 1988 - 1998 | Chevrolet K1500 | — |
| 1988 - 2000 | Chevrolet K2500 | — |
| 1988 - 2000 | Chevrolet K3500 | — |
| 1988 - 1998 | GMC C1500 | — |
| 1988 - 2000 | GMC C2500 | — |
| 1988 - 2000 | GMC C3500 | — |
| 1991 - 2000 | GMC C3500HD | — |
| 1988 - 1998 | GMC K1500 | — |
| 1988 - 2000 | GMC K2500 | — |
| 1988 - 2000 | GMC K3500 | — |

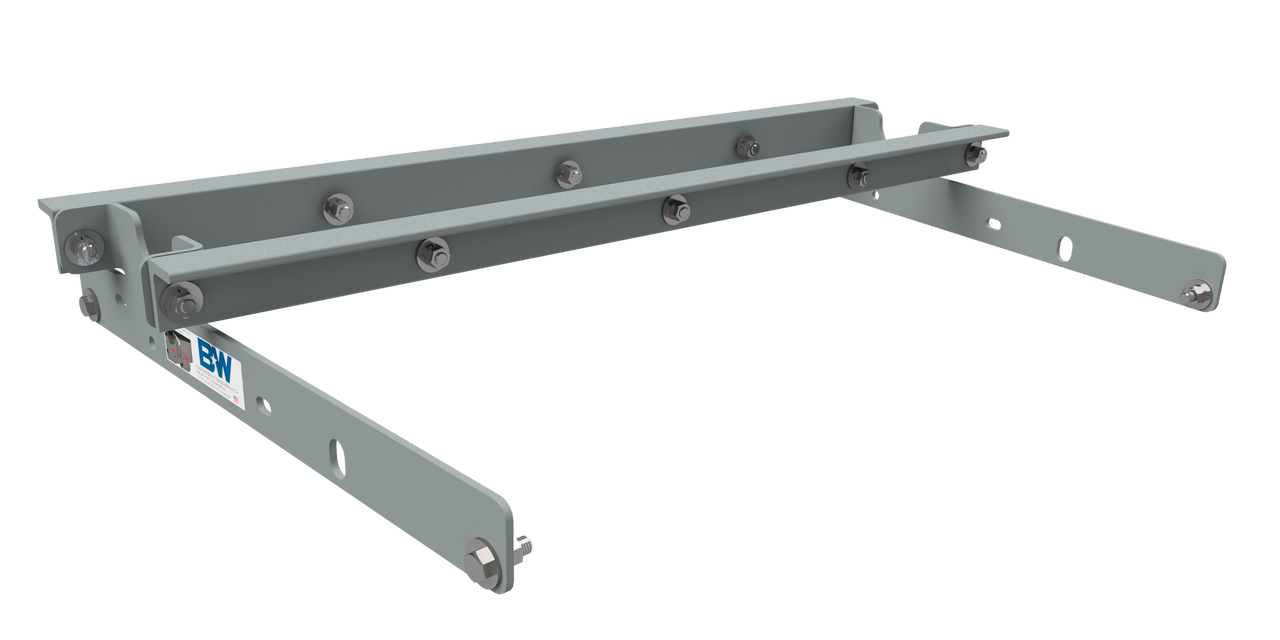

Yes, the B&W Trailer Hitches Turnoverball Mounting Kit Gooseneck Trailer Hitch Mount Kit BQVLGNRM1000 (Part #BQVLGNRM1000) is designed to fit the 1988-1998 Chevrolet C1500.
The B&W Trailer Hitches Turnoverball Mounting Kit Gooseneck Trailer Hitch Mount Kit BQVLGNRM1000 (Part #BQVLGNRM1000) fits the following vehicles: 1988-1998 Chevrolet C1500; 1988-2000 Chevrolet C2500; 1988-2000 Chevrolet C3500; 1991-2000 Chevrolet C3500HD; 1988-1998 Chevrolet K1500; 1988-2000 Chevrolet K2500; 1988-2000 Chevrolet K3500; 1988-1998 GMC C1500; 1988-2000 GMC C2500; 1988-2000 GMC C3500; 1991-2000 GMC C3500HD; 1988-1998 GMC K1500; 1988-2000 GMC K2500; 1988-2000 GMC K3500. Always verify your specific year, make, and model before ordering.
The B&W Trailer Hitches Turnoverball Mounting Kit Gooseneck Trailer Hitch Mount Kit BQVLGNRM1000 (Part #BQVLGNRM1000) fits 1988-1998 Chevrolet C1500 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The B&W Trailer Hitches Turnoverball Mounting Kit Gooseneck Trailer Hitch Mount Kit BQVLGNRM1000 (Part #BQVLGNRM1000) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 1000R fits Chevrolet and GMC 1/2, 3/4 and 1 ton long bed trucks from 1988–1998, and 3/4 and 1 ton heavy duty long bed trucks from 1999–2000 (old body style). Your truck must have a long bed and be in original, unmodified condition. Short bed trucks are not compatible. If your truck has replacement parts or other modifications, compatibility is not guaranteed and you should inspect the vehicle before purchase.
No. The 1000R is designed for long bed trucks only. Additionally, before installing on any truck, you must check for adequate turning clearance between the front of all your trailers and the truck cab, as short bed trucks have limited clearance.
You will need: a 4-inch hole saw or sabre saw with metal cutting blade; a drill with 1/2-inch bit; a tape measure; a marking tool; socket wrenches; and a torque wrench. An overhead lifting device such as a chain fall, engine hoist, or cable come-a-long is recommended to help position the center section during installation.
An overhead lifting device such as a chain fall, engine hoist, or cable come-a-long is recommended but not required. It is used to lift the center section into position by attaching a loop of rope or chain to the latch pin in the round hitch receiver tube. The device should be disconnected before squaring the center section across the frame, installing the sideplates, and torquing fasteners.
Before installation, carefully examine the location of fuel lines, brake lines, and electrical wires along the frame rails where the hitch will be installed. Be certain you will not damage these components when positioning hitch parts, drilling holes, tightening fasteners, and lifting and lowering the truck bed. Pay special attention to the fuel tank vent on top of the gas tank, which can be easily damaged during positioning of the front crossmember and center section components.
Measure from the back end (tailgate end) of the truck bed floor at 49 1/2 inches and mark the floor at that point. Center the measurement between the fender wheel wells. This location is critical to correct installation. Make a 4-inch hole at this location using a 4-inch hole saw or by marking a 4-inch circle and cutting it out with a sabre saw equipped with a metal cutting blade. If your truck has a plastic bed liner, you may drill through both, but it is more difficult to accurately locate the midpoint and ensure the liner does not move while sawing.
Select the longer crossmember as the front crossmember. Position it across the top of the frame rails between the bed and frame, with the horizontal side up and the slotted side facing the rear of the truck. Push it through the opening in the wheel well. Position the rear crossmember behind it with the horizontal side up and the slotted side facing the front of the truck. Keep the two crossmembers approximately parallel, about 9 inches apart, equally spaced in front and behind the hole in the truck bed floor, with the ends extended 2 inches over the frame rails.
Align two of the lower holes in each side plate with existing holes in the truck frame rails. Fasten into place using two 1/2-inch × 1 1/2-inch bolts with a flat washer on each side and a lock washer and nut on each. Insert bolts from the inside and hand tighten them. When installing the driver's side side plate, you may need to pull the brake line down to accommodate the bolts. Do not fully torque at this stage.
With the latch pin mechanism on the driver's side, raise the center section from beneath the truck until the round tube hitch receiver that protrudes from the center section fits through the hole in the truck bed floor. Fasten the center section to the front crossmember using three 1/2-inch × 1 1/2-inch bolts. Move the rear crossmember into place against the center section and fasten using three 1/2-inch × 1 1/2-inch bolts. Do not fully torque at this stage.
All fasteners on the 1000R are torqued to 90 foot-pounds. Torque in the following sequence: first torque the side plates to the frame; second, torque the crossmembers to the side plates; third, torque the center section to the crossmembers.
Yes. To install the safety chain brackets, you must drill four 1/2-inch holes through the truck bed floor. Drill the holes from beneath the truck, through the four holes nearest the round hitch receiver tube in the center section. This will locate the safety chain brackets in the valley section of the bed floor.
After drilling the four 1/2-inch holes through the truck bed floor, drop a U-bolt through each pair of holes from the topside of the truck bed floor. Place a spring and lock nut on each of the four legs and tighten the lock nuts until 1/4 inch of thread extends through the lock nut.
Insert the latch pin release handle through the slot in the end of the center section on the driver's side of the truck. Align the handle eyelet with the square hole in the latch pin so the handle is in line with the latch pin. Secure the handle to the pin with the 5/16-inch × 3/4-inch carriage bolt and 5/16-inch locking flange nut. If wrench access on the cab side of the handle is limited, you may use the included 5/16-inch cap screw instead of the carriage bolt. Tighten the nut until it is secure but do not over-tighten and deform the handle eyelet.
Retract the latch pin by pulling the handle out until it stops and then rotating to the lock out position. Place the 2-5/16-inch ball in the hitch receiver. Engage the latch pin by rotating the handle back to center. Be certain the latch pin passes through the holes in the 2-5/16-inch ball and fully engages through the hitch receiver. Repeat this process with the 2-5/16-inch ball in all eight positions to verify proper function. After testing, grease the base of the 2-5/16-inch ball.
No. Do not invert the ball in the socket when carrying heavy loads on 2-wheel drive trucks, as the ball may hit the top of the differential. Remove the ball from the socket before loading. A plug for the socket is available from B&W.
The tow vehicle's towing capacities should under no circumstances be exceeded. Refer to your vehicle manufacturer's specifications for the maximum towing capacity of your truck.
The 1000R includes: center section (GNRC800) with 2-5/16-inch ball and latch pin handle; mounting kit (GNRM1000) with driver and passenger side plates, front and rear crossmembers; 14 pieces of 1/2-inch × 1 1/2-inch cap screws; 28 pieces of 1/2-inch flat washers; 14 pieces of 1/2-inch lock washers; 14 pieces of 1/2-inch finish nuts; safety chain kit with 2 pieces of 1/2-inch U-bolts; 4 conical springs; 4 pieces of 1/2-inch lock nuts; 1 piece of 5/16-inch × 3/4-inch carriage bolt; 1 piece of 5/16-inch × 3/4-inch cap screw; and 1 piece of 5/16-inch lock nut.
The 1000R fits Chevrolet and GMC 1/2, 3/4 and 1 ton long bed trucks from 1988–1998, and 3/4 and 1 ton heavy duty long bed trucks from 1999–2000 (old body style). Your truck must have a long bed and be unmodified.
Fuel lines, brake lines, and electrical wires run along the frame rails. Carefully examine their location before drilling, fastening, or lifting the truck bed to avoid damage. Pay special attention to the fuel tank vent on top of the gas tank.
Measure 49 1/2 inches from the back end (tailgate end) of the truck bed floor and center the measurement between the fender wheel wells. Drill a 4-inch hole at this location using a 4-inch hole saw or sabre saw with metal cutting blade.
All fasteners are torqued to 90 foot-pounds in this sequence: side plates to frame, crossmembers to side plates, center section to crossmembers.
Yes. You must drill four 1/2-inch holes through the truck bed floor from beneath the truck, through the four holes nearest the round hitch receiver tube in the center section.
Insert the handle through the slot in the end of the center section on the driver's side, align the eyelet with the square hole in the latch pin, and secure with the 5/16-inch × 3/4-inch carriage bolt and 5/16-inch locking flange nut. Tighten until secure but do not over-tighten.
No. Do not invert the ball in the socket when carrying heavy loads on 2WD trucks; the ball may hit the differential. Remove the ball before loading.
Verify that the latch pin release handle is installed correctly. The handle eyelet must be aligned with the square hole in the latch pin so the handle is in line with the latch pin. The handle must be secured with the 5/16-inch × 3/4-inch carriage bolt and 5/16-inch locking flange nut, tightened until secure but not over-tightened. If the handle is not installed correctly, the latch pin will not function properly.
Retract the latch pin by pulling the handle out until it stops and then rotating to the lock out position. Place the 2-5/16-inch ball in the hitch receiver. Engage the latch pin by rotating the handle back to center. Be certain the latch pin passes through the holes in the 2-5/16-inch ball and fully engages through the hitch receiver. If it does not fully engage, check that the handle is installed correctly and aligned with the latch pin.
