{'keyFeature': 'Easy Connection', 'description': "Designed for hassle-free integration of your RV's electrical system with the towed vehicle's system, making towing safer and more efficient."}
Mounting Hardware Included Yes/No: Yes
Installation Required Yes/No: Yes
Terminal Type: 4-Way Flat
2770: No
488: Yes
Make towing a breeze with the Blue Ox BX88285 TrlrWireInstKt. This innovative kit simplifies connections between your RV electrical system and the vehicle you're towing. Forget about complicated procedures and time-consuming installations - the EZ Light wiring harness lets you connect your RV to your vehicle's electrical system in a snap, taking as little as 15 minutes. This kit comes with everything you need, including mounting hardware, to ensure an easy and efficient installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94941 Year
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2017 | Jeep Wrangler | — |
| 2018 | Jeep Wrangler JK | — |
Yes, the BlueOx EZ Light Wiring Harness Kit For Select RUBICON/WRANGLER BX88285 (Part #FDRWBX88285) is designed to fit the 2007-2017 Jeep Wrangler.
The BlueOx EZ Light Wiring Harness Kit For Select RUBICON/WRANGLER BX88285 (Part #FDRWBX88285) fits the following vehicles: 2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK. Always verify your specific year, make, and model before ordering.
The BlueOx EZ Light Wiring Harness Kit For Select RUBICON/WRANGLER BX88285 (Part #FDRWBX88285) fits 2007-2017 Jeep Wrangler models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx EZ Light Wiring Harness Kit For Select RUBICON/WRANGLER BX88285 (Part #FDRWBX88285) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

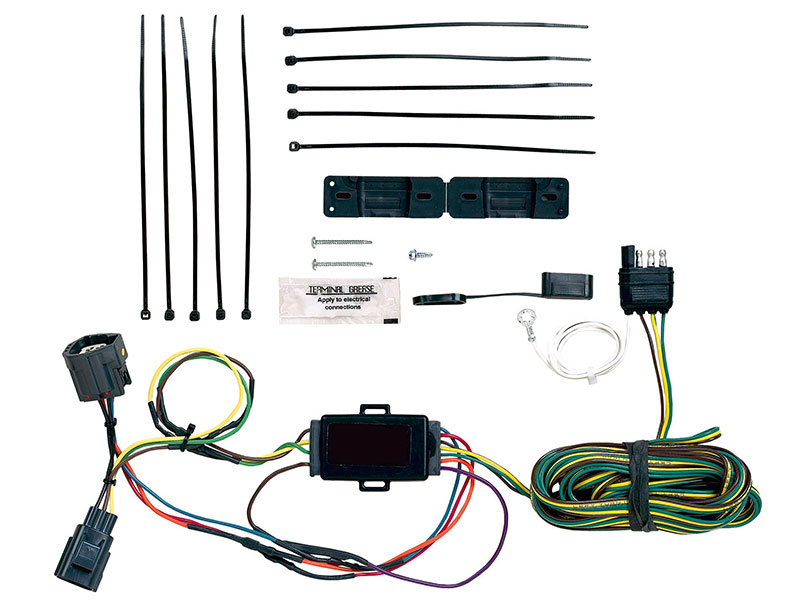

The BX88285 is a wiring harness kit designed to connect a vehicle's tail lights to an RV electrical system for towing. It includes a converter box, wiring with yellow and green connectors for driver and passenger side tail lights, a 4-way flat harness for the front of the vehicle, a grounding wire with ring terminal, double-stick tape for mounting the converter box, and a screw for securing the ground wire.
The manual does not specify vehicle year, make, model, cab style, bed length or drivetrain compatibility. Contact Blue Ox customer service at (402) 385-3051 or consult a fitment database to confirm compatibility with your specific vehicle before purchasing.
The manual specifies a drill for the 3/32" grounding hole. You will also need basic hand tools to remove and reinstall tail light housings (likely a screwdriver), wire strippers, a crimper for the ring terminal, and zip ties. The manual does not list all required tools; consult the manufacturer if you are unsure what you have on hand.
The kit includes a converter box, wiring harness with yellow and green connectors, a 4-way flat harness, a white grounding wire with ring terminal, a screw for the ground connection, double-stick tape for mounting the converter box, and zip ties for securing wiring.
Yes. The kit includes a 4-way flat harness but not the bracket or socket. You must either purchase a 4-way flat bracket separately or choose to cut off the harness plug and splice the wires into a trailer plug socket of your preferred style.
The manual does not specify whether the battery must be disconnected. Contact Blue Ox customer service at (402) 385-3051 for guidance on safe electrical disconnection procedures before starting installation.
Mount the converter box on the driver side behind the tail light. Find and clean an area in that location, then secure it using the double-stick tape provided in the kit.
Disconnect the factory wiring harness from both tail lights. Plug the wiring kit end with the yellow wire into the mating plug on the driver side taillight connector and the vehicle wiring harness connector. Route the green wire connector towards the passenger side through the opening between the vehicle's frame and body, avoiding the exhaust and areas that could pinch or cut the wire. Plug the green wire end into the mating plug on the passenger side taillight connector and the vehicle wiring harness connector.
Route the wiring kit connector with the green wire towards the passenger side through the opening between the vehicle's frame and body. Make sure to avoid the exhaust and areas that could pinch or cut the wire. Route the wiring kit connector up through the opening in the vehicle frame and body. Secure all loose wiring to the vehicle with zip ties. Route the 4-way flat harness towards the front of the vehicle, securing it with zip ties. When reinstalling tail light housings, position the wire harness between the housing and the vehicle body, and secure the remainder of the wiring harness in a secure area with zip ties.
The yellow wire connects to the driver side tail light. The green wire connects to the passenger side tail light.
Mount the 4-way flat bracket or socket in a convenient location at the front of the vehicle. The manual does not specify exact mounting height, angle or distance from the bumper; choose a location that is accessible and protected from damage.
Yes. You must drill a 3/32" hole to secure the white grounding wire with its ring terminal. Do not drill into any exposed surfaces or the vehicle floor or bed.
Drill a 3/32" hole for the grounding wire ring terminal.
Locate a suitable grounding point near the front connector location. The grounding point must be clean (free of dirt, paint and rust proofing material) and must not be on any exposed surfaces or the vehicle floor or bed.
The manual does not provide a torque specification for the grounding screw. Contact Blue Ox customer service at (402) 385-3051 for the correct torque value.
The grounding wire is white. It is secured with a ring terminal and a screw to a suitable grounding point near the front connector.
Yes. Apply a small amount of dielectric grease to the 4-way flat terminals to prevent corrosion.
Route the wiring away from the exhaust and areas that could pinch or cut the wire. When removing and reinstalling tail light housings, be careful not to break the alignment tabs or housing. Do not drill the grounding hole into any exposed surfaces or the vehicle floor or bed.
Connect the harness to the RV electrical system and test all functions with the engine running to ensure proper operation. The manual does not provide specific testing procedures or expected electrical readings; contact Blue Ox customer service at (402) 385-3051 if you need detailed testing guidance.
The manual does not specify a maintenance schedule. Blue Ox offers service at rallies and at their factory for a nominal fee to ensure the towing system is in proper working condition. Contact (402) 385-3051 or visit www.blueox.com for service locations and schedules.
The manual does not list specific vehicle compatibility. Contact Blue Ox at (402) 385-3051 or check a fitment database with your vehicle's year, make and model.
You must purchase either a 4-way flat bracket or a trailer plug socket of your preferred style. The kit includes the harness but not the connector housing.
Yes. You must drill a 3/32" hole for the white grounding wire. Do not drill into exposed surfaces, the vehicle floor or bed.
Yellow wire to driver side tail light; green wire to passenger side tail light.
Yes. Apply a small amount of dielectric grease to the 4-way flat terminals to prevent corrosion.
Connect to the RV electrical system and test all functions with the engine running to ensure proper operation.
