BlueOx EZ Light Wiring Harness Kit For Select LIBERTY BX88283Blue OxOriginal price was $699.99. Current price is $142.90.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2010 Ford Edge
Confirmed to Fit
2008 - 2012 Ford Escape
Confirmed to Fit
2009 - 2014 Ford F-150
Confirmed to Fit
2005 - 2007, 2011 Ford Ranger
Confirmed to Fit
2007 - 2010 Lincoln MKX
Confirmed to Fit
2008 - 2011 Mazda Tribute
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Feature 1: Eliminates the need for complex wiring tasks, connecting your RV and towed car's electrical systems in as little as 15 minutes.
Mounting Hardware Included Yes/No: Yes
Installation Required Yes/No: Yes
Terminal Type: 4-Way Flat
2770: No
488: Yes
Simplify your journey with the Blue Ox BX88287 EZ Light Wiring Harness. This innovative product effortlessly connects your RV's electrical system to a car being towed behind it, eliminating the hassle of prolonged installation. The kit includes all necessary mounting hardware for a seamless setup. With its 4-Way Flat Terminal Type, this wiring harness promises efficient connectivity. The installation, while required, is straightforward and quick, taking as little as 15 minutes. Make your travels easier with the Blue Ox BX88287 EZ Light Wiring Harness.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94941 Year
6 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2010 | Ford Edge | — |
| 2008 - 2012 | Ford Escape | — |
| 2009 - 2014 | Ford F-150 | — |
| 2005 - 2007, 2011 | Ford Ranger | — |
| 2007 - 2010 | Lincoln MKX | — |
| 2008 - 2011 | Mazda Tribute | — |
On Sale Today
Original price was $699.99. Current price is $142.23.You save $557.76 (80%)
Free Shipping
Ships free on all orders
Authorized DealerThe BX88287 is a Blue Ox wiring harness designed to integrate a vehicle's tail lights with an RV electrical system for towing. It includes a converter box, wiring with colour-coded ends (yellow for driver side, green for passenger side), a 4-way flat harness, and a grounding wire with ring terminal. The system allows the towing vehicle's lights to communicate with the RV being towed.
The manual does not specify which vehicle makes, models, years, or body styles are compatible with the BX88287. Contact Blue Ox customer service at (402) 385-3051 or consult a fitment database to confirm compatibility with your specific vehicle.

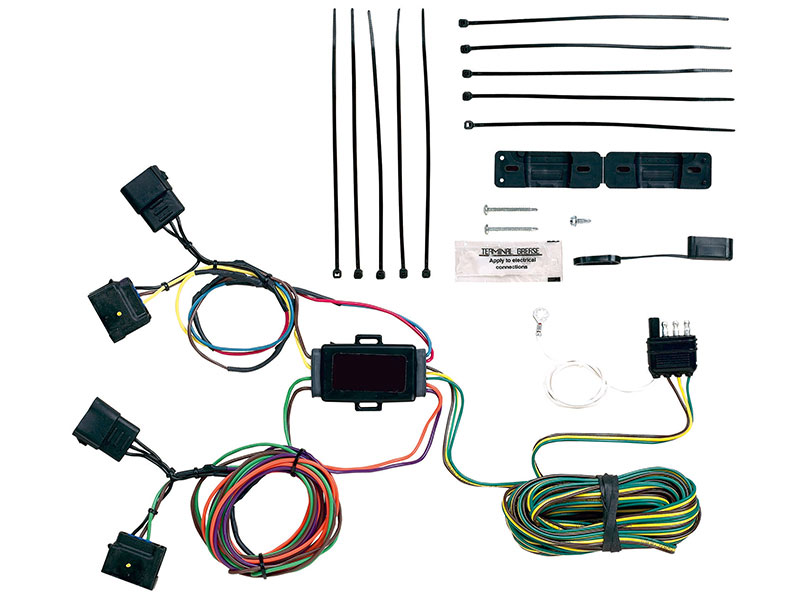

The kit includes: a converter box, wiring harness with yellow-wire end (driver side) and green-wire end (passenger side), a 4-way flat harness, a white grounding wire with ring terminal, double-stick tape for mounting the converter box, a screw for securing the grounding wire, and a 4-way flat bracket. You will also need zip ties to secure the wiring, though the manual does not specify if these are included.
You will need a drill with a 3/32" bit to create the grounding hole. The manual does not specify other tools required to remove and reinstall tail light housings, as these vary by vehicle. You will also need zip ties to secure the wiring harness.
The manual does not specify whether battery disconnection is required. Contact Blue Ox customer service at (402) 385-3051 for guidance on this safety step.
The manual provides step-by-step installation instructions for owner installation. However, it does not explicitly state whether professional installation is recommended. If you are uncomfortable working with vehicle wiring or tail light removal, contact Blue Ox at (402) 385-3051 or a qualified installer.
Remove the fasteners holding the tail light housings in place on both the driver and passenger side. Carefully pull the housings away from the vehicle, being careful not to break the alignment tabs or housing. The specific fastener types and locations vary by vehicle; consult your vehicle's service manual for details.
Mount the converter box on the driver side behind the tail light using the double-stick tape provided. Clean the mounting area first to ensure good adhesion. The manual does not specify alternative mounting locations.
Disconnect the original wiring harness from both tail lights. Plug the wiring kit end with the yellow wire into the mating plugs on the driver side taillight connector and the vehicle wiring harness connector. Route the wiring kit end with the green wire to the passenger side and plug it into the mating plugs on the passenger side taillight connector and the vehicle wiring harness connector.
Secure all loose wiring to the vehicle with zip ties. Route the 4-way flat harness towards the front of the vehicle, securing it with zip ties. When reinstalling tail light housings, position the wire harness between the housing and the vehicle body. Secure the remainder of the wiring harness in a secure area with zip ties to prevent damage and interference.
You can either install the 4-way flat harness into the 4-way flat bracket provided, or cut off the harness plug and splice the wires into your preferred style of trailer plug socket. Mount the bracket or socket in a convenient location at the front of the vehicle.
Yes. You must drill a 3/32" hole to secure the white grounding wire with its ring terminal. Do not drill into any exposed surfaces, the vehicle floor, or the bed. Locate a suitable grounding point near the connector, clean it of dirt, paint, and rust proofing material, drill the hole, and secure the wire with the screw provided.
Drill a 3/32" hole for the grounding wire ring terminal.
Locate a suitable grounding point near the connector at the front of the vehicle. Clean the area of dirt, paint, and any rust proofing material before drilling. Do not drill into any exposed surfaces, the vehicle floor, or the bed.
Yellow wire: connects to the driver side tail light. Green wire: connects to the passenger side tail light. White wire: the grounding wire that must be secured to a grounding point with the ring terminal and screw provided.
Yes. Apply a small amount of dielectric grease to the 4-way flat terminals to prevent corrosion.
Connect the harness to the RV electrical system and test all functions with the engine running to ensure proper operation. The manual does not specify which functions to test or how to diagnose failures.
Do not break the alignment tabs or housing when pulling the tail light housings away from the vehicle. Careful handling is required to prevent damage.
Do not drill into any exposed surfaces, the vehicle floor, or the bed. Choose a suitable grounding point that avoids these areas.
The manual does not specify a maintenance schedule. Blue Ox offers service at rallies and at their factory for a nominal fee to ensure the towing system is in proper working condition. Contact (402) 385-3051 for details.
The manual does not list specific vehicle compatibility. Contact Blue Ox at (402) 385-3051 or check a fitment database with your vehicle's year, make, and model.
A drill with a 3/32" bit for the grounding hole, and zip ties to secure the wiring. Vehicle-specific tools may be needed to remove tail light housings.
Yes, you must drill a 3/32" hole for the grounding wire. Do not drill into exposed surfaces, the vehicle floor, or bed.
Plug the yellow wire end into the driver side tail light connectors, and the green wire end into the passenger side tail light connectors.
