BlueOx EZ Light Wiring Harness Kit For Select EDGE BX88287Blue OxOriginal price was $699.99. Current price is $142.23.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2015 Lincoln MKX
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Easy Installation: The Blue Ox BX88280 offers a simple installation process that can be completed in as few as 15 minutes.
Installation Required Yes/No: Yes
Mounting Hardware Included Yes/No: Yes
Terminal Type: 4-Way Flat
2770: No
488: Yes
The Blue Ox BX88280 EZ Light Wiring Harness Kit is the perfect solution for syncing your RV and towed vehicle's electrical systems. This advanced kit allows for a quick and easy installation, taking as little as 15 minutes to set up. The kit includes all necessary mounting hardware, making this a complete package for all your vehicle's towing needs. This harness kit is designed with a 4-Way Flat Terminal Type, ensuring maximum compatibility and efficiency. No longer worry about the hassle of connecting your electrical systems - choose the Blue Ox BX88280 for a seamless, stress-free experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2015 | Lincoln MKX | — |
Yes, the BlueOx EZ Light Wiring Harness Kit For Select ESCAPE/EDGE/MKX/TRIB/MARI BX88280 (Part #FDRWBX88280) is designed to fit the 2011-2015 Lincoln MKX.
The BlueOx EZ Light Wiring Harness Kit For Select ESCAPE/EDGE/MKX/TRIB/MARI BX88280 (Part #FDRWBX88280) fits the following vehicles: 2011-2015 Lincoln MKX. Always verify your specific year, make, and model before ordering.
The BlueOx EZ Light Wiring Harness Kit For Select ESCAPE/EDGE/MKX/TRIB/MARI BX88280 (Part #FDRWBX88280) fits 2011-2015 Lincoln MKX models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx EZ Light Wiring Harness Kit For Select ESCAPE/EDGE/MKX/TRIB/MARI BX88280 (Part #FDRWBX88280) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

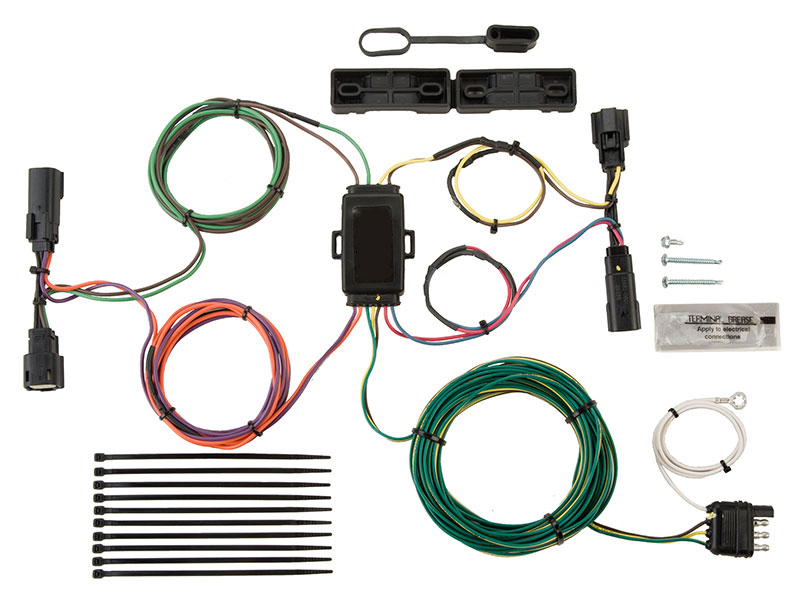

The BX88280 is a wiring harness kit that connects your vehicle's tail lights to an RV electrical system via a 4-way flat connector. It includes a converter box, wiring with yellow and green leads, a 4-way flat harness, mounting hardware, and a grounding wire with ring terminal.
The manual does not specify which vehicles or RV types are compatible with the BX88280. Contact Blue Ox customer service at (402) 385-3051 or consult a fitment database to confirm compatibility with your specific vehicle before purchasing.
You will need a drill with a 3/32" bit to create the grounding hole. A screwdriver is required to secure the grounding wire ring terminal. Zip ties are needed to secure the wiring harness throughout the vehicle. The manual does not specify whether additional tools such as a socket set, wire strippers, or crimpers are required.
The kit includes a converter box, wiring harness with yellow and green leads, a 4-way flat harness, double-stick tape for mounting the converter box, a white grounding wire with ring terminal, a screw for the grounding connection, and zip ties. A 4-way flat bracket or trailer plug socket is referenced but the manual does not confirm whether these are included.
The manual does not specify whether battery disconnection is required. Contact Blue Ox customer service at (402) 385-3051 for guidance on this safety step before beginning installation.
Remove the fasteners holding the tail light housings in place on both the driver and passenger side. Carefully pull the housings away from the vehicle, being careful not to break the alignment tabs or housing. Keep the fasteners for reinstallation.
Mount the converter box on the driver side behind the tail light. Find and clean an area first, then use the double-stick tape provided to secure the converter box in place.
Disconnect the original wiring harness from both tail lights. Plug the wiring kit end with the yellow wire into the mating plugs on the driver side taillight connector and the vehicle wiring harness connector. Route the wiring kit end with the green wire to the passenger side and plug it into the mating plugs on the passenger side taillight connector and the vehicle wiring harness connector.
Secure all loose wiring to the vehicle with zip ties as you work. Route the 4-way flat harness towards the front of the vehicle, securing it with zip ties. When reinstalling the tail light housings, position the wire harness between the housing and the vehicle body. Secure the remainder of the wiring harness in a secure area with zip ties to prevent damage and movement.
You can either install the 4-way flat harness into a 4-way flat bracket, or cut off the harness plug and splice the wires into your preferred style of trailer plug socket. The manual does not specify which socket styles are compatible or whether the bracket is included.
Mount the 4-way flat bracket or socket in a convenient location at the front of the vehicle. The manual does not specify exact mounting height, clearance requirements, or whether the bracket is included with the kit.
Yes. You must drill a 3/32" hole for the grounding wire connection near the front connector. Before drilling, locate a suitable grounding point and clean dirt, paint and any rust proofing material from the area. Do not drill into any exposed surfaces or the vehicle floor or bed.
Drill a 3/32" hole for the grounding wire connection. Locate a suitable grounding point near the front connector, clean the area of dirt, paint and rust proofing material, then drill the hole and secure the white wire with the ring terminal using the screw provided.
The manual does not specify a torque value for the grounding screw. Contact Blue Ox customer service at (402) 385-3051 for the correct torque specification.
The yellow wire connects to the driver side tail light. The green wire connects to the passenger side tail light. The white wire is the grounding wire that must be secured to a suitable grounding point near the front connector with a ring terminal and screw.
Yes. Apply a small amount of dielectric grease to the 4-way flat terminals to prevent corrosion. This should be done before connecting to the RV electrical system.
Connect to the RV electrical system and test all functions with the engine running to ensure proper operation. The manual does not specify which functions to test or what proper operation looks like.
When removing the tail light housings, be careful not to break the alignment tabs or housing. These are fragile components that can be damaged if excessive force is applied or if the housing is twisted during removal.
Do not drill into any exposed surfaces or the vehicle floor or bed. Drilling into these areas could damage the vehicle structure, create safety hazards, or compromise the integrity of the vehicle. Locate a suitable grounding point that avoids these areas.
The manual does not specify vehicle compatibility. Contact Blue Ox at (402) 385-3051 or check a fitment database before purchasing.
Yellow wire connects to the driver side tail light, green wire to the passenger side, and white wire is the ground. Apply dielectric grease to the 4-way flat terminals to prevent corrosion.
Connect to the RV electrical system and test all functions with the engine running to ensure proper operation.
