LED Light Type: Offering superior brightness and longevity, these LED lights outshine traditional bulb types.
Light Type: LED
Light Color: Clear
Installation Required Yes/No: Yes
2770: No
488: Yes

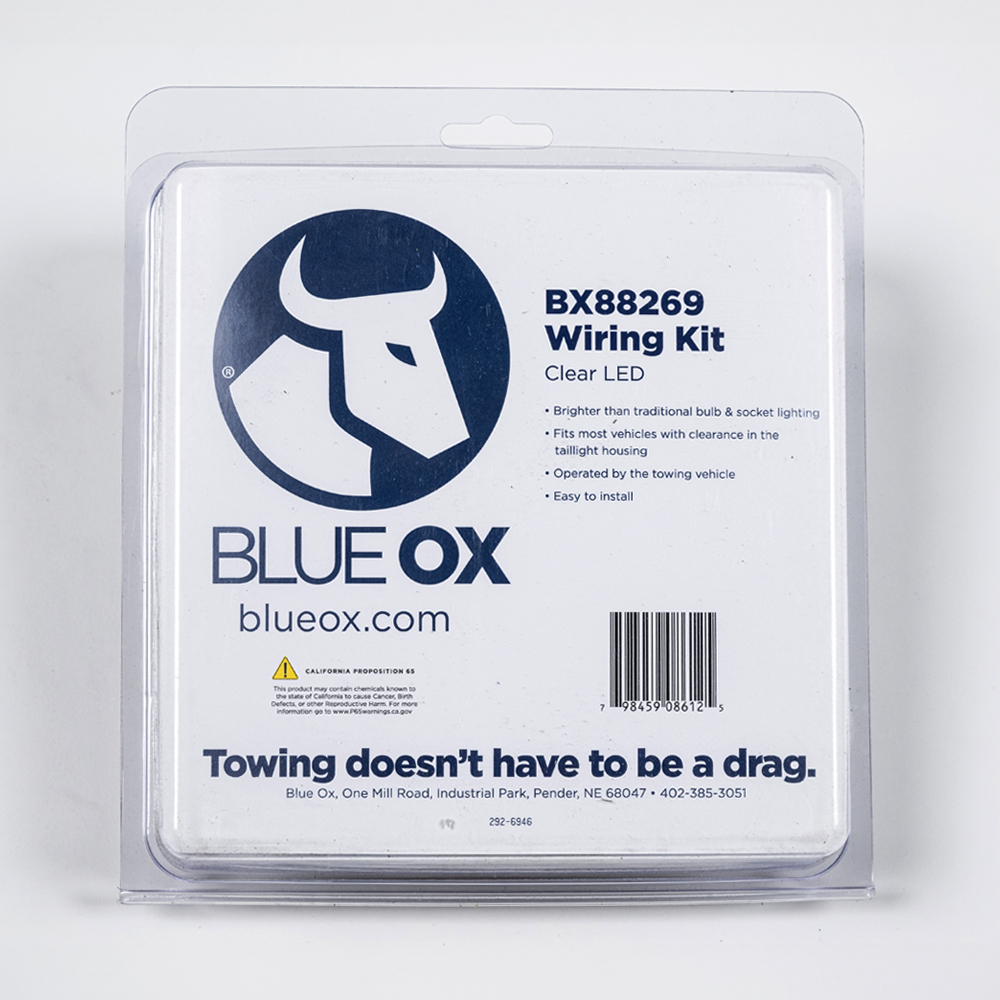

Experience an enhanced towing experience with the Blue Ox BX88269 TrlrWireInstKt. This upgraded LED bulb and socket kit is a game-changer for anyone in need of bright, clear light in compact spaces. Compared to traditional bulb and socket kits, our LED versions are significantly brighter and smaller, making the installation process a breeze even in compact taillight housings. With no need to tap into your vehicle's existing wiring, this kit is operated solely by the towing vehicle, making it an easy and efficient lighting solution.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94941 Year
The BX88269 is a tail light wiring kit designed to add LED bulb and socket assemblies to a towed vehicle in a motorhome setup. The kit includes a 26-foot wiring harness, two clear LED bulb and socket assemblies, brown and green 16-gauge wires, butt connectors, a ring terminal, and self-tapping screws. It allows the towed vehicle's tail lights to be controlled by the towing vehicle's brake and turn signal inputs.
The manual states the kit is for towed vehicles in motorhome setups and requires a 4 or 6 pin connector mounted to the front of the towed vehicle. The specific vehicle compatibility is not detailed in the manual. The bulb and socket assemblies are installed into the backside of the vehicle's tail light assemblies, requiring a flat location with clearance for the bulb inside and socket on the back. Contact Blue Ox at (402) 385-3051 or consult a fitment database for specific vehicle compatibility.
No. If the towing vehicle is equipped with separate amber turn signals and red brake lights, a tail light converter (not included in the wiring kit) is needed to convert the amber/red 5-wire system to the standard "red only" 4-wire system. Without this converter, the system will not function properly.
The following tools are required: wire terminal crimper, wire stripper, small wire cutter, Phillips screwdriver, electrical tape, and a 1/2" drill bit. You will also need silicone caulk to seal the socket to the tail light housing, though the manual does not specify whether this is included.

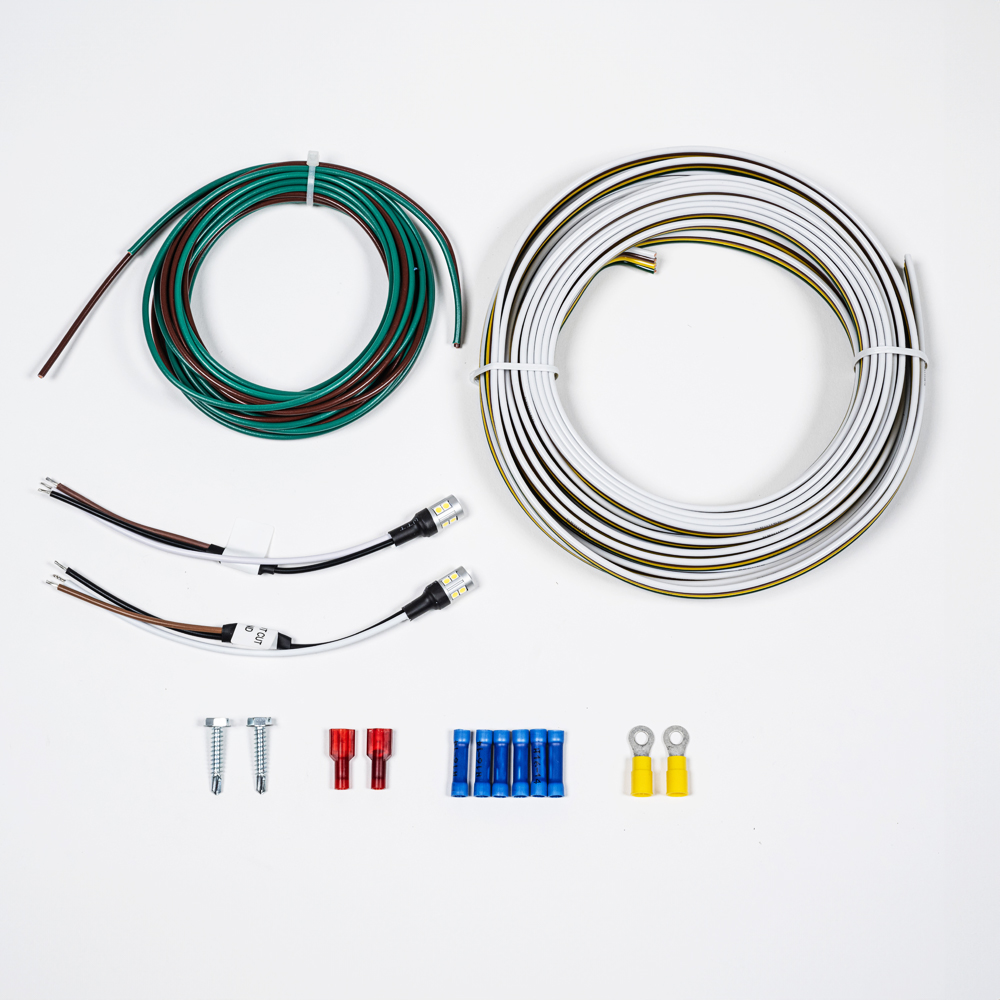

The kit includes: two #10-16 x 1" self-tapping screws (201-0654), 12 feet of 16-gauge brown wire (229-0540), 12 feet of 16-gauge green wire (229-0541), six 16-14 gauge butt connectors (294-0250), one 10-12 gauge ring terminal (294-0327), a 26-foot wiring harness (294-0562), and two clear LED bulb and socket assemblies (294-0990).
Blue Ox recommends that a trained professional install the tail light wiring kit due to the risk of improper wiring, which may result in blown fuses, damaged wiring, fire, and/or bodily injury. Blue Ox will not be responsible for any personal property damage or bodily injury caused by improper wiring or misuse of this product.
Yes. A 4-wire or 6-wire trailer plug must be installed on the front of the towed vehicle using the 4-wire harness included in the kit. This plug is used to connect the towed vehicle to the towing vehicle for testing and operation. The plug is not included in the kit and must be sourced separately.
Starting in the engine compartment of the towed vehicle, run the 26-foot harness through the firewall, under the driver's side door sill plate, under the back seat, into the trunk area. Alternatively, you can run the harness through the engine compartment and beside the frame rail to the back of the vehicle. The routing depends on your motorhome setup.
Use a 1/2" drill bit to drill a hole into each tail light housing at the selected location. The location should be as flat as possible, with enough clearance for the bulb on the inside and the socket on the back side of the tail light assembly.
Yes. You must drill a 1/2" hole into each tail light housing to install the bulb and socket assemblies. The location should be as flat as possible with adequate clearance for the bulb inside and the socket on the back side.
After inserting the bulb and socket into the drilled hole, seal the socket to the tail light housing with a good silicone caulk. The manual does not specify whether silicone caulk is included in the kit.
The black/red wire is the brake/turn signal wire. The brown/white wire is the tail light wire. The white/green wire is the ground wire. Note: Original inventory had red/green/white wiring; newer inventory uses the standard black/brown/white wiring. Verify your kit's wire colors against the diagram on page 2 before installation.
Crimp the three brown/white wires together. These are the tail light wires from both sockets and the four-wire loom.
Crimp the green turn signal/brake wire from the four-wire loom, the green wire from the passenger's side socket, and the black/red (brake/turn signal) wire from the passenger's side together. At the driver's side socket, connect the black/red (brake/turn signal) wire and the yellow (brake/turn signal) wire from the four-wire loom. Refer to the wiring diagram on page 2.
The white/green (ground) wires should be grounded to the frame with ring terminals and self-tapping screws. The white wire from the four-wire loom should be connected with the white/green wire from the driver's side socket, then grounded to the frame. Proper grounding is critical for system operation.
After wiring is complete, place the wires out of the way and test the system before attaching the tail light assemblies back onto the vehicle. A 4-wire or 6-wire trailer plug must be installed on the front of the towed vehicle. Once installed, plug the vehicles together with the coach and test each turn signal and the brake lights. If lights do not work properly, there is likely a loose connection or wiring error. Recheck all connections, especially the ground connections.
A heavy duty flasher unit may be required in the towing vehicle to power the added circuit load of a towed vehicle. If the lights are dim, activate another light, or do not work properly, the towing vehicle's flasher unit may be inadequate and should be upgraded.
The BX88269 is designed for towed vehicles in motorhome setups with a 4 or 6 pin connector on the front. Specific vehicle compatibility is not listed in the manual. Contact Blue Ox at (402) 385-3051 for fitment confirmation.
You need a wire terminal crimper, wire stripper, small wire cutter, Phillips screwdriver, electrical tape, 1/2" drill bit, and silicone caulk. A 4-wire or 6-wire trailer plug must also be sourced separately.
Yes. You must drill a 1/2" hole into each tail light housing to install the bulb and socket assemblies.
Black/red is brake/turn signal, brown/white is tail light, and white/green is ground. Older kits may have red/green/white wiring; verify against the diagram on page 2.
Blue Ox recommends professional installation due to the risk of improper wiring causing blown fuses, damaged wiring, fire, or bodily injury. Blue Ox is not responsible for damage caused by improper installation.
Install a 4-wire or 6-wire trailer plug on the towed vehicle's front, connect the vehicles, and test each turn signal and brake light. If lights don't work, check for loose connections or wiring errors, especially ground connections.
Possible causes include: a short circuit in the system on either or both vehicles; the towing vehicle's alternator is too small; the towing vehicle's wiring is too light to handle the extra power requirements; or the towing vehicle may require a heavy duty flasher unit to handle the extra load. Check for short circuits by testing continuity of all wires to ground. Upgrade the alternator or wiring if undersized, or install a heavy duty flasher unit.
Possible causes include: wiring error to the bulb and sockets; bad ground on either or both vehicles; blown fuse in the towing vehicle; bad connection between the female and male plugs; or short circuit in the harness. Check continuity of all wires to ground to assure the harness is not short circuited. Verify all wiring connections are correct, especially ground connections. Clean both four-way connections and ensure solid contact.
