1. Superior Compatibility: The BXW4023 Tow Bar Bracket is designed to work flawlessly with Blue Ox over the frame weight distribution brackets.
Finish: Powder Coat
Installation Required Yes/No: Yes
Introducing the Blue Ox BXW4023 Tow Bar Bracket - your ultimate towing companion! This high-quality bracket is expertly designed to work seamlessly with Blue Ox over the frame weight distribution brackets. Enhancing your towing experience, this bracket ensures a safer and more balanced ride. Crafted with a durable powder coat finish, the BXW4023 offers robust protection against rust and corrosion. Installation is required but straightforward, providing you with the ability to set it up yourself.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
The BXW4023 is a pole tongue adapter kit that allows you to attach a pole (such as a satellite dish pole or antenna pole) to a trailer tongue. It clamps onto the tongue and provides a mounting point for latch brackets that secure the pole.
The BXW4023 fits trailer tongues with widths from 2-3/4" to 4-1/2" and heights from 3" to 6".
The maximum tongue weight capacity is 2,000 lbs.
The BXW4023 fits trailer tongues 2-3/4" to 4-1/2" wide and 3" to 6" tall, with a maximum tongue weight capacity of 2,000 lbs. Measure your tongue width and height to confirm compatibility.
You will need a tape measure, 3/4" socket, and 3/4" wrench.
You need a tape measure, 3/4" socket, and 3/4" wrench.

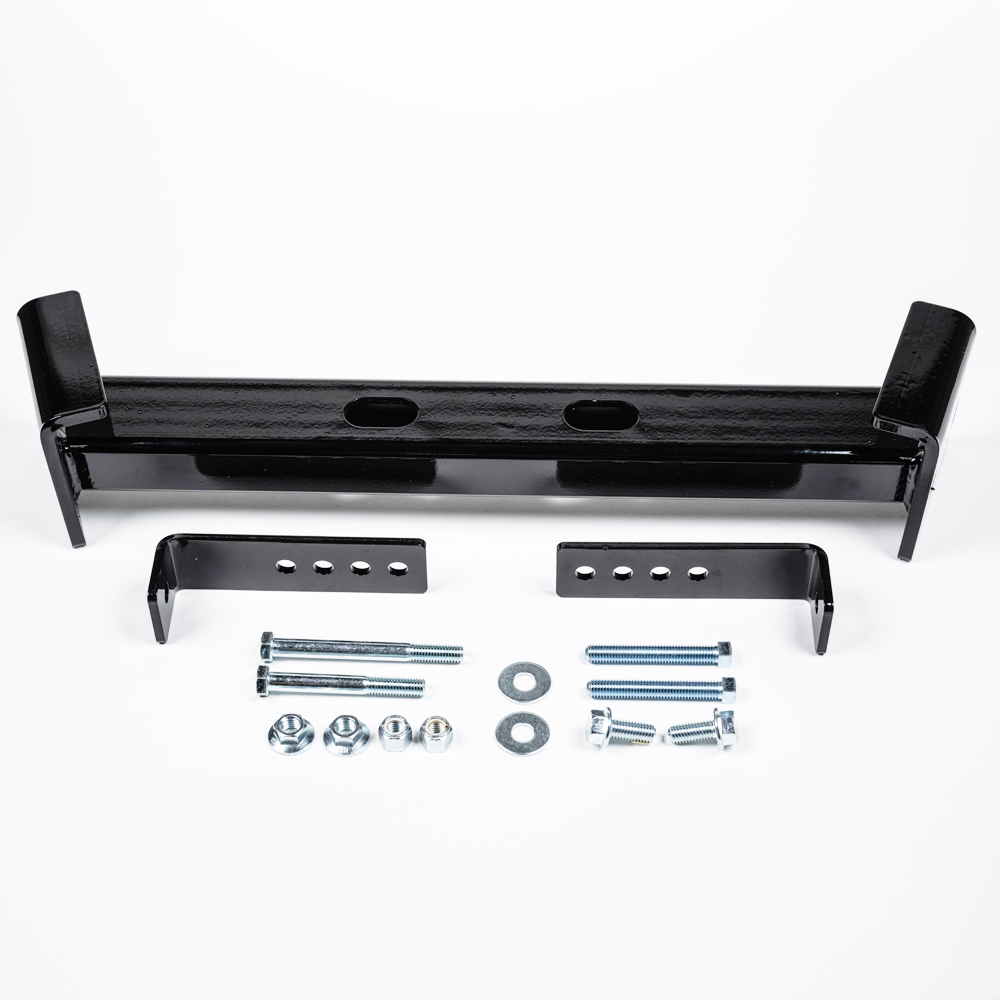

The kit includes: 1 pole tongue adapter (61-8220), 2 frame mounting plates (101-10273), 2 set screws 1/2"-13 x 3-1/2" (101-0538), 1 hex head bolt 1/2"-13 x 4" Grade 5 (201-0581), 1 hex head bolt 1/2"-13 x 5" Grade 5 (201-0786), 2 whiz flange bolts 1/2"-13 x 1-1/4" Grade 5 (201-1048), 2 hex flange whiz lock nuts 1/2"-13 (202-0072), 1 hex nylon insert lock nut 1/2"-13 (202-0094), and 2 flat washers 1/2" (203-0005).
Measure 26-1/4" from the center of the coupler to the center of the pole tongue adapter. This measurement may vary depending on the weight distribution system used on your trailer.
Center the adapter on the tongue and measure 26-1/4" from the center of the coupler to the center of the adapter. This may vary depending on your weight distribution system.
The 1/2"-13 x 1-1/4" whiz flange bolts should be tightened to 78 ft/lbs.
Tighten the 1/2"-13 x 1-1/4" bolts to 78 ft/lbs.
1. Center the pole tongue adapter on the trailer tongue and measure 26-1/4" from the coupler center to the adapter center (may vary with weight distribution system). 2. Start the 1/2"-13 x 1-1/4" bolts with hardware, loosely attaching the frame mounting bracket. 3. Ensure the adapter is centered and frame mounting plates are against the frame, then tighten the 1/2"-13 x 1-1/4" bolts to 78 ft/lbs. 4. Insert the 1/2"-13 x 4" or 1/2"-13 x 5" bolt with hardware directly under the trailer tongue and tighten until brackets and adapter are clamped securely. Do not over tighten. 5. Install latch brackets onto the adapter per the manufacturer's instructions.
No. Do not over tighten the 1/2"-13 x 4" or 1/2"-13 x 5" bolt under the trailer tongue, as this can cause damage to the trailer tongue. Tighten only until the brackets and adapter are clamped securely.
Do not over tighten the bolt under the trailer tongue, as this can damage the trailer tongue. Tighten only until brackets and adapter are clamped securely. The maximum tongue weight capacity is 2,000 lbs.
Yes. After installing the adapter, you must install latch brackets onto the adapter per the manufacturer's instructions. The latch brackets are not detailed in this manual.
Yes. Start the 1/2"-13 x 1-1/4" bolts with hardware loosely to attach the frame mounting bracket. Then ensure the adapter is centered and the frame mounting plates are against the frame before tightening the bolts to 78 ft/lbs.
The frame mounting plates should be against the frame. Ensure the adapter is centered on the trailer tongue before tightening the 1/2"-13 x 1-1/4" bolts to 78 ft/lbs.
